Do you have a question about the MO60L01 and is the answer not in the manual?
Questions and answers
Richard Bott
May 3, 2025
Repair self propel mechanism manual
1 comments:
Mr. Anderson
May 17, 2025
To repair the self-propel mechanism for the GreenWorks MO60L01, follow these steps based on the parts and assembly information:
1. Inspect the Self-Propel Components: - Check the self-propel lever, bail lever, and self-propel speed controls for damage or disconnection. - Ensure the gear box (Part No. 349011179K) and gear box bracket (Part No. 332031179) are securely attached and not damaged.
2. Check the Drive System: - Examine the drive levers and speed control for proper operation. - Make sure the drive levers engage when pulled and disengage when released.
3. Inspect Related Parts: - Look for any loose or missing bolts (Part No. 3221637 or 3220504). - Confirm the torsional spring (Part No. 332111179) and axle (Part No. 332021179) are intact and properly installed.
4. Replace Damaged Parts: - If any parts are worn or broken, replace them using the correct part numbers from the parts list.
5. Reassemble and Test: - After replacing or adjusting components, reassemble the mower and test the self-propel system by engaging the levers and adjusting speed.
If the issue persists, further inspection or professional servicing may be required.
SAFETY INFORMATION GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY W A R N I N G This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower.
Page 4
SAFETY INFORMATION – Do not smoke, strike a match, or cause a spark in the vicinity of the battery during charging. – Store indoors, and do not expose to rain or water, avoid direct sunshine. – Double insulation - When servicing, use only identical replacement parts. –...
Page 5
SAFETY INFORMATION • Mow only in daylight or in good artificial light. Do not rush a mowing job. • Stop the blade when crossing gravel driveways, walkways, or roads. • If the mower starts to vibrate excessively, stop the motor and check for the cause immediately. Excessive vibration is generally a sign the mower is not functioning properly.
Page 6
SAFETY INFORMATION CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of children. • Keep children out of the mowing area and under the watchful care of a responsible adult. • Do not allow children under the age of 14 to operate this mower. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual, and must be trained and supervised by a parent.
Page 7
SAFETY INFORMATION • Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. • Always remove battery pack before storing the device. When battery becomes fully charged, unplug the charger from the power supply and remove the battery pack from the charger.
Page 8
SAFETY INFORMATION W A R N I N G When transporting or servicing unit, always remove the battery. W A R N I N G ( P R O P O S I T I O N 6 5 ) Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
Page 10
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, WARNING could result in death or serious injury.
KNOW YOUR LAWN MOWER Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Self propel lever Bail lever Safety lock-out button...

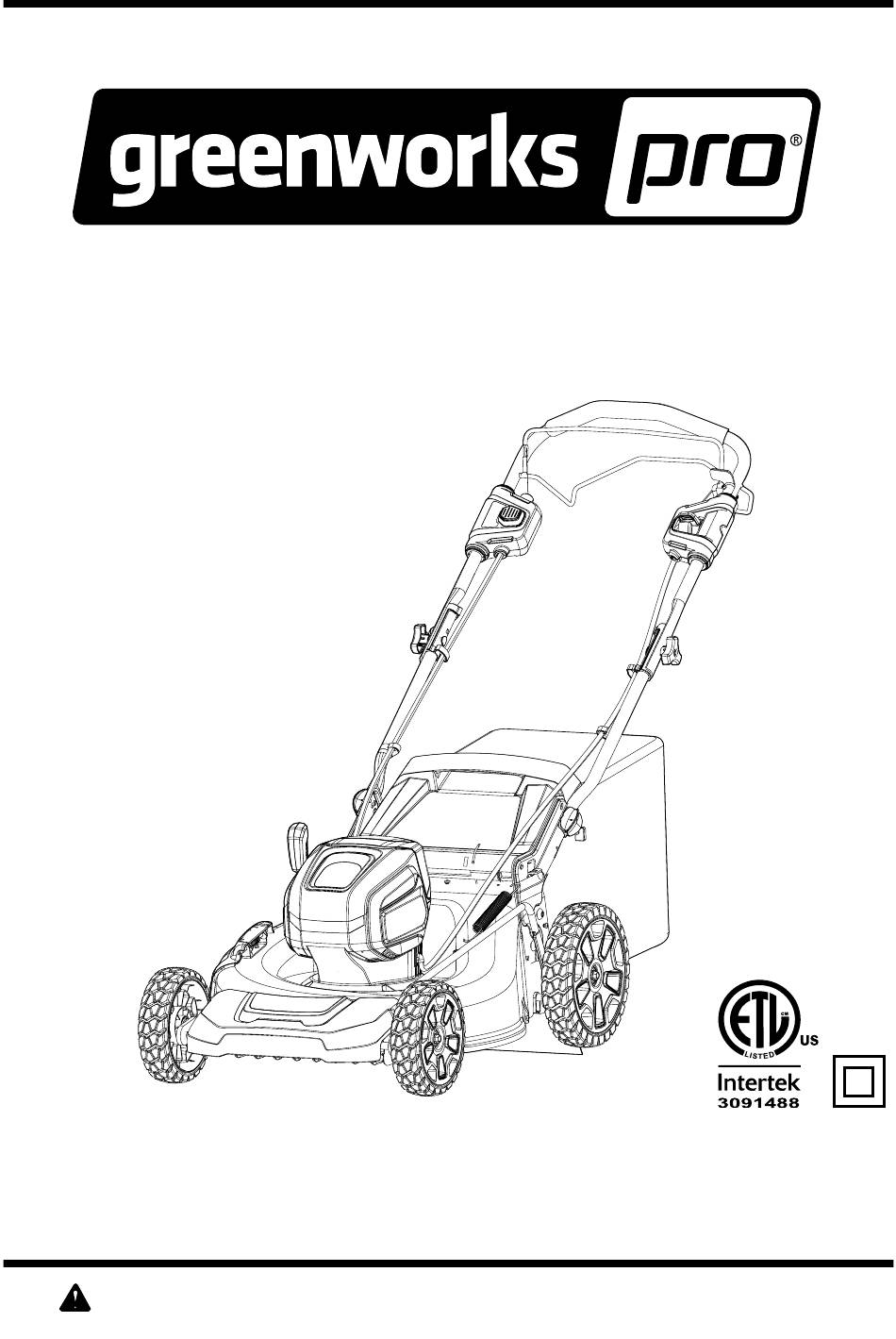

PART NO. Lawn Mower Mulching Plug Side Discharge Chute Grass Catcher Bag Handle Knob Handle Bolt 21” 60V Cordless Self-propelled Mower MO60L01 Owner’s Manual Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
Page 13
ASSEMBLY INSTRUCTIONS UNPACKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
Page 14
ASSEMBLY INSTRUCTIONS UNFOLDING AND ADJUSTING LOWER HANDLE (See Figure 2) W A R N I N G Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cables when folding or unfolding the handle. •...
Page 15
ASSEMBLY INSTRUCTIONS INSTALLING THE UPPER HANDLE (See Figure 3) • Align the mounting holes on the upper handle (1) and the lower handle (2). Insert the carriage bolts (3) and use the knobs (4) to tighten them. Repeat the operation on the other side. (1) Upper handle (3) Bolt (4) Knob...
Page 16
ASSEMBLY INSTRUCTIONS INSTALLING THE GRASS CATCHER BAG (See Figure 4) • Lift the rear discharge door (1). • Lift the grass catcher by its handle (2) and place under the rear discharge door so that the hooks (3) on the grass catcher (4) are seated on the door rod (5). •...
Page 17
ASSEMBLY INSTRUCTIONS INSTALLING / REMOVING THE MULCHING PLUG (See Figure 5) • To remove the mulching plug, lift the rear discharge door (1). • Grasp the handle (2) of the mulching plug. Using this handle, lift and pull the mulch plug out. •...
Page 18
ASSEMBLY INSTRUCTIONS INSTALLING SIDE DISCHARGE CHUTE (See Figure 6) • Lift the side discharge cover (1). • Align the grooves (2) on the side discharge chute (3) with the pins (4) on the underside of the discharge cover. • Lower the discharge chute until the hooks on the mower deck are secured in the openings of the discharge chute.
Page 19
ASSEMBLY INSTRUCTIONS TO INSTALL BATTERY PACK (See Figure 7) • Lift and hold up the battery door (1). • Align the battery (2) with the mower’s battery port. • Make sure the battery release button (3) snaps in place and that battery is fully seated and secure in the mower before beginning operation.
OPERATING YOUR LAWN MOWER STARTING/STOPPING THE MOWER (See Figure 8) To start the motor: • Open the battery door. • Insert the battery. • Press and hold the safety lock-out button (1). • Pull the bail lever (2) upward to the handle to start the mower and release the button. To stop the motor: Release the bail lever (2).
Page 21
OPERATING YOUR LAWN MOWER SELF-PROPELLED MOWING (See Figure 9) To engage the self-propelled feature: • Open the battery door. • Insert the battery. • Pull the self propel lever (1) upward to meet the handle. To disengage the self-propelled feature: •...
Page 22
OPERATING YOUR LAWN MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 10) When shipped, the wheels on the mower are set at the lowest cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be between 1 1/2"...
Page 23
OPERATING YOUR LAWN MOWER SLOPE GAUGE (See Figure 11) W A R N I N G Slopes are a major factor related to accidents involving slips and falls, which can result in severe injury. Operating the mower on a slope requires extra caution. If you feel uneasy on a slope, do not mow it.
Page 24
OPERATING YOUR LAWN MOWER • Mow across the face of a slope, and never up and down. Exercise extreme caution when changing direction on a slope. • Watch for holes, ruts, rocks, hidden objects, or bumps that may cause a slip or a trip. Tall grass can hide obstacles.
Page 25
OPERATING YOUR LAWN MOWER MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section. •...
Page 26
OPERATING YOUR LAWN MOWER EMPTYING THE GRASS CATCHER BAG (See Figure 12) • Stop mower, allow blades to completely stop, and remove the battery. • Lift the rear discharge cover. • Lift the grass catcher bag by its handle to remove from mower. •...
MAINTENANCE REPLACING THE CUTTING BLADE (See Figure 13-14) W A R N I N G Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. ALWAYS remove the battery when servicing or transporting the mower.
Page 28
MAINTENANCE CLEANING THE MOWER W A R N I N G In order to reduce the risk of electric shock, do not expose the mower to water. The underside of the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other debris will accumulate, which will cause rust and corrosion.
Page 29
MAINTENANCE VERTICAL STORAGE FUNCTION (See Figure 15 ) • Remove the battery from the mower. • Remove the grass catcher bag. • Rotate the handle knobs to the unlocked position. • Lower the handle assembly and rotate the handle knobs to the locked position. •...
Page 30
MAINTENANCE • When servicing the mower, use only identical replacement parts that are available from the manufacturer. In order to obtain replacement parts, call the toll-free helpline, at 1-855-345- 3934. The use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety.
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this mower battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. Replace the switch (call the tollfree helpline, The switch is defective. at 1-855-345-3934. Grass jammed between the Remove battery; check under deck for jams. deck and blade. The mower does Check the connection between the battery The battery is not fully inserted...
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.
Need help?
Do you have a question about the MO60L01 and is the answer not in the manual?
Questions and answers
Repair self propel mechanism manual
To repair the self-propel mechanism for the GreenWorks MO60L01, follow these steps based on the parts and assembly information:
1. Inspect the Self-Propel Components:
- Check the self-propel lever, bail lever, and self-propel speed controls for damage or disconnection.
- Ensure the gear box (Part No. 349011179K) and gear box bracket (Part No. 332031179) are securely attached and not damaged.
2. Check the Drive System:
- Examine the drive levers and speed control for proper operation.
- Make sure the drive levers engage when pulled and disengage when released.
3. Inspect Related Parts:
- Look for any loose or missing bolts (Part No. 3221637 or 3220504).
- Confirm the torsional spring (Part No. 332111179) and axle (Part No. 332021179) are intact and properly installed.
4. Replace Damaged Parts:
- If any parts are worn or broken, replace them using the correct part numbers from the parts list.
5. Reassemble and Test:
- After replacing or adjusting components, reassemble the mower and test the self-propel system by engaging the levers and adjusting speed.
If the issue persists, further inspection or professional servicing may be required.
This answer is automatically generated
