EN

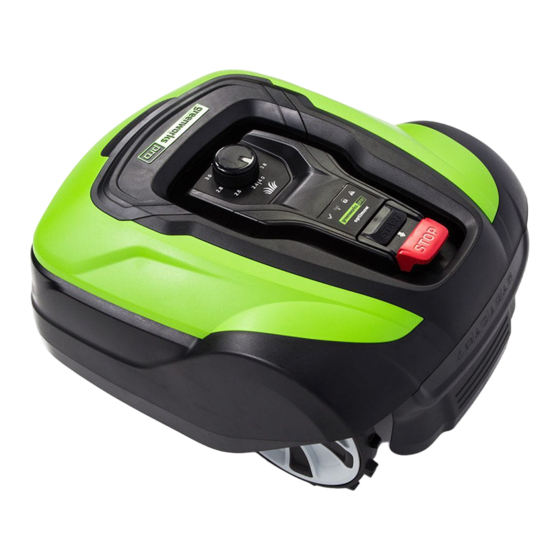

Robotic Lawnmower
FR
Tondeuse à gazon robotique
ES
Cortacésped robótico
Optimow 25H/ Optimow 50H
Optimow 25/ Optimow 50
OPERATOR'S MANUAL
MANUEL OPÉRATEUR
MANUAL DEL OPERARIO
www.optimow.com
2529802/2529902/
2530002/2530102

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optimow 50H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GreenWorks Pro Optimow 50H

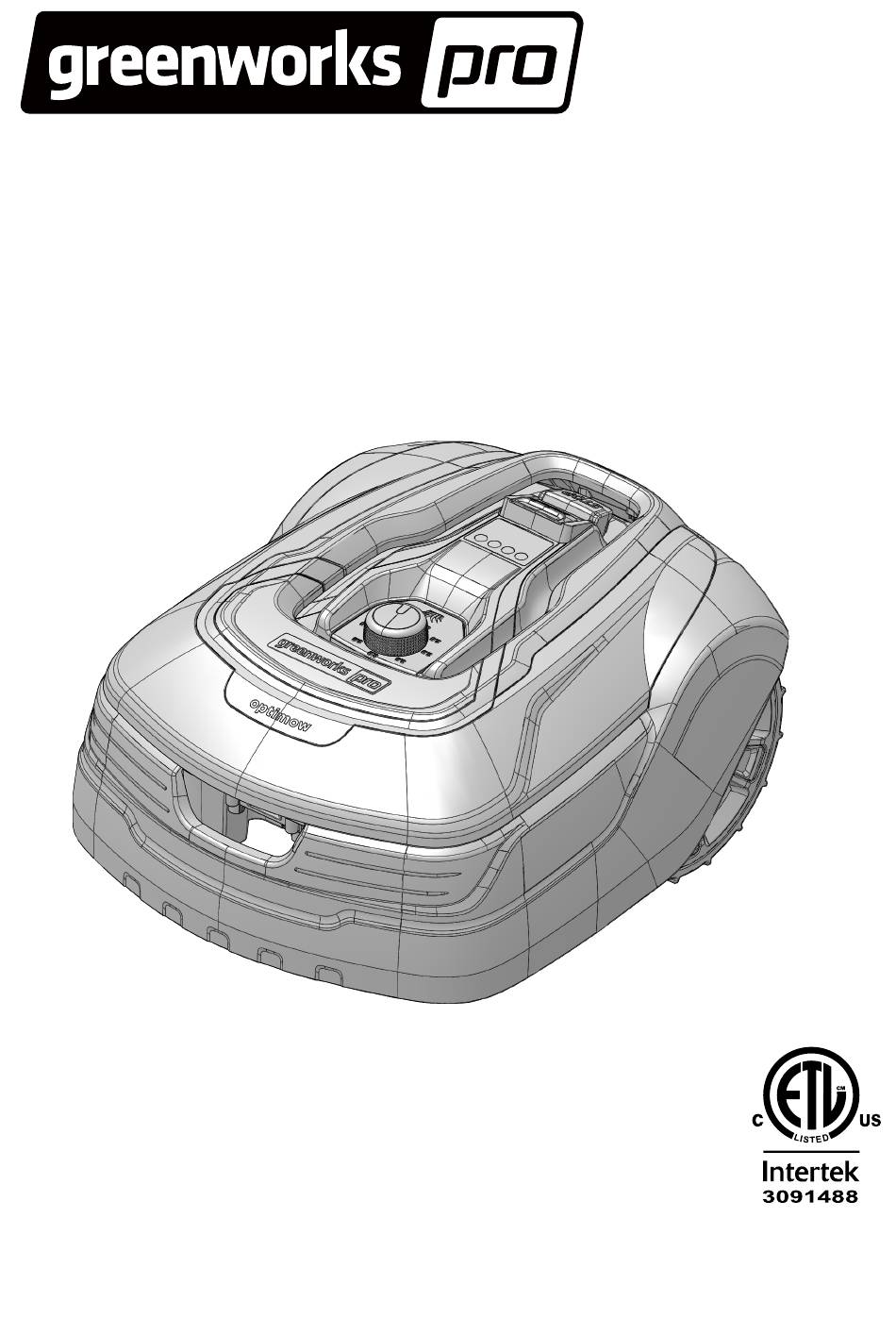

  • Page 1 2529802/2529902/ 2530002/2530102 Robotic Lawnmower OPERATOR’S MANUAL Tondeuse à gazon robotique MANUEL OPÉRATEUR Cortacésped robótico MANUAL DEL OPERARIO Optimow 25H/ Optimow 50H www.optimow.com Optimow 25/ Optimow 50...
  • Page 2 The following pages contain important safety and operating instructions Carefully read and review all safety instructions, warnings and cautions contained in this manual. Failure to read and follow these instructions, warnings and cautionary statements may result in severe injury or death to persons and pets or damage to personal property.
  • Page 3: Table Of Contents

    Contents Product Safety ..................4 Pairing Mobile App to Mower............20 Reading the operator manual ............4 Maintenance ..................21 Operational safety ................7 Removing the Body from Chassis ..........21 Product Unboxing ................... 8 Cleaning ..................21 Introduction .................... 9 Replacing Blades ................
  • Page 4: Product Safety

    Product Safety As a complement to this operator manual, more information is available on the website: www.optimow.com EXPLANATION OF SYMBOLS ON THE MOWER This is a dangerous power tool. Use care when operating and follow all safety instructions and warnings. Read the operator manual carefully before operating the mower.
  • Page 5 Product Safety IMPORTANT READ CAREFULLY BEFORE USE! KEEP FOR FUTURE REFERENCE! Training WARNING! Automatic lawnmower! Keep away from the machine! Supervise children! • Read the instructions carefully. Be familiar with the controls and the proper use of the machine. • Never allow people unfamiliar with these instructions or children to use the machine.
  • Page 6 Product Safety SPECIAL RULES This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: The following system is used in the operator manual to make it easier to understand: • This device may not cause harmful interference. •...
  • Page 7: Operational Safety

    Product Safety OPERATIONAL SAFETY This operator manual contains all of the basic information concerning the safe operation and maintenance of the mower. Carefully read all the safety precautions and instructions in this operator manual before operating the mower. Save this operator manual for future reference. Follow manufacturer instructions regarding installation, operation, maintenance, and repair.
  • Page 8: Product Unboxing

    Product Unboxing WIRE MARKERS 14 Operator manual and quick guide Removable cover 15 Power supply* Stop button 16 Screws for securing charging station (x5) Start button 17 Low voltage cable LED indicators 18 Loop wire for boundary and guide wire Cutting height adjustment 19 Wire pegs Rear wheels...
  • Page 9: Introduction

    Introduction HOW THE ROBOTIC LAWNMOWER WORKS The product is an autonomous appliance that can mow the grass evenly in a random pattern. The boundary wire delimits the working area around the edge and isolate the fixed objects. The product will drive back to the charging station when the battery needs to be charged.
  • Page 10: Installing And Connecting The Charging Station

    Installation INSTALLING AND CONNECTING THE CHARGING STATION Position for the charging station as follows: • In a level spot out of direct sunlight (The front end of the charging station must not be 2 inches higher 6 ft or lower than the back end.) •...
  • Page 11: Connecting The Power Supply

    Installation CONNECTING THE POWER SUPPLY Connect the power supply in a cool, dry environment; out of direct sunlight. If the power supply is connected to an electrical socket outdoors, it must be approved for outdoor use. The low voltage cable can cross the operating area if it is stapled down or buried. CAUTION: Do not cut, splice, or alter the low voltage cable.
  • Page 12: Initial Charging Of The Battery

    Installation INITIAL CHARGING OF THE BATTERY Insert the safety key into the underside of mower and turn to the Enable position. Place the mower into the charging station while the boundary and guide wires are being laid. The mower cannot be used before the installation is complete. Version 3 - 2021.09.16...
  • Page 13: Installing The Boundary Wire

    Installation INSTALLING THE BOUNDARY WIRE When installing the boundary wire there are a number of situations to consider as described in the table below. Table 1. Handling Deviations and Obstacles in the Operating Area VARIATION WITHIN OPERATING AREA BOUNDARY WIRE PLANNING Fixed obstacles level with lawn that the mower can traverse (paving Lay the boundary wire under the paving stones or in the joint between stone paths or similar).
  • Page 14 Installation To isolate fixed objects that cannot withstand a collision like bushes and flower beds, make an island around it by lay the boundary wire starting from the border nearest the object and go around the object and then return it back along the same route. If wire installed counterclockwise around the lawn, shall it be installed clockwise around the island according to the picture.
  • Page 15 Installation Connect the boundary wire to the charging station as follows: Remove the protective cover on the charging station and thread the wire behind the tabs into the channel at the rear of the charging station. Press the connector onto the metal pins on the charging station (marked with left and right arrows).
  • Page 16: Installing A Guide Wire

    Installation INSTALLING A GUIDE WIRE The mower uses the optional guide wire to find its way back to the charging station, but also find hard-to reach areas of the operating area. For example, the guide wire is laid between the charging station and a remote part of the working area or through a narrow passage.
  • Page 17 Installation Insert both ends of the boundary wire as well as the end of the guide wire into the splice and guide wire connector. Check that the wires are fully inserted into the splice and guide wire connector so that the ends are visible through the splice and guide wire connector.
  • Page 18: Calibrating And Initial Start Up

    Installation CALIBRATING AND INITIAL START UP Secure the charging station to the ground using the five supplied fixing screws using a 6 mm hex key. NOTE: Do not make new holes in the charging station base plate. Only the existing holes may be used to secure the base plate to the ground. NOTE: Do not step or walk on the charging station base plate.
  • Page 19: Operation

    Operation STARTING AND STOPPING THE MOWER Start Stop To start the mower: Insert the safety key and rotate counter clockwise to position ”1” . Slide the START button latch backwards. Press down the START button. To stop the mower: Press the STOP button on the mower. SWITCHING OFF THE MOWER Press the STOP button on the mower and remove the safety key.
  • Page 20: Lifting And Carrying The Mower

    Operation LIFTING AND CARRYING THE MOWER Press the STOP button and remove the safety key before lifting. Always lift the mower using the carrying handle. PAIRING MOBILE APP TO MOWER Download Greenworks GreenGuide from App Store/Google Play and follow the on-screen instructions for how to pair the mower.
  • Page 21: Maintenance

    Maintenance WARNING! Wear protective gloves when handling or working near the sharp blades. WARNING! Before working on the mower itself, remove the safety key. WARNING! Before working on the charging station or power supply, remove the plug from the mains. •...
  • Page 22: Replacing Blades

    Maintenance REPLACING BLADES WARNING! Press the STOP button and remove the safety key before replacing blades and wear protective gloves. WARNING! Use only GLOBE’S blade: 333092355 CAUTION: Use only original replacement parts. Replace all three blades and screws as a set at the same time. Turn the mower upside down.
  • Page 23: Replacing The Battery

    Maintenance REPLACING THE BATTERY WARNING! Press the STOP button and remove the safety key before replacing batteries and wear protective gloves. CAUTION: Use only original replacement parts. Turn the mower upside down and remove the four Torx T20 screws and remove the battery cover.
  • Page 24: Winter Storage Mower

    Maintenance WINTER STORAGE MOWER Always clean the mower before winter storage. Charge the battery fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless. CAUTION: If the battery is not fully charged, it can be damaged and in certain cases be rendered useless. Inspect the condition of wear items;...
  • Page 25: Troubleshooting

    Troubleshooting This section also presents some symptoms that can guide you if the mower does not work as expected. INDICATOR LEDS ON MOWER STATUS MEANING ACTION 1. Operating Flashing Recovery mode Place the robot in charging station for up to 5 (Green) hours and wait for the green LED to stop flash.
  • Page 26: Symptoms

    Troubleshooting SYMPTOMS If your mower does not work as expected, follow the troubleshooting guide below. SYMPTOMS CAUSE ACTION Mower has difficulty The charging station is on a slope. Place the charging station on a surface that is entirely docking with charging level.
  • Page 27: Technical Data

    Technical Data Optimow 25H Optimow 50H Optimow 25 Optimow 50 Dimensions: Height 12.2 inches 12.2 inches 10.3 inches 10.3 inches Length 25.0 inches 25.0 inches 24.8 inches 24.8 inches Width 20.0 inches 20.0 inches 19.7 inches 19.7 inches Weight 26.4 lbs 26.4 lbs...
  • Page 28 Technical Data RADIO FREQUENCY DATA SHEET Short Range Devices (SRD) LTE Cat M1 (Boundary Wire) Band 2 1900 MHz Frequency Bands 0~148.5KHz Band 4 1700 MHz Power Class Class 3 (23 dBm) Version 3 - 2021.09.16...
  • Page 29: Environmental Protection

    Environmental Protection The toxic and corrosive materials below are in the batteries used in this machine: Lithium-Ion, a toxic material. WARNING! Discard all toxic materials in a specified manner to prevent contamination of the environment. Before discarding damaged or worn out Li-ion battery, contact your local waste disposal agency, or the local Environmental Protection Agency for information and specific instructions.
  • Page 30: Warranty Terms

    Warranty Terms GLOBGRO AB, Globe Group Europe guarantees this product’s functionality for a period of two years (from date of purchase). The guarantee covers serious faults relating to materials or manufacturing faults. Within the guarantee period, we will replace the product or repair it at no charge if the following terms are met: •...
