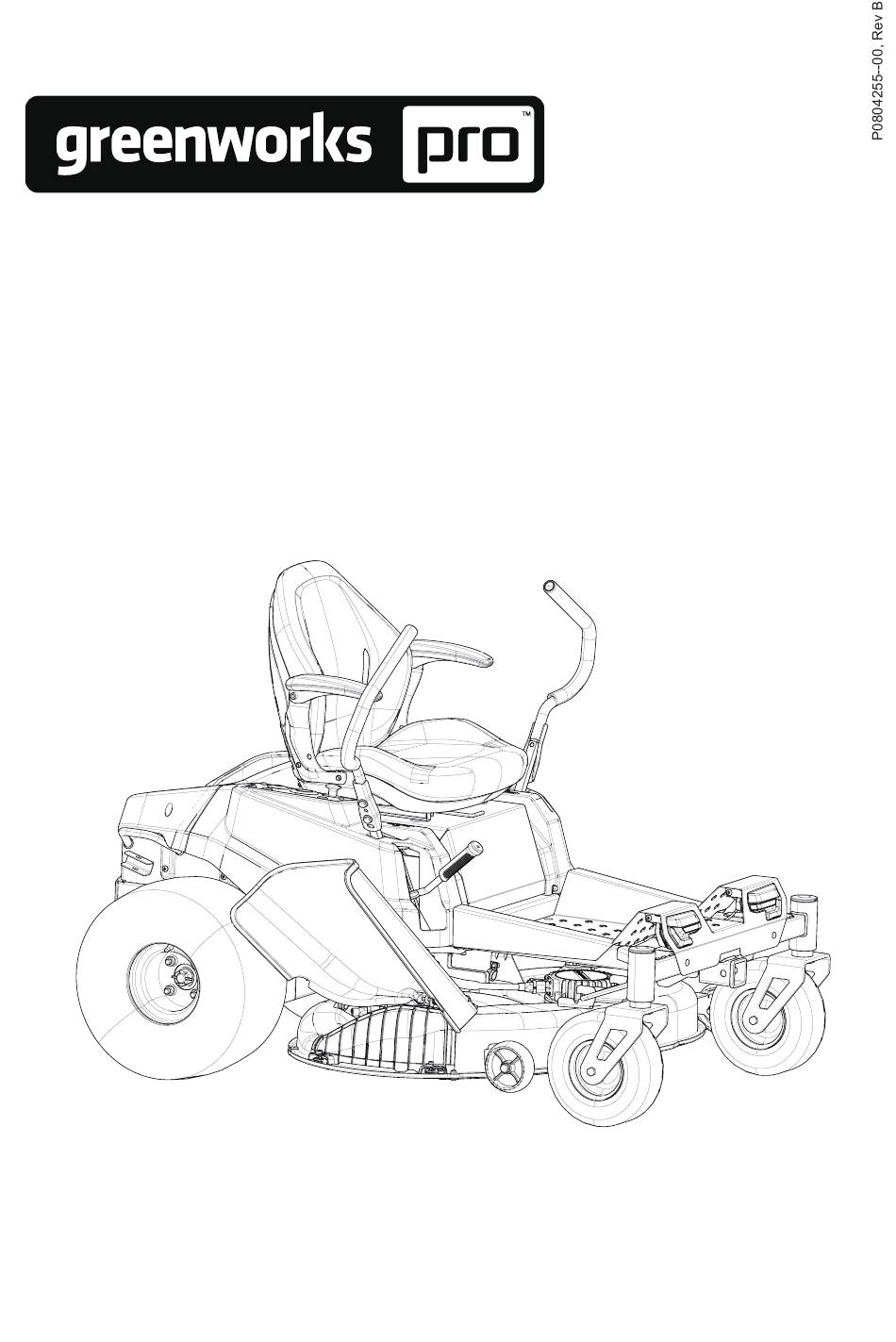

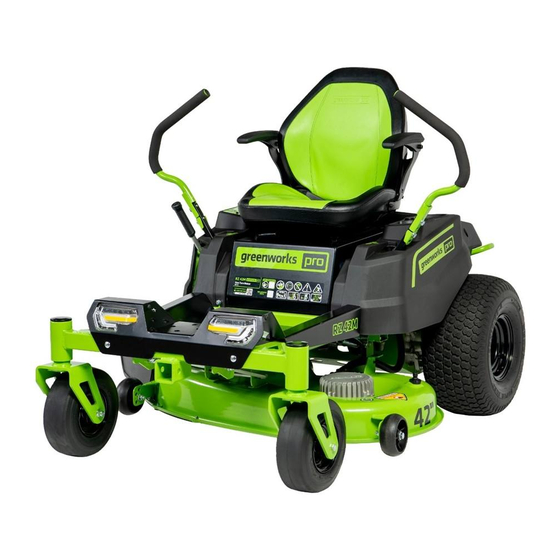

  • Page 1 7400807AU CRZ426 ZERO-TURN MOWER OPERATOR MANUAL www.greenworksaustralia.com support@greenworksaustralia.com...
  • Page 3 42” CrossoverZ www. Zero Turn Multi-Battery greenworksaustralia. 7400807AU 7400707AU CRZ426 60-volt 6-in-Parallel Kitted 60V • WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
  • Page 4 HELPLINE: For the contact, support@greenworksaustralia.com TRANSPORTATION CHARGES: Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation chares for any part submitted for replacement under this warranty unless such return is requested in writing by Greenworks.

  • Page 5: Table Of Contents

    English 10.4 Digital display..........13 Risk levels...........2 10.5 Faults............... 14 Read all instructions......2 11 App operation tips......14 Operator............. 2 11.1 Mobile application........... 14 Machine............. 2 11.2 Registration and Login........15 Mowing area............3 11.3 Add a device............ 17 Mowing..............3 11.4 GPS function............18 Servicing............

  • Page 6: Risk Levels

    English RISK LEVELS WARNING • Carefully read all instructions on the mower and in the The following signal words and meanings are intended to manual before attempting to assemble and operate the explain the levels of risk associated with this product. mower.

  • Page 7: Mowing Area

    English • Follow daily and weekly checklists, making sure • Slow down before turning. electrical connections are secured and bolts are tightened. • Do not mow in reverse unless absolutely necessary. • Replace damaged parts immediately. • When moving in reverse, SLOWLY pull right and left •...

  • Page 8: Use A Ramp

    English • Use extreme care when approaching blind corners, • Use appliances only with specifically designated battery doorways, shrubs, trees, or other objects that may obscure packs. Use of any other battery packs may create a risk of your view of a child who may run into the path of the injury and fire.

  • Page 9: Environmentally Safe Battery Disposal

    English ENVIRONMENTALLY SAFE Symbol Name Explanation BATTERY DISPOSAL Precautions that involve Safety Alert your safety. Ingress Pro- Protection from splashing IPX4 tection De- water. gree Read Opera- To reduce the risk of injury, tor’s Manual user must read and under- stand operator’s manual be- The toxic and corrosive materials below are in the batteries fore using this product.

  • Page 10: Overview

    English OVERVIEW 6.1.1 CONTROL PANEL Name Function Power The power switch is used to turn the switch with mower on and off. The start key must be start key inserted before the switch can be operat- Digital dis- This display shows important electrical play system information.

  • Page 11: Install The Roll Over Protection Structure (Rops)

    English INSTALL THE ROLL OVER so they extend below the deck but do not contact the ground. They should always be at least 6mm (1/4”) to 19mm (3/4”) PROTECTION STRUCTURE below the deck. With the unit sitting on a flat level surface, (ROPS) the wheel position can be adjusted up or down as needed from 19mm (3/4”) to 44mm (1-3/4”) below the blade surface.

  • Page 12: Unpack The Machine

    English INSTALL THE SEAT Seat plug UNPACK THE MACHINE WARNING Make sure that you correctly assemble the machine before use. WARNING Washer • If parts of the machine are damaged, do not use the machine. • If you do not have all the parts, do not operate the Sleeve machine.

  • Page 13: Operation

    English The mower is configured for side discharge when shipped. If mulching is desired: 1. Place the mulch cover on the tab on the mower housing. 2. Align the holes in the mulch cover and the holes in the mower housing. 3.

  • Page 14: Operate The Machine

    English WARNING Battery The safety interlock system must not be disconnected or bypassed. Doing so could cause the machine to operate Battery Seat unexpectedly, resulting in personal injury. latch To inspect the system: 1. The operator must be on the seat when testing the seat switch.
  • Page 15 English 10.2.2 STOP THE MACHINE DANGER Never make sudden stops or reverse direction, especially when maneuvering on a slope. The steering is designed for sensitive response. Rapid movement of the steering control levers in either direction could result in a reaction of the machine that can cause serious injury.
  • Page 16 English 10.2.5 OPERATION SUGGESTIONS • Direct grass discharge to right, away from unmowed area. Select a mowing pattern that directs grass discharge DANGER towards the outside the mowing area. Generally, this means using a pattern utilizing left turns because side Prior to operation, the operator should be thoroughly discharge is to the right.

  • Page 17: Slope Operation

    English 10.3 SLOPE OPERATION could result in a reaction of the machine that can cause serious injury. • Never stop suddenly while backing down slopes. This action may result in a reaction of the machine that can cause serious physical injury. •...

  • Page 18: Faults

    English 10.4.1 DIGITAL DISPLAY Name Meaning Battery remaining capacity Hourglass Controller fault/ battery fault/ motor fault/ Vehicle fault Fault position Fault code/ total working hours 10.5 FAULTS The Canbus system will take action to protect the user and machine when it detects an issue. When it acts to turn off the machine or a component, it will indicate that a fault has occurred, and that fault will be shown on the digital display.

  • Page 19: Registration And Login

    English Serial number Pairing code QR code 11.2 REGISTRATION AND LOGIN Scan the QR code and download the app and login in. Step 2. Fill in the registration information (with * is required), Step 1. Create an account and then log in. and then click the "next“...
  • Page 20 English Confirm End User License Agreement. Step 3. Confirm User Rights. Step 4.1. Activate the account email, click "Continue". Step 4.2. Open the email and click "Click here" to get to the log in interface.

  • Page 21: Add A Device

    English Step 5. Log in. 11.3 ADD A DEVICE Step 2. Find category of vehicle according to your device type, Step 1. Add a device of Greenworks tools. then click button “Pair” (Vehicle).

  • Page 22: Gps Function

    English Step 3. Paring by entering serial number + Paring code (Own- Step 4. When you select option “pair manually”, just manually er). input Serial Number + Paring Code Step 5. Review device license agreement and sign it. 11.4 GPS FUNCTION 1.
  • Page 23 English 2. GPS The machine is equipped with GPS function, you can connect your mobile phone to the machine by the APP. It is convenient to locate your machine and achieve anti-theft effect.
  • Page 24 English This icon shows the position where the vehicle was last con- When click vehicle icon, it will show the device’s name, latest nected on map. latitude and longitude. Click the copy icon to copy the value of latitude and longitude. WARNING The 4G &...

  • Page 25: Fault Code

    English FAULT CODE Dis- Description Fault code on Cause Solution play The left steering The potentiometer on the left steer- The potentiometer fails. Contact a speci- control lever ing control lever fails. fied service cen- fails. ter. The potentiometer connector on The connector is loose.
  • Page 26 English Dis- Description Fault code on Cause Solution play The left or right The 9pin connector between the The connector is loose. Contact a speci- drive motor vehicle wire harness and the left fied service cen- does not work. drive controller is loose. ter.
  • Page 27 English Dis- Description Fault code on Cause Solution play The left or right The right gearbox is stuck. TR14 The right gearbox fails. Contact a speci- drive motor fied service cen- does not work. ter. The left gearbox is stuck. TL14 The left gearbox fails.
  • Page 28 English Dis- Description Fault code on Cause Solution play The left or right The communication module of the V 12 The left blade controller Contact a speci- blade does not left blade controller is damaged. fails. fied service cen- work. ter.
  • Page 29 English Dis- Description Fault code on Cause Solution play The left or right The 6pin connector between the ML15 The connector is loose. Contact a speci- blade does not left blade motor and the vehicle fied service cen- work. wire harness is loose. ter.

  • Page 30: Maintenance

    English Dis- Description Fault code on Cause Solution play The battery PMU is slightly overcurrent or PMU11 PMU is slightly overcur- Do not use the compartment PMU is slightly overtemperature. rent or PMU is slightly machine too alarms. over temperature. much to avoid machine shut down.

  • Page 31: Tires

    English 13.2 TIRES 13.1.1 REPLACE THE BLADE It is important for level mowing that all tires have the correct amount of air pressure. The recommended pressure are: NOTE Tire pressure should only be measured or adjusted when tires are cold. Front caster wheels 255 KPa (37 psi) Drive wheels...

  • Page 32: Torque Values

    English 13.4 TORQUE VALUES 13.6 BATTERY COMPARTMENT FILTER MAINTENANCE WARNING Replace the battery compartment filter every 200 hours. Particular attention must be given to tightening the drive wheel lug nuts and blade spindle bolts. Failure to correctly 13.7 SERVICE torque these items may result in the loss of a wheel or blade, which can cause serious damage or personal injury.

  • Page 33: Transportation

    English • Keep nuts and bolts tight, especially the blade attachment bolts. Keep equipment in good working condition. • Never tamper with safety devices. Check their proper operation regularly. • Turn the key to the “OFF” position before unclogging the discharge chute.

  • Page 34: Cleaning And Storage

    English NOTE We recommend you use one full width loading ramp that is at least 1 ft. wider than the mower to minimize the risk of the mower’s wheels going off the side of the ramp. 4. Slowly back the mower onto the ramp and into the trailer. 5.

  • Page 35: Troubleshooting

    English TROUBLESHOOTING Problem Cause Solution The machine 1. There is no battery pack in the battery compart- 1. Make sure at least one Greenwoks designed bat- does not move. ment, or the battery inserted is not Greenworks tery pack is inserted in the battery compartment. designed.
  • Page 36 English Problem Cause Solution The machine 1. The blade is dull. 1. Grind the blade according to the manual. cuts the grass 2. The blade is bent. 2. Replace the bent blade, replace the blade accord- unevenly. ing to the instructions in the manual, and wear 3.
  • Page 37 English Problem Cause Solution The machine 1. Tire wear is too serious. 1. Contact a service center to replace the tire or neu- quickly moves tral bypass knob. 2. The neutral bypass knob is damaged or severely down the slope worn out.

  • Page 38: Technical Data

    English TECHNICAL DATA Model No. CRT426 Voltage 60 V Gross vehicle weight 106kg (234lbs) Length 1702mm (67in) Height 1168mm (46in) Width (with discharge) 1346mm (53in) Deck width 1143mm (45in) Forward speed 12.1km/h (7.5mph) Reverse speed 4.8km/h (3mph) Cutting height range 38.1~114.3mm (1.5~4.5in) Bucket capacity 91kg (200lbs)

  • Page 39: Greenworks Product Registration

    English under this warranty unless such return is requested in writing by Greenworks. JAK Max address： JAK Max 380 Foleys Road Derrimut VIC 3026 GREENWORKS PRODUCT REGISTRATION: NAME: ADDRESS: CITY： STATE： ZIP CODE： COUNTRY： HOME PHONE: MOBILE PHONE: PURCHASE DATE: PURCHASED FROM:...

  • Page 40: Serial Number(S)

    English SERIAL NUMBER(S) Please list Serial Number(s) below along with Model Information: DESCRIPTION MODEL # PART # SERIAL # DATE PUR- CHASED...
