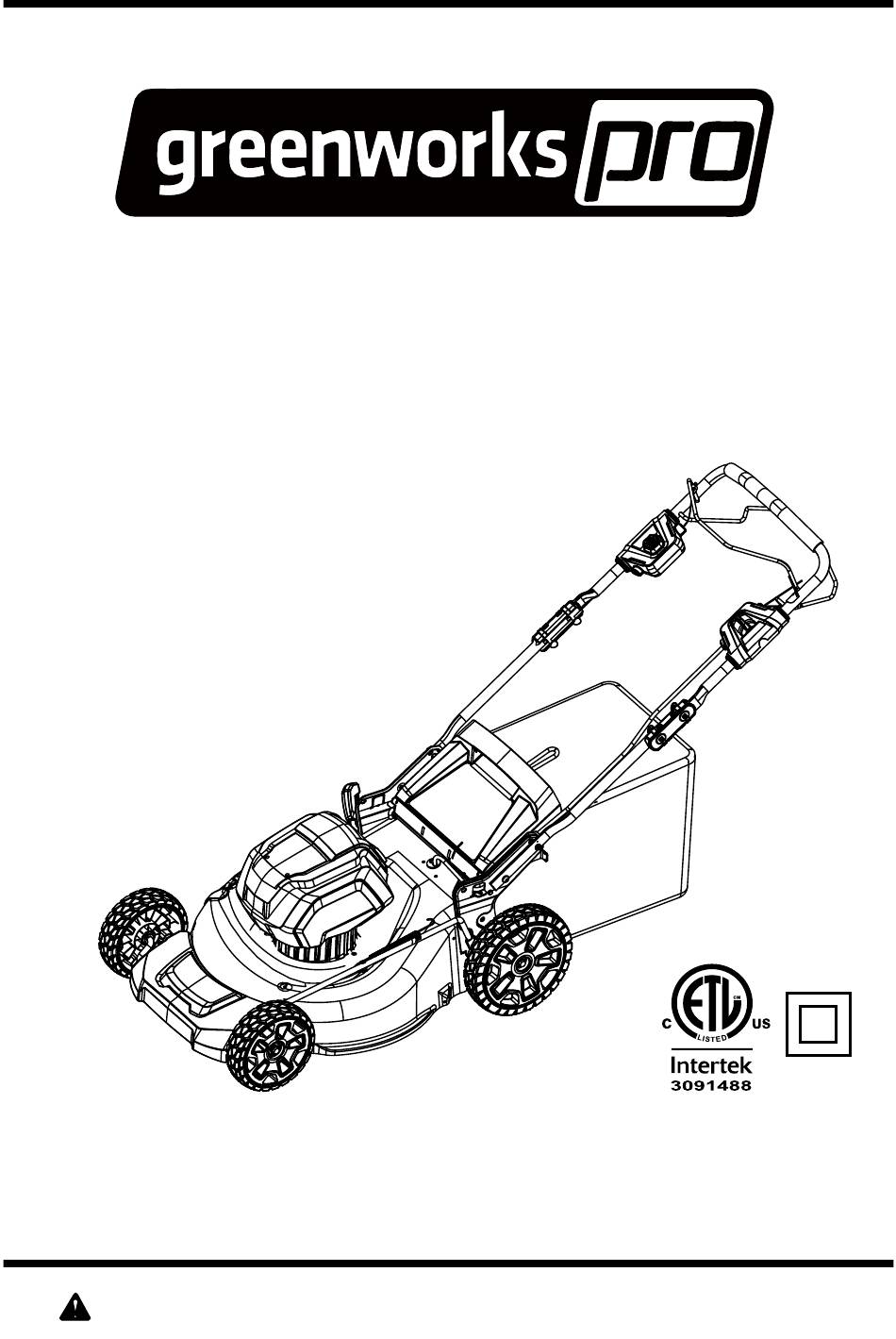

- Page 1 21” 80V Cordless Self-propelled Lawn Mower MO80L00 Owner’s Manual TOLL-FREE HELPLINE: 1 (855) 345-3934 www.greenworkstools.com/80V-PRO Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
COnTEnTS Contents ..........................2 Product specifications ......................2 Safety information ......................3-7 Symbols ..........................8-9 Know your lawn mower ...................... 10 Assembly ........................11-17 Operation ........................18-23 Maintenance ......................... 24-27 Service ..........................28 Environmentally safe battery disposal ................29 Troubleshooting ......................... 30 Warranty .......................... -
Page 3: Safety Information
SAfETY infORMATiOn GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY W A R N I N G This symbol indicates important safety instructions. if these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower. - Page 4 SAfETY infORMATiOn – To reduce the risk of injury, inspect catcher assembly frequently and replace with recommended replacement if there are signs of wear or deterioration. – for use only with Greenworks #2901302 / #2902402 / #2902502 battery and GREEnWORKS #2901402 charger. •...
- Page 5 SAfETY infORMATiOn • Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass. • Mow only in daylight or in good artificial light. Do not rush a mowing job. • Stop the blade when crossing gravel driveways, walkways, or roads. •...
- Page 6 SAfETY infORMATiOn • Look behind and down for small children before and while moving backwards. • Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child who may run into the path of the mower. BATTERY &...
- Page 7 SAfETY infORMATiOn To obtain the longest possible battery life, we suggest the following: • Remove the battery pack from the charger once it is fully charged and ready for use. for battery pack storage longer than 30 days: • Store the battery pack where the temperature is below 80°f and away from moisture. •...
-
Page 8: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz frequency (cycles per second) - Page 9 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 10: Know Your Lawn Mower
KnOW YOUR LAWn MOWER Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in figure 1 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Bail lever Safety lock button Self... -
Page 11: Assembly
ASSEMBLY inSTRUCTiOnS UNPACKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 12 ASSEMBLY inSTRUCTiOnS UNFOLDING AND ADJUSTING LOWER HANDLE (See Figure 2) W A R N I N G folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cables when folding or unfolding the handle. •...
- Page 13 ASSEMBLY inSTRUCTiOnS INSTALLING THE UPPER HANDLE (See Figure 3) • Align the mounting holes on the upper handle (1) and the lower handle (2). insert the carriage bolts (3) and use the knobs (4) to tighten them. Repeat the operation on the other side. (2) Lower handle (1) Upper handle (3)Bolt...
- Page 14 ASSEMBLY inSTRUCTiOnS INSTALLING THE COLLECTION BAG (See Figure 4) • Lift the rear discharge cover (1). • Lift the collection bag by its handle (2) and place under the rear discharge cover so that the hooks (3) on the collection bag are seated on the door hinge (4). •...
- Page 15 ASSEMBLY inSTRUCTiOnS INSTALLING/REMOVING THE MULCHING PLUG (See Figure 5) • To remove the mulching plug, lift the rear discharge cover (1). • Grasp the handle (2) of the mulching plug and pull the mulching plug out using the handle. • The mulching plug (3) is inserted at an angle, so it requires some force to remove it. •...
- Page 16 ASSEMBLY inSTRUCTiOnS INSTALLING SIDE DISCHARGE CHUTE (See Figure 6) • Lift the side discharge cover (1). • Align the grooves (2) on the discharge chute (3) with the pins (4) on the underside of the discharge cover (1). • Lower the discharge chute until the hooks on the mower deck are secured in the openings in the discharge chute.
- Page 17 ASSEMBLY inSTRUCTiOnS TO INSTALL BATTERY PACK (See Figure 7) • Lift and hold up the battery door (1). • Align the battery (2) with the mower’s battery port. • Make sure the battery release button (3) snaps in place and that battery is fully seated and secure in the mower before beginning operation.
-
Page 18: Operation
OPERATinG YOUR LAWn MOWER STARTING/STOPPING THE MOWER (See Figure 8) To start the motor: • Open the battery door. • insert the battery. • Press and hold the safety lock button (1). • Pull the bail lever (2) upward to the handle to start the mower and release the button. To stop the motor: •... - Page 19 OPERATinG YOUR LAWn MOWER SELF-PROPELLED MOWING (See Figure 9) To engage the self-propelled feature: • Open the battery door. • insert the battery. • Pull the self propel lever(1) upward to meet the handle. To disengage the self-propelled feature: • Release the self propel lever. To adjust the speed of self-propelled feature: •...
- Page 20 OPERATinG YOUR LAWn MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 10) When shipped, the wheels on the mower are set to the lowest cutting position. Before using the mower for the first time, raise the cutting position to the height that is best suited for your lawn. The average lawn should be between 1 1/2"...
- Page 21 OPERATinG YOUR LAWn MOWER SLOPE GAUGE (See Figure 11) W A R N I N G Slopes are a major factor related to accidents involving slips and falls, which can result in severe injury. Operating the mower on a slope requires extra caution. if you feel uneasy on a slope, do not mow it.
- Page 22 OPERATinG YOUR LAWn MOWER MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section. •...
- Page 23 OPERATinG YOUR LAWn MOWER EMPTYING THE COLLECTION BAG (See Figure 12) • Stop mower, allow blades to completely stop, and remove the battery. • Lift the rear discharge cover. • Lift the collection bag by its handle and remove from mower. •...
-
Page 24: Maintenance
MAinTEnAnCE REPLACING THE CUTTING BLADE (See Figure 13-14) W A R N I N G Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. ALWAYS remove the battery when servicing or transporting the mower. - Page 25 MAinTEnAnCE CLEANING THE MOWER W A R N I N G in order to reduce the risk of electric shock, do not expose the mower to water. The underside of the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other debris will accumulate, which will cause rust and corrosion.
- Page 26 MAinTEnAnCE STORING THE MOWER The following steps should be taken in order to prepare the lawn mower for storage. • Clean the mower as described in the previous section. • inspect the blade, and replace it or sharpen it, if required (refer to the Maintenance section). •...
- Page 27 MAinTEnAnCE VERTICAL STORAGE FUNCTION (See Figure 16) • Remove the battery from the mower. • Remove the collection bag. • Rotate the handle knobs to the unlocked position. • Lower the handle assembly and rotate the handle knobs to the locked position. •...
-
Page 28: Service
SERViCE • When servicing the mower, use only identical replacement parts that are available from the manufacturer. in order to obtain replacement parts, call the toll-free helpline, at 1 (855) 345- 3934. The use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety. -
Page 29: Environmentally Safe Battery Disposal
EnViROnMEnTALLY SAfE BATTERY DiSPOSAL The batteries used in this mower's battery pack contain the following toxic and corrosive material: LiTHiUM-iOn. W A R N I N G Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment. -
Page 30: Troubleshooting
TROUBLESHOOTinG PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. The switch is defective. Replace the switch (call the tollfree helpline, at 1 (855) 345-3934.) Grass jammed between the Remove battery; check under deck for The mower does deck and blade. -
Page 31: Warranty
WARRAnTY LiMiTED fOUR (4) YEAR COnSUMER WARRAnTY ; TWO (2) YEAR COMMERCiAL WARRAnTY. GREEnWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, against defects in materials, parts or workmanship. GREEnWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 32: Exploded View
EXPLODED ViEW... -
Page 33: Parts List
PARTS LiST ITEM NO. PART NO. DESCRIPTION 311041531 Motor assembly 311031519 Lower handle assembly 311011531 Upper handle assembly 341191179-1 341331179 Bumper decorative cover 341061179 Bumper 341161179 Side discharge cover assembly 311081179 21” Deck 332041531 Dash panel 341021179 Bolt M8x16 32202390 8”... - Page 34 PARTS LiST ITEM NO. PART NO. DESCRIPTION 341211531 Press board 341061531 Back panel 361051531 Self Propell control board 332041179 Press board (rear discharge cover) 342011179 Rear discharge cover 341011531 PCB Cover 322021519 Screw 32204113 Screw 332211179 Washer 33307470 Washer 341241179 Side discharge chute 3221637 Bolt M10 x20...
- Page 35 TOLL-FREE HELPLINE: 1 (855) 345-3934 Rev: 01 (01-03-16) Printed in China on 100% Recycled Paper...
