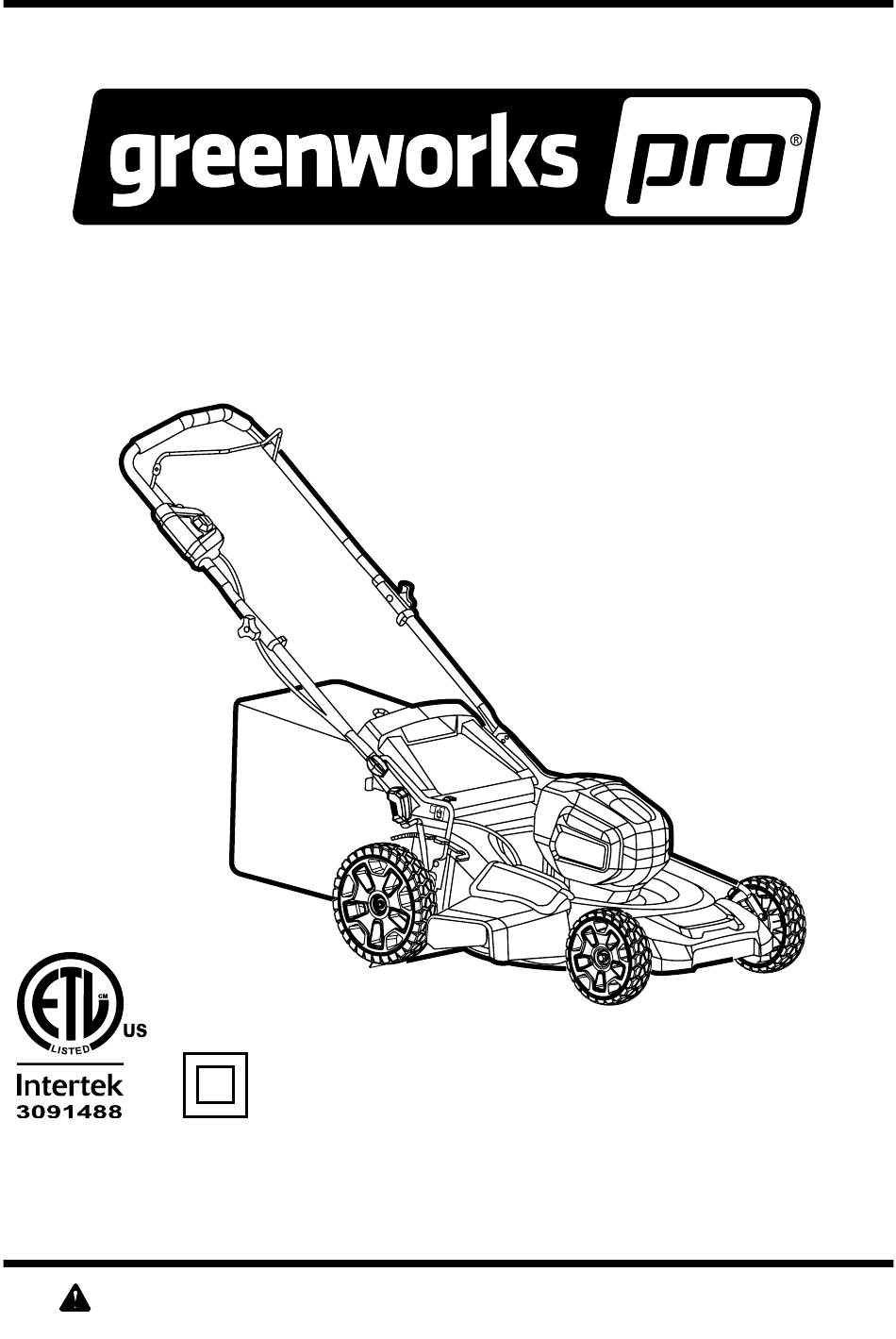

- Page 1 21”60V Brushless Mower MO60L00 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product specifications ......................2 Safety information ........................ 3 Symbols ..........................9 Know your lawn mower .......................11 Assembly ........................... 12 Operation ........................... 20 Maintenance ........................25 Environmentally safe battery disposal ................29 Troubleshooting ......................... 30 Warranty ..........................31 Exploded View ........................ -
Page 3: Safety Information
SAFETY INFORMATION GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY W A R N I N G This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower. - Page 4 SAFETY INFORMATION – Do not smoke, strike a match, or cause a spark in the vicinity of the battery during charging. – Store indoors, and do not expose to rain or water, avoid direct sunshine. – Double insulation - When servicing, use only identical replacement parts. –...
- Page 5 SAFETY INFORMATION • Mow only in daylight or in good artificial light. Do not rush a mowing job. • Stop the blade when crossing gravel driveways, walkways, or roads. • If the mower starts to vibrate excessively, stop the motor and check for the cause immediately. Vibration is generally a warning of trouble.
- Page 6 SAFETY INFORMATION • Look behind and down for small children before and while moving backwards. • Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child who may run into the path of the mower. BATTERY &...
- Page 7 SAFETY INFORMATION • Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any solvents to clean battery pack. PROPER BATTERY CARE Off-season storage To obtain the longest possible battery life, we suggest the following: •...
- Page 8 SAFETY INFORMATION W A R N I N G When transporting or servicing unit, always remove the battery. W A R N I N G ( P R O P O S I T I O N 6 5 ) Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.
-
Page 9: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 10 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 11: Know Your Lawn Mower
KNOW YOUR LAWN MOWER Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Bail lever Upper handle... -
Page 12: Assembly
PART NO. Lawn Mower Mulching Plug Side Discharge Chute Grass Catcher Bag Handle Knob Handle Bolt Owner’s Manual 60V Lithium-Ion Cordless Mower MO60L00 Owner’s Manual TOLL-FREE HELPLINE: 1-855-345-3934 www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool. - Page 13 ASSEMBLY INSTRUCTIONS UNPACKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
- Page 14 ASSEMBLY INSTRUCTIONS UNFOLDING AND ADJUSTING LOWER HANDLE (See Figure 2) W A R N I N G Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating condition. • Do not damage the cables when folding or unfolding the handle. •...
- Page 15 ASSEMBLY INSTRUCTIONS INSTALLING THE UPPER HANDLE (See Figure 3) • Align the mounting holes on the upper handle (1) and the lower handle (2). Insert the carriage bolts (3) and use the knobs (4) to tighten them. Repeat the operation on the other side. (1) Upper handle (4) Knob (3) Bolt...
- Page 16 ASSEMBLY INSTRUCTIONS INSTALLING THE GRASS CATCHER BAG (See Figure 4) • Lift the rear discharge door (1). • Lift the grass catcher by its handle (2) and place under the rear discharge door so that the hooks (3) on the grass catcher (4) are seated on the door rod (5). •...
- Page 17 ASSEMBLY INSTRUCTIONS INSTALLING / REMOVING THE MULCHING PLUG (See Figure 5) • To remove the mulching plug, lift the rear discharge door (1). • Grasp the handle (2) of the mulching plug. Using this handle, lift and pull the mulch plug out. •...
- Page 18 ASSEMBLY INSTRUCTIONS INSTALLING SIDE DISCHARGE CHUTE (See Figure 6) • Lift the side discharge cover (1). • Align the grooves (2) on the side discharge chute (3) with the pins (4) on the underside of the discharge cover. • Lower the discharge chute until the hooks on the mower deck are secured in the openings of the discharge chute.
- Page 19 ASSEMBLY INSTRUCTIONS TO INSTALL BATTERY PACK (See Figure 7) • Lift and hold up the battery door (1). • Align the battery (2) with the mower’s battery port. • Make sure the battery release button (3) snaps in place and that battery is fully seated and secure in the mower before beginning operation.
-
Page 20: Operation
OPERATING YOUR LAWN MOWER STARTING/STOPPING THE MOWER (See Figure 8) To start the motor: • Open the battery door. • Insert the battery. • Press and hold the safety lock-out button (1). • Pull the bail lever (2) upward to the handle to start the mower and release the button. To stop the motor: Release the bail lever. - Page 21 OPERATING YOUR LAWN MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 9) When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be between 1 1/2"...
- Page 22 OPERATING YOUR LAWN MOWER SLOPE GAUGE (See Figure 10) W A R N I N G Slopes are a major factor related to accidents involving slips and falls, which can result in severe injury. Operating the mower on a slope requires extra caution. If you feel uneasy on a slope, do not mow it.
- Page 23 OPERATING YOUR LAWN MOWER MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section. •...
- Page 24 OPERATING YOUR LAWN MOWER EMPTYING THE GRASS CATCHER BAG (See Figure 11) • Stop mower, allow blades to completely stop, and remove the battery. • Lift the rear discharge cover. • Lift the grass catcher bag by its handle to remove from mower. •...
-
Page 25: Maintenance
MAINTENANCE REPLACING THE CUTTING BLADE (See Figure 12-13) W A R N I N G Always protect your hands by wearing heavy gloves and/or wrapping the cutting edges with rags or other materials when performing any maintenance on the blades. ALWAYS remove the battery when servicing or transporting the mower. - Page 26 MAINTENANCE CLEANING THE MOWER W A R N I N G In order to reduce the risk of electric shock, do not expose the mower to water. The underside of the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other debris will accumulate, which will cause rust and corrosion.
- Page 27 MAINTENANCE VERTICAL STORAGE FUNCTION (See Figure 14) • Remove the battery from the mower. • Remove the grass catcher bag. • Rotate the handle knobs to the unlocked position. • Lower the handle assembly and rotate the handle knobs to the locked position. •...
- Page 28 MAINTENANCE • When servicing the mower, use only identical replacement parts that are available from the manufacturer. In order to obtain replacement parts, call the toll-free helpline, at 1-855-345- 3934. The use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety.
-
Page 29: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this hedge trimmer battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 30: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. Replace the switch (call the tollfree helpline, The switch is defective. at 1-855-345-3934. Grass jammed between the Remove battery; check under deck for jams. The mower does deck and blade. -
Page 31: Warranty
LIMITED WARRANTY GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, 4 year consumer warranty, 1 year commercial warranty against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 32: Exploded View
EXPLODED VIEW 49 50 41 42 23 24... -
Page 33: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 311051560 Motor assembly 361011560 60V PCB 341191179-1 341241179 Side discharge chute 341331179J Bumper cover 3220504 Screw 341061179C Bumper main body 311081179A Side discharge cover assembly 333041179 21” Blade 341261179 Blade bolt 3220951 Screw 333011179D 21”... - Page 34 PARTS LIST ITEM NO. PART NO. DESCRIPTION 3290506 Clip washer 332021179 Rear cover axle 332111179 Torsinal spring (rear cover) 33401222 Torsinal spring 3290135 Cotter pin 311011179 Rear wheel axle 342011179 Rear shield 3220505-1 Screw 332041179 Press board (rear shield) 341271179A 10”...
- Page 35 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-855-345-3934 Rev: 00 (04-24-17) Printed in China on 100% Recycled Paper...
