Chapter 1 ....................1 1.1 Introducing the H6300G ............1 1.2 Features of the H6300G ............3 1.3 Applications for the H6300G ..........5 Chapter 2 ....................6 2.1 Important note for using the H6300G........6 2.2 Package Contents ..............6 2.3 The Front LEDs ..............

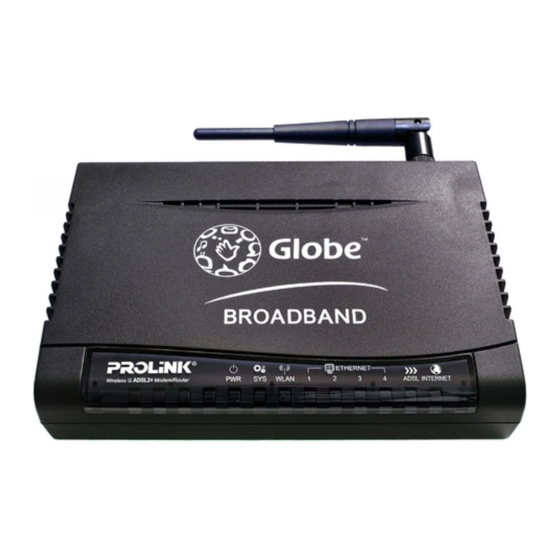

Introduction the H6300G 1.1 Introducing the H6300G Welcome to the Prolink H6300G ADSL2+ Modem/Router. Your Prolink router is an “all-in-one” unit, combining an ADSL modem, ADSL router and Ethernet network switch, providing everything you need to get the machines on your network connected to the Internet over your ADSL broadband connection.
Page 4
to target a machine on your network. Secondly, it can block and redirect certain ports to limit the services that outside users can access. For example, to ensure that games and other Internet applications will run properly, user can open some specific ports for outside users to access internal services in network.
1.2 Features of the H6300G ADSL Multi-Mode Standard Supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It also supports rate management that allows ADSL subscribers to select an Internet access speed suiting their needs and budgets. It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2;...
Page 6
Firewall Supports simple firewall with NAT technology and provides option for blocking access from Internet, like Telnet, FTP, WEB, SNMP and IGMP. Domain Name System (DNS) relay Provides an easy way to map the domain name (a friendly name for users such as www.yahoo.com) and IP address.
Supports RIP1/2 routing protocol for routing capability. Simple Network Management Protocol (SNMP) It is an easy way to remotely manage the router via SNMP. Web based GUI Supports web based GUI for configuration and management. It is user-friendly and comes with on-line help.
Chapter 2 Installing the H6300G 2.1 Important note for using the H6300G Do not use the H6300G Series in high humidity or high temperatures. Do not use the same power source for the H6300G as other equipment. Do not open or repair the case yourself. If the H6300G is too Warning hot, turn off the power immediately and have it repaired at a qualified service center.
2.3 The Front LEDs Description Lit steady when there is a PPPoA / PPPoE connection. INTERNET Lit and flashed periodically when there is email in the Inbox. When lit, it indicates that the ADSL (Line) port is connected to the ADSL DSLAM and working properly.
2.4 The Rear Ports Port Meaning Connect the supplied power adapter to this jack. After the device is powered on, press it to reset the device or restore to factory default settings. RESET 0-3 seconds: reset the device 6 seconds above: restore to factory default settings (this is used when you can not login to the router, e.g.
LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables. Ensure that all other devices connected to the same telephone line as your Prolink router (e.g. telephones, fax machines, analogue modems) have a line filter connected between...
Chapter 3 Basic Installation The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Windows 98/NT/2000/XP/Me/Vista, MAC, Linux, etc. The product provides a very easy and user-friendly interface for configuration.
Page 13
Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.
Page 14
Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.
Page 15
Configuring PC in Windows 98/Me 1.Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2.Select TCP/IP ->NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.Select the Obtain an IP address automatically radio button.
Page 16
Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2.Select TCP/IP Protocol and click Properties. 3.Select the Obtain an IP address from a DHCP server radio button and click OK.
3.2 Factory Default Settings Before configuring your, you need to know the following default settings. Web Interface: Username: admin Password: admin LAN Device IP Settings: IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 ISP setting in WAN site: PPPoE DHCP server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 3.2.1 Username and Password...
3.3 LAN and WAN Port Addresses The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below. LAN Port WAN Port IP address 192.168.1.254 The PPPoE function is enabled to Subnet Mask 255.255.255.0 automatically get the WAN port DHCP server function...
3.5 Configuring with your Web Browser Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click “Go”, a user name and password window prompt will appear. The default username and password are “admin” and “admin”. Congratulation! You are now successfully logon to the H6300G ADSL2+ Router!
Advanced Setup (Firewall, Routing, NAT, ADSL) Access Management (ACL, Filter, SNMP, UPnP, DDNS) Maintenance (Administration, Time Zone, Firmware, SysRestart, Diagnositics) Status (Device Info, System Log, Statistics) Help Please see the relevant sections of this manual for detailed instructions on how to configure your Prolink router.
4.1 Quick Start For detailed instructions on configuring WAN settings, see the Interface Setup section of this manual. The Quick Start Wizard is a useful and easy utility to help setup the device to quickly connect to your ISP (Internet Service Provider) with only a few steps required. It will guide you step by step to configure the password, time zone, and WAN settings of your device.
4.2 Interface Setup Click this item to access the following sub-items that configure the ADSL2+ router: Internet, LAN, and Wireless These functions are described in the following sections. 4.2.1 Internet ATM VC...
Page 27
ATM settings are used to connect to your ISP. Your ISP provides VPI, VCI settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC traffic line's priority.
Page 28
your PPPoE connection. Please enter the information accordingly. Bridge Mode: The modem can be configured to act as a bridging device between your LAN and your ISP. Bridges are devices that enable two or more networks to communicate as if they are two segments of the same physical LAN.
Page 29
will not accept RIP packet. Multicast: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. The H6300 Series supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it...
Page 30
4.2.2 LAN A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building. Router Local IP IP Address: Enter the IP address of ADSL Router in dotted decimal notation, for example, 192.168.1.254 (factory default).
Page 31
If set to Enable, your H6300 Series can assign IP addresses, an IP default gateway and DNS servers to Windows 95, Windows NT and other systems that support the DHCP client. If set to disabled, the DHCP server will be disabled. If set to Relay, the H6300 Series acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients.
Page 32
4.2.3 Wireless 802.11g is only supported for the H6300G This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as simple as two computers with wireless LAN cards communicating in a peer-to-peer network or as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN.
Page 33
Channel ID: The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a channel. Select a channel from the drop-down list box. Beacon interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000. A beacon is a packet broadcast by the Router to synchronize the wireless network.
Page 34
access points without any data encryption Wireless MAC Address Filter The MAC filter screen allows you to configure the router to give exclusive access to up to 8 devices (Allow Association) or exclude up to 8 devices from accessing the router (Deny Association).
Page 35
default key is key 1. WPA-PSK Encryption: TKIP (Temporal Key Integrity Protocol) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers. Pre-Shared key: The key for network authentication. The input format is in character style and key size should be in the range between 8 and 64 characters.
4.3 Advanced Setup 4.3.1 Firewall Your router includes a firewall for controlling Internet access from your LAN and helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.
Page 37
4.3.2 Routing If you have another router with a LAN-to-LAN connection, you may create a static routing on the router that is the gateway to Internet. #: Item number Dest IP: IP address of the destination network Mask: The destination mask address. Gateway IP: IP address of the gateway or existing interface that this route uses.
Page 38
Destination IP Address T his is the destination subnet IP address. : IP Subnet Mask I t is the destination IP addresses based on above destination subnet IP : : : : Gateway IP Address T his is the gateway IP address to which packets are to be :...
Page 39
4.3.2 NAT The NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet. The default setting is Dynamic NAPT. It provides dynamic Network Address Translation capability between LAN and multiple WAN connections, and the LAN traffic is routed to appropriate WAN connections based on the destination IP addresses and Route Table.
Page 40
The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms then passed to the DMZ host, when a packet received does not use a port number used by any other Virtual Server entries.
Page 41
information on NAT. The device can be configured as a virtual server so that remote users accessing services such as Web or FTP services via the public (WAN) IP address can be automatically redirected to local servers in the LAN network. Depending on the requested service (TCP/UDP port number), the device redirects the external service request to the appropriate server within the LAN network.
Page 42
IP Address Mapping Rule Index: Choose the rule number. Rule Type: One-to-one: This is the mode maps one local IP address to one global IP address. Note that port numbers do not change for the One-to-one NAT mapping type. Many-to-One: This is the mode maps multiple local IP addresses to one global IP address. This is equivalent to Many to One (i.e., PAT, port address translation).
Page 43
Local End IP address. This field is N/A for One-to-one and Server mapping types. Public Start IP: This is the starting Inside Public IP Address. Enter 0.0.0.0 here if you have a dynamic IP address from your ISP. Public End IP: This is the ending Inside Public IP Address. This field is N/A for One-to-one, Many-to-One and Server mapping types.
Page 44
4.3.4 ADSL ADSL Mode: The default setting is Auto Sync-UP. This mode will automatically detect your ADSL, ADSL2+, ADSL2, G.dmt, G.lite, and T1.413. But in some area, multimode cannot detect the ADSL line code well. If it is the case, please adjust the ADSL line code to G.dmt or T1.413 first.
4.4 Access Management 4.4.1 ACL Access Control Listing allows you to determine which services/protocols can access which H6300 Series interface from which computers. You can configure the router for remote Telnet access or upload and download router firmware and configuration files using FTP. To use this feature, your computer must have an FTP client.
Page 46
enable Telnet or Web and give it an IP address that want to access the ADSL2+ Router. The default IP 0.0.0.0 allows any client to use this service to remotely manage the ADSL2+ Router. Filter Type Filter Type Selection: There are three types ”IP/MAC Filter”, ”Application Filter”, and “URL Filter”...
Page 47
IP/MAC Filter Rule Index: This is item number Rule Type: Choose “IP” or “MAC” rules Active: Select Yes from the drop down list box to enable IP filter rule. Source IP Address: The source IP address or range of packets to be monitored. Subnet Mask: It is the destination IP addresses based on above destination subnet IP Source Port Number: This Port or Port Ranges defines the port allowed to be used by the Remote/WAN to connect to the application.
Page 48
Application Filter: Select this option to Activated/Deactivated the Application filter. ICQ: Select this option to Allow/Deny MSN. MSN: Select this option to Allow/Deny ICQ. YMSG: Select this option to Allow/Deny Yahoo messenger. Real Audio/Video: Select this option to Allow/Deny Real Audio/Video. URL Filter...
Page 49
Active: Select Actived to enable URL Filter. URL Index: This is item number URL: llow you to prevent users on your network from accessing particular websites by their URL 4.4.3 SNMP Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices.
Page 50
Get Community: Type the Get Community, which is the password for the incoming Get-and GetNext requests from the management station. Set Community: Type the Set Community, which is the password for incoming Set requests from the management station. 4.4.4 UPnP UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices.
Page 51
4.4.5 DDNS The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing users whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your ADSL connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time.
4.5 Maintenance 4.5.1 Administrator In factory setting, the default password is admin, and that for user is also password. You can change the default password to ensure that someone cannot adjust your settings without your permission. Every time you change your password, please record the password and keep it at a safe place.
Page 53
4.5.2 Time Zone The router does not have a real time clock on board; instead, it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server outside your network. Choose your local time zone. After a successful connection to the Internet, the router will retrieve the correct local time from the SNTP server you have specified.
Page 54
4.5.3 Firmware Your router’s “firmware” is the software that allows it to operate and provides all its functionality. Think of your router as a dedicated computer, and the firmware as the software it runs. Over time this software may be improved and modified, and your router allows you to upgrade the software it runs to take advantage of these changes.
Page 55
If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings. You may also reset your router to factory settings by holding the small Reset pinhole button on the back of your router in for 10-12 seconds whilst the router is turned on.
Page 56
4.5.6 Diagnostics The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides...
4.6 Status 4.6.1 Device Info This page displays the current information for the ADSL Router. It will display the Firmware version, LAN, WAN, and MAC address information. Device Information Firmware version: This is the Firmware version MAC Address: This is the MAC Address IP Address: LAN port IP address.
Page 58
Status: “Not connected” or “Connected” Virtual Circuit: There are eight groups of PVC can be defined. VPI: The valid range for the VPI is 0 to 255 VCI: The valid range for the VCI is 32 to 65535 Connection Type: Name of the WAN connection. VPI/VCI: Virtual Path Identifier and Virtual Channel Identifier IP Address: WAN port IP address.
Page 59
4.6.2 System Log Display system logs accumulated up to the present time. You can trace historical information with this function.
Page 60
4.6.3 Statistics Read-only information here includes port status and packet specific statistics. Also provided are "Transmit Statistics" and "Receive Statistics". Ethernet Interface: This field displays the type of port Transmit Frames: This field displays the number of frames transmitted in the last second.
Page 61
ADSL Transmit total PDUs: This field displays the number of total PDU transmitted in the last second. Transmit total Error Counts: This field displays the number of total error transmitted in the last second. Receive total PDUs: This field displays the number of total PDU received in the last second.
Page 62
Rx Errors Count: This field displays the number of errors frames received in the last second. Rx Drops Count: This field displays the number of drops frames received in the last second.
Chapter 5 Troubleshooting If the ADSL2+ Router is not functioning properly, you can refer first to this chapter for simple troubleshooting before contacting your service provider. This could save your time and effort but if the symptoms persist, then consult your service provider. Problems starting up the router Problem Corrective Action...
Page 65
Problems with the WAN Interface Problem Corrective Action Initialization of the Ensure that the telephone cable is connected properly from PVC connection the ADSL port to the wall jack. The ADSL LED on the front (“linesync”) failed. panel of the router should be on. Check that your VPI, VCI, encapsulation type and type of multiplexing settings are the same as those provided by your ISP.
Product Support and Contact Information Most problems can be solved by referring to the Troubleshooting section in the User’s Manual. If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer where you purchased this product. Contact Prolink WORLDWIDE http://www.prolink2u.com www.fida.com...
