PROLiNK Hurricane 8800 User Manual

Adsl bridge/router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

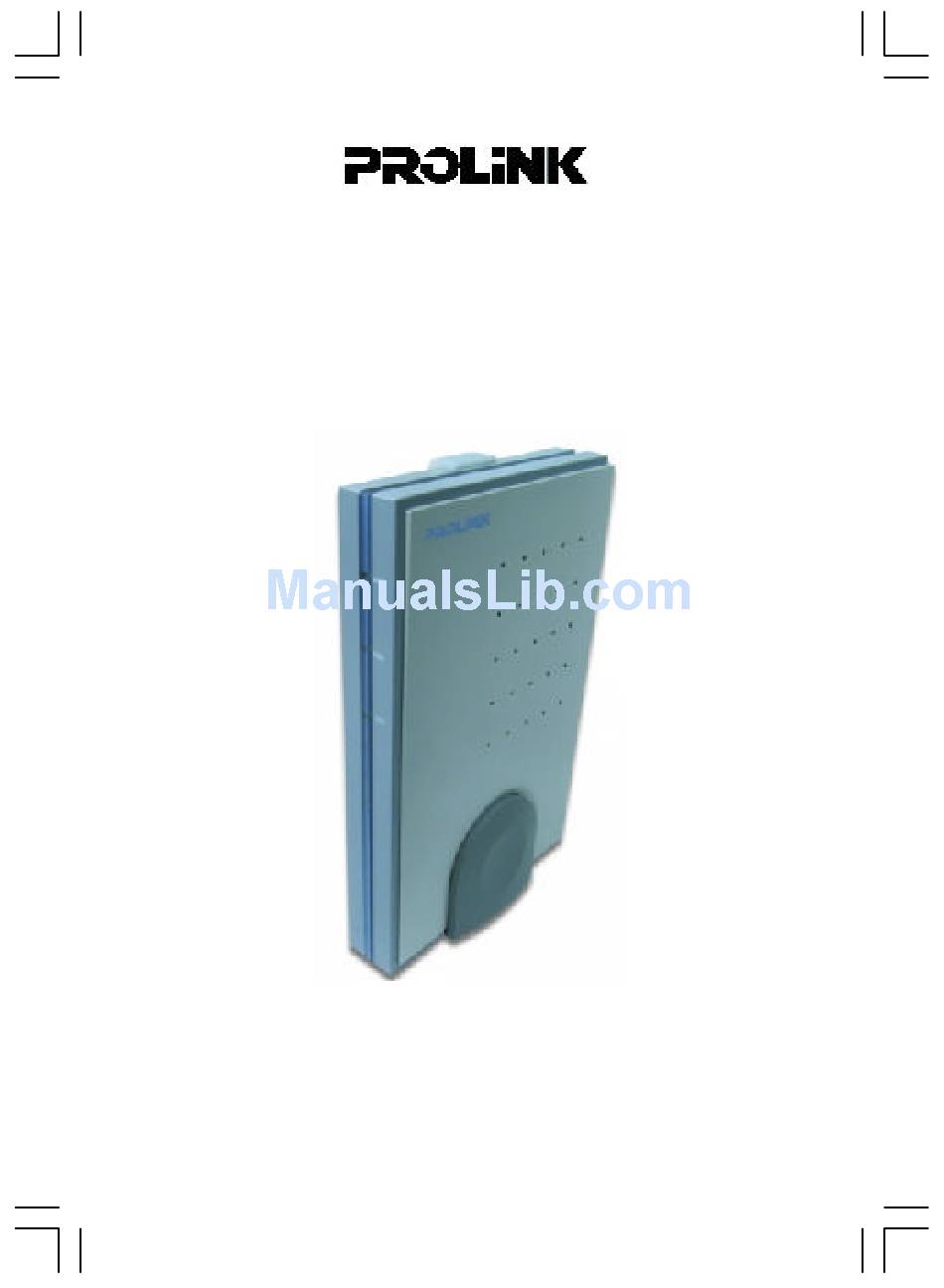

Hurricane 8800
ADSL Bridge/Router
USER'S Manual
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hurricane 8800 and is the answer not in the manual?

Questions and answers

Related Manuals for PROLiNK Hurricane 8800

Summary of Contents for PROLiNK Hurricane 8800

  • Page 1 Hurricane 8800 ADSL Bridge/Router USER'S Manual Version 2.0...

  • Page 2: Table Of Contents

    Contents Section One - Introduction ................. 3 1.1 Sy stem Requirements ......................3 1.2 Features Summa ry ........................3 1.3 Equi pment Performa nce ......................4 1.3.1 ATM l ayer ........................4 1.3.2 Protocols ........................4 Section Two - Connect the Bridge/Router ..........6 2.1 T his Package cont ents ......................6 2.2 P roduct View ...........................7 2.3 Hardwa re Installa tion ......................8 2.4 Net work Connecti ons ......................9...
  • Page 3 The information contained in this manual has been veri f ied at the time of this manual's printing. The manufacturer reserves the right to make any changes and i m provements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners.

  • Page 4: Section One - Introduction

    Sec tion One: Introd uction Section One - Introduction The Hurricane 8800 provides Full rate (ANSI and G.DMT) as well as G.lite ADSL standards line support, and can be connected to PC through Ethernet. This product supports bridge feature set for the integration of ADSL service into corpor ate or home LAN and WAN.

  • Page 5: Equipm Ent Performance

    Sec tion One: Introd uction 1.3 Equipm ent Performance 1.3.1 ATM layer The equipment will be fully compatible with the showed on the figure 1of the ANSI T1.413-1998 1. Adaptation layer The modem will implement the adaptation layer AAL5, as requested by the recommendation ITU I.363.5 2.
  • Page 6 Sec tion One: Introd uction 3. PPPoE relay It is used to transport P PP traffic over Ethernet. 4. PPPoEthernet client (R FC 2516) Authentifi cation is supported by PAP & CHAP protocols. The RFC 2516 supports for multiple PVCs,with each VC supporting a single PPPoE session (different ISPs over differ ent PVCs) 5.

  • Page 7: Section Two - Connect The Bridge/Router

    Sec tion Two : Co nnec t th e Bridge/Router Section Two - Connect the Bridge/Router 2.1 This Package con tents 1. ADS L Bridge/R outer 2. RJ-45 straight cable 3. RJ-11 telephone cable 4. R S-232 cable 5. 5V DC Power Adaptor 6.

  • Page 8: Product View

    Sec tion Two : Co nnec t th e Bridge/Router 2.2 Product View Power LED (In red color) Light ON once detected. ADSL LED (In green color) Light ON when the connection is ON. LAN LED (In green color) Keeps on, Light blinks during data transfer Line Jack For R J-11, to connect to ADSL Line...

  • Page 9: Hardware Installation

    Sec tion Two : Co nnec t th e Bridge/Router 2.3 Hardware Installation The following steps instr uct you to install the Hurr icane 8800P for one com puter. for more than four computers, pl ease refer to 2.4 Network Connecti on.

  • Page 10: Network Connections

    Sec tion Two: C onnec t the Bridge/Router 2.4 Network Connections 2.4 .1 for four PCs RJ-45 ADSL RJ-11 2.4.2 for m ore th an four PCs ADSL RJ-45 HUB/S WITCH Str aight Cable to U plink po rt or Cro ss Cabl e t o no rmal po rt RJ-11 RJ-45...

  • Page 11: Section Three - Configure The Pcs

    Sec tion Three: Configure the PCs Section Three - Configure the PCs The ins tructions i n thi s section wil l hel p you confi gure each of your computers to be able to communicate with the R outer. To do this, you need to configure your PC’...
  • Page 12 Sect ion Th ree: C onfigure the PCs For Windows XP 1. Click the Start button and then Control Panel. From there, cli ck the Net work and Internet Connection s ic on. Then click the Netwo rk Connections i con. 2.Select the Loc al A rea Conn ection icon for the appli cabl e Ethernet adapter Doubl e-click the Local Area Connection.

  • Page 13: Verify The Link Between Your Pc And Ro Uter

    Sec tion Three: Configure the PCs Verify the link between your PC and Ro uter a) From start > Run b) Enter ping 192.168.101.1 –t and cli ck OK c) If the connection has been established, You will r eceive reply from the router.

  • Page 14: Section Four - Configure The Bridge/Router

    Sectio n Four: Co nfigure th e Bridge/Router Section Four - Configure the Bridge/Router 4.1. Description of Web configuration. 1)Open Internet E xplorer , type http://192.168.101.1 2)The s ystem wi ll r emind you to enter administr ator ’ s username and password when restarting or configuring.

  • Page 15: How To Co Nfigure Your Router

    Sec tion Four: Co nfigure t he Bridge/Router 3)Ther e are four m ain menus i n the left column: “Stat us” to the curr ent status of every setting, including IP of port, connecti on status of port, and s tatus of WAN port, LAN port, hardware and definition port.
  • Page 16 Sectio n Four: Co nfigure th e Bridge/Router Bridging mode RFC 1483 Bri dged ü PPPoE Relay Br idged ü Please kindly check with your local ISP, select one of the above modes to configure it. 1) SingNet and Pacific Internet : PPPoA or PPPoE 2) M agix AT M plan(Static IP) : RFC 1483 Routed The Information i n the screen shots in this manual is as examples only, you are required to replace these values wi th those provided...

  • Page 17: Pppoa Routed Configuration

    Sec tion Four: Co nfigure t he Bridge/Router 4.2.1 PPPoA Routed Configuration. A. Click Rou ter mode under Configur ation and choose PPPOA routed. Click Configure and the interface shows as below.
  • Page 18 User name and Password: The user name and password will • be provided by your ISP when applying for ADSL service. (e.g. prolink@singnet ) Click Configure to compl ete B. NAT Con figurat ion. Cl ick Sec urity a nd the i nter face shows a s below. Ch oose Enable un der...
  • Page 19 Sec tion Four: Co nfigure t he Bridge/Router Click add Interface und er Security Interface Add WAN Interface •Name : select the name of WAN Port (e.g. ppp-0) •Interfac e Type : Choos e extern al Click Apply and WAN Interface is added. Add LAN Interface •Name: Sel ect the name of LAN port (e.g.
  • Page 20 Sectio n Four: Co nfigure th e Bridge/Router Click Enable NAT to internal interfac es a nd the configuration of PP PoA Router mode h as been done. NOTE: Please remember to save the configuration after f inishing the settings.

  • Page 21: Pppoe Routed Co Nfigurat Ion

    Sec tion Four: Co nfigure t he Bridge/Router Click Save Config , then Click Save button and wait u ntil it fin ishes. 4.2.2 PPPoE Routed Co nfigurat ion. A. Click Router mode under Configuration and choose PPPOE routed.
  • Page 22 Sectio n Four: Co nfigure th e Bridge/Router Click Configure and th e interface shows as below. Description: Nam e of the WAN connection ( e.g. SingNet) • • VPI/VCI: ATM VC of local ISP (remote). e.g. for Singapore VPI=0 , VCI=100 PPPoE Auto Connect: Default as Disabled (‘...
  • Page 23 Sec tion Four: Co nfigure t he Bridge/Router • LLC Header Mode: Off (Default) • HDLC Header M ode: Off (Default) • Choose CHAP • User name and Password: The user name and password will be pr ovided by ISP when applying for ADSL service •...

  • Page 24: Rfc 1483 Routed Configuration

    Sectio n Four: Co nfigure th e Bridge/Router 4.2.3 RFC 1483 Routed Configuration. A. Click Router mode under Configura tion and choose RFC 1483 routed. Click Configure and the interfa ce shows as below • Description: Nam e of the WAN connection. (e.g. M agix) VPI/VCI: ATM VC of l ocal ISP (remote).
  • Page 25 Sec tion Four: Co nfigure t he Bridge/Router Click Apply to continue B. NAT Con figurat ion. Confi guration of NAT is the same as that of PPPoA Router mode, P lease refer to 4.2.1.B.(Page 17-20)
  • Page 26 Sectio n Four: Co nfigure th e Bridge/Router C. A dd default Gat eway to IP rou tes. If you uses static IP, have to add the default gateway (Pr ovided by your ISP) to IP rout es. Click IP routes, key i n the gateway IP (p rovided by your ISP) to Gateway. Interface: lea ve blank.

  • Page 27: Ipoa Routed Configurat Ion

    Sec tion Four: Co nfigure t he Bridge/Router 4.2.4 IPoA Rou ted Con figurat ion. A. Click Router mode under Configuration and choose IPoA routed. B. NAT Con figurat ion. Configuration of NAT is the same as that of PPPoA Router m ode, Please refer to 4.2.1.B.(Page 17 -20) C.

  • Page 28: How To Co Nfigure Dhcp Serv Er

    Sectio n Four: Co nfigure th e Bridge/Router 4.3 How to Co nfigure DHCP Serv er. Select DHCP Server, then click Configure to configure the DHCP Server settings.

  • Page 29: How To Set Port Forwarding

    Sec tion Four: Co nfigure t he Bridge/Router 4.4 How to set Port Forwarding. Click Advanced NAT Conf iguration under Security .

  • Page 30: How To Let Netmeet Ing Pass Thro Ugh

    Sectio n Four: Co nfigure th e Bridge/Router 4.5 How to let Netm eeting pass thro ugh. You may enable Firewall to let your netmeeting pass through. Select Enable under Firewall, click Change State and select low under Security Level, click Change Level.

  • Page 31: How T O Configure Bridge M Ode

    Sec tion Four: Co nfigure t he Bridge/Router 4.6 How t o Configure Bridge M ode. If you connect the Hurricane 8800P to the WAN port of another router as bridge (Ethernet M odem), you need to set it to Bridge mode. Click Bridge Mode, then Sl ect RFC 1483 Bridge or PPPoE Relay Bridge.

  • Page 32: How To Restore To The Fac Tory Default

    Sectio n Four: Co nfigure th e Bridge/Router 4.7 How to Restore to the Fac tory Default. Click Restart u nder System, select reset to factory default Settings, th en click restart bu tton.

  • Page 33: Appendix A - Troubleshooting

    App endix A - T roubleshoot ing Appendix A - Troubleshooting 1. I can not get an y connection. Power LED an d LAN LED light up, but th e ADSL Link LED has no light . 1) Ensure that the ADSL line is activated. 2) Check that the Telephone cable (RJ-11) is connected to LINE Jack on your router.
  • Page 34 Appendix A - Troubleshoo ting A. For Inter net Ex plorer, click Tools , Inter net Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. B. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy.

  • Page 35: Appendix B - High Protocols

    Appendix B - High Proto cols Appendix B - High Protocols 1. IP The modem will support next type IP packets: RFC 1483 Routed (now in use) The RFC in use is the 2684, but its PDU for IPV4 (802 networks) is similar to the 1483.
  • Page 36 Appendix B - High Proto cols VPN's. The m echanis ms shoul d be based on standards, to warranty the manufacturer independence of the other end s erver s for tunneling and encryption. Router At least, the modem should support routing for IP protocol between user LAN and WAN (through ADS L interface).
  • Page 37 Appendix B - High Proto cols BOOTP/TFTP client Systems can be booted over Ethernet using BOOTP/TFTP. Once there is a running image on the ASSP, the images and/or configuration stored in flash can be updated using TFTP. TELNET server The modem provides a sim ple telnet server that al lows admini strative acces s to the platform over TCP/IP.

  • Page 38: Appendix C - Acronyms

    Appendix C - Acro nyms Appendix C - Acronyms ADSL Asymmetric Digital Subscriber Line ANSI American National S tandards Ins titute Asynchr onous Transfer Mode CHAP CHall enge Handshake Protocol DHCP Dynami c Host Confi guration Pr otocol Domai n Name Service File Transfer Pr otocol HTML Hyper Text Mark Language...

  • Page 39: Appendix D - Emc And Safety

    Appendix D - EMC and Sa fety Appendix D - EMC and Safety EMC - CE Mark Directive 89/336/EEC EN 55022:1998 Class B/CISPR22:1997 EN 61000-3-2: 1995 EN 61000-3-3: 1995 EN 55024: 1998 Safety - CE Mark Directive 72/23/EEC IEC950/EN 60950...

  • Page 40: Appendix E- Telecom Notices

    Ap pendix E - T eleco m Notices Appendix E- Telecom Notices CTR-2 1 Complian ce Inform ation The equipment has been approved in accordance with Council ecis ion 98/ 482/EC for pan- European single terminal connection to the public switched tel ephone network (PSTN).
  • Page 41 App endix E - T eleco m Notices Micros oft Windows is a tradem ark of Micr osoft Corpor ation. Al l pr oduct names are trademar ks or regi stered trademarks of their respective owners. FCC Complian ce Statement This device compli es with Part 15 and 68 of the FCC R ules.

  • Page 42: Prolink Technical Support

    PROLiNK TECHNICAL SUPPORT At PROLiNK, we are committed to give you the best products as well as the best technical supp ort for installation of ADSL Bridge/Router.If there is virus in your system, we may provide suggestions like where you can find the solution to clean the virus, but we are unable to assist you until the virus is cleaned.
