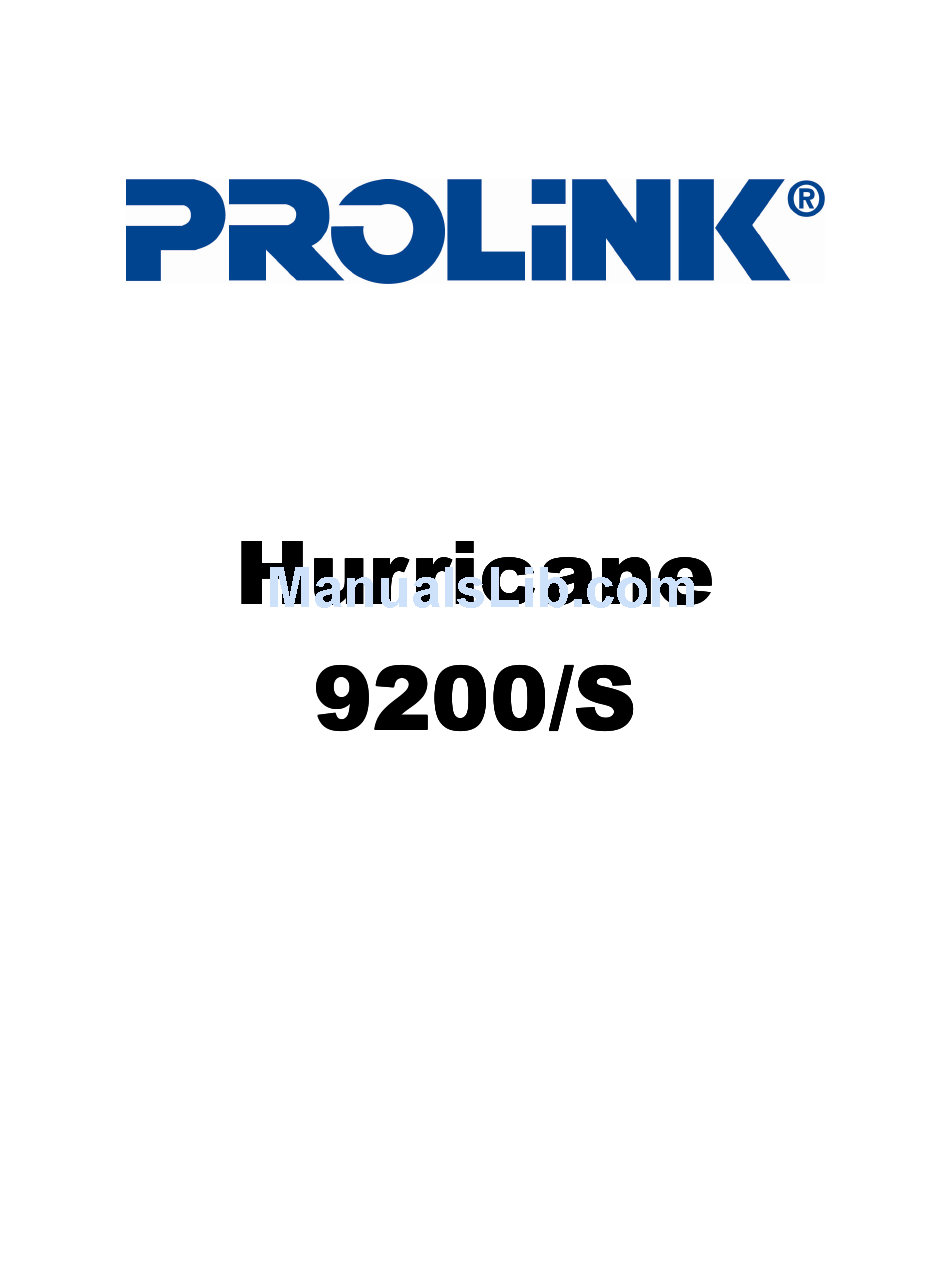

Page 1 ADSL-Ethernet Router User’s Guide Revision 1.0...
Page 2 Product Support and Contact Information At PROLiNK, we are committed to give you the best products as well as the best technical support for your product. If there is any virus in your system, we can provide suggestions like where you can find...
Page 3 Table of Contents About this User’s Guide............11 Using this Document ............12 Notational conventions..........12 Typographical conventions .......... 12 Special messages ............12 About Part 1 ................. 14 Getting to Know the Hurricane 9200/S ....15 Features ................15 System Requirements............15 Parts Check................
Page 4: Getting Started With The Configuration Manager
Hurricane 9200/S ADSL Ethernet Router User’s Guide Quick Start Part 3 — Configuring the Hurricane 9200/S................29 Logging in to the Hurricane 9200/S Quick Configuration Page ........... 29 Default Router Settings ..........32 Testing Your Setup.............. 34 Getting Started with the Configuration Manager.35 Accessing the Configuration Manager .......
Page 5: Configuring Dynamic Host Configuration Protocol
Table of Contents Configuring IPoA Interfaces ..........70 Adding IPoA Interfaces ..........72 Configuring the System Operating Modes ..74 Overview of Bridges and Routers........74 How Bridges Work............74 How Routers Work ............75 Overview of System Operating Modes ......76 Configuring Routable and Bridgeable Interfaces ....
Page 6: Configuring Dns Server Addresses
Hurricane 9200/S ADSL Ethernet Router User’s Guide Guidelines for creating DHCP server address pools................95 Adding DHCP Server Address Pools......96 Viewing, modifying, and deleting address pools................98 Excluding IP addresses from a pool ......99 Viewing current DHCP address assignments .... 99 Configuring DHCP Relay ..........
Page 7: Configuring Firewall Settings
Table of Contents Adding NAT Rules ............. 125 The NAPT rule: Translating between private and public IP addresses ......... 125 The RDR rule: Allowing external access to a LAN computer ............127 The Basic rule: Performing 1:1 translations....130 The Filter rule: Configuring a Basic rule with additional criteria .............
Page 8: Modifying Port Settings
Hurricane 9200/S ADSL Ethernet Router User’s Guide Managing User Logins ............161 Changing Login Passwords ..........163 Enabling Management through the WAN Port....164 Configuring SNMP............. 165 Creating Communities..........165 Adding Hosts to Communities ........166 Viewing Hosts ............. 166 Viewing Global SNMP Statistics........
Page 9 Table of Contents Glossary..............191 Index...
Page 11 This User’s Guide shows you how to set up the Hurricane 9200/S ADSL Bridge/Router and how to customize its configuration to meet the needs of your network and Internet connection type. This document is organized in five major parts, each containing several chapters: Part 1, “Getting Started,”...
Page 12 Hurricane 9200/S ADSL Ethernet Router User’s Guide Acronyms are defined the first time they appear in text and in the glossary (Appendix C). The Hurricane 9200/S is also referred to as the ADSL/Ethernet router or, for brevity, the device. The terms LAN and network are used interchangeably to refer to a group of Ethernet-connected computers.
Page 13 Part 1 Getting Started...
Page 14 Hurricane 9200/S ADSL Ethernet Router User’s Guide Part 1 provides an overview of the Hurricane 9200/S’s features and basic setup and configuration instructions. All users are encouraged to follow these setup instructions when first installing the Hurricane 9200/S on a network. Some users may find these instructions sufficient to begin using the device on their network, with no additional changes required to the product settings.
Page 15 Getting to Know the Hurricane 9200/S Internal ADSL modem for high-speed Internet access 10/100Base-T Ethernet router to provide Internet connectivity to all computers on your LAN USB port for connecting a USB-enabled PC (H9200 only) Network address translation (NAT), firewall, and IP filtering functions to provide security for your LAN Network configuration through DHCP Server and DHCP Relay...
Page 16 Hurricane 9200/S ADSL Ethernet Router User’s Guide In addition to this document, your Hurricane 9200/S should arrive with the following: Hurricane 9200/S ADSL Ethernet Bridge/Router Power adapter and power cord USB cable (H9200 only) Setup CD Ethernet cable Standard phone/DSL line cable...
Page 17: Quick Start
Quick Start This Quick Start provides basic instructions for connecting the Hurricane 9200/S to a computer or LAN and to the Internet. Quick Start Part 1 describes setting up the hardware. Quick Start Part 2 describes how to configure Internet properties on your computer(s) and how to install the software for using a computer attached to the USB port (H9200 only).
Page 18 Hurricane 9200/S ADSL Ethernet Router User’s Guide Figure 1. Overview of Hardware Connections & " Connect one end of the provided phone cable to the port labeled LINE on the rear panel of the device. Connect the other end to your wall phone jack.
Page 19 Chapter 2. Quick Start 1 $ % Connect the AC power adapter to the Power connector on the back of the device and plug in the adapter to a wall outlet or power strip. . ( / / 3 " Press the On/Off switch on the back panel of the device to the On position.
Page 20 Hurricane 9200/S ADSL Ethernet Router User’s Guide Quick Start Part 2 provides instructions for configuring the Internet settings on your computers to work with the Hurricane 9200/S. By default, the Hurricane 9200/S automatically assigns all required Internet settings to your PCs. You need only to configure the PCs to accept the information when it is assigned.
Page 21 Chapter 2. Quick Start 5 " # ( / / / First, check for the IP protocol and, if necessary, install it: 1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. 2.
Page 22 Hurricane 9200/S ADSL Ethernet Router User’s Guide 5 " # 8 1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. 2. Double-click the Network and Dial-up Connections icon. 3. In the Network and Dial-up Connections window, right-click the Network icon, and then select Properties.
Page 23 Chapter 2. Quick Start 5 " # . 9 : . ; First, check for the IP protocol and, if necessary, install it: 1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel. 2.
Page 24 Hurricane 9200/S ADSL Ethernet Router User’s Guide 5 " # 2 $ / # First, check for the IP protocol and, if necessary, install it: 1. In the Windows NT task bar, click the Start button, point to Settings, and then click Control Panel. 2.
Page 25 Chapter 2. Quick Start In some cases, you may want to assign Internet information to some or all of your PCs directly (often called “statically”), rather than allowing the Hurricane 9200/S to assign it. This option may be desirable—but not required—if: You have obtained one or more public IP addresses that you want to always associate with specific computers (for example, if you are using a computer as a public web...
Page 26 Hurricane 9200/S ADSL Ethernet Router User’s Guide - !. ( / / If you use the Hurricane 9200/S’s USB port to connect to a PC, you must install the provided USB driver software on the PC. The driver enables Ethernet-over-USB communication with the Hurricane 9200/S.
Page 27 Chapter 2. Quick Start Figure 3. USB Setup Wizard—Prompt for Hardware Plug In 5. Connect the USB cable to the ADSL-Ethernet router and to your computer. The provided USB cable provided has a flat connector on one end (called Type A) and a square connector on the other (Type B).
Page 28 Ethernet NIC). When you display properties for the icon, the following text should display in the Connect Using text box: PROLiNK H9200 USB LAN Modem #n The USB interface on the Hurricane 9200/S is preconfigured with these properties: USB interface IP address: 192.168.1.2...
Page 29 Chapter 2. Quick Start . ( / / 3 In Quick Start Part 3, you log into the program on the Hurricane 9200/S and configure basic settings for your Internet connection. Your ISP should provide you with the necessary information to complete this step.
Page 30 Hurricane 9200/S ADSL Ethernet Router User’s Guide Figure 6. Quick Configuration Page in Configuration Manager...
Page 31 Chapter 2. Quick Start The fields are described in the following table. Work with your ISP to determine which settings you need to change and refer to the indicated chapter for more information about each setting. Field Description General Settings ATM Interface Selects the ATM interface you want to use (0).
Page 32 Hurricane 9200/S ADSL Ethernet Router User’s Guide 2. When finished customizing these settings, click The settings are now in effect; however, if you reboot or if the power is disconnected, your settings will be lost. In step 3, you save the changes to permanent memory: 3.
Page 33 Chapter 2. Quick Start Table 1. Default Settings Summary Option Default Properties Explanation/Instructions LAN interfaces — connecting to your network Ethernet Static IP address: 192.168.1.1 The LAN interface connects the device to your Ethernet Subnet mask: 255.255.255.0 network. Typically, you will not need to change the IP address.
Page 34: Led Behavior
Hurricane 9200/S ADSL Ethernet Router User’s Guide The Quick Start process should enable any computer on your LAN to use the Hurricane 9200/S to access the Internet. To test the connection, turn on the device, wait about 30 seconds, and then verify that its LEDs are illuminated as shown in Table 2. Table 2.
Page 35 Getting Started with the Configuration Manager The Hurricane 9200/S includes a preinstalled program called the Configuration Manager, which provides an interface to the software installed on the device. It enables you to configure the device settings to meet the needs of your network. You access it through your web browser from any PC connected to the Hurricane 9200/S via the LAN or USB ports.
Page 36 Hurricane 9200/S ADSL Ethernet Router User’s Guide Figure 7. Login Screen 2. Enter your user name and password, and then click The first time you log into the program, use these defaults: Default User Name: admin Default Password: password You can change the password at any time (see Chapter 15 for instructions).
Page 37 Chapter 3. Getting Started with the Configuration Manager & Configuration Manager tasks are grouped into categories, which you can access by clicking the tabs at the top of each page. Each tab displays the available tasks in a horizontal menu at the top of the page.
Page 38 Hurricane 9200/S ADSL Ethernet Router User’s Guide Button Function On pages that display accumulated statistics, this button resets the statistics to their initial values. Launches the online help for the current topic in a separate browser window. Help is available from any main topic page.
Page 39 Chapter 3. Getting Started with the Configuration Manager " < # The Home page displays when you first access the program or, if another tab is already displaying, when you click on the Home tab. Figure 9. System View Table...
Page 40 Hurricane 9200/S ADSL Ethernet Router User’s Guide Figure 10 System View Table The Home page contains the System View table, which provides a snapshot of your system configuration. Note that some settings link to the related pages in Configuration Manager where you can change the data or view details.
Page 41 Chapter 3. Getting Started with the Configuration Manager Table Heading Description WAN Interfaces Displays the software name(s) and various settings for the device interface(s) that communicate with your ISP via DSL. Although you only have one physical DSL port, multiple software-defined interfaces can be configured to use it.
Page 42 Hurricane 9200/S ADSL Ethernet Router User’s Guide 8 ", You can modify the system date and time. You can also assign a name to the Hurricane 9200/S and to the network domain in which it resides. 8 " , " You can set the system date and time manually.
Page 43 Chapter 3. Getting Started with the Configuration Manager Option Description Date and Time To set the date and time manually, ensure that the SNTP Client is Disabled. To configure SNTP Client Visit SNTP Page. Click the date and time check boxes to select the appropriate values from the drop-down lists.
Page 44 Hurricane 9200/S ADSL Ethernet Router User’s Guide . ( / / 3 = " You can specify an easy-to-remember name for the Hurricane 9200/S and a domain name for the network on which it resides. These are used only to simplify access to the Configuration Manager program.
Page 45 Chapter 3. Getting Started with the Configuration Manager " Whenever you use Configuration Manager to change system settings, the changes are initially placed in temporary storage called random access memory or RAM. Your changes are made effective when you submit them, but will be lost if the device is reset or turned off.
Page 46 Hurricane 9200/S ADSL Ethernet Router User’s Guide " To reboot the device, display the Commit & Reboot page, select the appropriate reboot mode from the drop-down menu, and then click You can select from the following reboot options: Option Description Reboot Reboots using the settings currently in memory, including any changes you made and committed...
Page 47 Part 2 Interfaces and Operating Modes...
Page 48 Hurricane 9200/S ADSL Ethernet Router User’s Guide Part 2 explains how to configure the Hurricane 9200/S’s interfaces to communicate with your LAN PC(s) and your ISP. Part 2 also describes the device’s operating modes and explains how to configure the interfaces to enable each mode. Interfaces refer to those points in the various communication paths where the Hurricane 9200/S exchanges data with external devices.
Page 49 Configuring the LAN and USB Interfaces This chapter describes how to configure the interfaces on the Hurricane 9200/S that communicate with your LAN and USB computers. "3 + - !. ( / / If you are using the ADSL/Ethernet router with multiple PCs on your LAN, you must connect the LAN via an Ethernet hub or switch to the device s LAN port, also called the Ethernet port.
Page 50 Hurricane 9200/S ADSL Ethernet Router User’s Guide & % - ) In order to use the device as a router on your LAN, Internet Protocol (IP) properties must be assigned to the LAN interface. These properties must identify the interface as residing in the same subnet as the PCs on your LAN.
Page 51 Chapter 4. Configuring the LAN and USB Interfaces Figure 13. LAN Configuration Page Depending on the preconfigured settings, the LAN Configuration or USB Configuration table may not display. You cannot create these interfaces using Configuration Manager. Contact your ISP Note for assistance.
Page 52 Hurricane 9200/S ADSL Ethernet Router User’s Guide LAN IP The IP address and network mask for the port. See Address and Appendix A for and overview of IP addresses and Network Mask masks. Speed/Duplex Speed indicates the speed of the Ethernet communication between the ADSL/Ethernet router and the LAN PCs or hub.
Page 53 Chapter 4. Configuring the LAN and USB Interfaces 3. If you are using IGMP on your network, click the IGMP Enable radio button (see the explanation of IGMP on page 52). 4. Click If you changed the LAN IP address while working from a PC that is connected to the device via Ethernet, then your connection will be terminated.
Page 54 Hurricane 9200/S ADSL Ethernet Router User’s Guide interface will accept. Packets larger than this size will be dropped. 5. Click If you changed the USB interface IP address while working from the USB-attached computer, then the connection will be terminated. If you were using the Ethernet interface, a page will display to confirm your change and your connection will remain active.
Page 55 Configuring WAN Interfaces The Hurricane 9200/S’s WAN-side interfaces are used to communication via the DSL port. A WAN interface comprises two layers—a lower-level ATM VC interface and a higher-level protocol interface: The ATM VC interface enables the device to communicate using the Asynchronous Transfer Mode protocol.
Page 56 Hurricane 9200/S ADSL Ethernet Router User’s Guide % 8 < The device is preconfigured with an ATM VC interface called aal5-0. You may need to change the default VC values associated with the interface to values assigned by your ISP. To view the current values, log into Configuration Manager, click the WAN tab, and then click in the task bar.
Page 57 Chapter 5. Configuring WAN Interfaces 8 " , % 8 < Your device may contain placeholder values that you must change to establish an ATM connection. Contact your ISP to determine your ATM VC values. Follow these instructions to modify a preconfigured VC: 1.
Page 58 Hurricane 9200/S ADSL Ethernet Router User’s Guide %"" % 8 < You can create an ATM VC interface if none has been predefined on your system or if you use multiple services with your ISP. Each service may require its own VC. Follow these instructions to add a 1.
Page 59 Chapter 5. Configuring WAN Interfaces The Point-to-Point Protocol (PPP) is one of several protocols used to enable communication between ISPs and their customers. PPP handles tasks such as the following: Identify the type of service the ISP should provide to a given customer Identify the customer to the ISP through a username and password login...
Page 60 Hurricane 9200/S ADSL Ethernet Router User’s Guide You can configure the following settings on the PPP Configuration page: Inactivity TimeOut...: The time in minutes that must elapse before a PPP connection times-out due to inactivity. This setting applies only to PPP interfaces that are configured as “start-on-data”...
Page 61 Chapter 5. Configuring WAN Interfaces Field Description Default Route Indicates whether the ADSL/Ethernet router should use the IP address assigned to this connection as its default route. Can be Enabled or Disabled. See Chapter 10 for an explanation of default routes. Use DHCP When set to Enable, the device will acquire additional IP information from the ISP s DHCP server.
Page 62 Hurricane 9200/S ADSL Ethernet Router User’s Guide < # When you click to view additional details, the PPP Interface - Detail page displays: Figure 18. PPP – Detail Page In addition to the properties defined on page 60, the Detail page displays these fields: Field Description...
Page 63 Chapter 5. Configuring WAN Interfaces Field Description Last Fail Cause Indicates the action that ended the previous PPP session: No Valid PADO Recvd: The device initiated a PPoE handshake but did not receive a packet in reply from the ISP. No Valid PADS Recvd: After the initial handshake, the device did not receive a confirmation packet from the ISP.
Page 64 Hurricane 9200/S ADSL Ethernet Router User’s Guide %"" Follow this procedure to add a PPP interface. If you need to use more than one PPP connection, you may be able to create multiple PPP interfaces. The number and type of PPP interfaces you can create depends on the lower-level ATM VC interface type (LLC Mux or VC Mux),...
Page 65 Chapter 5. Configuring WAN Interfaces ) % * The Ethernet-over-ATM (EoA) protocol is often referred to as RFC1483, which is the Internet specification that defines it. It is commonly used to carry data from an Ethernet-based local area network over the ATM-based wide area network.
Page 66 Hurricane 9200/S ADSL Ethernet Router User’s Guide The following table describes the fields on this page: Field Description Interface The name the software uses to identify the EoA interface. Interface Sec Type The type of security protections in effect on the interface (public, private, or DMZ): A public interface connects to the Internet (IPoA interfaces are typically public).
Page 67 Chapter 5. Configuring WAN Interfaces Field Description Status A green or red ball will display to indicate that the interface is currently up or down, respectively. You cannot manually enable or disable the interface; a red ball may indicate a problem with the DSL connection or the connection to the ISPs access server.
Page 68 Hurricane 9200/S ADSL Ethernet Router User’s Guide 7. If your ISP will assign the IP address from their DHCP server, click the Enable radio button in the Use DHCP field. When DHCP is enabled, the address you entered in the Conf. IP Address field will be requested from the DHCP server;...
Page 69 Chapter 5. Configuring WAN Interfaces 13. In the interface table, select all interface names on which you want to perform bridging and click To enable bridging with your ISP, select the EoA interface and the LAN interface(s) (eth-0 and/or usb-0). You can enable bridging on an IP-enabled EoA interface;...
Page 70 Hurricane 9200/S ADSL Ethernet Router User’s Guide * % * An IPoA interface can be used to exchange IP packets over the ATM network, without using an underlying Ethernet over ATM (EoA) connection. Typically, this type of interface is used only in product development and test environments, to eliminate unneeded variables when evaluating IP protocol processing.
Page 71 Chapter 5. Configuring WAN Interfaces Field Description Lower interface IPoA interfaces are defined in software, and then associated with lower-level software and hardware structures (at the lowest level, they are associated with a physical port – the WAN port). This field should reflect an interface name defined in the next lower level of software over which the IPoA interface will operate.
Page 72 Hurricane 9200/S ADSL Ethernet Router User’s Guide %"" * % * Follow these instructions to add an IPoA interface: 1. Display the IPoA page and click The IPoA Interface – Add page displays: Figure 25. IPoA Interface – Add Page 2.
Page 73 Chapter 5. Configuring WAN Interfaces 10. Click to return to the IPoA page and view the new interface in the table. IPoA interfaces must be mapped to a lower ATM VC interface before they can be used. Follow these instructions to map and IPoA interface to an ATM VC: 11.
Page 74 Configuring the System Operating Modes The Hurricane 9200/S can operate as a router, a bridge, or both. The system operating mode is determined by how you configure the LAN and WAN interfaces to exchange data within your network and with your ISP. This chapter provides an overview of how routers and bridges work, and explains how to configure the device interfaces and other settings to meet the needs of your network and ISP connection type.
Page 75 Chapter 6. Configuring the System Operating Modes Routers use a higher-layer protocol than bridges use to determine how to pass data between two networks. Routers such as the Hurricane 9200/S operate based on the Internet Protocol and use IP addresses to identify where to send data. Unlike a MAC address, an IP address is not permanently associated with a particular piece of hardware, but is assigned to a computer by its user (or by an administrator or an automated...
Page 76 Hurricane 9200/S ADSL Ethernet Router User’s Guide > > 8 " The Hurricane 9200/S can operate in Bridging mode, Routing mode, or Routing and Bridging mode. You can view the currently configured mode in the System View table on the Home page, as shown in Figure 28.
Page 77 Chapter 6. Configuring the System Operating Modes Mode page is located in the Home tab and is shown in Figure 31 on page 80. When the Bridging setting on the System Mode page is disabled, then the system mode will display as “Routing.” When the Bridging setting is enabled and at least one LAN or WAN interface is IP-enabled, then the system mode will display as “Routing and Bridging.”...
Page 78 Hurricane 9200/S ADSL Ethernet Router User’s Guide " + " ' - * ?) ' "0 A routable or IP-enabled interface is simply one that has been assigned an IP address. IP-enabled interfaces are capable of forwarding IP packets. You can assign IP addresses to any LAN or WAN interface.
Page 79 Chapter 6. Configuring the System Operating Modes The Bridge Configuration page provides links (shown in red) to the System Mode page, where you can enable or disable the corresponding bridging services. The Bridge Configuration page also displays a table for specifying the interfaces that support bridging.
Page 80 Hurricane 9200/S ADSL Ethernet Router User’s Guide 2. In the interface table, select all interface names on which you want to perform bridging and click To enable bridging with your ISP, select the LAN interface (eth-0 and/or usb-0) and the EoA interface you created for the bridging path.
Page 81 Chapter 6. Configuring the System Operating Modes The sections that follow describe common system configurations that use bridging, routing, or both. Note that you can also configure several special operating modes. These are described in ”Configuring Special Bridging Features” on page "...
Page 82 Hurricane 9200/S ADSL Ethernet Router User’s Guide ( @ + " " In this configuration, your ISP requires you to configure a bridged Internet connection. For a bridged internet connection, the WAN interface must be bridge-enabled. The configuration would have these features: A bridge-enabled EoA WAN interface.
Page 83 Chapter 6. Configuring the System Operating Modes " " + " " In this configuration, the LAN is like that described in Scenario 1, but also includes PCs that use a bridged Internet connection. You would then need to establish bridging services in addition to routing. This would also be necessary if the LAN contains PCs that use non- IP networking protocols, such has AppleTalk or IPX.
Page 84 Hurricane 9200/S ADSL Ethernet Router User’s Guide + " 5 % ? ?5 % + " WAN-to-WAN bridging refers to the bridging of data between WAN interfaces. This can occur only when bridging is enabled on the device and it has two or more WAN interfaces. With WAN-to-WAN bridging enabled, if a packet with an unknown destination address is received from a WAN interface, that packet is forwarded to all the other ports —...
Page 85 Chapter 6. Configuring the System Operating Modes + " - + % 0 8 " In Bridge-Router AutoSense (BRAS) mode, the Hurricane 9200/S chooses at startup whether to operate in Routing and Bridging mode or in Bridging-only mode, based on information it learns while communicating with the LAN PCs.
Page 86 Hurricane 9200/S ADSL Ethernet Router User’s Guide A * +8 " The Hurricane 9200/S offers a special type of bridging mode called ZIPB (Zero Installation PPP Bridge) mode. This mode enables the ISP to simplify the installation process for customers who will be using the device as a bridge.
Page 87 Chapter 6. Configuring the System Operating Modes 8. Click A page displays briefly to confirm the change, and the System Mode page redisplays. 9. If you want the changes to be permanent, follow the instructions on page 45 to commit them.
Page 89 Part 3 Routing and IP-Related Features...
Page 90 Hurricane 9200/S ADSL Ethernet Router User’s Guide Part 3 explains how to view information relating to Internet Protocol processing, and describes configuring the Hurricane 9200/S’s IP routing features. Part 3 contains the following chapters: Chapter 7, “Viewing System IP Addresses and IP Performance Statistics,”...
Page 91 Viewing System IP Addresses and IP Performance Statistics The interfaces on the Hurricane 9200/S that communicate with other network and Internet devices are identified by unique Internet protocol (IP) addresses. You can use the Configuration Manager to view the list of IP addresses that your device uses, and to view other system and network performance data.
Page 92 Hurricane 9200/S ADSL Ethernet Router User’s Guide If your device has additional IP-enabled interfaces, the IP addresses of these will also display. < # You can view statistics on the processing of Internet protocol packets (a packet is a collection of data that has been bundled for transmission).
Page 93 Configuring Dynamic Host Configuration Protocol You can configure your network and Hurricane 9200/S to use the Dynamic Host Configuration Protocol (DHCP). This chapter provides an overview of DHCP and instructions for implementing it on your network. > # , ! DHCP is a protocol that enables network administrators to centrally manage the assignment and distribution of IP information to computers on a network.
Page 94 Hurricane 9200/S ADSL Ethernet Router User’s Guide . ( / / 3 " The device can be configured as a DHCP server, relay agent or client. If you configure the device as a DHCP server, it will maintain the pool of addresses and distribute them to your LAN computers.
Page 95 Chapter 8. Configuring Dynamic Host Configuration Protocol Before you begin, be sure to configure your PCs to accept DHCP information assigned by a DHCP server. See “Quick Start Part 2 — Configuring Your Computers,” for instructions. Note To set up DHCP server, you first define the ranges of IP addresses that you want to be distributed to your PCs, called DHCP server address pools.
Page 96 Hurricane 9200/S ADSL Ethernet Router User’s Guide The DHCP server distributes addresses to computers connected to one of its interfaces only when that interface is in the same subnet as the pool addresses. In the examples shown above, the IP addresses in pool 0 would be assigned only over the Ethernet and USB interfaces, and the addresses in pool 1 would only be assigned only over the Wireless LAN interface.
Page 97 Chapter 8. Configuring Dynamic Host Configuration Protocol 3. Enter values for the Start IP Address, End IP Address, and Net Mask fields, which are required, and any others as needed: Field Description Start/End IP Specifies the lowest and highest addresses in Addresses the pool, up to a maximum range of 254 addresses.
Page 98 Hurricane 9200/S ADSL Ethernet Router User’s Guide Field Description SMTP...SWINS The IP addresses of devices that perform (optional) various services for computers that receive IP addresses from this pool (such as the SMTP, or Simple Mail Transfer Protocol, server which handles e-mail traffic).
Page 99 Chapter 8. Configuring Dynamic Host Configuration Protocol " * "" If you have IP addresses that are designated for fixed use with specific devices, or for some other reason you do not want to make them available to your network, you can exclude them from the pool.
Page 100 Hurricane 9200/S ADSL Ethernet Router User’s Guide Some ISPs perform the DHCP server function for their customers’ home/small office networks. In this case, you can configure the device as a DHCP relay agent. When a computer on your network requests Internet access, the Hurricane 9200/S contacts your ISP to obtain an IP address (and other information), and then forwards that information to the computer.
Page 101 Chapter 8. Configuring Dynamic Host Configuration Protocol 5. Click A page displays to confirm your changes, and the program returns to the DHCP Relay Configuration page. 6. Follow the instructions in “Setting the DHCP Mode” to set the DHCP mode to DHCP Relay. 8 "...
Page 103 Configuring DNS Server Addresses Domain Name System (DNS) servers map the user-friendly domain names that users type into their Web browsers (e.g., "yahoo.com") to the equivalent numerical IP addresses that are used for Internet routing. When a PC user types a domain name into a browser, the PC must first send a request to a DNS server to obtain the equivalent IP address.
Page 104 Hurricane 9200/S ADSL Ethernet Router User’s Guide When you specify the Hurricane 9200/S s LAN interface IP address as the DNS address, then the device automatically performs “DNS relay”; i.e., because the device itself is not a DNS server, it forwards domain name lookup requests it receives from the LAN PCs to a DNS server at the ISP.
Page 105 Chapter 9. Configuring DNS Server Addresses Click the Services tab, and then click in the task bar. The DNS Configuration page displays. Figure 40. DNS Configuration Page Type the IP address of the DNS server in an empty row and click You can enter up to two addresses.
Page 106 Configuring IP Routes You can use Configuration Manager to define specific routes for your Internet and network data. This chapter describes basic routing concepts and provides instructions for creating routes. Note that most users do not need to define IP routes. >...
Page 107 Chapter 10. Configuring IP Routes " Each time Internet data is passed from one Internet address to another, it is said to take a hop. A hop can be a handoff to a different port on the same device, to a different device on the same network, or to a device on an entirely different network.
Page 108 Hurricane 9200/S ADSL Ethernet Router User’s Guide < # All IP-enabled computers and routers maintain a table of IP addresses that are commonly accessed by their users. For each of these destination IP addresses, the table lists the IP address of the first hop the data should take.
Page 109 Chapter 10. Configuring IP Routes The following table defines the fields in the IP Routing Table. Field Description Destination Specifies the IP address of the destination computer. The destination can specified as the IP address of a specific computer or an entire network. It can also be specified as all zeros to indicate that this route should be used for all destinations for which no other route is defined (this is the route that creates the default...
Page 110 Hurricane 9200/S ADSL Ethernet Router User’s Guide %"" Follow these instructions to add an IP route to the routing table. 1. From the IP Route Table page, click The IP Route – Add page displays: Figure 42. IP Route – Add Page 2.
Page 111 Configuring the Routing Information Protocol The Hurricane 9200/S can be configured to communicate with other routing devices to determine the best path for sending data to its intended destination. Routing devices communicate this information using a variety of IP protocols. This chapter describes how to configure the Hurricane 9200/S to use one of these, called the Routing Information Protocol (RIP).
Page 112 Hurricane 9200/S ADSL Ethernet Router User’s Guide . ( / / 3 = * The following instructions describe how to enable RIP on the Hurricane 9200/S. In order for the Hurricane 9200/S to communicate with other devices using RIP, you must also enable the other devices to use Note the protocol.
Page 113 Chapter 11. Configuring the Routing Information Protocol the metric values assigned to each port through which data is passed before reaching the destination. Among several alternative routes, the one with the lowest hop count is considered the fastest path. For example, if you assign this port a metric of 1, then RIP will add 1 to the hop count when calculating a route that passes through this port.
Page 114 Hurricane 9200/S ADSL Ethernet Router User’s Guide < # From the RIP Configuration page, you can click to view statistics on attempts to send and receive route table data over RIP-enabled interfaces on the Hurricane 9200/S. Figure 44. RIP Global Statistics Page You can click to reset all statistics to zero and to display any newly accumulated data.
Page 115 Part 4 Security Features...
Page 116 Hurricane 9200/S ADSL Ethernet Router User’s Guide Part 4 describes features you can configure to provide security to your network. Part 4 contains the following chapters: Chapter 12, “Configuring Network Address Translation,” explains how NAT works to allow one public Internet address to be shared among multiple PCs on your LAN.
Page 117 Configuring Network Address Translation This chapter provides an overview of Network Address Translation (NAT) and instructions for modifying the Hurricane 9200/S’s default configuration. > # , % Network Address Translation is a method for disguising the private IP addresses you use on your LAN as the public IP address you use on the Internet.
Page 118 Hurricane 9200/S ADSL Ethernet Router User’s Guide The NAT rule could further be defined to disguise the source port in the data packet (i.e., change it to another number), so that outside computers will not be able to determine the actual port from which the packet originated.
Page 119 Chapter 12. Configuring Network Address Translation < # % C ' " To view your NAT settings, log into Configuration Manager, and click the Services tab. The NAT Configuration page displays by default: Figure 45. NAT Configuration Page The NAT Configuration page contains the following elements: The NAT Options drop-down list, which provides access to the NAT Configuration page and Global Information table (shown by default and in Figure 45), the NAT Rule...
Page 120 Hurricane 9200/S ADSL Ethernet Router User’s Guide Field Description TCP Idle Timeout (sec) When two computers communicate via the Internet, a TCP-based communication TCP Close Wait (sec) session is created between them to control TCP Def Timeout (sec) the exchange of data packets. The TCP session can be viewed as being in one of three states, depending on the types of packets being transferred: the establishing...
Page 121 Chapter 12. Configuring Network Address Translation Figure 46. NAT Rule Global Statistics Page The table provides basic information for each NAT rule you have set up. You can click to restart the accumulation of the statistics at their initial values.
Page 122 Hurricane 9200/S ADSL Ethernet Router User’s Guide < # " To view the NAT rules currently defined on your system, select NAT Rule Entry in the NAT Options drop-down list. The NAT Rule Configuration page displays: Figure 47. NAT Rule Configuration Page The NAT Rule Configuration table displays a row containing basic information for each rule.
Page 123 Chapter 12. Configuring Network Address Translation < # To view a list of NAT translations that have recently been performed and which remain in effect (for any of the defined rules), select NAT Translations from the NAT Options drop-down list. The NAT Translations page displays: Figure 49.
Page 124 Hurricane 9200/S ADSL Ethernet Router User’s Guide Figure 50. NAT Translation – Details Page In addition to the information displayed in the NAT Translations table, this table displays the following for the selected current translation sessions: Field Description Translated The public IP address to which the private IP InAddress address was translated.
Page 125 Chapter 12. Configuring Network Address Translation %"" This section explains how to create rules for each NAT flavor. You cannot edit existing NAT rules. To change a rule setup, delete it and add a new rule with the new settings. Note "...
Page 126 Hurricane 9200/S ADSL Ethernet Router User’s Guide 4. Enter a Rule ID. The Rule ID determines the order in which rules are invoked (the lowest numbered rule is invoked first, and so on). If you define two or more rules that act on the same set of IP addresses, be sure to assign the Rule ID so that the higher priority rules are invoked first.
Page 127 Chapter 12. Configuring Network Address Translation @ % # & % You can create an RDR rule to make a computer on your LAN, such as a Web or FTP server, available to Internet users without having to obtain a public IP address for that computer. The computer’s private IP address is translated to your public IP address in all incoming and outgoing data packets.
Page 128 Hurricane 9200/S ADSL Ethernet Router User’s Guide Follow these instructions to add an RDR rule (see steps 1-4 under "The NAPT rule" on page 125 for specific instructions corresponding to steps 1 and 2 below): 1. Display the NAT Rule – Add Page, select RDR as the Rule Flavor, if necessary, and enter a Rule ID.
Page 129 Chapter 12. Configuring Network Address Translation A port ID identifies the specific function of the computer connected to it, and therefore can limit the types of data that pass to and from the computer. For example, Web (HTTP) servers are usually identified by port number 80; packets containing traffic destined for a Web server will contain this port ID.
Page 130 Hurricane 9200/S ADSL Ethernet Router User’s Guide The Basic flavor translates the private (LAN-side) IP address to a public (WAN-side) address, like NAPT rules. However, unlike NAPT rules, Basic rules do not also translate the port numbers in the packet header; they are passed through untranslated. Therefore, the Basic rule does not provide the same level of security as the NAPT rule.
Page 131 Chapter 12. Configuring Network Address Translation 5. In the Global Address From and Global Address To fields, type the starting and ending addresses that identify the pool of public IP addresses that the private addresses should be translated to. Or, type the same address in both fields (if you also specified a single address in step 4).
Page 132 Hurricane 9200/S ADSL Ethernet Router User’s Guide 3. Select a protocol to which this rule applies, or choose ANY. This selection specifies which type of Internet communication will be subject to this translation rule. You can select ANY if the rule applies to all data.
Page 133 Chapter 12. Configuring Network Address Translation # ?# Unlike the other NAT flavors, the Bimap flavor performs address translations in both the outgoing and incoming directions. In the incoming direction, when the specified Hurricane 9200/S interface receives a packet with your public IP address as the destination address, this address is translated to the private IP address of a computer on your LAN.
Page 134 Hurricane 9200/S ADSL Ethernet Router User’s Guide @ % # "" " You can create a Pass rule to allow a range of IP addresses to remain untranslated when another rule would otherwise do so. Figure 56. NAT Rule – Add Page (Pass Flavor) The Pass rule must be assigned a rule ID that is a lower number than the ID assigned to the rule it is intended to pass.
Page 135 Configuring Firewall Settings Configuration Manager provides built-in firewall functions, enabling you to protect the system against denial of service (DoS) attacks and other unwelcome or malicious accesses to your LAN. You can also specify how to monitor attempted attacks, and who should be automatically notified.
Page 136 Hurricane 9200/S ADSL Ethernet Router User’s Guide 2. Configure the following settings as needed: Field Description Black List Status If you want the device to maintain a blacklist, click the Enable radio button. Click the Disable radio button if you do not want to maintain a list. For more information, see “Managing the Blacklist”...
Page 137 Chapter 13. Configuring Firewall Settings Field Description Log Destination Specifies how attempted violations of the firewall settings will be tracked. Records of such events can be sent via Ethernet to be handled by a system utility (Trace) or can e-mailed to specified administrators.
Page 138 Hurricane 9200/S ADSL Ethernet Router User’s Guide If data packets are received that violate the firewall settings or any of the IP filter rules, then the source IP address of the offending packets can be blocked from such accesses for a specified period of time.
Page 139 Configuring Filters and Blocking Protocols This chapter describes Configuration Manager features that enable you to control the data passing through your network: The IP filter feature enables you to create rules to block attempts by certain computers on your LAN to access certain types of data or Internet locations.
Page 140 Hurricane 9200/S ADSL Ethernet Router User’s Guide When you define an IP filter rule and enable the feature, you instruct the Hurricane 9200/S to examine each data packet it receives to determine whether it meets criteria set forth in the rule. The criteria can include the size of the packet, the network or internet protocol it carries, the direction in which it is traveling (for example, from the LAN to the Internet or vice versa), the IP address of the sending...
Page 141 Chapter 14. Configuring Filters and Blocking Protocols The IP Filter Configuration page enables you to configure the following global IP filter settings. Security Level: This setting determines which IP filter rules take effect, based on the security level specified in each rule.
Page 142 Hurricane 9200/S ADSL Ethernet Router User’s Guide To create an IP filter rule, you set various criteria that must be met in order for the rule to be invoked. Use these instructions to add a new IP filter rule. Also refer to the examples on page 147: 1.
Page 143 Chapter 14. Configuring Filters and Blocking Protocols 2. Enter or select data for each field that applies to your rule. The following table describes the fields: Field Description Rule ID Each rule must be assigned a sequential ID number. Rules are processed from lowest to highest on each data packet, until a match is found.
Page 144 Hurricane 9200/S ADSL Ethernet Router User’s Guide Field Description Black List Status Specifies whether or not a violation of this rule will result in the offending computer s IP address being added to the blacklist, which blocks the ADSL/Ethernet router from forwarding packets from that source for a specified period of time.
Page 145 Chapter 14. Configuring Filters and Blocking Protocols Field Description Protocol The basic IP protocol criteria that must be met for rule to be invoked. Using the options in the drop-down list, you can specify that packets must contain the selected protocol (eq), that they must not contain the specified protocol (neq), or that the rule can be invoked regardless of the protocol (any).
Page 146 Hurricane 9200/S ADSL Ethernet Router User’s Guide Field Description ICMP Code Specifies whether the value in the code field in ICMP packet headers will be used as criteria. The code value can be any decimal value from 0-255. You can specify that the value must equal (eq) or not equal (neq) the specified value, or you can select any to enable the rule to be invoked on all ICMP...
Page 147 Chapter 14. Configuring Filters and Blocking Protocols 3. When you are done selecting criteria, ensure that the Enable radio button is selected at the top of the page, and then click After a confirmation page displays, the IP Filter Configuration page will redisplay with the new rule showing in the table.
Page 148 Hurricane 9200/S ADSL Ethernet Router User’s Guide Example 2. Blocking Telnet accesses to the Hurricane 9200/S: 1. Add a new rule for packets incoming on the ppp-0 interface. 2. Specify that the packet must contain the TCP protocol, and must be destined for port 23, the well-known port number used for the Telnet protocol.
Page 149 Chapter 14. Configuring Filters and Blocking Protocols Figure 62. IP Filter Sessions Page The IP Filter Session table displays the following fields for each current IP session: Field Description Session Index The ID assigned by the system to the IP session (all sessions, whether or not they are affected by an IP filter rule, are assigned a session index) Time to expire...
Page 150 Hurricane 9200/S ADSL Ethernet Router User’s Guide + " Bridge filter rules can be created to control the forwarding of incoming and outgoing data between your LAN and the Internet and within your LAN. Bridge filter rules make decisions based on the structure of the "layer 2"...
Page 151 Chapter 14. Configuring Filters and Blocking Protocols Field Description Enable/Disable You can click the Enable and Disable radio buttons to activate/deactivate the service. Although each rule can be independently enabled and disabled, no rules will be effective unless the Enable radio button is selected here.
Page 152 Hurricane 9200/S ADSL Ethernet Router User’s Guide 2. Enter or select data for each field that applies to your rule, defined as follows: Field Description Rule ID Each rule must be assigned an ID number. Rules are processed from lowest to highest on each data packet, until a match is found.
Page 153 Chapter 14. Configuring Filters and Blocking Protocols Now, you can add subrules to specify criteria for the rule: 5. On the Bridge Filter Configuration page, click in the Action(s) column of the rule for which you want to created a subrule. The Bridge Filter Subrule - Add page displays: Figure 65.
Page 154 Hurricane 9200/S ADSL Ethernet Router User’s Guide Field Description Cmp. Type Comparison Type - The method for comparing the selected bits, after the mask is applied, to a reference value (or range of values) that you specify (see the next setting). Compared to the reference value, the selected bits can be: eq: equal to neq: not equal to...
Page 155 Chapter 14. Configuring Filters and Blocking Protocols Filter Rule - Modify page, select the Enable radio button and click At least one subrule: On the Bridge Filter Configuration page, you can enable a subrule by editing it. Click in the Actions column in the row for the subrule.
Page 156 Hurricane 9200/S ADSL Ethernet Router User’s Guide )" " " In the table on the Bridge Filter Rule page, the following items display in the Actions column for each rule and subrule: Button Description Edits the rule or subrule. The Bridge Filter Rule - Modify or Bridge Filter Subrule - Modify page displays.
Page 157 Chapter 14. Configuring Filters and Blocking Protocols The Blocked Protocols feature enables you to prevent the ADSL/Ethernet router from passing any data that uses a particular protocol. Unlike the IP filter feature, you cannot specify additional criteria for blocked protocols, such as particular users or destinations.
Page 158 Hurricane 9200/S ADSL Ethernet Router User’s Guide Protocol Description IP Multicast IP Multicast is an extension to the IP protocol. It enables individual packets to be sent to multiple hosts on the Internet, and is often used for handling e-mail mailing lists and teleconferencing/videoconferencing.
Page 159 Part 5 Administrative Tasks and System Monitoring...
Page 160 Hurricane 9200/S ADSL Ethernet Router User’s Guide Part 5 describes tools that LAN administrator can use to monitor the system performance and control access to the Configuration Manager program. Part 5 contains the following chapters: Chapter 15, “Managing Access,” describes how to manage user IDs and passwords for logging in to Configuration Manager and how to enable your ISP to configure the device remotely.
Page 161 Managing Access to the Configuration Program This chapter describes how to manage access to the Configuration Manager program, including creating user logins and passwords and enabling or disabling external access through the WAN port. & The Hurricane 9200/S is configured with a default user name and password combination, or login, for accessing Configuration Manager.
Page 162 Hurricane 9200/S ADSL Ethernet Router User’s Guide 2. Click to display the User Config-Add page: Figure 68. User Config-Add Page 3. Type the User ID and Password in the text boxes provided, and then select the privilege level for this user, as described on 161.
Page 163 Chapter 15. Managing Access to the Configuration Program & # " Users of all privilege levels can modify their own password. Only users with Root privileges can modify other users’ passwords. Follow these instructions to change a login password. This user ID and password are used only for logging into the Configuration Manager;...
Page 164 Hurricane 9200/S ADSL Ethernet Router User’s Guide You can enable access to Configuration Manager via the WAN port so that the ISP can perform configuration tasks. To enable WAN access, display the Management Control page by clicking in the Admin tab. Figure 70.
Page 165 Chapter 15. Managing Access to the Configuration Program The Simple Network Management Protocol (SNMP) enables a host computer to access configuration, performance, and other system data that resides in a database on the modem. The host computer is called a management station and the modem is called an SNMP agent.
Page 166 Hurricane 9200/S ADSL Ethernet Router User’s Guide 3. From the Access column of the table, select the privileges (Read-Only or Read/Write) to assign to all hosts that are part of this community. 4. Click A page displays briefly to confirm your changes, and then the SNMP Configuration page redisplays with the new entry.
Page 167 Monitoring System Status and Performing Diagnostics This chapter shows you where to find information related to system events (alarms) and DSL line performance, and how to run a diagnostic program to troubleshoot problems. < # You can use the Configuration Manager to view information about alarms that occur in the system.
Page 168 Hurricane 9200/S ADSL Ethernet Router User’s Guide < # & You can view data generated or acquired by routine system communication with other devices, such as the results of negotiations with the ISP’s computers for DNS and gateway IP addresses. This information does not necessarily represent unexpected or improper functioning and is not captured by the system traps that create alarms.
Page 169 Chapter 16. Monitoring System Status and Performing Diagnostics < # & * , To view configuration parameters and performance statistics for the Hurricane 9200/S’s DSL line, log into Configuration Manager, and then click the WAN tab. The DSL Status page displays by default: Figure 75.
Page 170 Hurricane 9200/S ADSL Ethernet Router User’s Guide In the DSL Status table, the Operational Status setting displays a red, orange, or green ball to indicate that the DSL line is idle, starting up, or up-and-running, respectively. You can click to end the DSL connection or Stop DELT. To restart the connection, you can click To start DELT you need to select Delt from drop down menu and click...
Page 171 Chapter 16. Monitoring System Status and Performing Diagnostics DSL Parameters Page The DSL Parameters and Status table displays settings preconfigured by the product manufacturer or your ISP. The Config Data table lists various types of error and defects measurements found on the DSL line. You cannot modify this data.
Page 172 Hurricane 9200/S ADSL Ethernet Router User’s Guide Figure 78. DSL Statistics Page The DSL Statistics page reports error data relating to the last 15- minute interval, the current day, and the previous day. At the bottom of the page, the Detailed Interval Statistic table displays links you can click on to display detailed data for each 15- minute interval in the past 24 hours.
Page 173 Chapter 16. Monitoring System Status and Performing Diagnostics Figure 79. DSL Interval Statistics Page...
Page 174 Hurricane 9200/S ADSL Ethernet Router User’s Guide The diagnostics feature executes a series of test of your system software and hardware connections. Use this feature when working with your ISP to troubleshoot problems. Follow these instructions to begin the diagnostics program: 1.
Page 175 Chapter 16. Monitoring System Status and Performing Diagnostics Ping is a command you can use to check whether your PC can recognize other computers on your network and the Internet. A ping command sends a message to the computer you specify. If the computer receives the message, it sends messages in reply.
Page 176 Hurricane 9200/S ADSL Ethernet Router User’s Guide You can use the traceroute utility to view the IP addresses of all the hops that an IP packet makes from the Hurricane 9200/S on its way to an Internet destination. You can use the results of a traceroute to determine where a delay or transmission error is occurring.
Page 177 Chapter 16. Monitoring System Status and Performing Diagnostics 2. Click either the Destination IP Address or Dest Hostname radio button, and then type the appropriate data in the corresponding text box. The destination host name must be in the form of a fully qualified domain name, such as yahoo.com.
Page 178 Upgrading the Software and Storing and Restoring the Configuration Data All system software is contained in a single file, called an image. The image is stored in system flash memory and contains the operating system, device drivers, application code, and configuration data.
Page 179 Chapter 17. Upgrading the Software and Storing and Restoring the Configuration Data 4. Select the file, and then click The following message box displays at the bottom of the page: & When loading is complete, the following message displays (the file name may differ): "...
Page 180 Hurricane 9200/S ADSL Ethernet Router User’s Guide 5. Click An alert window pops up displaying the following message: " 6. Click to start the image upgrade. The file begins downloading from the ISP’s server and loading the image into flash. When image upgrade is complete, the following message displays: The system will proceed to reboot itself automatically.
Page 181 Chapter 17. Upgrading the Software and Storing and Restoring the Configuration Data To save the current configuration, click A Windows dialog box will display to enable you to choose where to save the file. The file is named commitedcfg.cfg and can be opened with any text editor. You can change the file name to identify the date or characteristics of the configuration;...
Page 182 Modifying Port Settings This chapter describes how to modify the Port ID numbers associated with the Hurricane 9200/S’s Web, FTP, and Telnet servers. > # , * The header information in an IP data packet specifies a destination port number. Routers use the port number along with the IP addresses to forward the packet to its intended recipient.
Page 183 Chapter 18. Modifying Port Settings LAN HTTP server rather than to the HTTP server on the Hurricane 9200/S. Thereafter, when your ISP wants to log on to your Configuration Manager, they would type your IP address in their browser, followed by a colon and the non-standard port number, as shown in this example: http://10.0.1.16:61000 Your ISP may also have special circumstances that require...
Page 184 Configuring Autodetect Autodetect enables the modem to automatically detect and configure a valid ATM VC at startup. Autodetect eliminates the need to have users configure VC values as described in “Configuring the ATM VC” on page 56. ! # % "...
Page 185 Chapter 19. Configuring Autodetect " Follow these steps to configure Autodetect: 1. Log into Configuration Manager, click the Admin tab and then click to display the Autodetect page: " Figure 87. Autodetect Page 2. Select the appropriate Autodetect mode of operation, as described in the previous section, from the Autodetect Mode drop-down list.
Page 186 IP Addresses, Network Masks, and Subnets * %"" This section pertains only to IP addresses for IPv4 (version 4 of the Internet Protocol). IPv6 addresses are not covered. Note IP addresses, the Internet s version of telephone numbers, are used to identify individual nodes (computers or devices) on the Internet.
Page 187 Appendix A. IP Addresses, Network Masks, and Subnets The three commonly used network classes are A, B, and C. (There is also a class D but it has a special use beyond the scope of this discussion.) These classes have different uses and characteristics. Class A networks are the Internet s largest networks, each with room for over 16 million hosts.
Page 188 Hurricane 9200/S ADSL Ethernet Router User’s Guide uses the remaining 7 bits in field4 for its host IDs, which range from 0 to 127 (instead of the usual 0 to 255 for a class C address). Similarly, to split a class C network into four subnets, the mask is: 255.255.255.192 or 11111111.
Page 189: Internet Access
Troubleshooting This appendix suggests solutions for problems you may encounter in installing or using the Hurricane 9200/S, and provides instructions for using several IP utilities to diagnose problems. Contact Customer Support if these suggestions do not resolve the problem. Problem Troubleshooting Suggestion LEDs POWER LED does not...
Page 190: Configuration Manager Program
Hurricane 9200/S ADSL Ethernet Router User’s Guide Problem Troubleshooting Suggestion automatically. • Verify that a Network Address Translation rule has been defined on the Hurricane 9200/S to translate the private address to your public IP address. The assigned IP address must be within the range specified in the NAT rules (see Chapter 4).
Page 191 Glossary 10BASE-T A designation for the type of wiring used by Ethernet networks with a data rate of 10 Mbps. Also known as Category 3 (CAT 3) wiring. See also data rate, Ethernet. 100BASE-T A designation for the type of wiring used by Ethernet networks with a data rate of 100 Mbps.
Page 192 Hurricane 9200/S ADSL Ethernet Router User’s Guide video, widely used within the Internet. ATM data rates range from 45 Mbps to 2.5 Gbps. See also data rate. authenticate To verify a user’s identity, such as by prompting for a password. authentication server A server typically located within an ISP’s network that stores the usernames, passwords, certificates, and other data needed to verify users logging on to a network.
Page 193 Appendix C. Glossary the Internet Corporation for Assigned Names and Numbers (ICANN). Domain names are a key element of URLs, which identify a specific file at a web site, e.g., http://www.globespan.net/index.html. See also DNS. download To transfer data in the downstream direction, i.e., from the Internet to the user.
Page 194 Hurricane 9200/S ADSL Ethernet Router User’s Guide simultaneously update the address books of a group of mobile computer users or to send company newsletters to a distribution list. Internet The global collection of interconnected networks used for both private and business communications. intranet A private, company-internal network that looks like part of the Internet (users access information using web browsers), but is...
Page 195 Appendix C. Glossary network A group of computers that are connected together, allowing them to communicate with each other and share resources, such as software, files, etc. A network can be small, such as a LAN, or very large, such as the Internet. network mask A network mask is a sequence of bits applied to an IP address to select the network ID while ignoring the host ID.
Page 196 Hurricane 9200/S ADSL Ethernet Router User’s Guide RJ-11 Registered Jack Standard-11 The standard plug used to connect telephones, fax machines, modems, etc. to a telephone jack. It is a 6-pin connector usually containing four wires. RJ-45 Registered Jack Standard-45 The 8-pin plug used in transmitting data over phone lines. Ethernet cabling usually uses this type of connector.
Page 197 Appendix C. Glossary receives a packet decrements this field by one. When the TTL reaches zero, the packet is discarded. twisted pair The ordinary copper telephone wiring long used by telephone companies. It contains one or more wire pairs twisted together to reduce inductance and noise.
Page 199 Index 100BASE-T, 191 Bridge-Router AutoSense (BRAS), 85 10BASE-T, 191 Bridges ADSL, 191 overview, 74 ADSL cable, 18 Bridging, 192 ADSL port, 18 special features, 84 Alarm page, 167 Broadband, 192 Alarms, 167 Broadcast, 192 Asynchronous Transfer Mode. See ATM Commit & Reboot page, 45 ATM, 191 Computers ATM VC –...
Page 200 Hurricane 9200/S ADSL Ethernet Router User’s Guide defined, 93 EOA page, 65 modifying, viewing pools, 99 Eth-0 interface pools, 93 defined, 33 using a LAN device as, 94 Ethernet using existing on LAN, 50 defined, 193 using ISP Ethernet cable, 18 as, 94 straight-through vs crossover, 189 configuring, 94...
Page 201 Index IP address type, 109 in device s routing table, 108 IP Routes IP address pools defined, 106 modifying, 99 IPoA Interface – Add page, 72 IP Address Table page, 91 IPoA Interface Global Map page, 73 IP addresses, 194 IPoA Interface Map page, 73 explained, 186 IPoA page, 70...
Page 202 Hurricane 9200/S ADSL Ethernet Router User’s Guide NAT, 194 scenarios, 81 adding rules, 125 Operating modes BASIC flavor, 130 as displayed in the System View table, 76 BIMAP flavor, 133 overview, 74 default configuration, 118 ZIPB, 86 defined, 117 Packet, 195 Filter flavor, 131 Packets global settings, 119...
Page 203 Index Home (System View), 40 SNMP Host - Add, 166 Image Upgrade, 161 System Log, 168 IP Address Table, 91 System Mode, 80 IP Filter Configuration, 140 System Modify, 42 IP Filter Rule - Add, 142 User Config-Add, 162 IP Filter Rule - Statistics, 148 User Config-Modify, 163 IP Filter Sessions, 149 User Configuration, 161...
Page 204 Hurricane 9200/S ADSL Ethernet Router User’s Guide logging in, 29 Subnet mask. See Network mask Quick Configuration page, 30 Subnet masks, 187 RDR NAT flavor, 127 System - Modify page, 42 Rebooting, 46 System Log page, 168 Remote Image Upgrade page, 179 System Mode page, 80 Reset button, 46 System requirements...
Page 205 Index VC, 197 Web browser VCI, 197 requirements, 15 VPI, 197 Web browser requirements, 35 WAN, 197 Web browsers WAN interface compatible versions, 35 configuring multiple, 92 Windows NT IP address, 91 configuring IP information, 24 WAN-to-WAN bridging, configuring, 84 ZIPB mode, configuring, 86...

PROLiNK Hurricane 9200/S User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for PROLiNK Hurricane 9200/S

Summary of Contents for PROLiNK Hurricane 9200/S

Table of Contents
