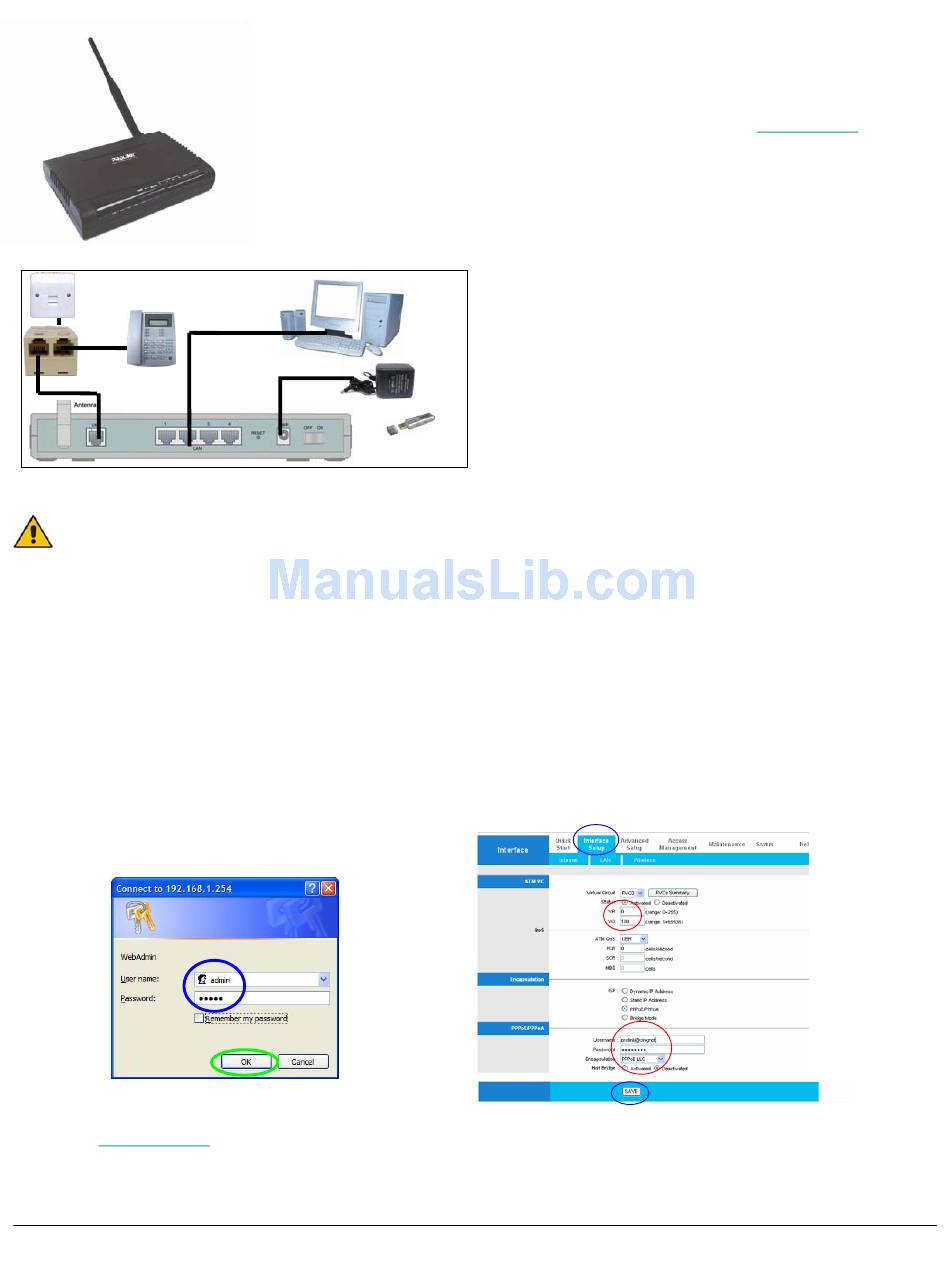

Step 1
Hardware connection
Step 1
Hardware connection
Wall
phone
socket
Micro
Filter
Telephone
(optional)
Step 2
Configuring your Computer / Notebook
Step 2
Configuring your Computer / Notebook
Important!
Please ensure that the PC's Network Card TCP/IP Properties and the Internet Browser proxy are configured
It is also assumed that the computer/notebook has the Ethernet Network card installed.
Note:
In case you have static IP address and you need to use this value for other network connections, make sure you write down the value first
before changing to Obtain an IP address automatically
2.1a
Configure TCP/IP settings for Windows® 98SE / ME
- Windows Desktop > right click Network Neighborhood for Wins 98SE / Network Places for Win ME > select Properties
- "Network" window > click the Configuration tab > scroll down to select and double click TCP/IP > xxx where xxx refers to the model of the Ethernet
Network Card connected to the ADSL Ethernet Modem
- "TCP/IP Properties" window > select IP Address tab > select Obtain an IP address automatically > click DNS Configuration tab > click Disable DNS >
click OK
Take note that the system prompts to Restart the Computer
2.1b
Configure TCP/IP settings for Windows® 2000 / XP
-
Windows Desktop > right click Network Places > select Properties
- "Network & Dial-Up Connection" window > click Local Area Connection > scroll down to select and double click Internet Protocol TCP/IP
- "Internet Protocol (TCP/IP) Properties" > select Obtain an IP address automatically > select Obtain DNS server address automatically > click OK
2.2
Disable Proxy Settings
-
Windows Desktop > right click Internet Explorer (IE) > click Properties
- "Internet Properties" window > click Connections tab > select Never dial a connection > click LAN Settings...
- "Local Area Network (LAN) Settings" window > remove the tick for the option for the Automatic configuration > remove the tick for option box for Proxy
server > click OK > click OK again to exit from "Internet Properties" window
Step 3
Step 3
Configuring the H6300G Modem
Configuring the H6300G Modem
3a Through Ethernet LAN connection
a. Start your Web Browser > key in
http://192.168.1.254
b. Key in the User name: admin and Password: admin
click on the OK button

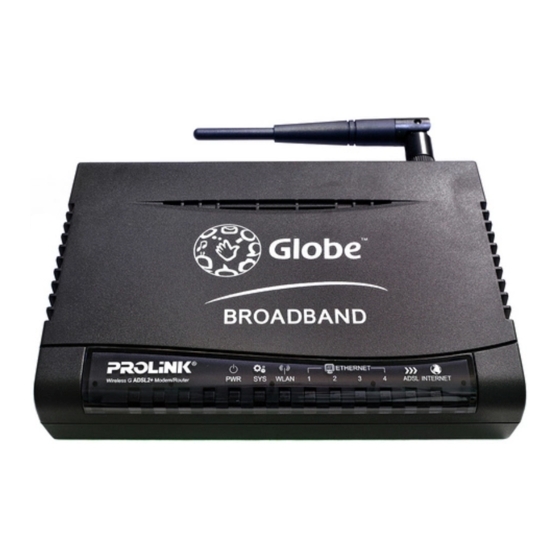

H6300G 802.11g Wireless 4-port ADSL2+ Ethernet Modem Router
© Copyright 2007 PROLiNK All Rights Reserved. PROLiNK is manufactured under the authority of FIDA INTERNATIONAL (S) PTE LTD.
All brands or product names are either trademarks or registered trademarks of their respective owners.
PROLiNK
PROLiNK
Wireless 802.11g ADSL2+ Ethernet Modem Router
Wireless 802.11g ADSL2+ Ethernet Modem Router
Package Contents
•
1 x ADSL2+ Ethernet Modem
802.11g Router
•
1 x RJ-45 straight cable
•
1 x RJ-11 DSL cable
•
1 x Power Adaptor
•
1 x CD
•
Quick Installation Guide
•
1 x Antenna
Computer
Wireless LAN adapter
at the URL/Address bar
Hurricane 6300G
Hurricane 6300G
Quick Installation Guide Revision 1.0
Minimum System Requirements
•
Windows 98SE/ME/
2000/XP/Vista
•
MAC 9.x to 10.x
•
64 MB RAM for Win 98Se/ Me
•
128 MB RAM for Win 2K/ XP
•
64MB or 128MB RAM for Mac
•
4x speed CDROM Drive
•
Ethernet Port (LAN Card)
1.1 Ensure that the PC/Notebook & ADSL Modem are power off
1.2 Connect one end of the RJ45 (Ethernet) cable to the LAN port of the computer.
1.3 Connect the other end of RJ45 cable to the ADSL Modem.
1.4 Connect one end of RJ11 (Telephone) cable to the ADSL port (marked Line)
on the ADSL Modem.
1.5 Connect the other end of RJ11 cable into the phone socket, which has the
ADSL service activated, or the ADSL port of a Micro-filter whichever is
Power
applicable
Adapter
1.6 Connect power adapter to the power socket and switch-on H6300G
1.7 PROLiNK WG2000/R Wireless LAN adapter may be installed into your
notebook/PC when you reach Step 3b
c. Click on Interface Setup > Enter the correct VPI/VCI
settings of your ISP, key in your Username: e.g. prolink@singnet and
Password: ******** (provided by your ISP), and select the correct
Encapsulation, click SAVE button to complete the setup
(For reference - VPI/VCI: Singapore= 0/100, Malaysia= 0/35, Indonesia=1/33, Sri Lanka= 8/35,
Digitel= 8/35, Innove=0/35)
Page 1 of 2
Technical Support Information
Support Hotline:
(65) 6296 5455
Support Email:
support@fida.com
Address:
Blk 105 Boon Keng Road #06-13
Kallang Basin Industrial Estate
Singapore 339776
9am – 5.45pm (Mon – Fri)
9am – 1pm (Sat)
Revision 1.0 Jan 2007
