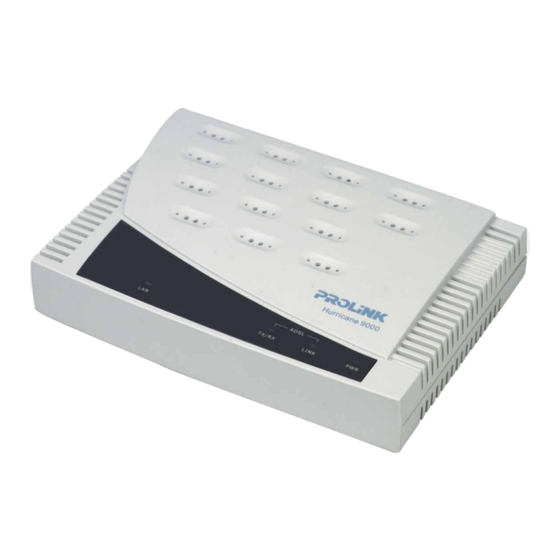

PROLiNK Hurricane 9000 User Manual

Adsl modem/router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hurricane 9000
ADSL Modem/Router
User's Manual
Version 1.0
1

Advertisement

Table of Contents
loading

Related Manuals for PROLiNK Hurricane 9000

Summary of Contents for PROLiNK Hurricane 9000

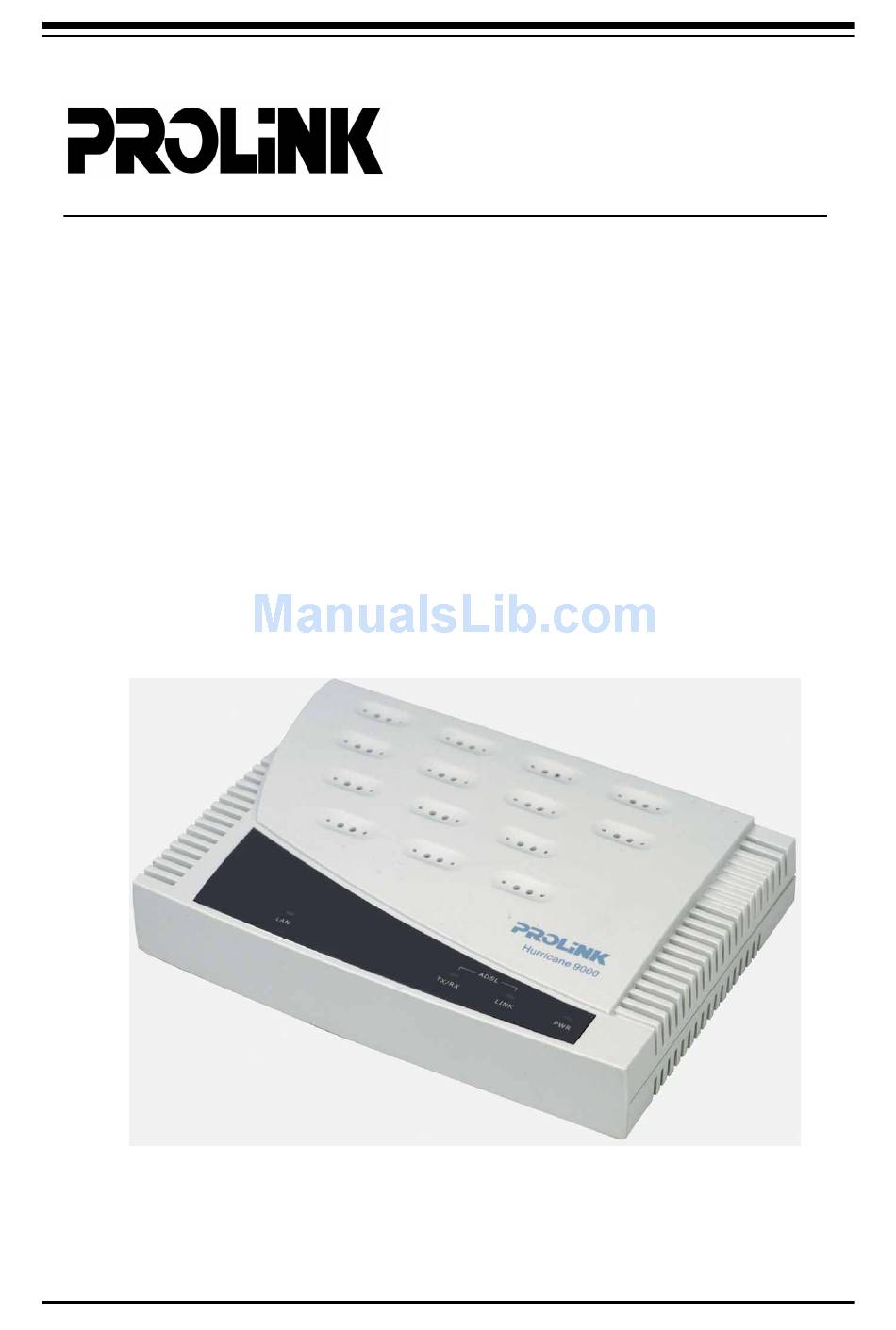

  • Page 1 Hurricane 9000 ADSL Modem/Router User's Manual Version 1.0...

  • Page 2: Table Of Contents

    4.7.4 Bridge Filtering ..........20 4.7.5 Misc Configuration ......... 21 4.7.6 Route Table ............ 23 4.7.7 Admin Password .......... 23 4.7.8 Firmware Update .......... 24 Section Five: USB Driver Installation .......... 25 Section Six: Troubleshouting and FAQs ........26 Prolink Technical Support ............. 30...
  • Page 3 The information contained in this manual has been verified at the time of this manual's printing. The manufacturer reserves the right to make any changes and improvements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners.

  • Page 4: Section One: Introduction

    Section One: Introduction Section One - Introduction The Hurricane 9000 provides Full rate (ANSI and G.DMT) as well as G.lite ADSL standards line support, and can be connected to PC through Ethernet or USB . This product supports bridge feature set for the integration of ADSL service into corporate or home LAN and WAN.

  • Page 5: Bridge Mode

    Section One: Introduction Bridge Mode Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D) Supports up to 128 MAC learning addresses· Router Mode IP routingñRIPv2 Static routing DHCP (Dynamic Host Configuration Protocol) Server and Client NAPT (Network Address and Port Translation) NAT (Network Address Translation) ICMP (Internet Control Message Protocol) Simultaneous USB and Ethernet operation·...

  • Page 6: Section Two: Connect The Modem/Router

    Section Two: Connect the Modem/Router Section Two - Connect the Modem/Router 2.1 This Package contents 1. One ADSL Router modem 2. One RJ-45 straight cable 3. One RJ-11 telephone cable 4. One USB cable 5. 12V Power Adaptor 6. User's Manual & For any missing items, Please contact your dealer immediately.

  • Page 7: Product View

    Section Two: Connect the Modem/Router 2.2 Product View POWER LED LAN LED LINK LED TX/RX LED Power Switch RJ11 Line Jack Reset Button Power Connector (Set to factory Default) USB Connector RJ45 LAN Jack...

  • Page 8: Hardware Installation

    Section Two: Connect the Modem/Router 2.3 Hardware Installation The following steps instruct you to install the Hurricane 9000 for one computer. For more than one computer, please refer to 2.4 Network Connection. 1. Plug the end of the Ethernet cable into the LAN Jack of the Hurricane 9000.

  • Page 9: Network Connections

    Section Two: Connect the Modem/Router 2.4 Network Connections 2.4.1 for One PC RJ-45 RJ-11 ADSL or USB Cable 2.4.2 for more than one PC ADSL HUB/Switch RJ-11 RJ-45 ..2.5 LED Indicators The ADSL Router modem features LED indicators on the front panel that report modem status: POWER Red Power Light / Steady when power is on.

  • Page 10: Section Three: Configure The Pcs

    Section There: Configure the PCs Section Three - Configure the PCs 3.1 Configure your PC. The instructions in this section will help you to configure each computer to communicate with the Router. To do this, you need to configure your PC’s network settings to obtain an IP address automatically from the DHCP of the router.

  • Page 11: Verify The Link Between Your Pc And Router

    Section There: Configure the PCs 3.2 Verify the link between your PC and Router From start > Run Enter ping 10.0.0.2 –t and click OK If the connection has been established, You will receive reply from the router. If you receive “Request timed out”, that means the link has not been established, pls.

  • Page 12: Section Four: Web-Based Management

    Section Four: Web-Based Management Section Four Web-Based Management 4.1. Login Open Internet Explorer /Netscape , type http://10.0.0.2 The system will ask for administrator’s username and password when restarting or configuring. It is illustrated in the following figure. Default username: admin password: password...

  • Page 13: Quick Setup

    Section Four: Web-Based Management 4.2 Quick Setup Quick Setup page allows user to set the configuration for the WAN/ ADSL ports. VPI/VCI: ATM VC of local ADSL Internet Service Provider. (e.g. Singapore: VPI/VCI=0/100; Malaysia: VPI/VCI=0/35; Indonesia: VPI/ VCI=1/33; SriLanKa: VPI/VCI=8/35) Username and Password: the user name and password will be provided by your ISP when applying for PPP ADSL service.
  • Page 14 Section Four: Web-Based Management Static WAN IP Configuration (Optional) If you are using 1483 Routed IP or Classical IP over ATM, please enter the IP address, Subnet Mask and Gateway (Provided by your local ISP) Disconnect Timeout: The Disconnect Timeout allows users to set the specific period of time to disconnect from the ISP.

  • Page 15: Adsl Line Status

    Section Four: Web-Based Management 4.3 ADSL Line Status. The ADSL Line Status page shows the ADSL physical layer status. 4.4 WAN/LAN Status. The WAN/LAN Status page shows the WAN , LAN interface status.

  • Page 16: Ppp Status

    Section Four: Web-Based Management 4.5 PPP Status. The PPP Status page shows the status of PPP for each PVC Connect and Disconnect allows users to manually connect/disconnect the PPP connection for one PVC. 4.6 System Log. The System Log page shows the events triggered by the system.

  • Page 17: Advanced Setup

    Section Four: Web-Based Management 4.7 Advanced Setup. 4.7.1 LAN/DHCP. The LAN/DHCP page allows user to set the configuration for the LAN port. IP Address/Subnet: LAN address and subnet mask of the router. It can be specified if you need. (e.g. 192.168.0.1/255.255.255.0) DHCP Server System Allocated: The DHCP address pool is based on LAN port IP address plus 12 IP addresses.

  • Page 18: Port Forwarding

    Section Four: Web-Based Management 4.7.2 Port Forwarding The Port Forwarding page allows users to set the configuration of Virtual Server. If any specific local PCs need to be mapped to the UDP/ TCP port on WAN side, please input the mappings here. For Example, If you want to forward FTP to your 10.0.0.20 server (set to static IP): Public Port :21 Private Port:21 Port Type: TCP...

  • Page 19: Nat Configuration

    Section Four: Web-Based Management 4.7.3 NAT Configuration The NAT Configuration page allows users to set the configuration for the Network Address Translation. NAT Configuration The NAT option only maps single WAN IP address to the local PC IP address. It is peer-to-peer mapping. (1x1) For each PVC, only one local PC IP address can be associated with each WAN PVC.

  • Page 20: Bridge Filtering

    Section Four: Web-Based Management 4.7.4 Bridge Filtering The Bridge Filtering page allows users to set the configuration of IP filtering. Source MAC: When the bridge filtering is enabled, enter the Source MAC address, select Block and click Add. Then all incoming WAN and LAN Ethernet packets matched with this source MAC address will be filtered out.

  • Page 21: Misc Configuration

    Section Four: Web-Based Management 4.7.5 Misc Configuration The Miscellaneous Configuration page allows users to set all the miscellaneous configurations. HTTP Server Access: This field allows the user to configure the Web pages can be accessed from. All: When this field is checked, it allows both WAN and LAN access to the Web pages.
  • Page 22 Section Four: Web-Based Management DMZ: A DMZ (De-Militarized Zone) is added between a protected network and an external network, in order to provide an additional layer of security. When there is a suspected packet coming from WAN, the firewall will forward this packet to the DMZ host. DMZ Host IP: The IP address of the DMZ host at LAN side.

  • Page 23: Route Table

    Section Four: Web-Based Management 4.7.6 Route Table The Route Table page displays routing table and allows users to manually enter the routing entry. The interface br0 means the Ethernet/ USB interface; lo0 means the loopback interface. 4.7.7 Admin Password The Admin Password page allows users to set the password for administrator.

  • Page 24: Firmware Update

    Section Four: Web-Based Management 4.7.8 Firmware Update The Firmware Update page allows users to upgrade the image code locally. Please Click on "Image Download" button, the following dialog will appear Browse the location of file, firmware.dlf, and click the Upload to start the update.

  • Page 25: Section Five: Usb Driver Installation

    If there is no LAN card on your computer, you can use USB cable to connect it to your computer. 1. Connect the USB cable from the Hurricane 9000 to the USB port of your computer. 2. Windows (98/ME/2k/XP) will automatically detect “ USB Device”...

  • Page 26: Section Six: Troubleshouting And Faqs

    Section Six: Troubleshooting and FAQs 6. Troubleshooting and FAQs 6.1. I can not get any connection. Power LED and LAN LED light up, but the ADSL Link LED keeps blinking . 1) Ensure that the ADSL line is activated. 2) Check that the Telephone cable (RJ-11) is connected to LINE Jack on your router.
  • Page 27 Section Six: Troubleshooting and FAQs 6.4. How to set a static IP address on a PC? The Router, by default, assigns an IP address range of 10.0.0.3 to 10.0.0.14 using the DHCP server on the Router. To set a static IP address, you can only use the ranges 10.0.0.15 to 10.0.0.254 , Each PC or network device that uses TCP/IP must have a unique address to identify itself in a network.
  • Page 28 Section Six: Troubleshooting and FAQs B. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. C. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option.
  • Page 29 Section Six: Troubleshooting and FAQs 6.5. How to set up online game hosting or use other Internet applications? If you want to play online games or use Internet applications, most will work without doing any port forwarding or DMZ hosting. There may be cases when you want to host an online game or Internet application.

  • Page 30: Prolink Technical Support

    PROLiNK TECHNICAL SUPPORT At PROLiNK, we are committed to give you the best products as well as the best technical support for installation of ADSL Bridge/Router. If there is virus in your system, we may provide suggestions like where you can find the solution to clean the virus, but we are unable to assist you until the virus is cleaned.
