PROLiNK Hurricane 8800P User Manual

Adsl bridge/router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

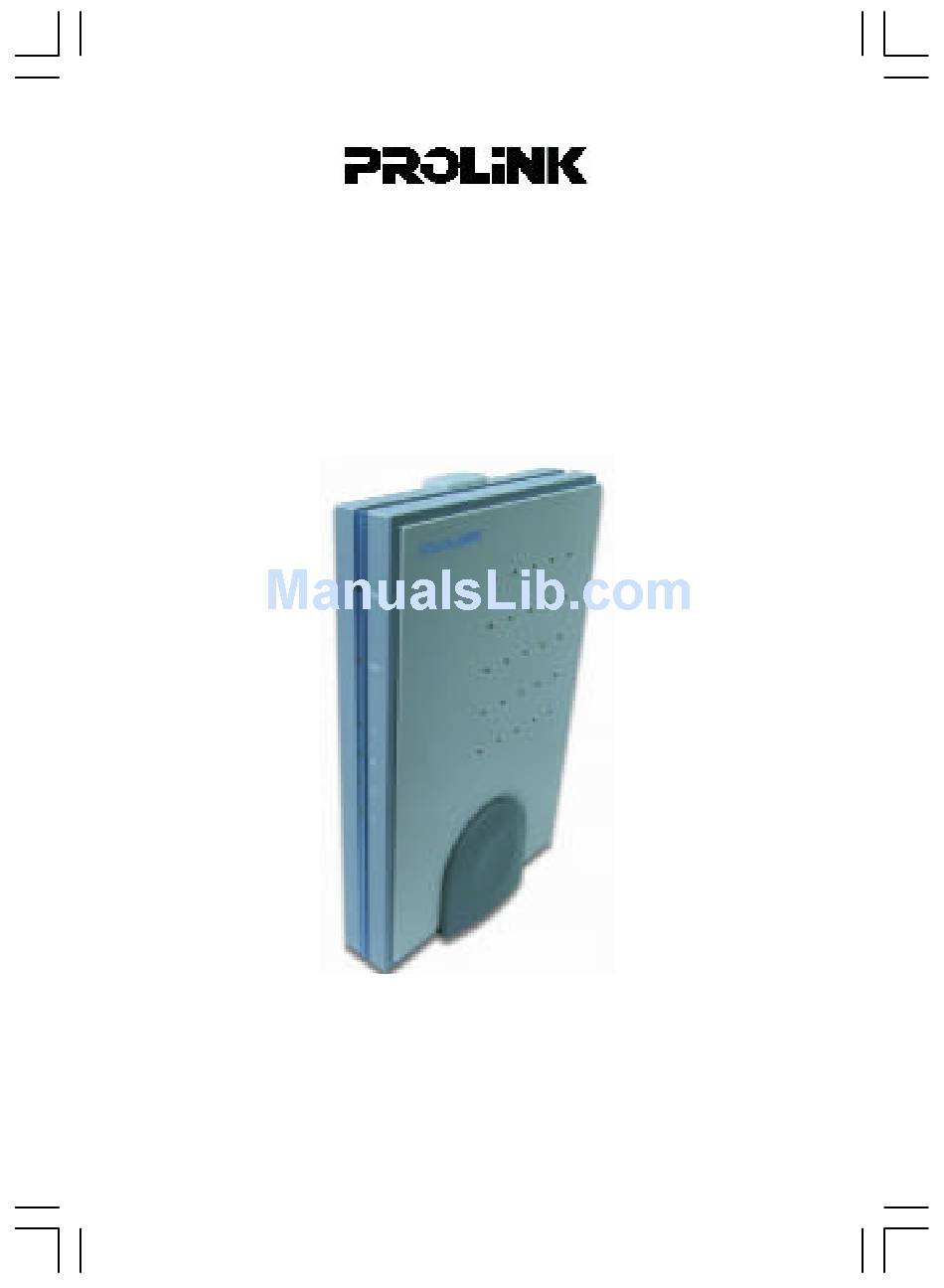

Hurricane 8800P
ADSL Bridge/Router
USER'S Manual
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hurricane 8800P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROLiNK Hurricane 8800P

Summary of Contents for PROLiNK Hurricane 8800P

  • Page 1 Hurricane 8800P ADSL Bridge/Router USER'S Manual Version 2.0...

  • Page 2: Table Of Contents

    Contents Section One - Introduction ................ 3 1.1 System Requirements ........................3 1.2 Features Summary ........................3 1.3 Equipment Performance ......................4 1.3.1 ATM layer ........................4 1.3.2 Protocols ........................4 Section Two - Connect the Bridge/Router ..........6 2.1 This Package contents ......................6 2.2 Product View ..........................7 2.3 Hardware Installation ......................8 2.4 Network Connections ......................9 2.4.1 for four PCs ..........................9...
  • Page 3 The information contained in this manual has been veri f ied at the time of this manual's printing. The manufacturer reserves the right to make any changes and i m provements in the product described in this manual at any time and without notice. All registered trademarks are the property of their respective owners.

  • Page 4: Section One - Introduction

    Section One: Introd uction Section One - Introduction The Hurricane 8800P provi des Full r ate (ANSI and G.DMT) as well as G. lite ADSL standards l ine support, and can be connected to PC through Ether net. This product supports bridge feature set for the integrati on of ADSL service into corpor ate or home LAN and WAN.

  • Page 5: Equipment Performance

    Section One: Introd uction 1.3 Equipm ent Performance 1.3.1 ATM layer The equipment will be fully compatible with the showed on the figure 1of the ANSI T1.413-1998 1. Adaptation layer The modem will implement the adaptation layer AAL5, as requested by the recommendation ITU I.363.5 2.
  • Page 6 Section One: Introd uction 3. PPPoE relay It is used to transport P PP traffic over Ethernet. 4. PPP oEthernet client (RFC 2516) Authentifi cation is supported by PAP & CHAP protocols. The RFC 2516 supports for multiple PVCs,with each VC supporting a single PPPoE session (different ISPs over different PVCs) 5.

  • Page 7: Section Two - Connect The Bridge/Router

    Section Two: C onnect the Bridge/Router Section Two - Connect the Bridge/Router 2.1 This Package con tents 1. ADS L Bridge/R outer 2. RJ-45 straight cable 3. RJ-11 telephone cable 4. RS-232 cable 5. 5V DC Power Adaptor 6. CD with Configuration Tools 7.

  • Page 8: Product View

    Section Two: C onnect the Bridge/Router 2.2 Product View Power LED (In red color) Light ON once detected. ADSL LED (In green color) Light ON when the connection is ON. LAN LED x 4 (In green color) Keeps on, Light blinks during data transfer Line Jack For RJ-11, to connect to ADS L Line LAN Con nectors...

  • Page 9: Hardware Installation

    Section Two: C onnect the Bridge/Router 2.3 Hardware Installation The following steps instr uct you to install the Hurr icane 8800P for one com puter. for more than four computers, pl ease refer to 2.4 Network Connection. 1. Turn off the com puter. 2.

  • Page 10: Network Connections

    Section Two: C onnect the Bridge/Router 2.4 Network Connections 2.4.1 for fou r PCs RJ-45 RJ-45 ADSL RJ-11 RJ-45 RJ-45 2.4.2 for more than fou r PCs ADSL RJ-45 HUB/S WITCH Strai ght Cable to Uplink port or Cr oss Cable to normal port RJ-11 RJ-45 RJ-45...

  • Page 11: Section Three - Configure The Pcs

    Sectio n Three: C onfigure t he PCs Section Three - Configure the PCs The ins tructions i n thi s section wil l hel p you confi gure each of your computers to be able to communicate with the R outer. To do this, you need to configure your PC’...
  • Page 12 Sectio n Three: C onfigure t he PCs For Windows XP 1. Click the Start button and then Control Panel. From there, cli ck the Net work and Internet Connection s ic on. Then click the Netwo rk Connections i con. 2.Select the Loc al A rea Conn ection icon for the appli cabl e Ethernet adapter Doubl e-click the Local Area Connection.

  • Page 13: Verify The Link Between Your Pc And Router

    Sectio n Three: C onfigure t he PCs Verify the link between you r PC and Router a) From start > Run b) Enter ping 192.168.101.1 –t and cli ck OK c) If the connection has been established, You will r eceive reply from the router.

  • Page 14: Section Four - Configure The Bridge/Router

    Sectio n Four: Co nfigure th e Bridge/Router Section Four - Configure the Bridge/Router 4.1. Description of Web configuration. 1)Open Internet E xplorer , type http://192.168.101.1 2)The s ystem wi ll r emind you to enter administr ator ’ s username and password when restarting or configuring.

  • Page 15: How To Configure Your Router

    Sectio n Four: Co nfigure th e Bridge/Router 3)There are four main menus in the left column: “Status” to the current status of every setting, including IP of port, connecti on status of por t, and status of WAN port, LAN por t, hardware and definition port.
  • Page 16 Sectio n Four: Co nfigure th e Bridge/Router Bridging mode RFC 1483 Bridged ü PPPoE Relay Br idged ü Please kindly check with your local ISP, select one of the above modes to configure it. 1) SingNet and Pacific In ternet : PPPoA or PPPoE 2) Magix ATM plan(Static IP) : RFC 1483 Routed The Information i n the screen shots in this manual is as examples...

  • Page 17: Pppoa Routed Configuration

    Sectio n Four: Co nfigure th e Bridge/Router 4.2.1 PPPoA Rout ed Configuration. A. Click Router mode under Configu ration and choose PPPOA r outed. Click Configure and the interface shows as below.
  • Page 18 • User name and Password: The user name and password will be provided by your ISP when applying for ADSL service. (e.g. prolink@singnet ) Click Configure to complete B. NAT Configuration. Click Security and the interface shows as below. Choose Enable under Security...
  • Page 19 Sectio n Four: Co nfigure th e Bridge/Router Click add Interface und er Security Interface Add WAN Inter face •Name : sel ect the name of WAN P ort (e.g. ppp-0) •Interfac e Type : Choose external Click Apply and WAN Inter face is a dded. Add LAN Inter face •Name: Sel ect the name of LAN port (e.g.
  • Page 20 Sectio n Four: Co nfigure th e Bridge/Router Click Enable NAT to internal interfaces and the configuration of PPPoA Router mode has been done. NOTE: Please remember to save the configuration after finishing the settings.

  • Page 21: Pppoe Routed Configuration

    Sectio n Four: Co nfigure th e Bridge/Router Click Save Config , then Click Save button and wait u ntil it fin ishes. 4.2.2 PPPoE Routed Configuration. A. Click Router mode under Configuration and ch oose PPPOE routed.
  • Page 22 Sectio n Four: Co nfigure th e Bridge/Router Click Configure and th e interface shows as below. • Description: Name of the WAN connection (e.g. Si ngNet) • VPI/VCI: ATM VC of local ISP (remote). e.g. for Singapore VPI=0 , VCI=100 •...
  • Page 23 Sectio n Four: Co nfigure th e Bridge/Router • LLC Header Mode: Off (Default) • HDLC Header M ode: Off (Default) • Choose CHAP • User name and Password: The user name and password will be pr ovided by ISP when applying for ADSL service •...

  • Page 24: Rfc 1483 Routed Configuration

    Sectio n Four: Co nfigure th e Bridge/Router 4.2.3 RFC 1483 Routed Configuration. A. Click Router mode under Configuration and ch oose RFC 1483 routed. Click Configure and the interface shows as below. • Description: Name of the WAN connecti on. (e.g. Magix) •...
  • Page 25 Sectio n Four: Co nfigure th e Bridge/Router Click Apply to continue B. NA T Configuration. Confi guration of NAT is the same as that of PPPoA Router mode, P lease refer to 4.2.1.B.(Page 17-20)
  • Page 26 Sectio n Four: Co nfigure th e Bridge/Router C. Add default Gat eway to IP routes. If you uses static IP, have to add the default gateway (Pr ovided by your ISP) to IP ro utes. Click IP routes, key i n the gateway IP (p rovided by your ISP) to Gateway. Interface: lea ve blank.

  • Page 27: Ipoa Routed Configuration

    Sectio n Four: Co nfigure th e Bridge/Router 4.2.4 IPoA Routed Configuration. A. Click Router mode under Configuration and ch oose IPoA routed. B. NA T Configuration. Configuration of NAT is the same as that of PPPoA Router m ode, Please refer to 4.2.1.B.(Page 1 7-20) C.

  • Page 28: How To Configure Dhcp Server

    Sectio n Four: Co nfigure th e Bridge/Router 4.3 How to Configure DHCP Server. Select DHCP Server, then click Configure to configure the DHCP Server setti ngs.

  • Page 29: How To Set Port Forwarding

    Sectio n Four: Co nfigure th e Bridge/Router 4.4 Ho w to set Port Forwarding. Click Advanced NAT Configuration under Security .

  • Page 30: How To Let Netmeeting Pass Through

    Sectio n Four: Co nfigure th e Bridge/Router 4.5 How to let Netmeetin g pass through. You may enable Firewall to let your netmeeting pass through. Select Enable under Firewall, click Change State and select low under Security Level, cli ck Change Level.

  • Page 31: How To Configure Bridge Mode

    Sectio n Four: Co nfigure th e Bridge/Router 4.6 How to Configure Bridge Mode. If you connect the Hurricane 8800P to the WAN port of another router as bridge (Ethernet Modem), you need to set it to Bridge mode. Click Bridge Mod e, then Sl ect RFC 1483 Bridge or PPPoE Relay Bridge.

  • Page 32: How To Restore To The Factory Default

    Sectio n Four: Co nfigure th e Bridge/Router 4.7 How to Rest ore to the Factory Default. Click Restart under System, select reset to factory default Settings, then click restart button.

  • Page 33: Appendix A - Troubleshooting

    Appendix A - T roublesho oting Appendix A - Troubleshooting 1. I can not get an y connection. Power LED an d LAN LED light up, but th e ADSL Link LED has no light . 1) Ensur e that the ADSL line is activated. 2) Check that the Telephone cable (RJ-11) is connected to LINE Jack on your router.
  • Page 34 Appendix A - T roublesho oting A. For Inter net Ex plorer, click Tools , Inter net Options, and then the Connection tab. Make sure that Internet Explorer is set to Never dial a connection. B. For Netscape Navigator, click Edit, Preferences, Advanced, and Proxy.

  • Page 35: Appendix B - High Protocols

    Appendix B - High Prot ocols Appendix B - High Protocols 1. IP The modem will support next type IP packets: RFC 1483 Routed (now in use) The RFC in use is the 2684, but its PDU for IPV4 (802 networks) is similar to the 1483.
  • Page 36 Appendix B - High Prot ocols VPN's. The m echanis ms shoul d be based on standards, to warranty the manufacturer independence of the other end s erver s for tunneling and encryption. Router At least, the modem should support routing for IP protocol between user LAN and WAN (through ADS L interface).
  • Page 37 Appendix B - High Prot ocols BOOTP/TFTP client Systems can be booted over Ethernet using BOOTP/TFTP. Once there is a running image on the ASSP, the images and/or configuration stored in flash can be updated using TFTP. TELNET server The modem provides a sim ple telnet server that al lows admini strative acces s to the platform over TCP/IP.

  • Page 38: Appendix C - Acronyms

    Append ix C - Acronyms Appendix C - Acronyms ADSL Asymmetric Digital Subscriber Line ANSI American National S tandards Ins titute Asynchr onous Transfer Mode CHAP CHall enge Handshake Protocol DHCP Dynami c Host Confi guration Pr otocol Domai n Name Service File Transfer Pr otocol HTML Hyper Text Mark Language...

  • Page 39: Appendix D - Emc And Safety

    Appendix D - EMC and Safety Appendix D - EMC and Safety EMC - CE Mark Directive 89/336/EEC EN 55022:1998 Class B/CISPR22:1997 EN 61000-3-2: 1995 EN 61000-3-3: 1995 EN 55024: 1998 Safety - CE Mark Directive 72/23/EEC IEC950/E N 60950...

  • Page 40: Appendix E- Telecom Notices

    Appendix E - T elecom No tices Appendix E- Telecom Notices CTR-2 1 Complian ce Inform ation The equipment has been approved in accordance with Council ecis ion 98/ 482/EC for pan- European single terminal connection to the public switched tel ephone network (PSTN).
  • Page 41 Appendix E - T elecom No tices Micros oft Windows is a tradem ark of Micr osoft Corpor ation. Al l pr oduct names are trademar ks or regi stered trademarks of their respective owners. FCC Co mpliance Statement This device compli es with Part 15 and 68 of the FCC R ules. Operation is subject to the following two conditions: 1.this device may not cause harmful i nterference, and 2.this device must accept any interference received, including interference...

  • Page 42: Prolink Technical Support

    PROLiNK TECHNICAL SUPPORT At PROLiNK, we are committed to give you the best products as well as the best technical supp ort for installation of ADSL Bridge/Router.If there is virus in your system, we may provide suggestions like where you can find the solution to clean the virus, but we are unable to assist you until the virus is cleaned.
