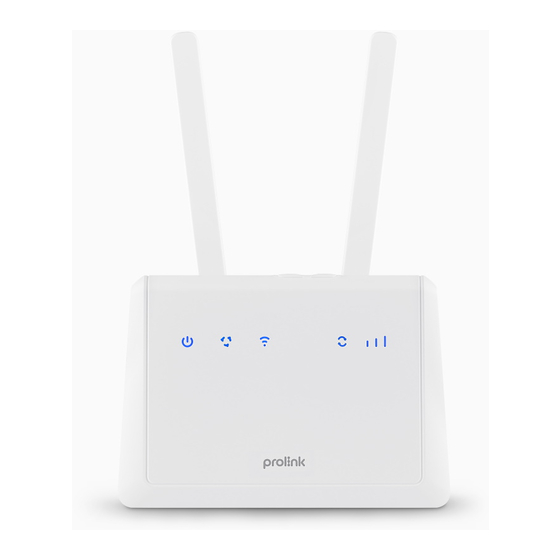

- Page 1 Model No: DL-7302 Quick Installation Guide 4G LTE wireless router Version 1.00 (English | Indonesian)
-
Page 2: Package Contents
Package Contents Notes: This Quick Start Guide is to setup Prolink DL-7302 for internet connection. Before starting the installation, please prepare all the item required for the installation including SIM Card for internet connection. Overview 14 15 Interface and Buttons... -
Page 3: Installation
Open the SIM card slot Cover, Insert the SIM Card into the slot per the direction accordingly 1.2 Connect the power adapter jack over to the DL-7302’s DC Input and switch ON 1.3 Connect client to the 4G LTE Wireless Router through wired or wireless For wired connection: Connect the PC / Laptop over to the DL-7302’s... - Page 4 Installation Step 2: Web Configuration 2.1 Ensure the client (PC, Laptop, or Mobile device) is connected to the DL-7302 2.2 Launch an internet browser and enter https://192.168.1.1 onto the address bar 2.3 Key in the login account and password (default Username is admin, password printed on the sticker) 2.4 For the first time login, please follow the Setup Wizard to complete all...
- Page 5 Launch an Internet Browser and go to http://192.168.1.1 Step 3: Upon log-in, refer to step 2.5 2. It is not recommended to insert SIM Card while DL-7302 is powered on 3. Usage of Micro/Nano-SIM card with uno cial adapter is not recommended...
-
Page 6: Isi Kemasan
Isi Kemasan Catatan: Panduan Mula Pantas ini adalah untuk menyiapkan Prolink DL-7302 untuk sambungan internet. Sebelum memulakan pemasangan, sediakan semua item yang diperlukan untuk pemasangan termasuk Kad SIM untuk sambungan internet Keterangan Gambar 14 15 Antaramuka dan Tombol 1. Tombol WPS 8. - Page 7 Langkah 1: Instalasi Perangkat Keras Buka Penutup slot kartu SIM, Masukkan Kartu SIM ke dalam slot per arah yang sesuai 1.2 Hubungkan jack adaptor daya ke Input DC DL-7302 dan menyalakan 1.3 Hubungkan klien ke Router Nirkabel 4G LTE melalui kabel atau...
- Page 8 Instalasi Langkah 2: Konfigurasi Web 2.1 Pastikan klien (PC, Laptop, atau perangkat Seluler) terhubung ke DL-7302 2.2 Luncurkan browser internet dan masukkan https://192.168.1.1 ke bilah alamat 2.3 Masukkan akun login dan kata sandi (Nama pengguna default adalah admin, kata sandi tercetak di stiker) 2.4 Untuk login pertama kali, ikuti Setup Wizard untuk menyelesaikan...
- Page 9 APN manual pengaturan melalui Konfigurasi Web Langkah 2: Luncurkan Browser Internet dan buka http://192.168.1.1 Langkah 3: Saat masuk, lihat langkah 2.5 2. Tidak disarankan untuk memasukkan Kartu SIM saat DL-7302 dihidupkan 3. Penggunaan kartu Micro / Nano-SIM dengan adaptor tidak resmi tidak disarankan...
- Page 10 Register online for your Product Warranty at www.prolink2u.com PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners. All specifications, designs and contents are subject to changes...
- Page 11 1. Garansi Hanya Berlaku Jika: a. Diisi dengan jelas, lengkap dan benar. b. Jika telah dikirimkan dan diterima oleh PT. Prolink Intidata Nusantara. c. Memperlihatkan kartu garansi asli dan nota pembelian pada saat klaim service. 2. Garansi Tidak Berlaku Apabila: a.
- Page 12 Tel / Fax: Email: Pelanggan PT. Prolink Intidata Nusantara Cap Toko Kartu Garansi harus diisi lengkap, kirimkan paling lambat 14 Hari setelah Tgl. Pembelian / Please Fill-in Your Warranty Card Completely and Send max. 14 day after Purchase Telp. : (62-21) 34831777 Alamat Pengiriman PT.
