PROLiNK Hurricane 9200P Quick Installation Manual

Quick Installation Guide

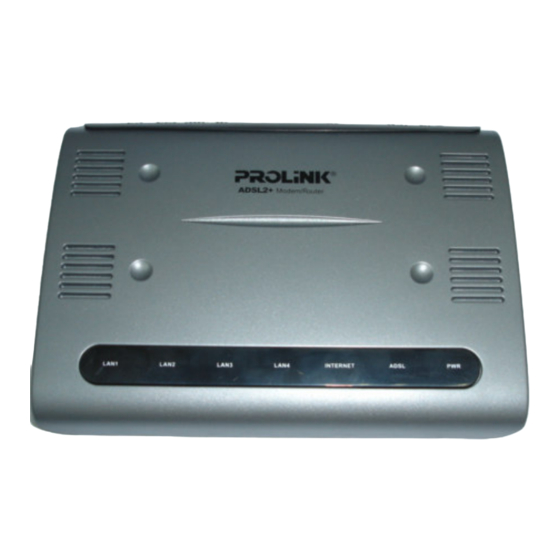

PROLiNK Hurricane 9200P
ADSL2+ Ethernet Modem Router
Minimum System Requirement
• Windows 98SE/ME/ 2000/XP
• MAC OS 10.x (for Ethernet only)
• 64 MB RAM for Win 98Se/ Me
• 128 MB RAM for Win 2K/ XP
• 64MB or 128MB RAM for Mac
• 4x speed CD-ROM Drive
• Ethernet (LAN Card) port

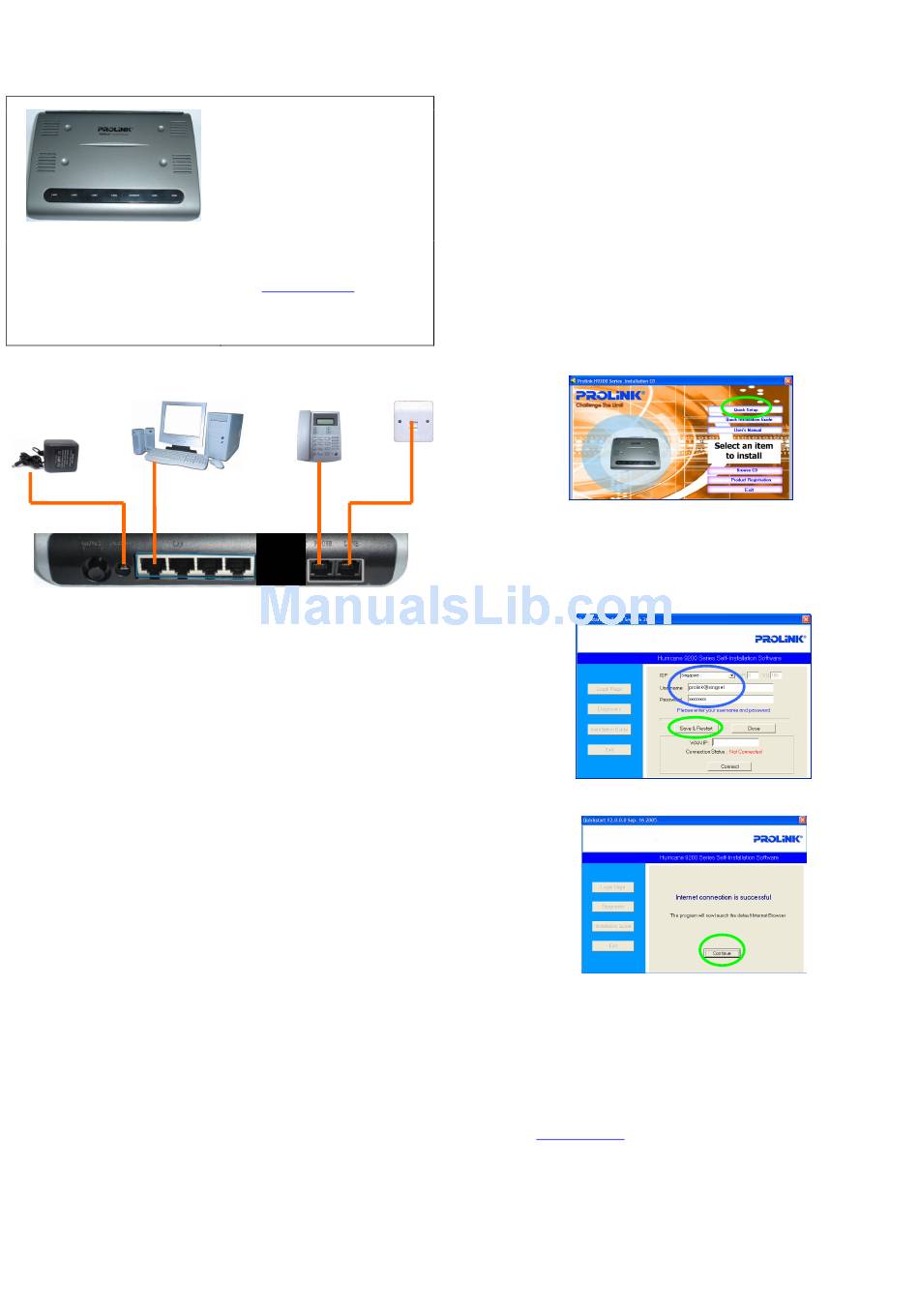

Step 1 Hardware Connection
Computer
Power
Adapter
Ethernet
connection
1.1 Ensure that the PC/Notebook & ADSL Modem are power off
1.2 Connect one end of RJ11 (Telephone) cable to the ADSL port (marked
Line) on the ADSL Modem.
1.3 Connect the other end of RJ11 cable into the phone socket, which has
the ADSL service activated, or the ADSL port of a Micro-filter whichever
is applicable
1.4 Connect power adapter to the power socket
1.5 Switch on the H9200P modem
1.6 Connect one end of the RJ45 (Ethernet) cable to the LAN port of the
computer. Connect the other end of RJ45 cable to the ADSL Modem.
Step 2 Configuring the Computer / Notebook
Important! Before loading the Setup CD into the CDROM Drive, please ensure that
the PC's Network Card TCP/IP Properties and the Internet Browser proxy
are configured
It is also assumed that the computer/notebook has the Ethernet Network card
installed.
Note: In case you have static IP address and you need to use this value for other
network connections, make sure you write down the value first before changing
to Obtain an IP address automatically
2.1a Configure TCP/IP settings for Windows® 98SE / ME
• Windows Desktop > right click Network Neighborhood for Wins 98SE /
Network Places for Win ME > select Properties
• "Network" window > click the Configuration tab > scroll down to select
and double click TCP/IP > xxx where xxx refers to the model of the
Ethernet Network Card connected to the ADSL Ethernet Modem
• "TCP/IP Properties" window > select IP Address tab > select Obtain an IP
address automatically > click DNS Configuration tab > click Disable
DNS > click OK
Take note that the system prompts to Restart the Computer
2.1b Configure TCP/IP settings for Windows® 2000 / XP
• Windows Desktop > right click Network Places > select Properties
• "Network & Dial-Up Connection" window > click Local Area Connection
> scroll down to select and double click Internet Protocol TCP/IP
• "Internet Protocol (TCP/IP) Properties" > select Obtain an IP address
automatically > select Obtain DNS server address automatically > click
OK
Revision 1.0
Package Contents
1. 1 x ADSL2+ Ethernet Modem
Router
2. 1 x RJ-45 straight cable
3. 1 x RJ-11 DSL cable
4. 1 x Power Adaptor
5. Setup CD (for Windows users only)
6. Quick Installation Guide
Technical Support Information
Tel: (65) 6296 5455
9am—5:45pm (Mon--Fri)
9am--1pm (Sat)
Email: support@fida.com
Address:
Blk 105 Boon Keng Road #06-11/13
Kallang Basin Industrial Estate
Singapore 339776
Telephone
(optional)
H9200P
2.2 Disable Proxy Settings
• Windows Desktop > right click Internet Explorer (IE) > click Properties
• "Internet Properties" window > click Connections tab > select Never dial a
connection > click LAN Settings...
• "Local Area Network (LAN) Settings" window > remove the tick for the
option for the Automatic configuration > remove the tick for option box for
Proxy server > click OK > click OK again to exit from "Internet Properties"
window
Step 3
3a Using Setup CD
a Insert the Setup CD into the Computer's CD-ROM drive
(if the CD does not auto-run: click Start > select Run > type-in: e.g.
D:\AutoRun.exe [where D refers to your CD drive's letter] > click OK)
b At the installation wizard: click Quick Setup
Wall
phone
socket
c Select your ISP from the drop-down list
•
if your ISP is not listed, select Others and enter your ISP's VPI/VCI
settings
• key in your Username: e.g.
(provided by your ISP)
•
click Save & Restart to complete the setup
d Click Continue to launch your Web-browser
3b Using Web GUI (optional, please follow the steps below if
encountering problem using SETUP CD )
a Start your Web Browser > at the URL/Address field, key in
•
> press Enter or click on your web-browser's Go button
b Key in the Username:
button
c Click on the Quick Configuration link
Configuring the H9200P
prolink@singnet
http://192.168.1.1 (if you are using Ethernet connection)
admin and Password:
and Password: ********
password > click on the OK
