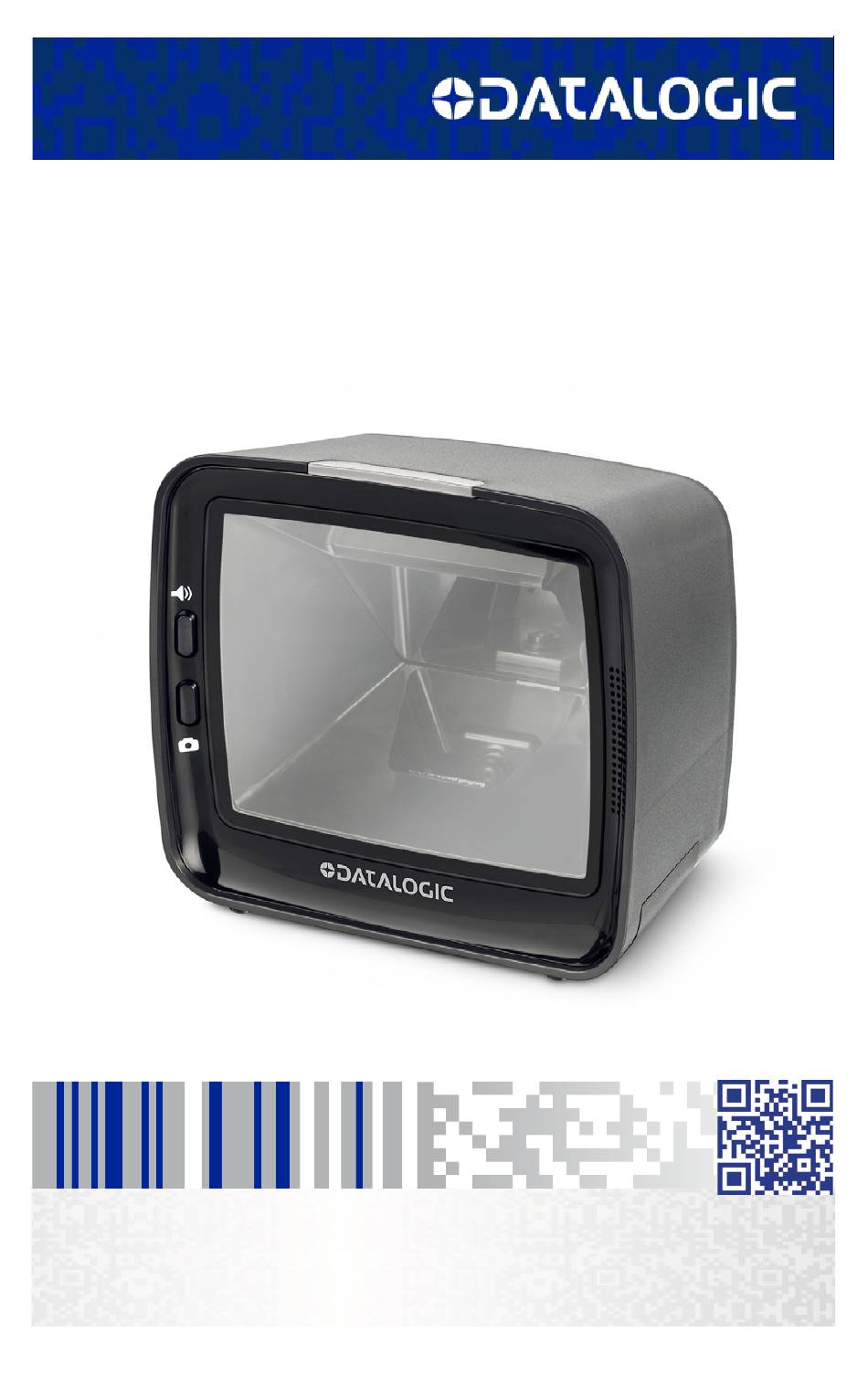

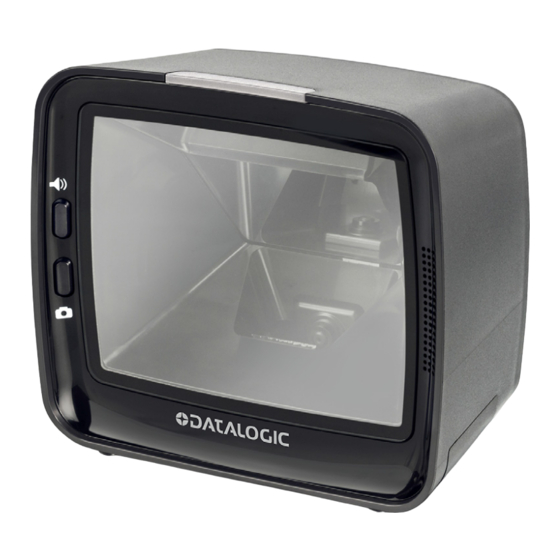

  • Page 1 Magellan™ 3400VSi Omni-Directional Imaging Scanner Quick Reference Guide...
  • Page 2 An Unpublished Work — All rights reserved. No part of the contents of this docu- mentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic S.p.A. and/ or its affiliates. Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.
  • Page 3: Table Of Contents

    Table of Contents Features................1 Installation................3 How to Scan................4 Scanner Button ............. 4 Camera Button.............. 6 LED and Beeper Indicators ..........6 Troubleshooting ..............8 Error Codes ................9 Programming ..............10 Interface Selection............10 Imaging Features............12 Camera Button Mode..........
  • Page 4 NOTES Magellan™ 3400VSi...
  • Page 5: Features

    3400VSi series of bar code readers, and begin using your scanner. For more details and programming information, reference the Product Reference Guide (PRG), which is available for viewing and download from the Datalogic website (www.datalogic.com). Features Figure 1. Scanner Features - Front View...
  • Page 6 Figure 2. Scanner Features - Back View Cable Routing Area Regulatory Label USB Micro B/ MicroSD Card Port Serial Number Label Figure 3. Scanner Features - Bottom View USB Aux Port MicroSD Card USB Micro B Power Host Port EAS Wire Cavity Magellan™...
  • Page 7: Installation

    Installation Connect the scanner to the host (terminal) using the interface (I/ F) cable as shown below. A cable from an older existing installa- tion can be re-used for RS-232 interfaces. If external power is used/needed, plug the AC Adapter into the AC wall outlet, then connect it to the unit as shown in ‘b’...
  • Page 8: How To Scan

    How to Scan Bar codes can be presented to the scanner’s window or pushed past it using a “sweep” technique. The scanner can also be pro- grammed to initiate a scan of a cell phone or other LCD bar code object, or an image capture upon pushing the Camera Button.
  • Page 9 PRESS FUNCTION COMMENT DURATION Press the button momentarily to increase speaker volume. When the loudest volume is Momentary reached, a repeated press of (when scanner is Increments volume the button cycles volume back awake) to the lowest setting, then vol- ume increases on subsequent press(es).
  • Page 10: Camera Button

    Camera Button The Camera Button provides the unit with the ability to capture images. See Camera Button Mode on page 12 to enable this fea- ture. Destination and image type can be specified. Reference the PRG for additional information and programming options. LED and Beeper Indicators The scanner’s beeper sounds and its green LED illuminates to indicate various functions or errors on the scanner.
  • Page 11 BEEPER INDICATION COMMENT INDICATION The Power-On LED indication is a con- figurable feature which can be enabled Power On or disabled. When enabled, this beep Single beep Beep indicates the scanner has finished all its power-up tests and is now ready for operation.
  • Page 12: Troubleshooting

    If the scanner still does not function properly, consult the Product Reference Guide (PRG) or contact your local supplier or Datalogic Customer Support Services. a. Reading of the various bar code symbologies can be independently enabled or disabled in the scanner.
  • Page 13: Error Codes

    Error Codes If an error is detected, the scanner will sound a long low tone (for three seconds) and flash its LED, indicating a failure. When this occurs, press the Scanner button to hear the error code. If it is configured to do so, the scanner will sound a series of beeps cor- responding to the error code and/or flash its LED simultaneous to the beeps.
  • Page 14: Programming

    Select other options and customize your scanner with program- ming barcodes available in the PRG, or use the On Screen Pro- gramming (OSP) utility available on the Datalogic website. Interface Selection START / END PROGRAMMING BAR CODES...
  • Page 15 START / END 000145(CR) USB-OEM 000135(CR) USB Keyboard 000147(CR) USB COM Interface Reference the Product Reference Guide (PRG) or On Screen Programming for additional options. NOTE Quick Reference Guide...
  • Page 16: Imaging Features

    Imaging Features See the PRG for more information on these features. Camera Button Mode Scan one of the bar codes below to enable or disable the camera button. START / END DEFAULT Camera Button Mode = Disable Camera Button Mode = Enable Magellan™...
  • Page 17: Image Destination

    Image Destination Specifies the destination for pictures/images taken with a cam- era button press. START / END 042501\r 500(CR) DEFAULT Image Destination = Disable Image Destination = SD card 042503\r Image Destination = Host port Quick Reference Guide...
  • Page 18: Cell Phone Mode

    Cell Phone Mode Enables/disables mobile phone barcode reading. START / END 046701(CR) Cell Phone Mode = Disable 046702(CR) DEFAULT Cell Phone Mode = Enable (Always On) Magellan™ 3400VSi...
  • Page 19: Cell Mode Percent

    Cell Mode Percent Specifies the rate of frames dedicated to reading cell phones. Cell phone mode must be enabled for this to be active. Settings above 10% will slow down read performance on printed barcodes. NOTE START / END 047100(CR) DEFAULT Cell Mode Percent = 2.5% (Very Low)
  • Page 20: Cleaning

    Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris accumulation require periodic cleaning to assure best performance during scanning. Use a clean, lint-free cloth or paper towel dampened with a nonabrasive, mild, water-based cleaner to wipe away stains, smudges, fingerprints, spills, etc. from the scan window and exterior surfaces.
  • Page 21: Manufacturer Approved Cleaning Materials

    Manufacturer Approved Cleaning Materials Datalogic recommends the use of the following cleaners on its products. APPROVED CLEANERS • Hydrogen Peroxide (not to exceed a 3% solution) • Chlorine bleach (not to exceed a 0.25% solution) • Mild detergent and water •...
  • Page 22: Warranty

    90 day period starting from the date of shipment of the repaired product from Datalogic or until the expiration of the original Warranty Period, whichever is longer. Datalogic does not...
  • Page 23 Datalogic shall pay for the return of the product to Buyer if the shipment is to a location within the country in which the Datalogic service center is located. Buyer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
  • Page 24 Datalogic or fails to pay when due any invoice under this contract, then in addition to any and all remedies allowed by law, Datalogic without notice may (1) bill and declare due and payable all undelivered products under this or any other contract between Datalogic and the Buyer;...
  • Page 25: Going Green

    Going Green Thank you for using the bar code mask on the opposite side of this page. This manual has been formatted to minimize the quantity of pages needed to provide the programming bar codes available for this product. Quick Reference Guide...
  • Page 26: Bar Code Mask

    Bar Code Mask Cut a hole in this page and remove it from the manual as indicated to cre- ate a sleeve through which bar codes can be individually viewed and scanned. It is important that only one bar code at a time be presented to the scanner.
