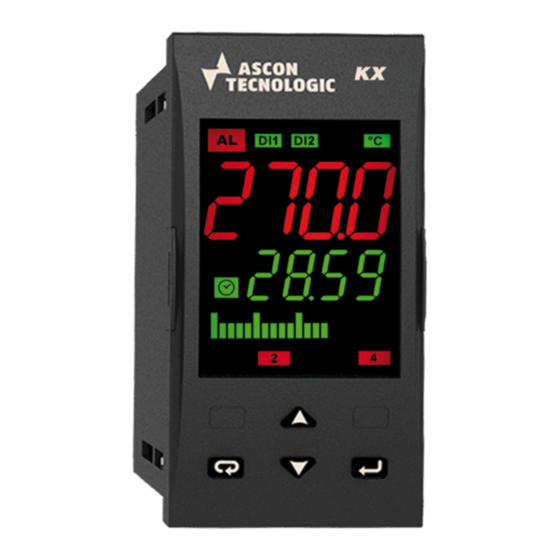

Controller, programmer and set point setter

Advertisement

Quick Links

K_5P
CONTROLLER, PROGRAMMER
and SET POINT SETTER
Engineering Manual
23/02 - Code: ISTR_M_K-5PSERIES_E_00_--
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871/FAX: +39 0381 698730
www.ascontecnologic.com
e-mail: info@ascontecnologic.com
1
DIMENSIONS (mm)
1.1
Mounting requirements
This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There are minimum vibrations and no impacts;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
The instrument can be mounted on panel with a maximum
thickness of 15 mm.
When the maximum front protection (IP65) is required, the
optional gasket must be installed for KM5P and KX5P or
must be used the optional screw type bracket for the KR5P.
Ascon Tecnologic - K_5P Series - ENGINEERING MANUAL - PAG. 1
1.2
KR5P
1.2.1
Outline Dimensions
Instrument with non removable terminals
78
PV
AT
Removable terminals
60
15
1.2.2
Panel cutout
86 mm min.
+0.6
71
mm
1.3
KM5P
1.3.1
Outline Dimensions
Instrument with non removable terminals
11
48
PV
AT
*: The controllers with universal power supply, have the
body long 63.3 mm.
1.3.2
Panel cutout
65 mm min.
+0.6
45
mm
6
14.5
64
Removable
terminals
48 *
14
8
18
