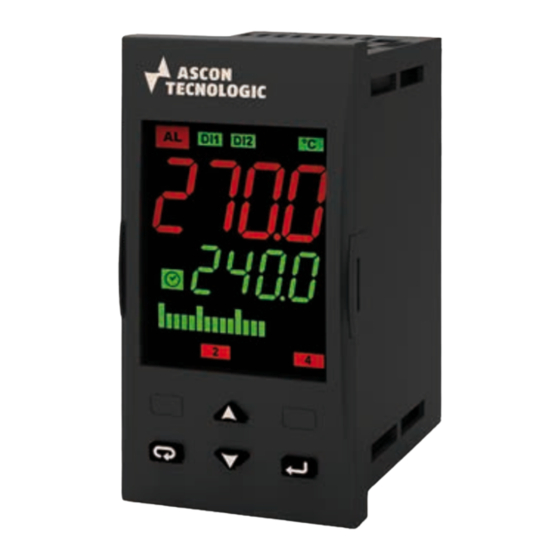

Ascon tecnologic KX5P Engineering Manual

KX5P
CONTROLLER, PROGRAMMER
and SET POINT SETTER
Engineering Manual
21/11 - Code: ISTR_M_KX5P_E_00_--
ASCON TECNOLOGIC S.r.l.
Viale Indipendenza, 56 - 27029 VIGEVANO (PV) ITALY
Tel.: +39 0381 69871 - Fax: +39 0381 698730
Site: http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com

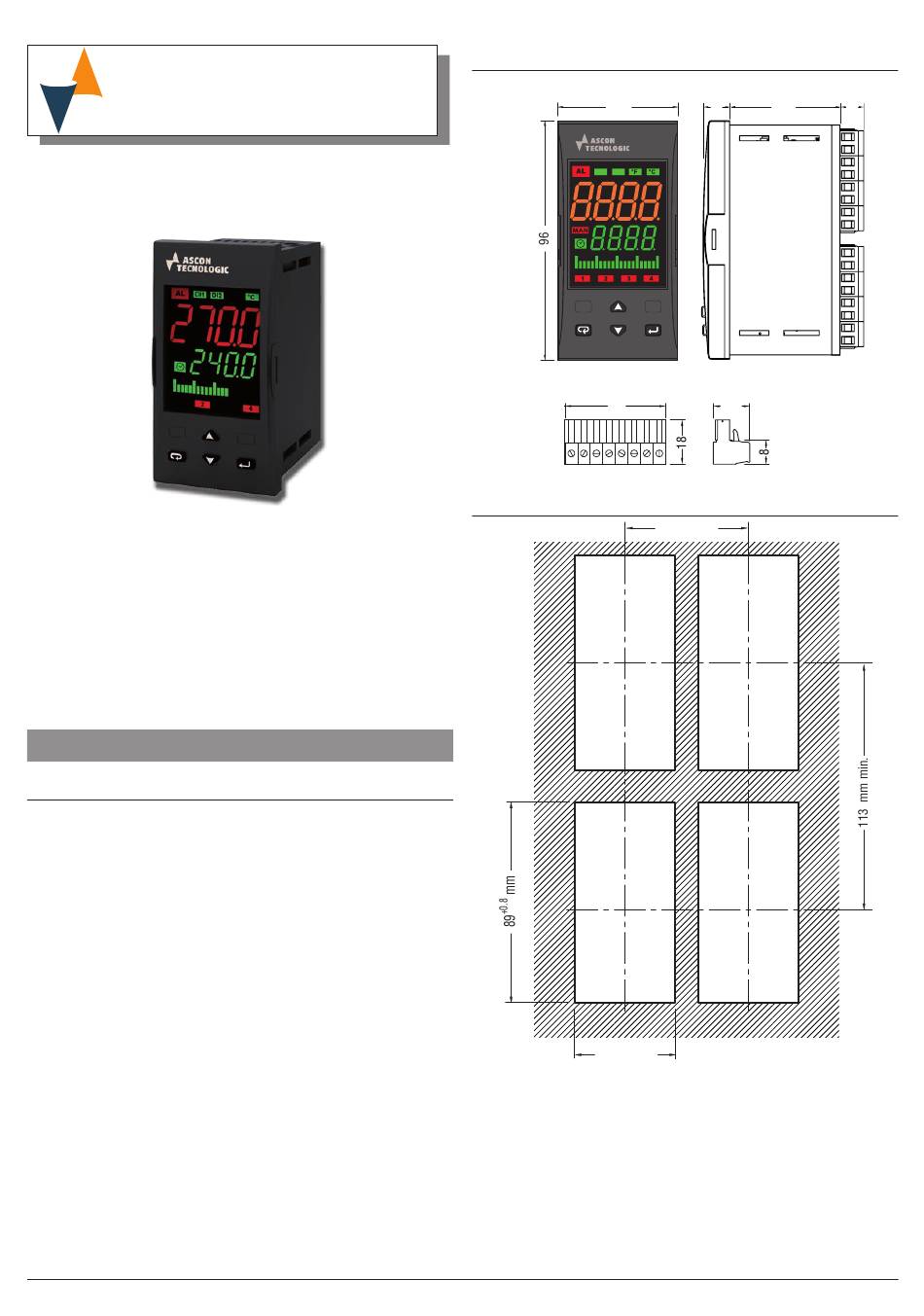

1 OUTLINE DIMENSIONS (mm)
1.1 Mounting requirements
This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
The instrument can be mounted on panel with a maximum
thickness of 15 mm.
When the maximum front protection (IP65) is desired, the
optional gasket must be monted.
Ascon Tecnologic - KX5P Line - ENGINEERING MANUAL - PAG. 1
1.2 Dimensions
Instrument with non-removable terminals
48
DI1 DI2
Removable terminals
40
1.3 Panel cutout
+0.6
45 mm
11 61.9
14.5
65 mm min.
14
