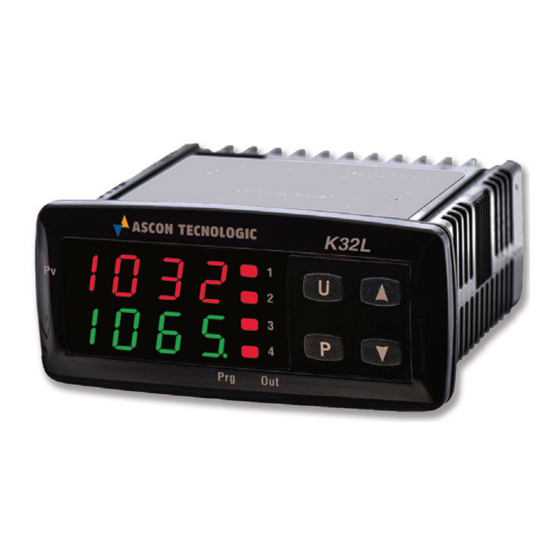

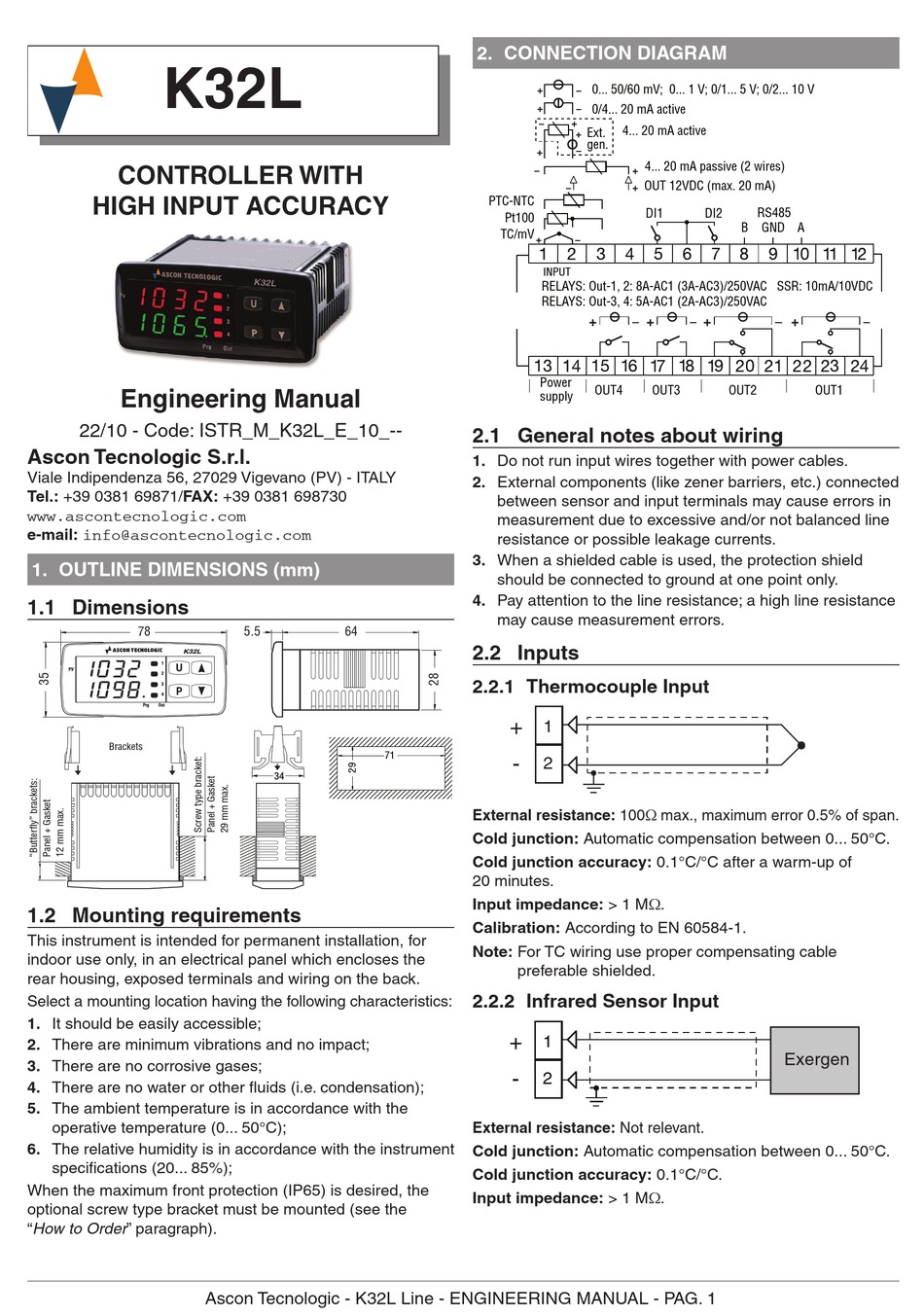

Ascon tecnologic K32L Engineering Manual

K32L
CONTROLLER WITH
HIGH INPUT ACCURACY
Engineering Manual
22/10 - Code: ISTR_M_K32L_E_10_--
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871/FAX: +39 0381 698730
www.ascontecnologic.com
e-mail: info@ascontecnologic.com
1. OUTLINE DIMENSIONS (mm)
1.1 Dimensions
78
K32L
1032 1032 1 U
PV
2
1098. 1098. 3
P
4
Prg
Out
Brackets
1.2 Mounting requirements
This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There are minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
When the maximum front protection (IP65) is desired, the
optional screw type bracket must be mounted (see the
"How to Order" paragraph).
5.5 64
34 34
Ascon Tecnologic - K32L Line - ENGINEERING MANUAL - PAG. 1
2. CONNECTION DIAGRAM
PTC-NTC
Pt100
TC/mV
RELAYS: Out-1, 2: 8A-AC1 (3A-AC3)/250VAC
RELAYS: Out-3, 4: 5A-AC1 (2A-AC3)/250VAC
Power
supply
2.1 General notes about wiring
1. Do not run input wires together with power cables.
2. External components (like zener barriers, etc.) connected
between sensor and input terminals may cause errors in
measurement due to excessive and/or not balanced line
resistance or possible leakage currents.
3. When a shielded cable is used, the protection shield
should be connected to ground at one point only.
4. Pay attention to the line resistance; a high line resistance
may cause measurement errors.
2.2 Inputs
2.2.1 Thermocouple Input
+
1
71
-
2
External resistance: 100Ω max., maximum error 0.5% of span.
Cold junction: Automatic compensation between 0... 50°C.
Cold junction accuracy: 0.1°C/°C after a warm-up of
20 minutes.
Input impedance: > 1 MΩ.
Calibration: According to EN 60584-1.
Note: For TC wiring use proper compensating cable
preferable shielded.
2.2.2 Infrared Sensor Input
+
1
-
2
External resistance: Not relevant.
Cold junction: Automatic compensation between 0... 50°C.
Cold junction accuracy: 0.1°C/°C.
Input impedance: > 1 MΩ.
0... 50/60 mV; 0... 1 V; 0/1... 5 V; 0/2... 10 V
0/4... 20 mA active
4... 20 mA active
Ext.
gen.
4... 20 mA passive (2 wires)
DI1 DI2 RS485
B GND A
OUT4 OUT3 OUT2
SSR: 10mA/10VDC
OUT1
Exergen
