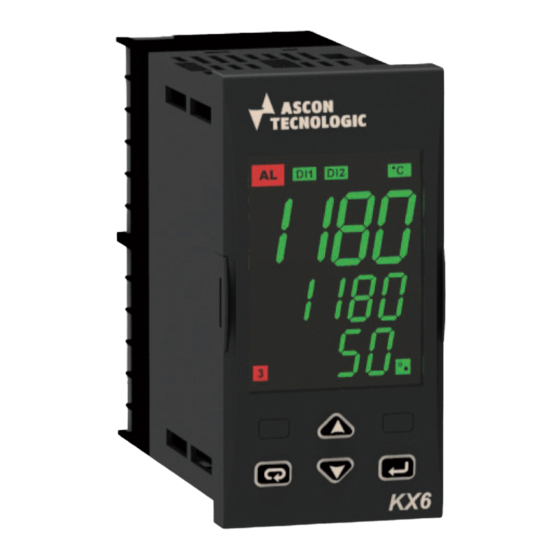

Ascon tecnologic KX6 Series Engineering Manual

KX6
Controller with
servomotor drive output
engineering manual
Code : ISTR-MKX6ENG06 - Vr. 0.0 (ENG)
Ascon tecnologic s.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
tel.: +39 0381 69871/FAX: +39 0381 698730
www.ascontecnologic.com
e-mail: info@ascontecnologic.com

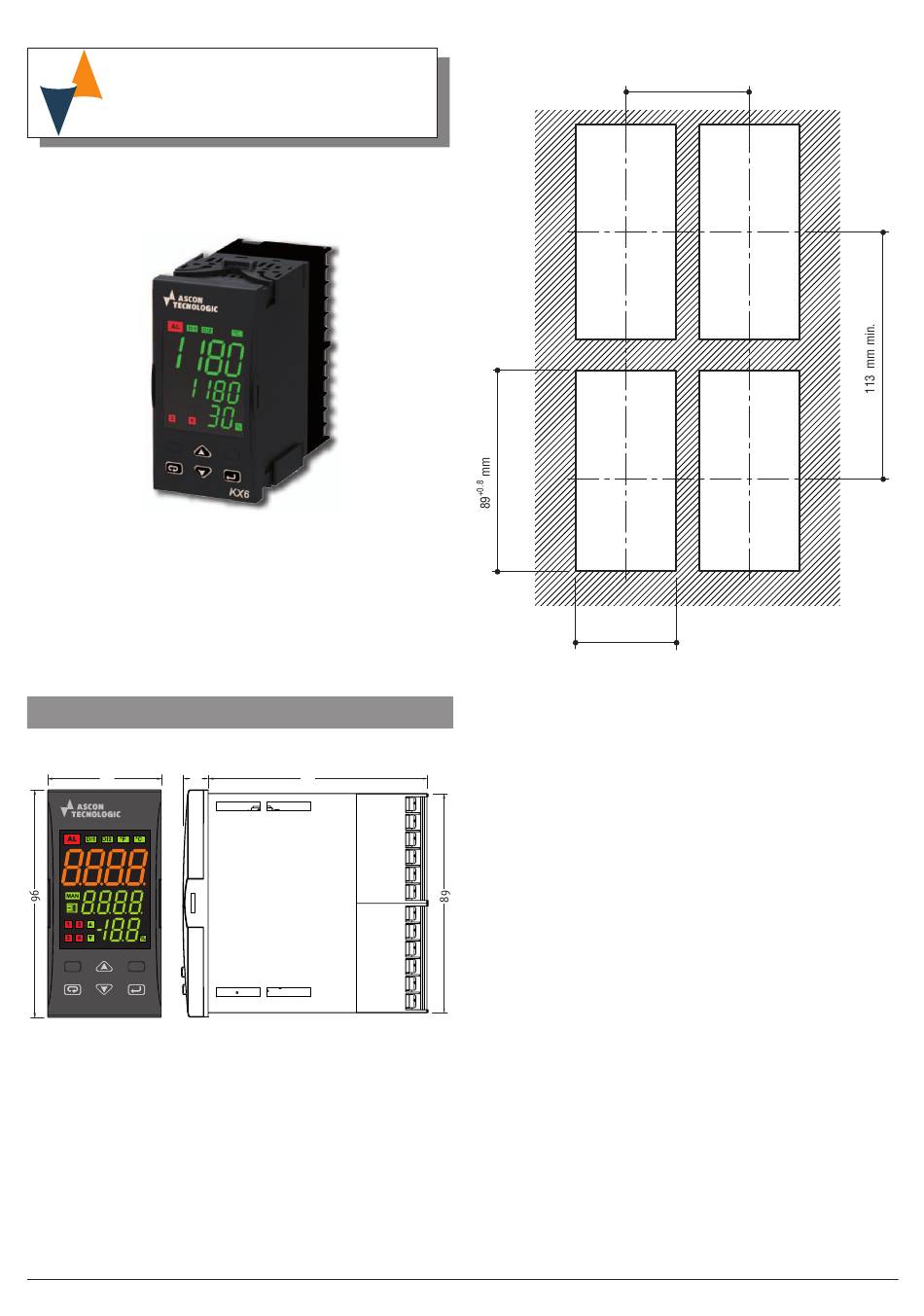

1. outline dimensions (mm)
1.1 dimensions
48 11
KX6
Ascon Tecnologic - KX6 Series - ENGINEERING MANUAL -Vr. 0.0 PAG. 1
1.2 pAnel Cutout
1.3 mounting requirements
This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
89
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
6. The relative humidity is in accordance with the instrument
The instrument can be mounted on panel with a maximum
thickness of 15 mm.
When the maximum front protection (IP65) is desired, the
optional gasket must be mounted.
65 mm min.
+0.6
45 mm
operative temperature (0... 50°C);
specifications (20... 85%);
