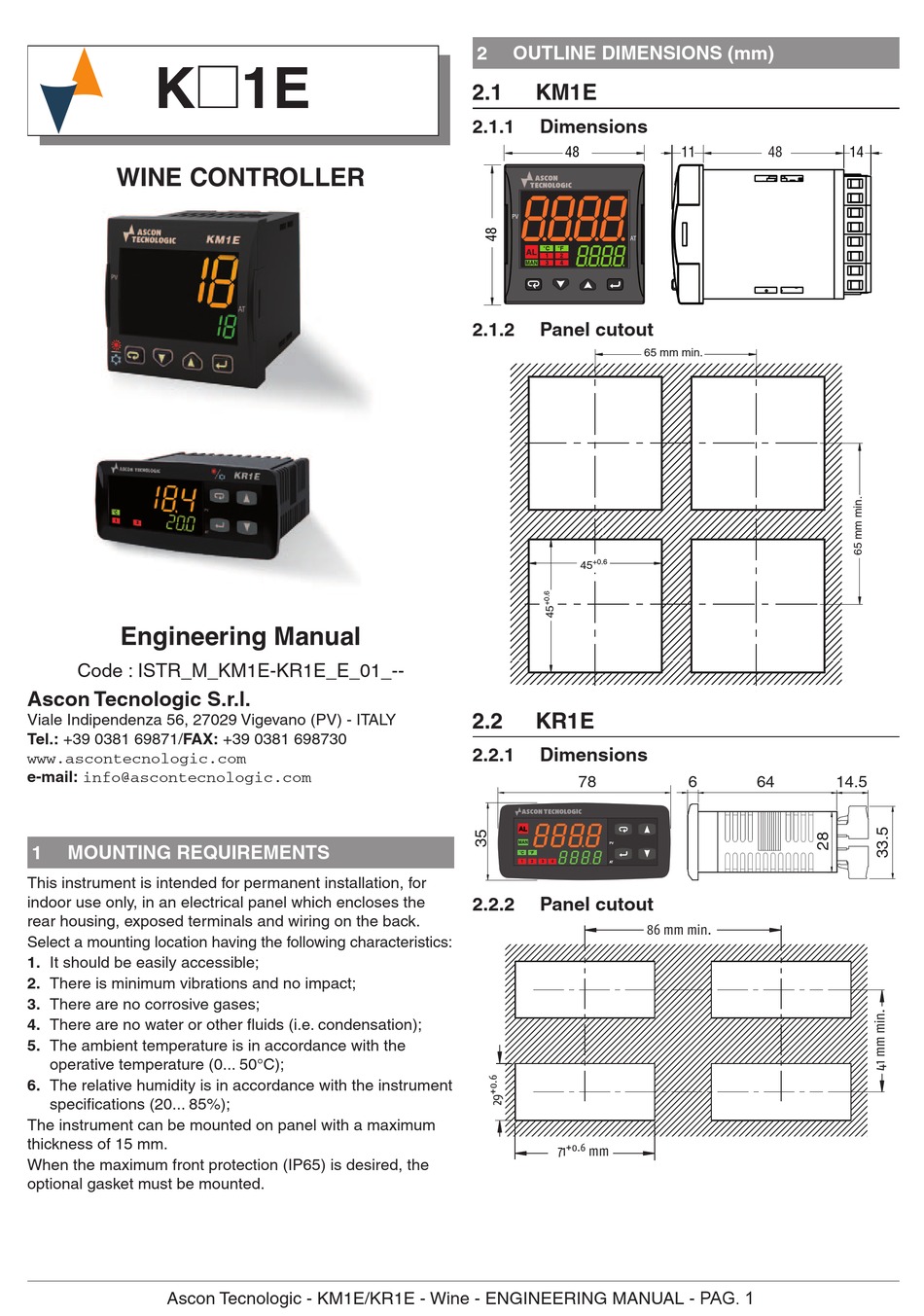

Ascon tecnologic K 1E Series Engineering Manual

K@1E
WINE CONTROLLER
Engineering Manual
Code : ISTR_M_KM1E-KR1E_E_01_--
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871/FAX: +39 0381 698730
www.ascontecnologic.com
e-mail: info@ascontecnologic.com
1 MOUNTING REQUIREMENTS
This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
The instrument can be mounted on panel with a maximum
thickness of 15 mm.
When the maximum front protection (IP65) is desired, the
optional gasket must be mounted.
Ascon Tecnologic - KM1E/KR1E - Wine - ENGINEERING MANUAL - PAG. 1
2 OUTLINE DIMENSIONS (mm)

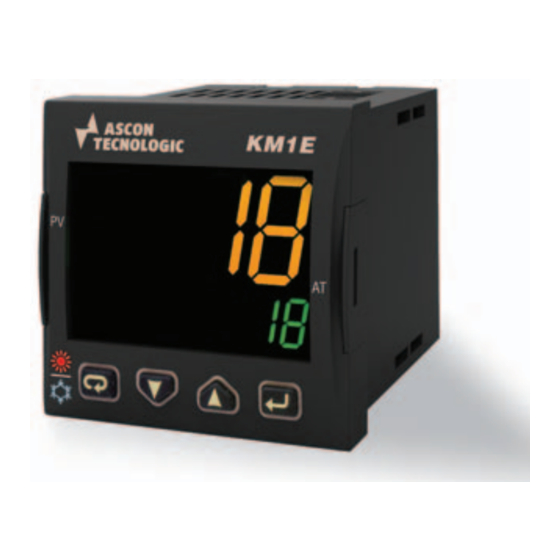

2.1 KM1E
2.1.1 Dimensions
48
PV
AT
2.1.2 Panel cutout
65 mm min.
+0.6
45
2.2 KR1E
2.2.1 Dimensions
78
PV
AT
2.2.2 Panel cutout
86 mm min.
+0.6
71 mm
11 48 14
6 64 14.5
