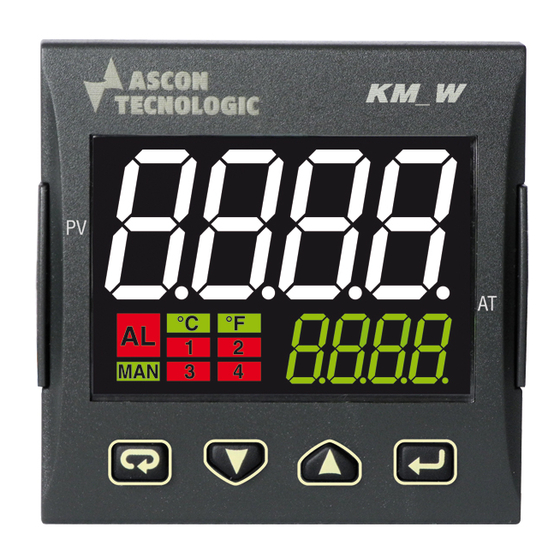

Ascon tecnologic KM1E Engineering Manual

KM1E
WINE CONTROLLER
Engineering Manual
Code : ISTR-KM1E- Vr. 2.0 (ENG)
Ascon Tecnologic S.r.l.
Viale Indipendenza 56, 27029 Vigevano (PV) - ITALY
Tel.: +39 0381 69871/FAX: +39 0381 698730
www.ascontecnologic.com
e-mail: info@ascontecnologic.com

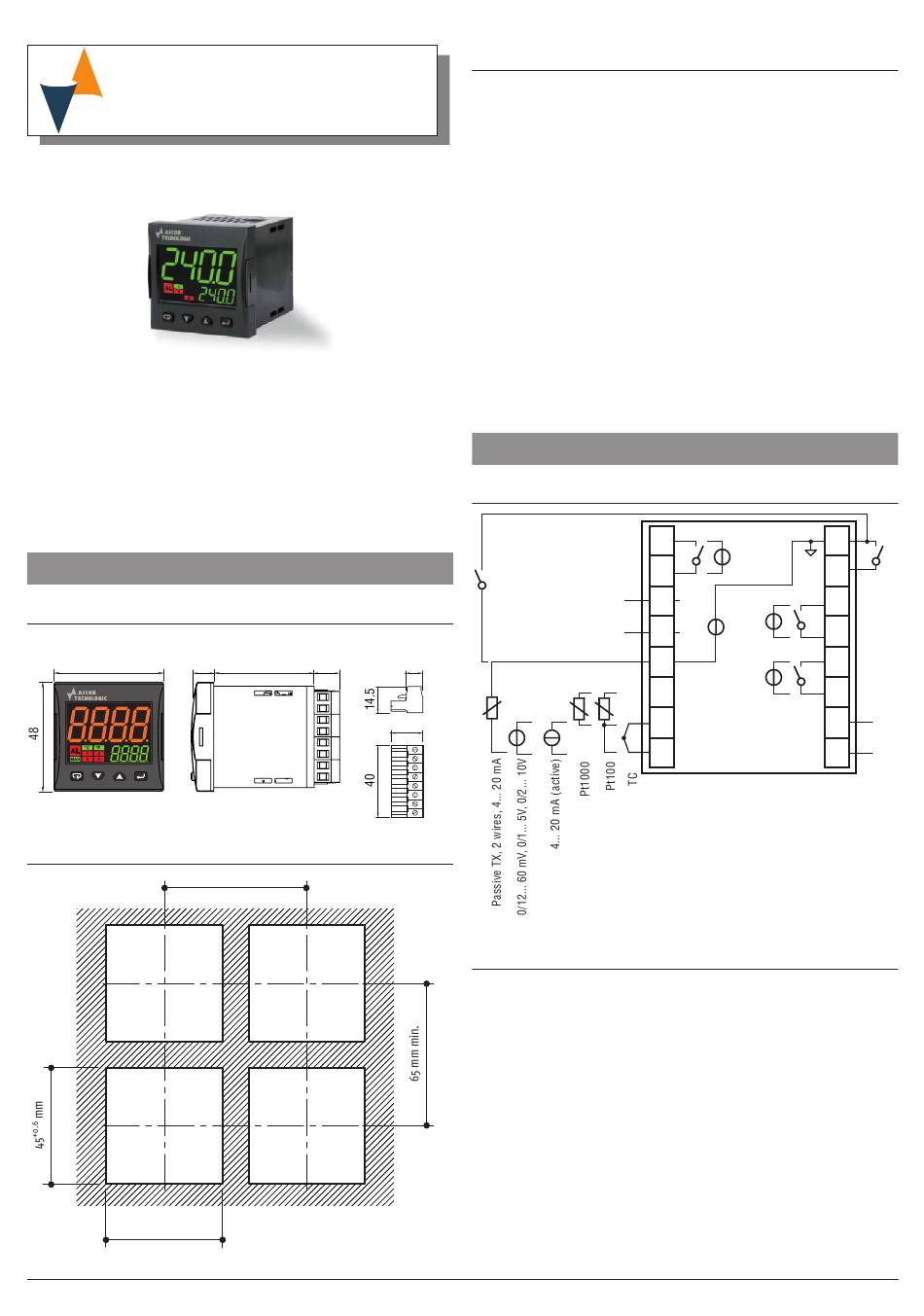

1 OuTLINE dIMENSIONS (mm)
1.1 dimensions
Instrument with non removable terminals
48
11
PV
AT
1.2 Panel cutout
+0.6
45 mm
Ascon Tecnologic - KM1E - Wine - ENGINEERING MANUAL - PAG. 1
Removable
terminals
48
14
65 mm min.
1.3 Mounting requirements
This instrument is intended for permanent installation, for
indoor use only, in an electrical panel which encloses the
rear housing, exposed terminals and wiring on the back.
Select a mounting location having the following characteristics:
1. It should be easily accessible;
2. There is minimum vibrations and no impact;
3. There are no corrosive gases;
4. There are no water or other fluids (i.e. condensation);
5. The ambient temperature is in accordance with the
operative temperature (0... 50°C);
6. The relative humidity is in accordance with the instrument
specifications (20... 85%);
The instrument can be mounted on panel with a maximum
thickness of 15 mm.
When the maximum front protection (IP65) is desired, the
optional gasket must be mounted.
2 CONNECTIONS
2.1 Connection diagram
DI2
12 VDC/20 mA max.
+
8
18
+ +
2.2 General notes about wiring
1. Do not run input wires together with power cables.
2. External components (like zener barriers, etc.) connected
between sensor and input terminals may cause errors in
measurement due to excessive and/or not balanced line
resistance or possible leakage currents.
3. When a shielded cable is used, it should be connected at
one point only.
4. Pay attention to the line resistance; a high line resistance
may cause measurement errors.
+
NO
8
Out1
C
7
-
+
6
D -
-
RS485
5
D +
+ -
+
Out4
4
3
-
2
1
+
Relay Out 1: 4 (4) A/250 VAC
Relay Out 2, 3: 2 (1) A/250 VAC
SSR Out 1, 2 , 3: 10 VDC/15 mA
SSR Out4: 12 VDC/20 mA
DI1
16
15
NO
14
Out2
13
C
NO
12
Out3
C 11
10
Power
supply
9
