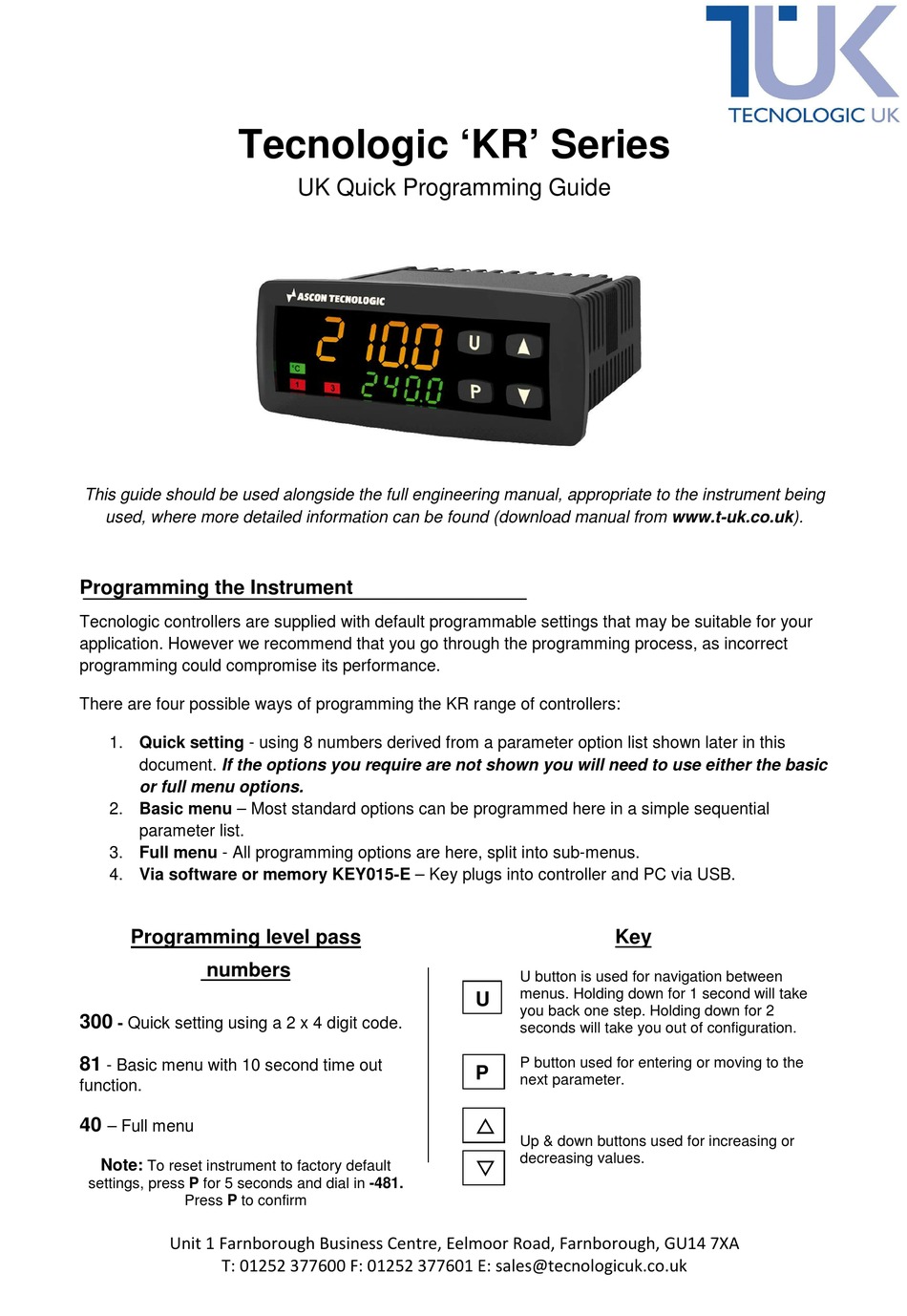

Ascon tecnologic KR Series Quick Programming Manual

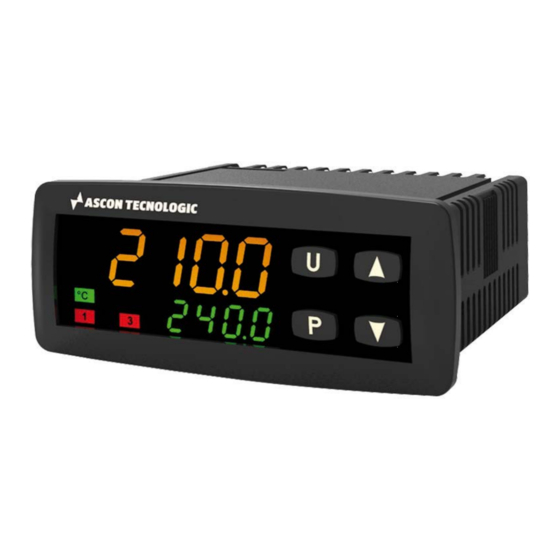

Tecnologic 'KR' Series
This guide should be used alongside the full engineering manual, appropriate to the instrument being
used, where more detailed information can be found (download manual from www.t-uk.co.uk).
Programming the Instrument
Tecnologic controllers are supplied with default programmable settings that may be suitable for your
application. However we recommend that you go through the programming process, as incorrect
programming could compromise its performance.
There are four possible ways of programming the KR range of controllers:
1. Quick setting - using 8 numbers derived from a parameter option list shown later in this
document. If the options you require are not shown you will need to use either the basic
or full menu options.
2. Basic menu – Most standard options can be programmed here in a simple sequential
parameter list.
3. Full menu - All programming options are here, split into sub-menus.
4. Via software or memory KEY015-E – Key plugs into controller and PC via USB.
Programming level pass
numbers
300
- Quick setting using a 2 x 4 digit code.
81
- Basic menu with 10 second time out
function.
40
– Full menu
Note:
To reset instrument to factory default
settings, press P for 5 seconds and dial in -481.
Press P to confirm
Unit 1 Farnborough Business Centre, Eelmoor Road, Farnborough, GU14 7XA
T: 01252 377600 F: 01252 377601 E: sales@tecnologicuk.co.uk
UK Quick Programming Guide
Key
U button is used for navigation between
menus. Holding down for 1 second will take
U
you back one step. Holding down for 2
seconds will take you out of configuration.
P button used for entering or moving to the
P
next parameter.

Up & down buttons used for increasing or
decreasing values.

