Displaying Dual
Graticules
2 26
The Graticules selector can create a dual graticule display (see Figure
2 19). You can place traces on either graticule.
Step 26: Press the WAVEFORM button to display the Waveform major
menu.
Step 27: Touch the Graticules selector in the major menu, and touch
Create Second Graticule in the pop up menu (see Figure 2 18).
The selected trace appears on the graticule with the horizontal (
vertical ( ) icons; this is called the active graticule. If you select a trace on
the other graticule, it will make that graticule the active graticule.
Step 28: Touch the Lower Graticule selector of the major menu (it was
Graticules). Touch Move Trace to Other Graticule, and observe the
selected trace move to the other graticule.
Step 29: Touch the Upper Graticule selector of the major menu (it was
Lower Graticule). Touch Reduce to One Graticule.

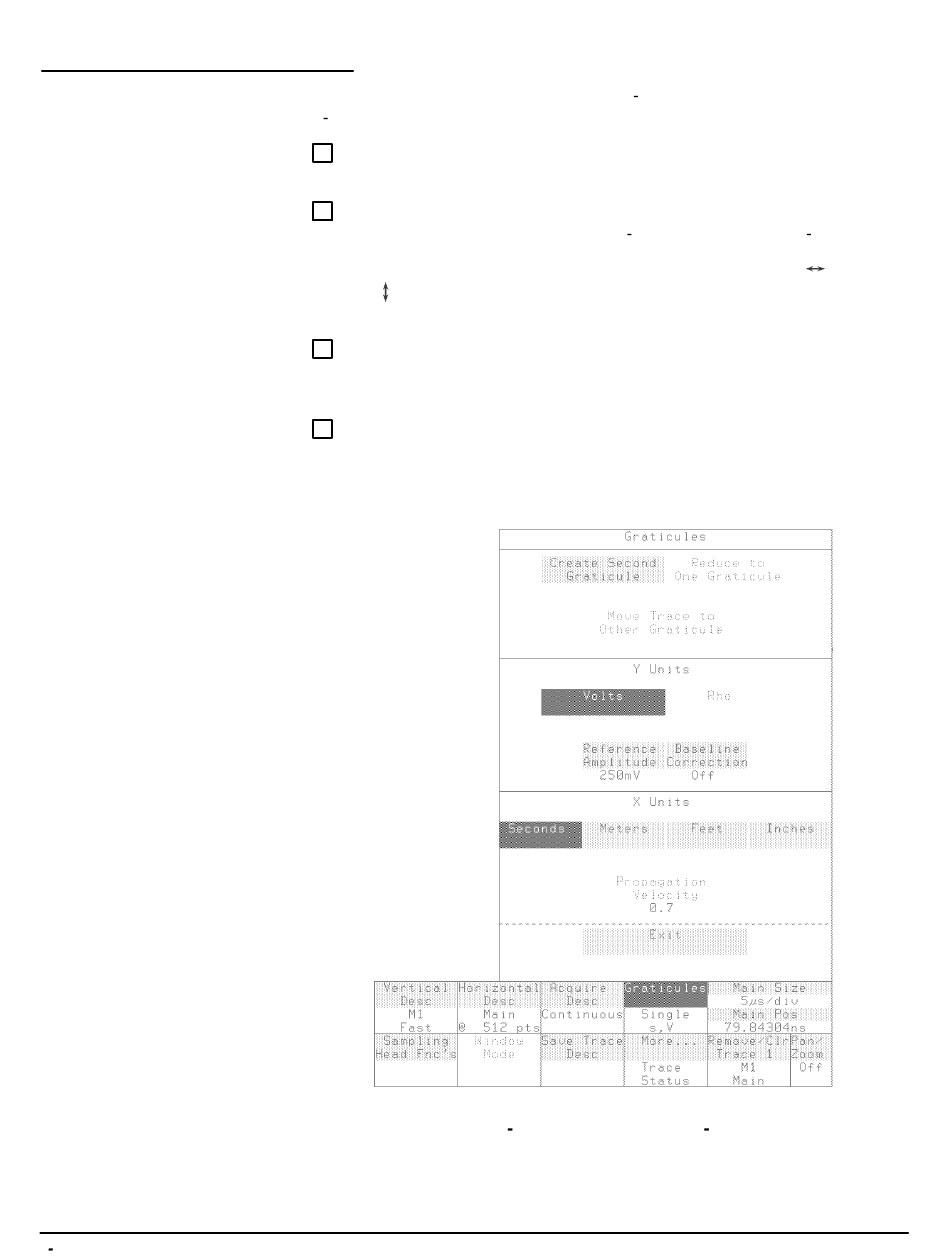

Figure 2 18: The Graticules Pop Up Menu

) and
