Taking TDR Measurements
This example demonstrates the TDR (Time Domain Reflectometry) feature of
the SD 24 sampling heads when they are used in combination with the
11801C. TDR is a method of examining and measuring a network or trans
mission line by sending a step into the network and monitoring the reflec
tions.
For this example you will need a 11801C with at least one SD 24 sampling
head installed. You will also need one SMA cable, preferably of 5 ns length,
and a static protection wrist strap.
Step 1: Initialize the 11801C (press the UTILITY button in the MENUS
column, touch Initialize in the major menu, and touch Initialize in the
verification pop up menu).
Step 2: Put on the wrist strap and ensure that it is connected to the
antistatic connector on the front panel of the 11801C.
Step 3: Attach one end of the cable to any SD 24 sampling head input.
Leave the other end unattached.

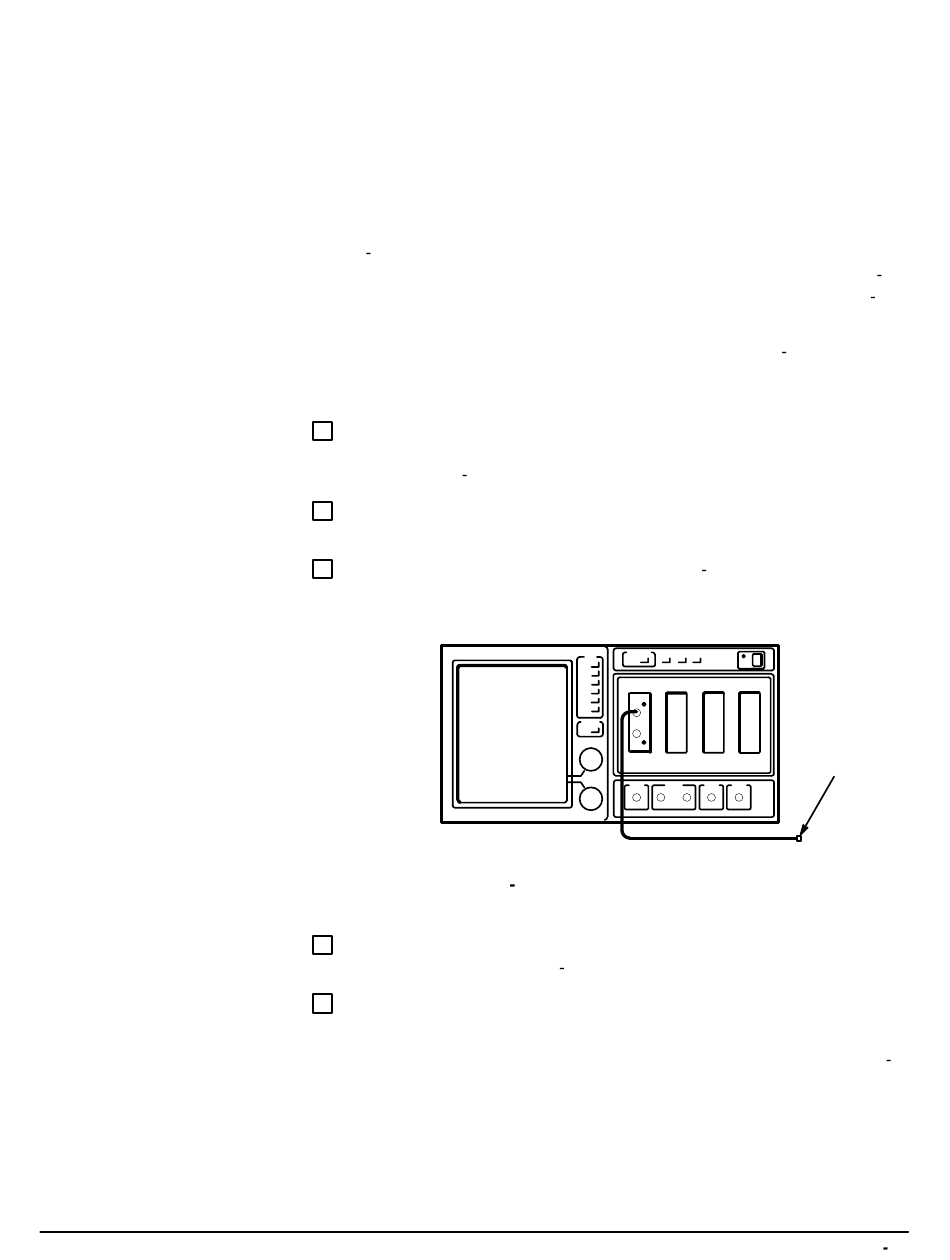

Figure 2 53: Connections for Example 11
Step 4: Press the WAVEFORM button, and touch the Sampling Head
Fnc's selector. See Figure 2 54.
Step 5: Touch Mainframe, 1 (or whichever channel you are using) and
then TDR Preset to define a trace and turn on TDR.
The sampling head will turn on a red light next to the channel input connec
tor, indicating that TDR is activated for that channel. TDR can be used on
each channel independently.
Example 11:
Not
Connected
2 91
