RS 232 C Parameters
Setting RS 232 C
Parameters
3 164
Communication between the 11801C and the attached computer can occur
only if the two are configured in a compatible manner.
Use the GPIB/RS232C pop up menu in the Utility1 major menu to set the
RS 232 C parameters directly, before you attempt to communicate with the
attached computer. See Figure 3 78.

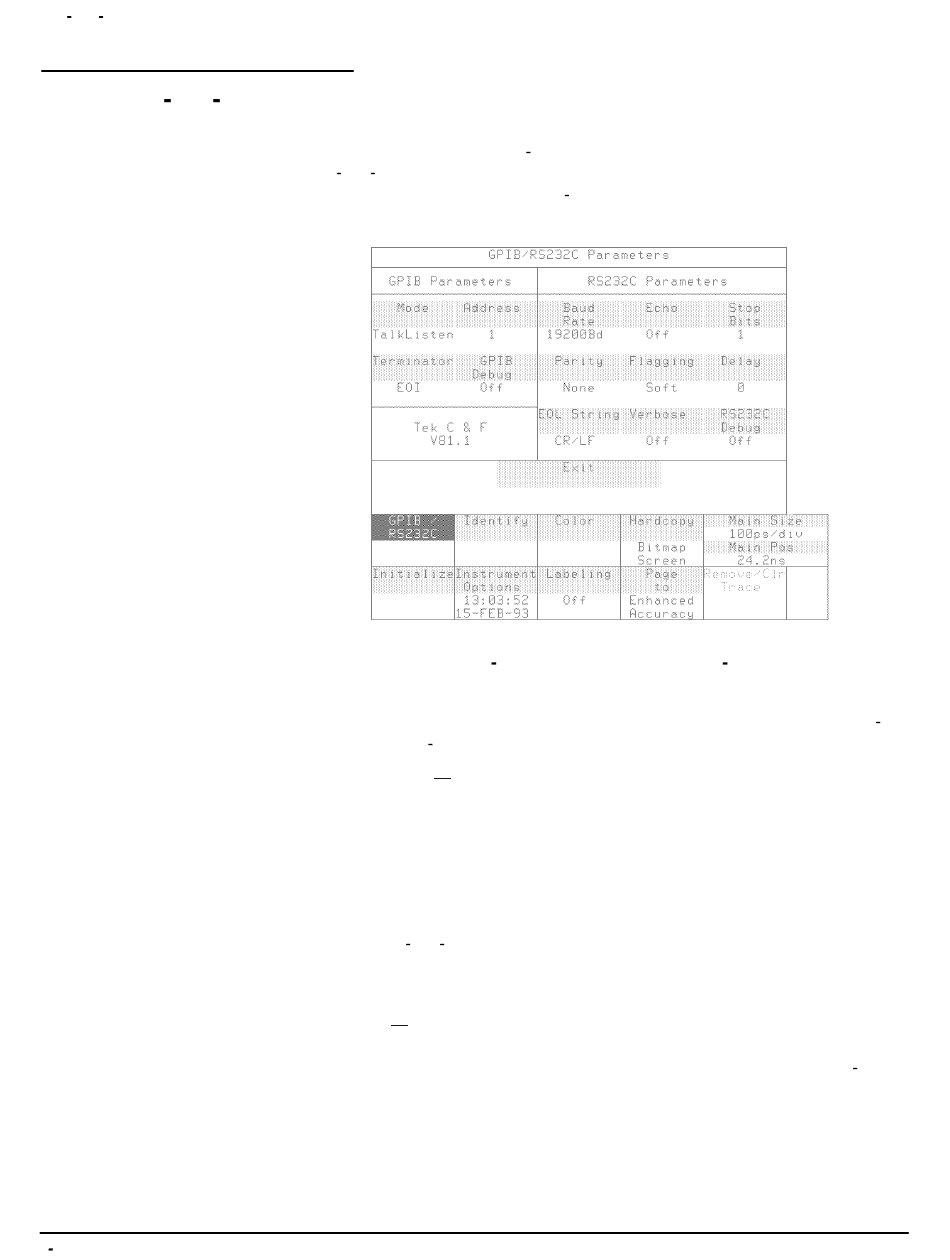

Figure 3 78: The GPIB/RS232C Pop up Menu

The following list describes each selector in the RS232C Parameters sec
tion of this pop up menu:
H Baud Rate assigns the knobs to adjust baud rate and delay. You can
set the baud rate to 110, 150, 300, 600, 1200, 2400, 2400, 4800, 9600,
or 19,200. You should set the baud rate to match the computer you are
using.
The RS 232 C parameters are not changed when you initialize the
11801C.
H Echo lets you set echo to ON or OFF. If you observe two identical
characters transmitted when you expect only one, echo is on when it
shouldn't be. If you see no character transmitted when one was ex
pected, echo might be set to off inappropriately.
