Figure 3 70: A Typical Individual Measurement Pop Up Menu - Tektronix 11801C User Manual

Measurements
3 148
Left Limit
Measurement
Parameter
Selector
Left Limit
Annotation
Line

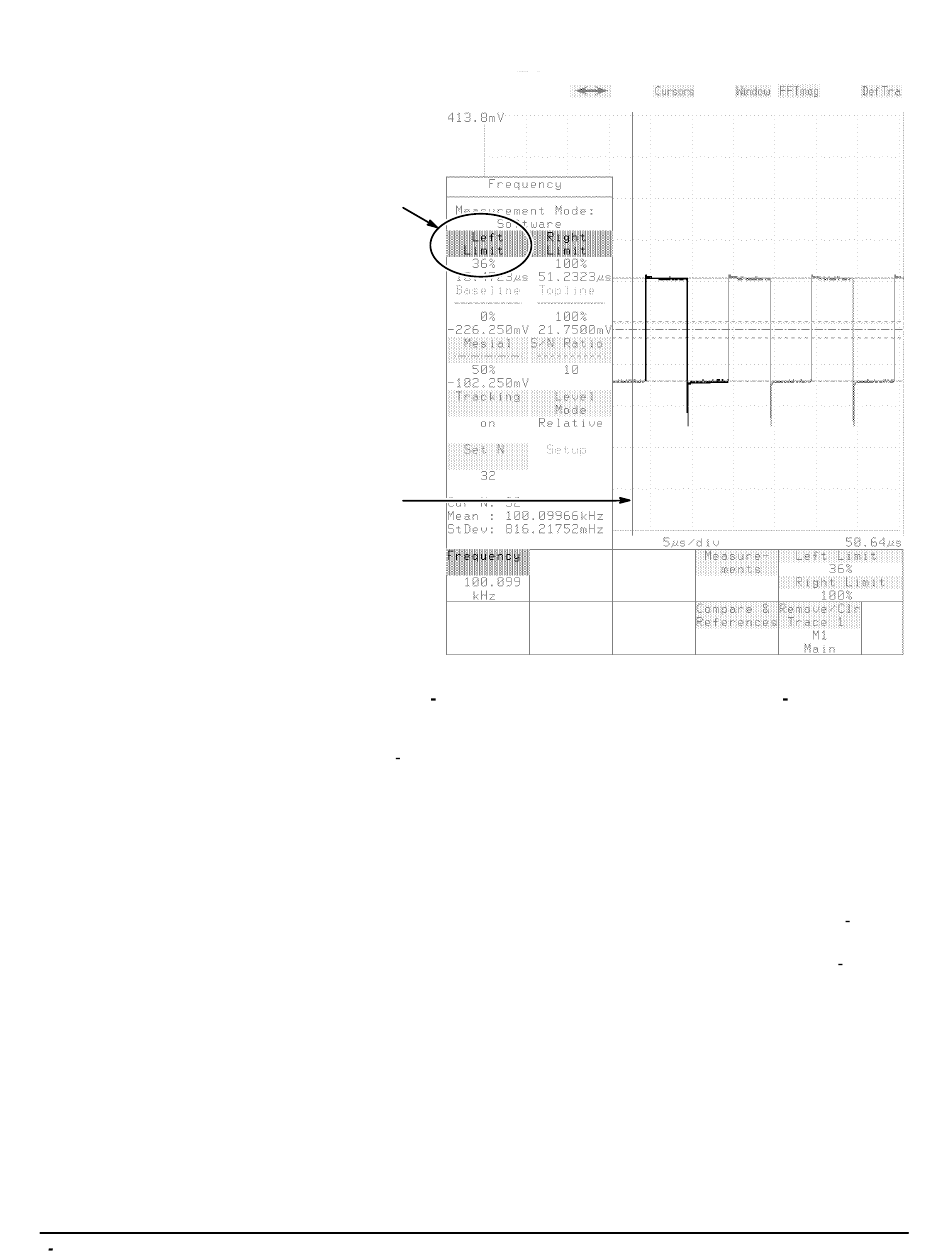

Figure 3 70: A Typical Individual Measurement Pop up Menu

In Figure 3 70, the Left Limit measurement parameter is set to 36%. The left
limit vertical line is positioned 36% of the way across the graticule, and the
11801C measures the frequency from the first complete cycle to the right of
the left limit. The highlighted portion of the trace shows the area being
measured.
The following table shows the measurement parameters. Some apply only
to hardware measurements, some only to software measurements, some
only to statistical measurements, and some apply to all three. No pop up
menu for an individual measurement uses all these parameters; only the
ones that apply to that particular measurement are shown in the pop up
menu.
Changing a measurement parameter in one measurement changes it in all
measurements of the selected trace that use that parameter.
Reference
