Selecting Traces Using The Trace Status Menu; Figure 2 16: The Trace Status Menu - Tektronix 11801C User Manual

Selecting Traces
Using the Trace
Status Menu
11801C User Manual
Another method of selecting traces presents information about all displayed
traces simultaneously. The Waveform major menu has an alternate Trace
Status" menu as shown in Figure 2 16. The WAVEFORM button is lit when
either alternative is displayed. The More... selector of the standard Wave
form major menu displays this alternate.
Step 14: Touch the More... selector in the major menu to see the Trace
Status menu.

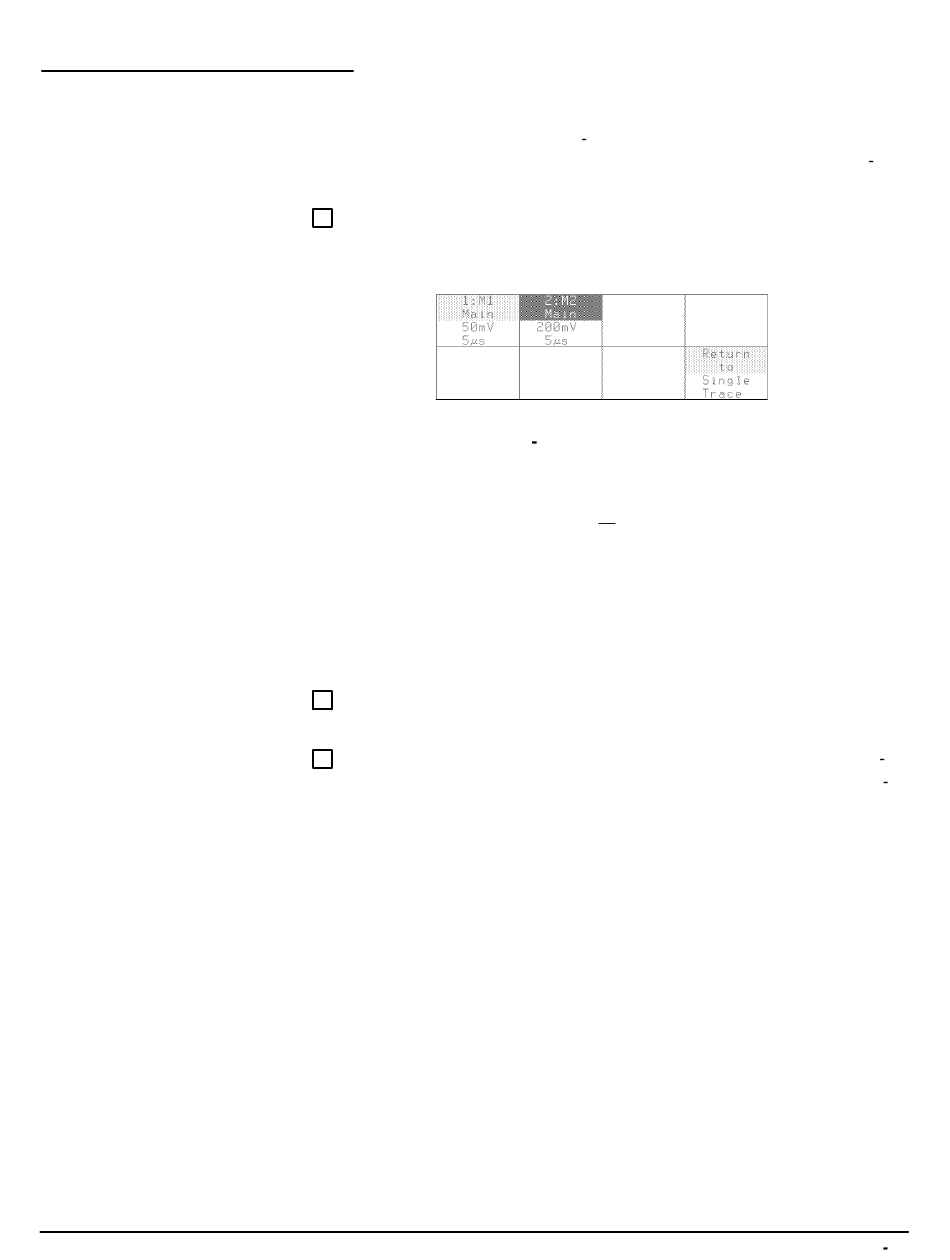

Figure 2 16: The Trace Status Menu

The Trace Status menu has a Return to Single Trace selector to return you
to the normal Waveform major menu
menu button.
The Trace Status menu presents one selector for each displayed trace.
These selectors show status information about the trace they represent. The
selector for the selected trace is highlighted. You can make any trace the
selected trace by touching its selector. This highlights the new trace and the
representative selector in the Trace Status Menu.
Step 15: Touch the trace selector that is not highlighted. Notice that it
becomes highlighted and that its trace is brightened on the graticule.
Step 16: Return to the normal Waveform major menu, either by touch
ing the Return to Single Trace selector in the major menu or by press
ing the WAVEFORM major menu button in the MENUS column.
Example 2: Managing Multiple Traces
or just press the WAVEFORM major
