Mask With Point Added
Below Top/Bottom
Dividing Line
Mask With Point Added
Above Top/Bottom
Dividing Line

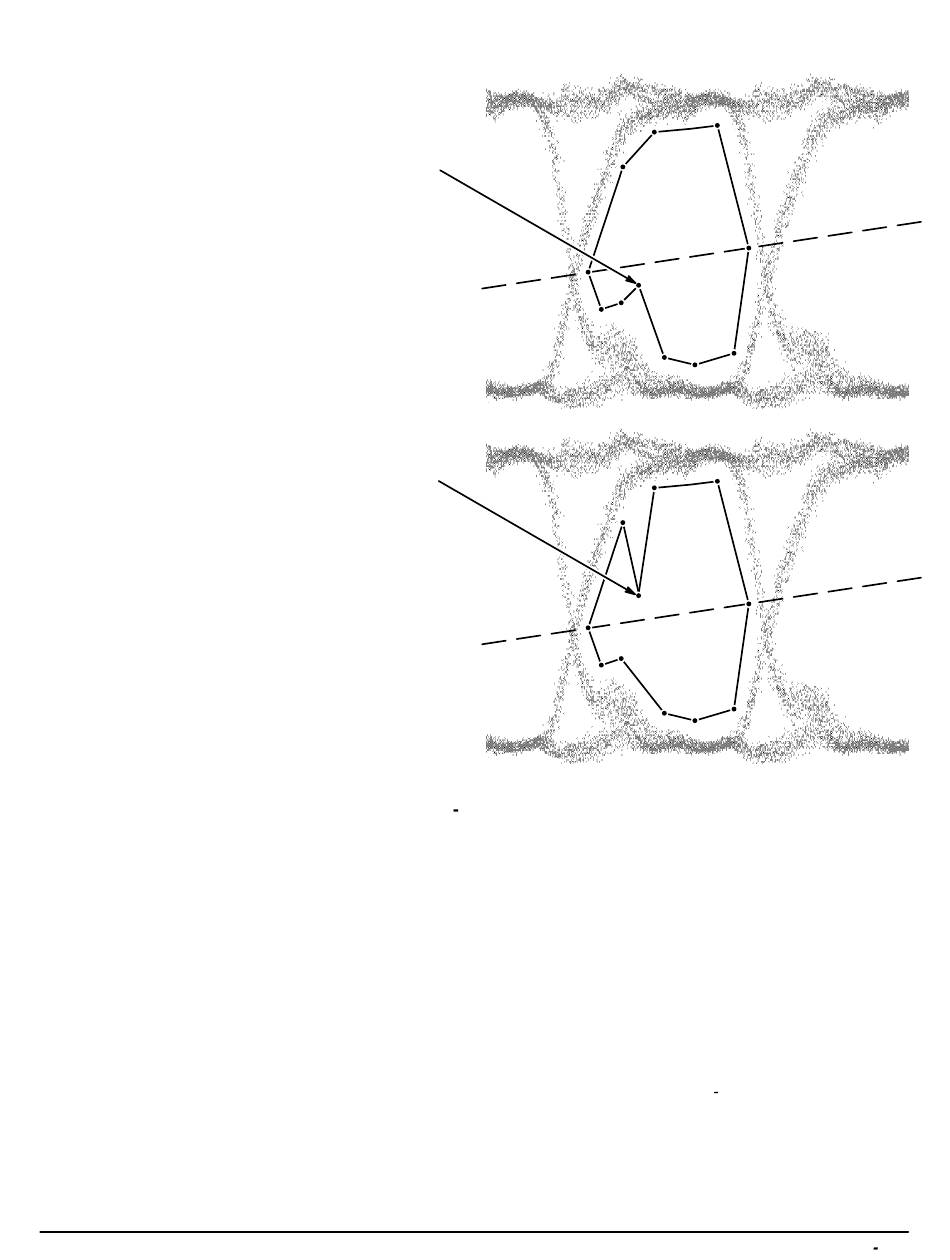

Figure 3 64: How Points are Connected in a User Mask

Storing Mask Definitions
Masks are saved with stored settings, so you can save sets of masks by
defining them, then storing the instrument setting. For the same reason, any
defined masks displayed on the screen will be overwritten whenever you
recall a stored setting or initialize the 11801C.
For more details on Stored Settings, see page 3 177.
NOTE
Mask Testing
3 125
