Example 3: Defining Complex Traces
The difference trace is created. Notice that on the sampling heads, both of
the yellow lights for the source channels are blinking, indicating that both
channels are represented in the selected trace.

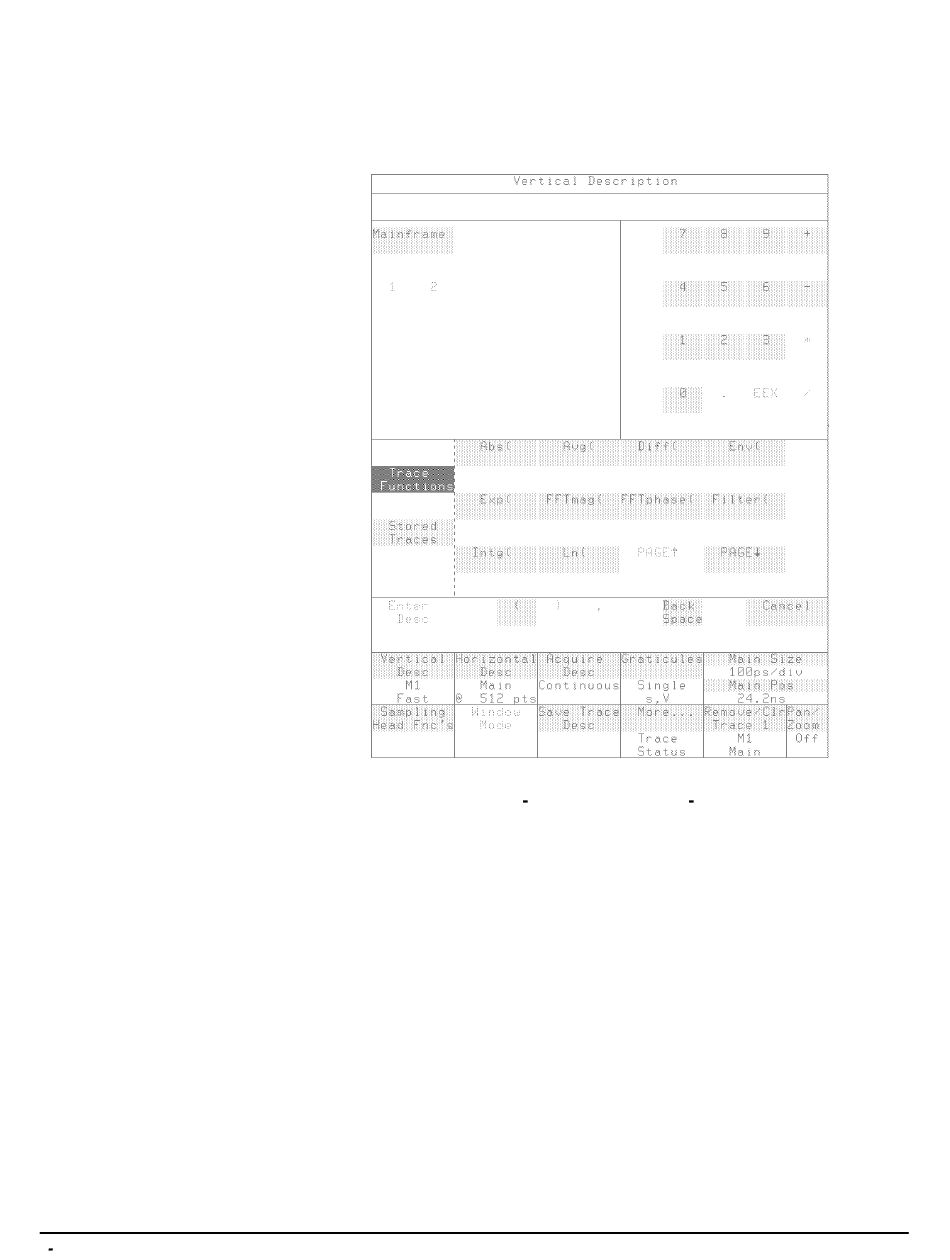

Figure 2 21: The DefTra Pop Up Menu

2 32
Operating Basics
