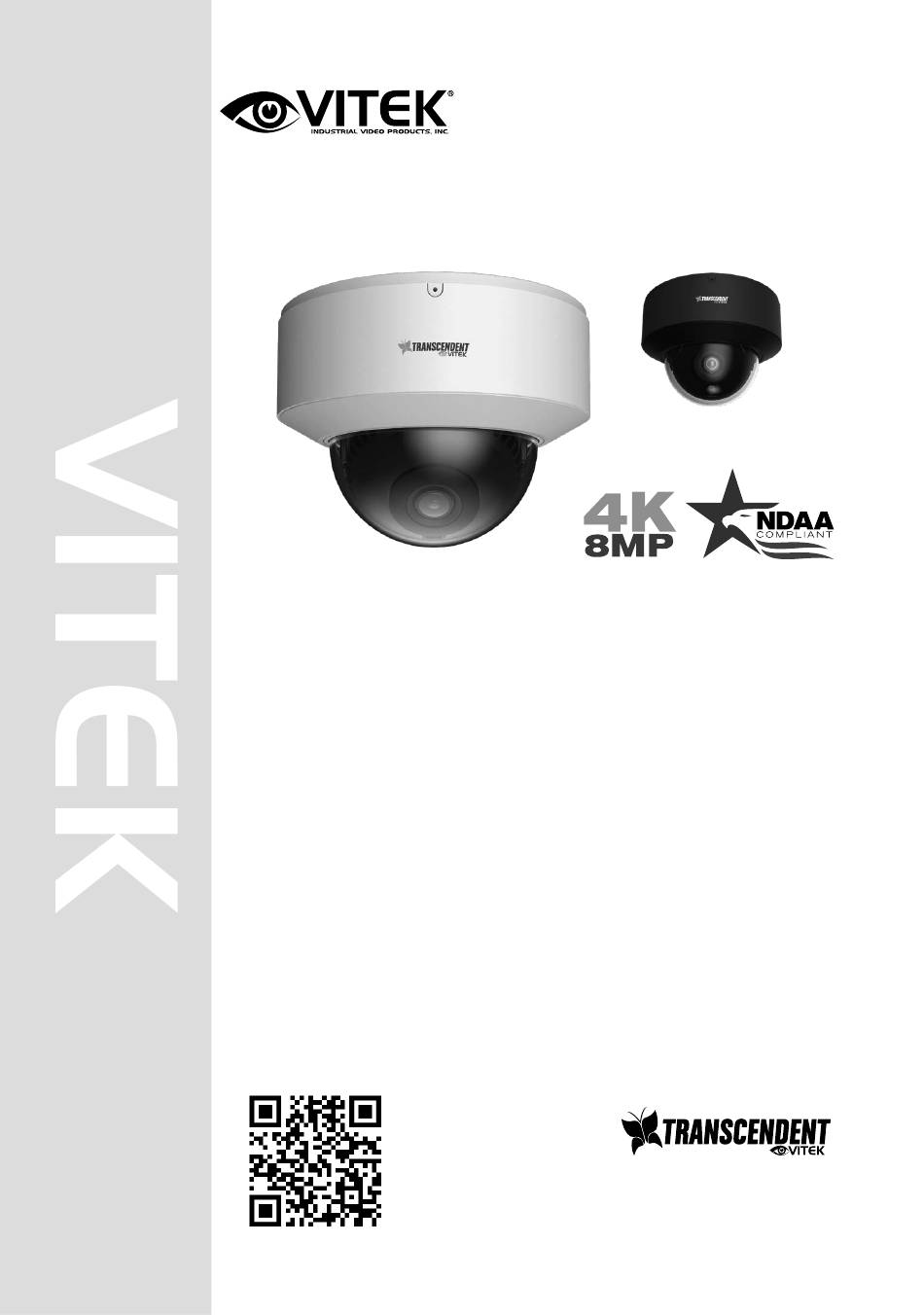

QUICK START GUIDE
FEATURES:
• 1/2.8" 8.0 Megapixel [4K] CMOS Image Sensor
• 8MP (3840 × 2160) [1~20fps], 6MP (3072 × 2048 ), 5MP (2592 × 1944),
720P (1280 × 720), D1, CIF, 480 × 240 [1~30fps]
• 2.8mm Fixed Iris Lens
• Matrix IR (up to 100' IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Scene Change Detection, Line Crossing, Video Blur,
Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3) and In-Ceiling Semi
Flush Mount (VT-TFMT-S) Available
See Additional Mounting Options on Pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

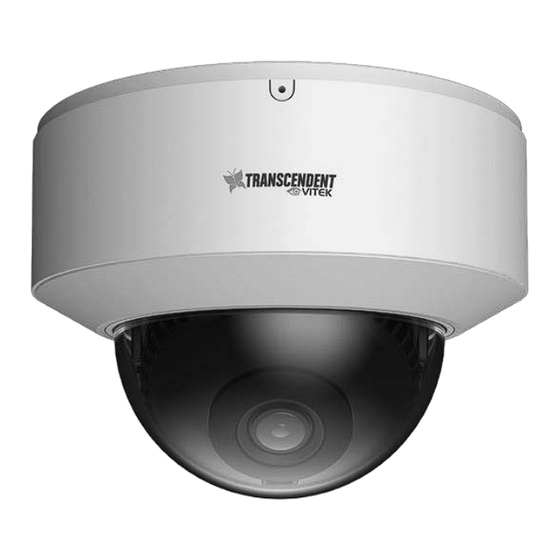

VTD-TND8RFEA-2
8 MegaPixel [4K] Fixed IP WDR
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
Vandal Dome Camera
Also Available in Charcoal,
VTD-TND8RFEA4B-2
