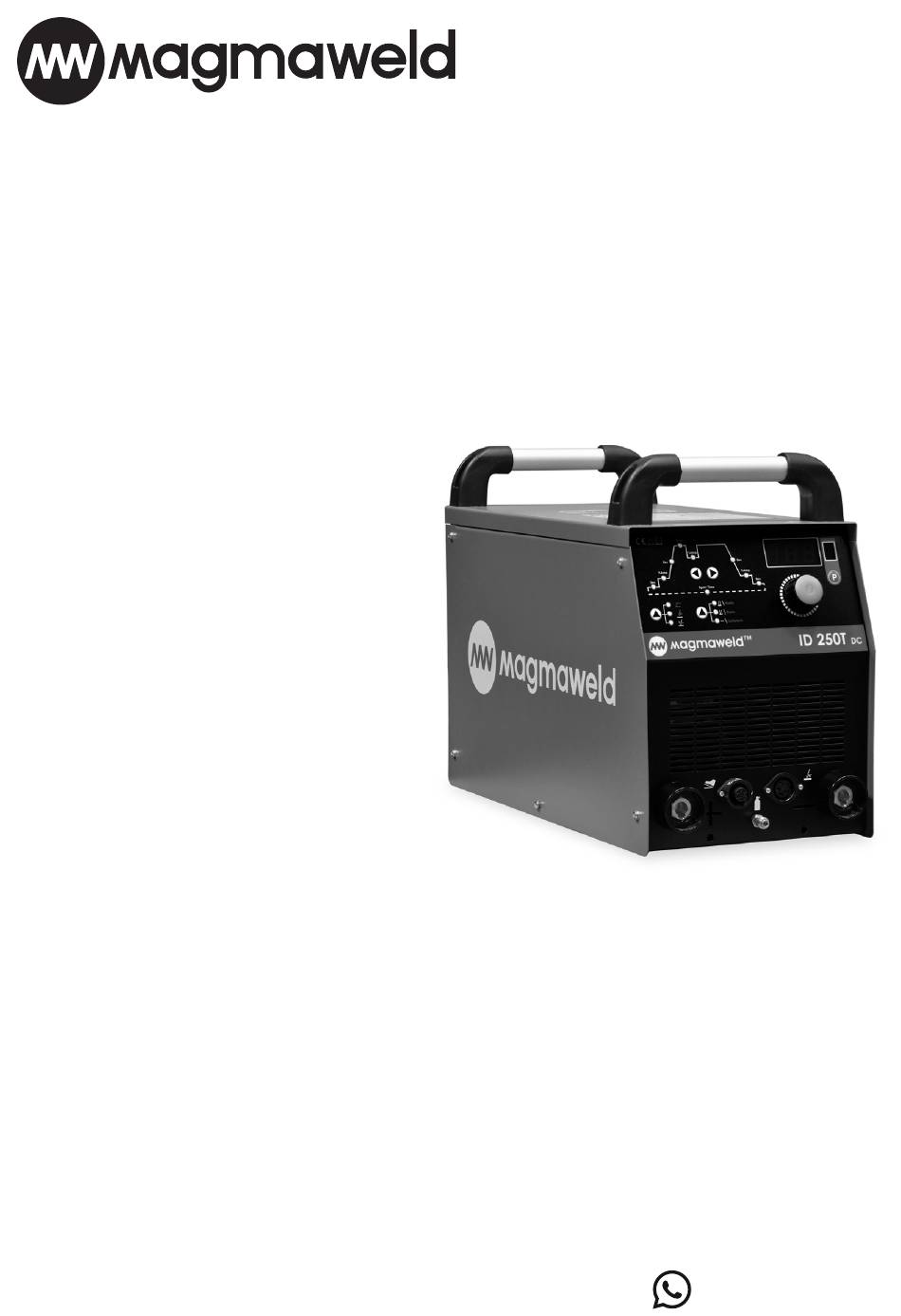

- Page 1 USER MANUAL ID 250T DC ID 300T DC (+90) 444 93 53 magmaweld.com (+90) 538 927 12 62 info@magmaweld.com...
- Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of Magma Mekatronik Makine Sanayi ve Ticaret A.Ş. Magma Mekatronik may modify the information and the images without any prior notice. Tüm hakları...
- Page 3 ID 250T DC / ID 300T DC DC WELDING INVERTER DC KAYNAK İNVERTÖRÜ...
-
Page 4: Table Of Contents
Contents ID 250T DC / ID 300T DC CONTENTS SAFETY PRECAUTIONS General Information TECHNICAL INFORMATION Machine Components Product Label Technical Data Accessories Delivery Control INSTALLATION Installation and Operation Recommendations Mains Plug Connection Connection to Mains Connections for TIG Welding 2.5.1 Torch Connections 2.5.2... -
Page 5: Safety Precautions
ID 250T DC / ID 300T DC Safety Precautions SAFETY PRECAUTIONS Be Sure To Follow All Safety Rules In This Manual! • Safety symbols found in the manual are used to identify potential hazards. • When any one of the safety symbols are seen in this manual, it must be understood that there is Explanation Of Safety a risk of injury and the following instructions should be read carefully to avoid potential hazards. - Page 6 Safety Precautions ID 250T DC / ID 300T DC Make sure all connections are tight, clean, and dry. • Keep cables dry, free of oil and grease, and protected from hot metal and sparks. • Bare wiring can kill. Check all cables frequently for possible damage. If a damaged or an uninsulated cable is detected, repair or replace it immediately.
- Page 7 ID 250T DC / ID 300T DC Safety Precautions • Use a standard protective mask and a suitable glass filter to protect your eyes and face. • Protect other naked parts of your body (arms, neck, ears, etc.) with suitable protective clothing Arc Light May Damage from these rays. Your Eyes and Skin • Enclose your work area with flame-resistant folding screens and hang warning signs at eye level so that people around you will not sustain injuries from arc rays and hot metals.
- Page 8 Safety Precautions ID 250T DC / ID 300T DC • In small-sized and confined spaces, absolutely make sure to perform welding / cutting operations, accompanied by another person. Welding / Cutting in • Avoid performing welding / cutting operations in such enclosed areas as much as possible. Small Sized and Confined Spaces • Take all necessary precautions when moving the machine. The areas where the machine to be...
- Page 9 ID 250T DC / ID 300T DC Safety Precautions • Ensure that your welding and/or cutting machine has been installed and situated in its place according to the user manual. Before installing the welding / cutting equipment, the person in charge of the operation and / or Evaluation Of According to article 5.2 of IEC 60974-9;...
- Page 10 Safety Precautions ID 250T DC / ID 300T DC The electrical current passing through any conductor generates zonal electric and magnetic fields (EMF). All operators must follow the following procedures to minimize the risk of exposure to EMF; • In the name of reducing the magnetic field, the welding / cutting cables must be assembled and secured as far as possible with the joining materials (tape, cable ties etc.).
-
Page 11: Technical Information

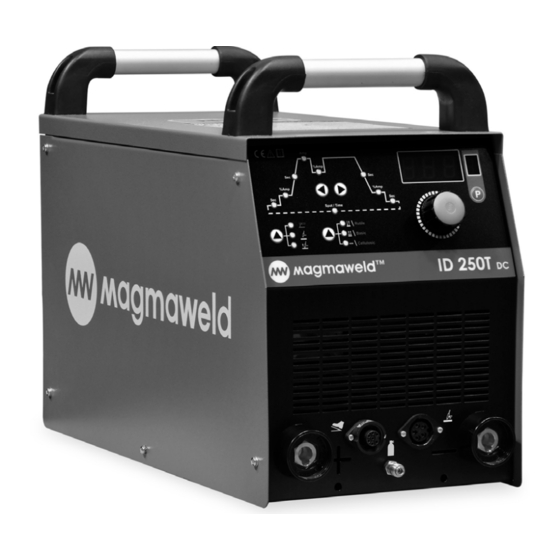

ID 250T DC / ID 300T DC Technical Information TECHNICAL INFORMATION 1.1 General Information ID 250T DC and ID 300T DC is an inverter type portable, mono-phase Pulsed DC TIG-MMA welding machine designed for TIG welding of all kinds of thin metal sheets except aluminum & for MMA welding of all kinds of stick electrodes up to 5 mm. Enhanced professional TIG controls such as, HF start, Touch-Lift, Pre-Gas, Up-Slope, Pulse, Down-Slope, Post-Gas & Crater filling are present. Up to 10 complete jobs can be stored in... -
Page 12: Product Label
Technical Information ID 250T DC / ID 300T DC 1.3 Product Label Three Phase Transformer Rectifier Duty Cycle TIG Welding Open Circuit Voltage MMA Welding Mains Voltage and Frequency Direct Current Rated Welding Voltage Vertical Characteristic Rated Mains Current Mains Input 3-Phase Alternating Current... -
Page 13: Technical Data
ID 250T DC / ID 300T DC Technical Information 1.4 Technical Data Mains Voltage (3-phase 50-60 Hz) TECHNICAL DATA UNIT ID 250T DC ID 300T DC Rated Power (MMA) 13 (%35) 16.1 (%30) Rated Power (TIG) 9.5 (%35) 12.3 (%30) Welding Current Range 5 - 250 5 - 300 Rated Welding Current... -
Page 14: Delivery Control Installation
Installation ID 250T DC / ID 300T DC INSTALLATION 2.1 Delivery Control Make sure that all the materials you have ordered have been received. If any material is missing or damaged, contact your place of purchase immediately. Scope of supply;... -
Page 15: Mains Plug Connection
ID 250T DC / ID 300T DC Installation 2.3 Mains Plug Connection For your safety, never use the mains cable of the machine without a plug. • No plug has been connected to the mains cable since there may different types of outlets available in plants, construction sites and workshops. A suitable plug must be connected by a qualified... -
Page 16: Gas Connections
Installation ID 250T DC / ID 300T DC • Secure the argon gas cylinder (a) with a chain. 2.5.2 Gas Connections • Use safe high quality regulators (b) and heaters approved by the standards to work safely and achieve the best results. -
Page 17: Grounding Clamps Connections
ID 250T DC / ID 300T DC Installation • Adjustable Pedal Connection; It should be secured to the pedal socket with the ends 3-4-5-6. (3) Soldering direction has been taken as the reference. • Insert the grounding clamps cable plug (a) into the positive 2.5.4 Grounding Clamps Connections... -
Page 18: Connections For (Mma) Welding
Installation ID 250T DC / ID 300T DC 2.6 Connections for (MMA) Welding Check for the correct mains voltage before connecting the machine to the mains. When plugging the power plug into the outlet, make sure that the power switch is set to “0”... -
Page 19: User Interface Operation
ID 250T DC / ID 300T DC Operation OPERATION 3.1 User Interface It is used to set the welding parameters to the desired value. Parameter Adjustment Pot It shows the numerical value of the selected welding parameter and the current value during welding. - Page 20 Operation ID 250T DC / ID 300T DC While in TIG welding modes; It is used to select one of the 2-Position, 4-Position, Tailstock Position Trigger Mode and Electrode Type Selection Button modes. When 2-position is selected, led 10 lights up.
