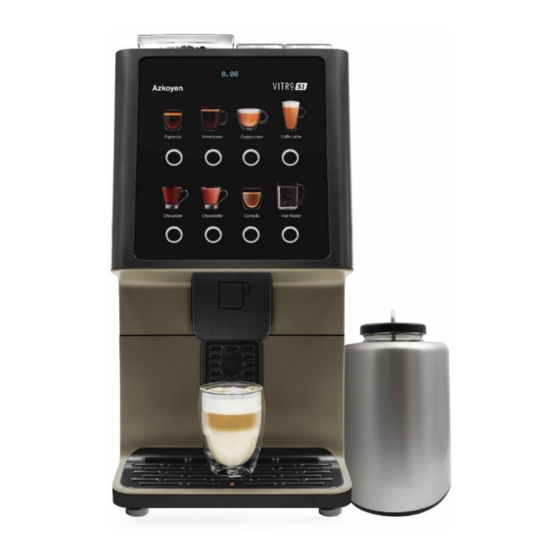

Azkoyen Vitro S1 MIA Programming Manual

Programming manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Avda. San Silvestre s/n
31350 Peralta (Navarra)
Tfno. 948 709 709
https://cliente.azkoyenvending.es
PROGRAMMING GUIDE VITRO S1 MIA
V0-10082-EN
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vitro S1 MIA and is the answer not in the manual?

Questions and answers

Related Manuals for Azkoyen Vitro S1 MIA

Summary of Contents for Azkoyen Vitro S1 MIA

  • Page 1 Avda. San Silvestre s/n 31350 Peralta (Navarra) Tfno. 948 709 709 https://cliente.azkoyenvending.es PROGRAMMING GUIDE VITRO S1 MIA V0-10082-EN...

  • Page 2: Table Of Contents

    1.3 KEYBOARD FUNCTIONS ................3 1.4 CUSTOMIZATION OF PROGRAMMING MENU .......... 4 PROGRAMMING FUNCTIONS ............ 5 2.1 NEW FUNCTIONALITIES IN VITRO S1 MIA ..........5 2.2 DESCRIPTION OF NEW FUNCTIONALITIES ..........6 2.3 GENERAL LIST OF PROGRAMMING FUNCTIONS........13 2.4 DESCRIPTION OF THE DEFAULT PROGRAMMING FUNCTIONS ....15...

  • Page 3: Programming

    PROGRAMMING DEFINITIONS • Programming status: when the machine is in a position to program any of its functions. • Working status: when the machine is operational ready and available for the dispensing of beverages. • General menu: set of all programming functions. •...

  • Page 4: Customization Of Programming Menu

    Programming Guide Vitro S1 MIA Navigation keys Using the 4 keys in the top row (A – B – C – D) you navigate through the menu functions. Direct action keys The second row of keys contains shortcut to machine functions (E – F – G – H).

  • Page 5: Programming Functions

    PROGRAMMING FUNCTIONS NEW FUNCTIONALITIES IN VITRO S1 MIA • The Vitro S1 MIA model incorporates a fresh milk module, which allows this ingredient to be integrated into the beverages dispensed. • Natural milk is stored in a refrigerated container attached to the machine.

  • Page 6: Description Of New Functionalities

    Programming Guide Vitro S1 MIA DESCRIPTION OF NEW FUNCTIONALITIES • The following describes the new functionalities in terms of their purpose and the meaning of the steps and results. • The operation of access, navigation, execution and output of functions and subfunctions is described in the following chapter along with the other existing functions.
  • Page 7 The cooling unit returns its state and the current temperature of the chamber.  If the refrigerator is not the one recommended by Azkoyen it will not respond to this request. Nor will it be answered if in the F333 a profile has been configured that dispenses with the functions of the Smart fridge (e.g.
  • Page 8 Programming Guide Vitro S1 MIA 2.2.4 F030 - TEST AIR INPUT • This test measures the equivalent volume of air that would enter the milk circuit during a pump time of 10 seconds. • Instead of air intake, the test uses water in the opposite direction, that is, from the machine to the outside.
  • Page 9 (AIR IN = 60% MILK OUT).  Para salir pulsar C. 2.2.6 F315 PROG. SERVICES (NEW INGREDIENTS) • The Vitro S1 MIA model brings two new ingredients to the recipe set. • The ingredients are shown on display as: MILKLIQ (milk) and MILKFOAM (cream) •...
  • Page 10 • The refrigerator that AZKOYEN recommends has an integrated milk level and temperature control system, in the event that you use a refrigerator not approved by AZKOYEN, you will not be able to make use of these features. •...
  • Page 11 • Displaying a message on the screen, as an alternative to the default message, indicating the incident that has occurred. In the table it is indicated as "A". You can choose from the following 10 profiles: Temp. Level Conversion to Message Profile Sensor...
  • Page 12 Programming Guide Vitro S1 MIA • Instant Milk option. Program the operation only with soluble milk, deactivating the fresh milk in case you had it. The temperature of the refrigerator should ALWAYS be higher than 3ºC, otherwise, the milk could freeze during long periods of inactivity, such as one night, especially if the amount of milk in the tank is scarce.

  • Page 13: General List Of Programming Functions

    GENERAL LIST OF PROGRAMMING FUNCTIONS. The following list details all the machine's programming functions, in the order in which they are shown on the display. In the factory default setting, a selection of the most important ones is shown (green). With With MDB Function Description...
  • Page 14 Programming Guide Vitro S1 MIA With With MDB Function Description EXECUTIVE protocol protocol ● Deletion of the accounting data of the mixers Accumulated total amount of sales Accumulated of the total amount in money box Accumulation of the total amount manually dispensed from ●...

  • Page 15: Description Of The Default Programming Functions

    DESCRIPTION OF THE DEFAULT PROGRAMMING FUNCTIONS Group 000: Shares Test for different elements of the MACHINE TEST Function030 machine. Executes a functional check of all elements of the machine. The display shows the first item to be checked Repeatedly until the first new LIMP function. FRESHMILK The cleaning of the milk module is executed Remove milk container, insert cleaning container and continue by pressing D.
  • Page 16 Programming Guide Vitro S1 MIA Cream system calibration Test Air Input  Cream system calibration Test Milk Output  Etc.  Calibration of the product hoppers: soluble and grain During the test run of the product and grinder extraction motors, if this test is not stopped by pressing the C key, both the motors and the grinder work for 10 seconds;...
  • Page 17 Accepts an animation file. Function << LOADING PROG.>> Only machines with Allows the machine to record an animation file that is saved in an external USB-type device and displayed on the screen. PMC card Select configuration. Search for the desired configuration A o B Confirm...
  • Page 18 Programming Guide Vitro S1 MIA Group 100: Accounting Economic amount of sales of Function <<SELECT MONEY.>> each product selection. Shows the amount of sales for each product selection. Units sold each product Function <<SALES SEL.>> selection. Shows the number of sales made by each product selection Function <<UNTS/IN F.S.>>...
  • Page 19 Meter for maintenance and Function << COUNTERS>> cleaning From a certain number of services, it shows the need to clean the filter of the espresso or fresh brew group, as well as the need to change the water filter. When you press D, it shows the services performed since the last deletion.
  • Page 20 Programming Guide Vitro S1 MIA It shows the services performed since the last filter change of the "Fresh Brew" group and, allows to program the number of services from which, it shows the need to perform its cleaning. Go back and exit to the menu.
  • Page 21 Economic amount of all Function <<TOTAL MONEY>> sales. It shows the total economic amount of all sales made by the machine or associated machines. The display shows the financial amount of all sales. If several machines are linked by a single PRI card, it displays the total amount of sales for all machines The display shows the total economic amount of each of the machines:...
  • Page 22 Programming Guide Vitro S1 MIA Go back and exit to the menu. Total amount collected in the Function <<TOTAL MON. F.S.>> "free sale" mode. It shows the total economic amount of all the sales made by the machine in the "free sale" mode.
  • Page 23 Function <<UNIT. PRESEL.>> Sales of each pre-selection. It shows the number of sales made by each "pre-selection". When you press a "preselection" key, the display financial amount of all sales. Go back and exit to the menu. Function <<MON. IN BOX>> Total amount in the cashbox It shows the economic amount that the money box has.
  • Page 24 Programming Guide Vitro S1 MIA Function <<ACCO. BY TUB.>> Amount in each return tube. It shows the economic amount contained in the return tubes. It shows the economic amount in the return tube. It shows the economic amounts in the different return tubes on the display.
  • Page 25 It shows the total economic amount of the changes that the machine had to deliver to users and, for various reasons, has not delivered. It shows the total economic amount. Go back and exit to the menu. Total amount of sales with Function <<MONEY.
  • Page 26 Programming Guide Vitro S1 MIA It shows the total economic amount that the machine has collected in operations made by users to recharge their "prepaid" cards. It shows the total economic amount. Go back and exit to the menu. Total amount of sales made Function <<DIN.
  • Page 27 Shows the total financial amount of token 1. The display shows token 1 or token 2. Go back and exit to the menu. Function Deletion of accounting <<ERASE data. ACCOUNTING.>> It deletes the accounting data of the following programming functions: Sales amount per selection Money in Piggy Bank Number of sales per selection...
  • Page 28 Programming Guide Vitro S1 MIA <<DELETE COIN Deletion of accounting data Function TUBES ACCNTS>> from the returns. Clears accounting data from all displayed functions: Tube Coin Accounting Accounting by Tube The accounts of the are deleted. Go back and exit to the menu.
  • Page 29 It shows the economic amount. Go back and exit to the menu. Accumulated of the total amount manually Function <Z/MON. RET. BY HAND>> dispensed from the returners. Displays the total economic amount manually dispensed from the returners. This information cannot be deleted. It shows the economic amount.
  • Page 30 Programming Guide Vitro S1 MIA Accumulated of the total amount of Function <<Z/D. CARD>> the sales with prepaid card. It shows the total economic amount of the sales paid with prepaid cards. This information cannot be deleted. It shows the economic amount.
  • Page 31 Accumulated of the total amount of Function <<Z/D. TICKETS>> the sales paid with tickets. It shows the total economic amount that the machine has collected in the sales where users have used tickets to pay for services. This information cannot be deleted. It shows the economic amount Go back and exit to the menu.
  • Page 32 Programming Guide Vitro S1 MIA Accumulated of the total amount of Function <Z/UNID. SEL.>> sales of each product selection. It shows the total economic amount that the machine has collected in the sales made in each of the product selections. This information cannot be deleted.
  • Page 33 Group 200: Price programming and sales mode Function <<PROG. PRICES>> Set price selection by selection The sales prices of the different product selections are programmed. The display shows the sales price of the product selection. A or B Increases or decreases the value.
  • Page 34 Programming Guide Vitro S1 MIA Allows you to program a sales price. Increases or decreases the value. Access the next digit to be able to modify it. Allows you to assign the price to several selections by pressing the corresponding sale button.
  • Page 35 Increase or decrease the price. Record changes and go to work status Repeat the operation as many times as necessary. Function <<UNIQUE PRICE>> Single Price Whole Machine A sales price is programmed for all product selections. Shows the sales price of the product. Increases or decreases the value.
  • Page 36 Programming Guide Vitro S1 MIA Go back and exit to the menu. Function <<ACC. MINOR/S>> Access Control Under 18 It is possible to install in the machine a system that prevents the extraction of product, BY CHANNELS (different from F228), unless its operation is previously activated by a remote control, or by inserting a card.
  • Page 37 Shows the first pre-selection. Increases or decreases the value. Access the next digit to be able to modify it. Go back and exit to the menu. Function <<PULSES>> Defines Spìral Rotation Allows to program the spindle stroke: 180º or 360º. The display shows the values 1 or 2.
  • Page 38 Programming Guide Vitro S1 MIA Function <<CADUCITY>> EXPIRATION DATE. It programs the number of days during which a product can be sold once it is loaded in a BRISA or MISTRAL machine. The display shows the first selection that has a programmed expiration date and the number of days Access to modify the days of expiration.
  • Page 39 Displays current programming. Free sale program yes. Free sale program no. Go back and exit to the menu. Function <<SALES MODE>> Single Vend / Multi Vend The possible sale modes are programmed: "multi-sale" or "forced sale", maximum credit, maximum return, time for automatic recovery, maximum time to keep the rest of the credit available and AUTO-REC.
  • Page 40 Programming Guide Vitro S1 MIA It accesses the submenu containing the programmable data: Time for remaining credit Time that credit is maintained Change the digits. It increases the value. Decreases the value. Go back and exit to the menu. Function Associated product selections <<ASOC.
  • Page 41 Return to the Main Menu. Pre-selections available More milk. Allows you to select percentages of "more milk", with respect to the one programmed in function 315 for each service. This pre-selection can be modified by means of the "configurator". Less milk. Allows you to select percentages of "less milk", with respect to the one programmed in function 315 for each service.
  • Page 42 Programming Guide Vitro S1 MIA Decaffeinated By pressing this pre-selection, the machine provides services with decaffeinated coffee, instead of espresso. This pre-selection can be modified using the "configurator". No cup. By pressing this pre-selection, the machine performs services without supplying glass.
  • Page 43 Group 300: Programming of selections. Association of selections Function << ASOC. SELECTIONS>> for extraction. Allows you to associate selections to serve product alternatively, by clicking on any of the selections associated with each other. Allows to delete the associations made previously; choosing NO, allows to modify the groups already programmed.
  • Page 44 Programming Guide Vitro S1 MIA 315 PROG. SERVICE Shows the options: Modify step Add step Clear step Select one of the options. Run the desired option. Modify step by step (allows you to modify product and water doses of each of the product selections).
  • Page 45 Function <<PROG. PRESEL>> Modify the values of some presets. Modifies the percentages of product that the machine doses when one of the presets is activated. It also allows to choose the container from which the product will be extracted when asking for a direct selection if a preselection has been previously activated.
  • Page 46 Programming Guide Vitro S1 MIA Select the desired preset Used to change the preset shown on the display. Increases or decreases the value. Validates the programmed digit and agrees to modify the original hopper. Select the desired source hopper. Access to modify the programming of the source hopper.
  • Page 47 Function Configuration of the external << REFRIGERATOR>> fresh milk fridge Defines if an external cooler is used for the fresh milk, as well as its location next to the machine and the length of the suction tube and other options. Access the submenu of this programming function and display the first programmable preset.
  • Page 48 Programming Guide Vitro S1 MIA Group 400: Programming of the machine's operating mode Function <<Configure M/C>> Choose Machine Default Profile It reprograms the machine with the factory data and allows you to choose one of the 5 "profiles" in your program.
  • Page 49 The display shows the current profile. The other profiles are shown on the display. Confirm the selected profile and reboot the machine. Go back and exit to the menu. <<Coins / Tokens Allow / Decline Coins / Token by Function Accepted>>...
  • Page 50 Programming Guide Vitro S1 MIA <<MAX Programming of the maximum Function ADMISSION>> number of coins admitted. MDB or Validator The maximum number of coins allowed per service is programmed. Shows the type of currency. It shows the coins in an upward direction on the display.
  • Page 51 <<Coins Accepted In Edit Coins Accepted in Low Change Function Mode Low Change>> The coin admission is enabled/disabled according to the value when MDB or Validator the machine is in "out of change". Displays the type of currency to be enabled/disabled. It shows the coins in an upward direction on the display.
  • Page 52 Advertising message. A message is programmed to be shown on the machine's display, alternating with the messages of temperature, time and the Azkoyen sign. It must have a maximum of 100 characters. x---y---**++ Shows the message of the machine. Show in the display the characters in an ascending or A o B descending direction.
  • Page 53 The display shows the characters in an ascending or descending direction. Deletes the last programmed character A or B Records the character shown on the display. RECUP The message is recorded. SERVICE ESSAGE << Función Fault message. >> A message is programmed to display the machine's display. It will have a maximum of 16 characters.
  • Page 54 Programming Guide Vitro S1 MIA Choose language that will be used, English, Function <LANGUAGE>> Spanish etc The language in which the messages will be shown on the machine's display is programmed. It can be selected from English, French, Portuguese, German, Italian and Spanish.
  • Page 55 A or B modify the blinking digit. Delete the last character of the message. Saves the selected character. RECUP It records the written message, and the machine goes work mode. into Marks the position of the decimal Function <<DECIMALS>> point of the coin. The position of the decimal point to be shown on the display is programmed.
  • Page 56 Programming Guide Vitro S1 MIA Function <<CARD READER>> Card reader Yes/No. Depending on the option programmed, the "card reader" will be operational or not. The display Will show the options YES / NO. It records the changes, and the machine goes to work status.
  • Page 57 Function <<IDETECT>> Infrared cup detection system The presence, or not, of the infrared system is programmed, which allows the detection of the existence of a base in the dispensing of the product. Pressing D displays the first option. Select from "V module"...
  • Page 58 Programming Guide Vitro S1 MIA Temperature of boiler water and Function <<TEMPERATURE>> fresh milk for models with milk module In the coffee machine connected to the battery, the water temperature of the boiler is programmed. The programming range is a minimum of 40º C and a maximum of 95º C, increasing or decreasing from degree to degree.
  • Page 59 Function Automatic washing of the <<AUTOMAT. WASH>> product mixers. In hot drink machines, it allows to program the automatic washing of all the product mixers after a certain time has passed since the last service was made. The time is programmable in any of the following values: 15 minutes, 30 minutes, 1 hour, 3 hours, 6 hours or 12 hours.
  • Page 60 Programming Guide Vitro S1 MIA Connection to hydraulic network Autonomy mode Autonomy with external pump Save the changes and go to the Main Menu. Go back and exit to the menu. It is important to choose the right working mode, so that when the water in the autonomy is exhausted, the machine is "out of...
  • Page 61 Function Supply of stirrers to beat the <<STIRRERS>> product in the glass. On the coffee machine connected to the battery, the dosage is programmed, or not, or automatic, for a pallet when the machine makes a service. The automatic option will deliver a stirrer, long as NOT USED IN GB the product chosen by the machine user contains sugar.
  • Page 62 Programming Guide Vitro S1 MIA The rest of the product selections are shown on the display. Record the changes. Go back and exit to the menu. <<CANISTER It allows to name the product Function NAME>> hoppers. A name can be programmed for the product hoppers. This way the machine display will show the programmed name.
  • Page 63 It shows the alphabet. Once the new name is written, press and hold the "D" key until it is recorded. You can now program a 25% increase in product extraction speed. This function is valid for containers of soluble products. Modify the programming between YES or NO.
  • Page 64 Programming Guide Vitro S1 MIA Group 500: Time functions Function <<DATE/TIME>> Date and time. Sets the date and time of the machine's internal clock. Displays the current date. Modify the data. Go to the next digit. Go back and exit to the menu Function <<CLOCK MODES>>...
  • Page 65 Function <<TIMED EVENTS>> Macro hours. A series of time ranges are programmed. At the start time of the time range the element in question is electrically switched on and at the end time it is switched off. There are 8 events, and in each one you can program one of the following options: Without programming it will do nothing.
  • Page 66 Programming Guide Vitro S1 MIA EV1: ON/OFF MACH 00:00:00 Pressing this key, the cursor places over the different digits that make up the switch-on time. EV1: ON/OFF MACH 10:30:-> 00:00:00 By pressing this key, the cursor is placed over the different digits that make up the switch-off time.
  • Page 67 A o B The display shows the different events from EV1 to the EV8. EV4: NO PROGRAMMED Enter in the submenu. EV4: ON/OFF MACH A o B The display shows the 7 options the submenu has. Enter to the function selected in the submenu and allows programming the initial time and ending of the event.

  • Page 68: 2.5 Special Programming Functions

    2.5.2 FUNCTION 315: PROGRAMMING OF A DRINK PROFILE We begin by defining what is a drink profile is, in a machine-like Vitro S1 MIA What is AND what does make a service? A vended drink is the result of the customer making a selection.
  • Page 69 Therefore, when programming a drink, the steps corresponding to the recipe should be programmed selected. These steps comprise both the dispensing of ingredients and the processes of internal processing. For example. To prepare a soluble coffee with milk, you must perform several actions: 1º...
  • Page 70 Although the machine can be operated with other refrigerators, the refrigerator recommended by AZKOYEN has an integrated system to control the level of the milk and the temperature. • If you want to deactivate the control of these data access the function 333 and proceed according to the option programming mode to leave the value in NO.
  • Page 71 Alternative operation to fresh milk with soluble milk support • If you do not want the machine to turn off the milk services in the above case, you can program the use of alternative soluble milk until you refill the milk tank. At that time, the machine will use the fresh milk again for servings.
