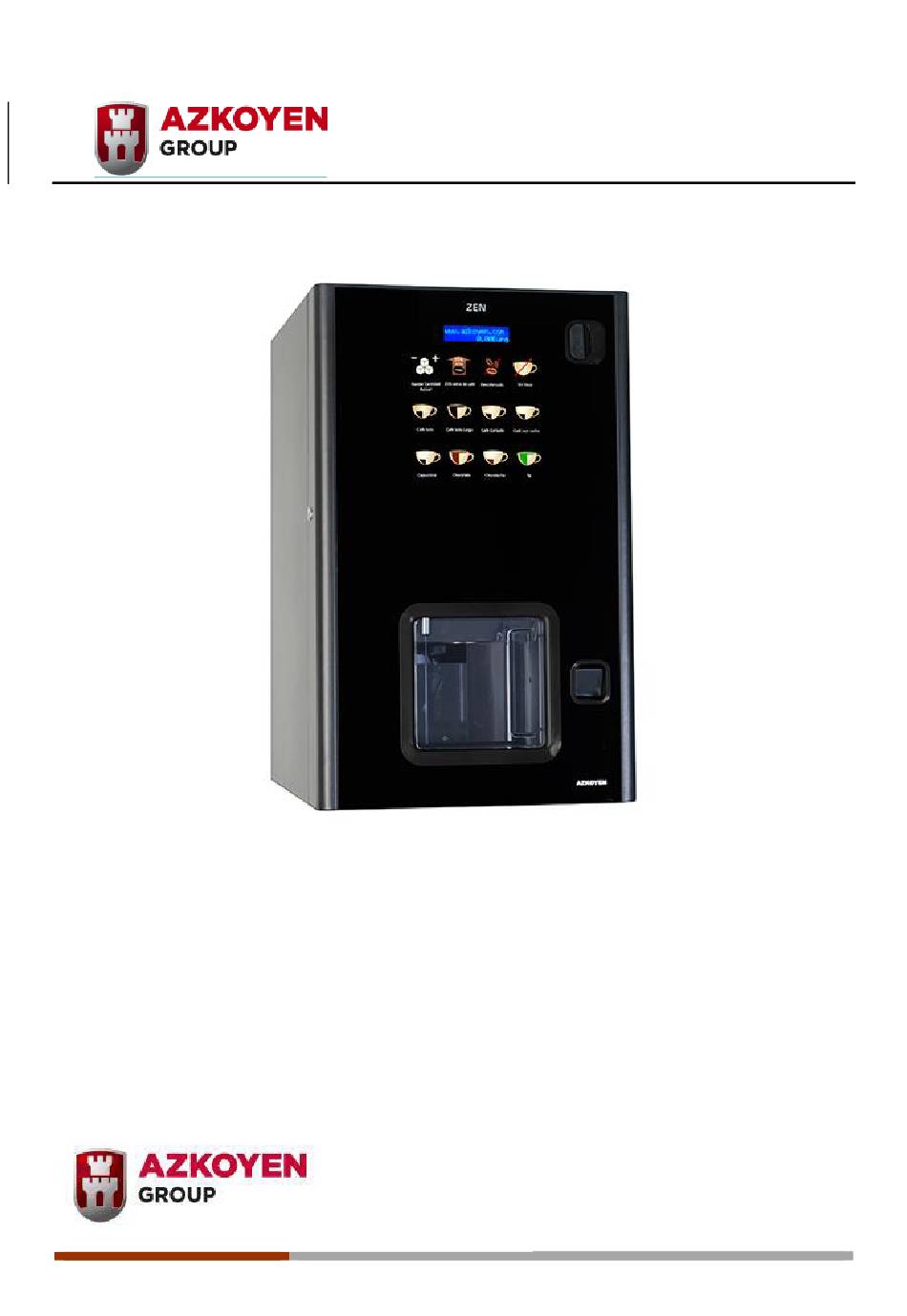

  • Page 1 Technical information Z E N Avda. San Silvestre, s/n 31350 Peralta (Navarra) Spain Tel.: +34 948 709 709 www.sat.azkoyen.com...
  • Page 2 == I N D E X == INTRODUCTION 1.1. DEFINITIONS 1.2. PRINCIPLE TECHNICAL CHARACTERISTICS DESCRIPTION OF COMPONENTS INSTALLATION AND SWITCHING ON 3.1. UNPACKING 3.2. SWITCHING ON ERRORS 3.3. ERROR MESSAGES SHOWN ON THE DISPLAY 3.4. CONTROL POINTS CLEANING AND MAINTENANCE WORKING CONDITIONS AND NORMS DIMENSIONS 2ª...
  • Page 3 INTRODUCTION The automatic vending machines in the ZEN range are destined to the elaboration and sale of espresso coffee and instant beverages that consist of the mixture of hot water and soluble powder or granules. The product is served in a plastic or paper cup.
  • Page 4 1.2. RANGE The ZEN range is composed of the models that elaborate espresso coffee and instant products.  The models with espresso coffee elaborate instant products as well.  The models with instant products only elaborate instant products  The L range has a Fresh brew model destined to the elaboration of tea infusions 1.3.
  • Page 5  Power supply: ZEN instant Voltage Power Length Mains voltage 230 Vac / 50 Hz Heating element 230 Vac / 50 Hz 1100 W Average daily consumption 3000 W Mains flex 3.400 mm ZEN espresso Voltage Power Length Mains voltage...

  • Page 6: Description Of Components

    DESCRIPTION OF COMPONENTS 2.2. PRINCIPLE COMPONENTS Residue liquid bucket It collects all the residue liquids that the machine generates. It has a capacity of 8 litres. When it reaches a determined level an electronic device is activated to put the machine out of order until it is emptied.
  • Page 7 Infusion brewer + Piston The two elements are made of resin, it is the element that the machine uses to make the espresso coffee. The infusion brewer has moving parts that are activated by a 220 Vac motor, that moves a crank which moves the coffee from the grinder to the piston.
  • Page 8 B1. Pistón B2. Brewer B3. Filter B4. Lever B5. Brewer Motor B6. Position micro switch B7. Infusion brewer movement handle The piston has a spring and two washers which, depending where they are positioned, adjust the pressure of the piston on the ground coffee according to the quantity dosed.
  • Page 9 For this task, Azkoyen has available in its catalogue, the appropriate tool which is part number 10040130. 2ª...

  • Page 10: Coffee Bean Hopper

    The EVs of the instant beverages are an important part of the beating process. They control the hot water from the boiler to the beaters for the elaboration of the instant beverages. They are fitted a thermo compensated brass support that provides a constant temperature, which is screwed into the hot water boiler.
  • Page 11 Programming box This element is used for programming the machine. Extractor systems for cups, sugar and spoons The three systems are mounted in the one support. The instant models, standard, do not have a container for spoons To remove the extractors from the machine, follow these steps: Remove the sugar and cup container.
  • Page 12 F9. Cup presence photocells F10. Hopper position micro F11. Sugar and spoon extractor connector Each Zen range models, may incorporate a cups extractor 70 mm, or 73 mm. The characteristics of this cups extractors are: Espresso and instant models Quantity Ø...
  • Page 13  The cup container is divided into 5 separate columns. When one of them runs out of cups, the motor turns the container until the next column is situated over the extractor. After the motor turns for 6.5 seconds and the photocells do not detect a new column of cups, the machine will go out of order and the display will show “Out of cups”.

  • Page 14: Coin System

    MDB communication protocol. The models in the ZEN M range use a coin validator. It is always “exact amount”; no change given. On the left of the door there is a space for the coin changer which is held with three screws.
  • Page 15 A12. Coffee grinder The grinder incorporated in Zen machines is Eldom brand, manufactured in Switzerland. Their teeth are conical and operates at low speed, allowing the time-dosed amount of ground coffee, without using a volumetric. Also favor a ground more "soft and gentle" with the coffee, the flat teeth It is supported to a metal support, tied to the frame of the cabinet with 3 screws.
  • Page 16 A13. Button panel and display Zen models, have 8 direct product selections and 4 pre-selections. Activation of these pre- selections and selections are made using capacitive sensors, To order a product you do not need to press any button, just bring your finger to the desired product and the machine providing the service.
  • Page 17 A14. Water inlet EV It allows the entry of water from the mains to the cold water deposit. It works at 230 Vac. This EV is only fitted to machines that are connected to the mains water supply. It has a security block system for cases where, for lime scale or any solids from the main water supply, the EV does not close properly.

  • Page 18: Water Pump

    A16. Water pump This element has the job of pumping water from the cold water deposit to the hot water boiler; the cold water pushes the hot water towards the EVs for the instant products or towards the infusion element for making espresso coffee. K1.
  • Page 19 A17. Cold water deposit Made of polypropylene, It has the capacity of atmospheric pressure temperature. From this deposit is taken the water elaborate espresso coffee instant beverages. The water level in the deposit is controlled by a float that activates a magnetic switch. A18.
  • Page 20 M1. Solenoid M2. Valve M3. 3 outlet When the machine is in the espresso coffee making process, the third is closed while the outlet from the boiler and the inlet to the infusion element are open to each other. N1. 3 closed N2.
  • Page 21 Control of the heating element is done with a triac that is situated on the boiler support. Always respect the position of the connection cables. Q1. White Q2. Black Q3. Brown Temperature control of the water in the boiler is done with a PTC100. The following table shows the resistance values that the PT100 gives according to the temperature that it is submitted.
  • Page 22 ºC 100,00 100,39 100,78 101,17 101,56 101,95 102,34 102,73 103,12 103,51 103,90 104,29 104,68 105,07 105,46 105,85 106,24 106,63 107,02 107,40 107,79 108,18 108,57 108,96 109,35 109,73 110,12 110,51 110,90 111,28 111,67 112,06 112,45 112,83 113,22 113,61 113,99 114,38 114,77 115,15 115,54 115,93 116,31 116,70 117,08 117,47 117,85 118,24 118,62 119,01 119,40 119,78 120,16 120,55 120,93 121,32 121,70 122,09 122,47 122,86 123,24 123,62 124,01 124,39 124,77 125,16 125,54 125,92 126,31 126,69...

  • Page 23: Circuit Boards

    A22. Circuit boards All the models in the Zen range, have 3 circuit boards. The main module is the one that provides the power supply to the other boards and takes the decisions for the correct working of the machine. The other two boards, control independently a determined number of elements in the machine.
  • Page 24 The three boards are joined by one loom of 6 strands called a CAN bus. Two of these wires are used for the transmission of 34 volts, another two for 8 volts and the remaining two are used for the communication between boards. The colour and the function of each of the wires are the following: PIN 1.

  • Page 25: Installation And Switching On

    INSTALLATION AND SWITCHING ON 3.1. UNPACKING The power supply of the machine requires a socket, or another system, that allows its disconnection. The method used must guarantee the complete disconnection of both poles. Elemental safety requirements: a) Never touch any mechanisms with wet hands or feet. b) Never connect or use the machine barefoot.

  • Page 26: Electrical Connection

    3.2.2. Electrical connection The machine works with 230 Vac (50 Hz). The installation must have:  An earthed socket  A minimum power rating of 2500 w  The installation site must have a breaker switch and a good earth connection 3.2.3.
  • Page 27 I1. Coffee bean hopper I2. Instant powder hoppers I3. Sugar hopper After filling the containers for instant beverages, it is advised to request a service of each as the first time it is used, only a small quantity of product is served Now the machine can be switched on.
  • Page 28 ERRORS 4.1. ERROR MESSAGES SHOWN ON THE DISPLAY The description of the incident, the corresponding message that the display shows and the codes that in each case will be transmitted when using VTM or EVADTS communication protocols are: ► The machine is “out of order” Notes: number of the element that is faulty Description...
  • Page 29 Fault detector product (fault type 2) FAULT IDETECT Switch on of the machine OEZN Switch off of the machine OEZF Activation of infra red reception OEZI Communication AZKOYEN protocol OEZA Communication EVADTS protocol OEZE 2ª 10012 - UK 03 - 2016...
  • Page 30 Communication VTM under SMS OEZS ► Reset configuration Machine NOT CFG[F401] ECZC Reset program. Channels ,prices, etc ECZP Reset program. Messages ECZM Reset of accounting ECZO ► Error in EEPROM ERROR EEPROM ‘Module’ Power low VOLTAGE LOW Total memory erase order Error clock Error temperature probe FAULT SENSOR TEMPER...

  • Page 31: Control Points

    ► Cup hopper turning HOPPER V. TURNING Fault system extractor of stirrers ERROR STIRRERS Stirrer arm turning ARM STIR. TURNING Fault in the espresso infusion group ERROR GRP. ESPRESSO Error in the mfc of the doser ERROR DOS. Error in the positioner of the group ERR.
  • Page 32 Pins 4 and 5 = 24 Vac (blue wires) Electro-valve 1 It is measured on the main board on the connector Between cables Or and Br-B, it will show 25 Vdc when the electro-valve is activated. Electro-valve 2 It is measured on the main board on the connector Between cables Or and Br-Y, it will show 25 Vdc when the electro-valve is activated.
  • Page 33 It is measured on the Cup Board on the connector J5. Between pins 9 and 11 it will show 0 Vdc when the motor is at rest. Between pins 9 and 11 it will show 25 Vdc when the motor is working. Motor for turning the cup container It is measured on the Cup Board on the connector J5.

  • Page 34: Cleaning And Maintenance

    It is measured on the main board on the connector J2. It measures the resistance values (see the table for the PTC values). 5. CLEANING AND MAINTENANCE In every product recharge. Maximun weekly.  Liquid residue bucket. Empty the waste water and rinse with clean water. ...
  • Page 35 Six monthly  Product hoppers. Remove them from the machine and empty them. Clean them  with a water and dish washing liquid solution. Dry them before replacing into the machine. Clean the supports where the hoppers are fitted. Coffee bean hopper.
  • Page 36 2. Push the shaft from the bottom and remove the filter holder 3. Press on the clips (one on each side) shown in the picture below to release the part where the o-ring gaskets. 4. Once replaced the gaskets, replace lids in the group. Clips Gaskets Spindle...
  • Page 37 EN 61000-3-2  EN 61000-3-3  EN 55014-2:98 (EN 61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-7, 4-8 and 4-11)   For the correct working of all the elements, the maximum inclination the machine should  have on any of its axis should be ± 5º. 2ª...
  • Page 38 DIMENSIONS The measurements are in mm and the weights in Kg. M A C H I N E Width Height Depth Weight Instant Espresso Fresh brew Espresso + FB C A B I N E T Width Height Depth Weight ME/MI 2ª...
  • Page 39 2ª 10012 - UK 03 - 2016...
