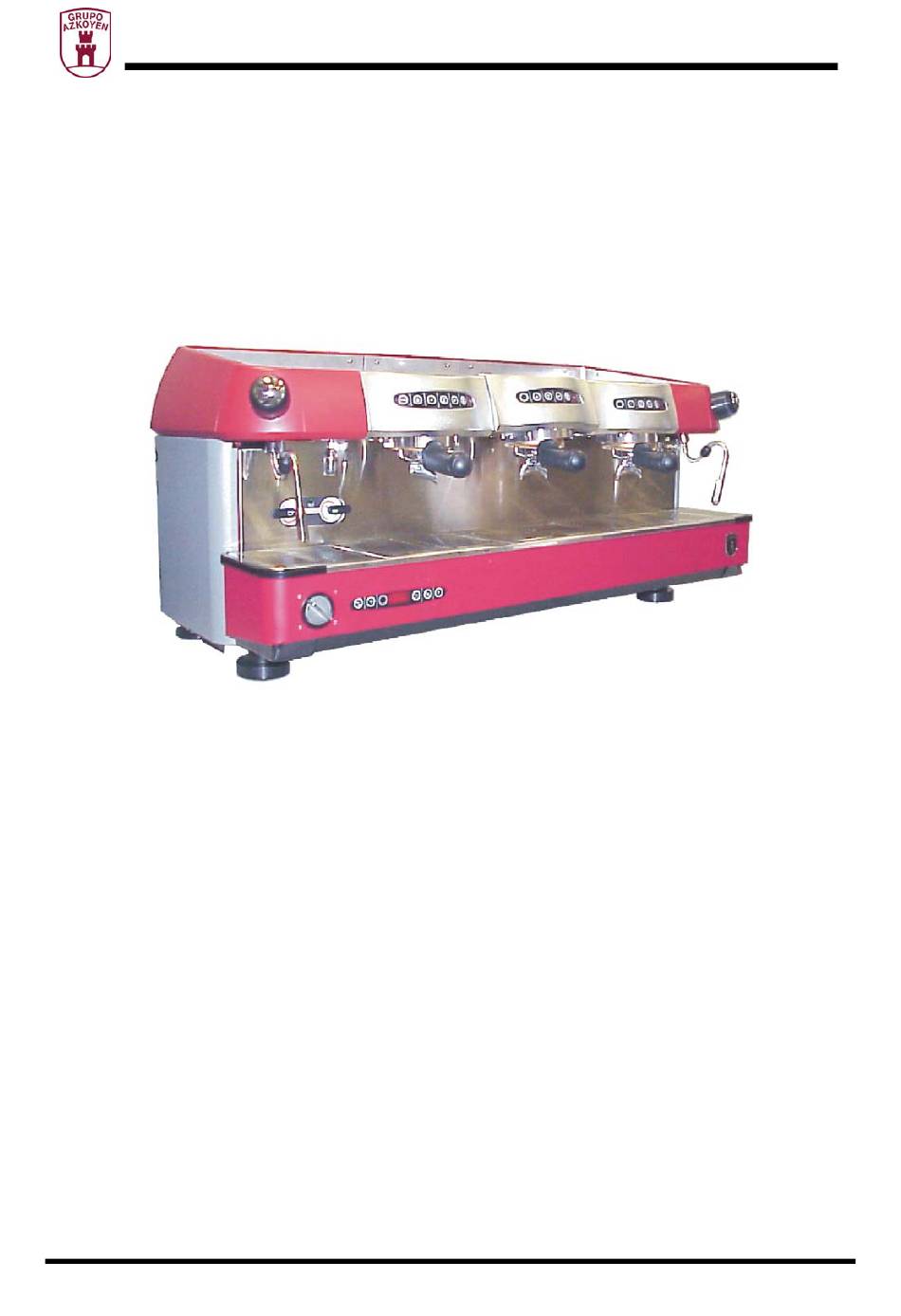

- Page 1 Technical Information: BRAVO BRAVO 10071 UK 08 - 2005...
- Page 2 Technical Information: BRAVO I N D E X INTRODUCTION 1.1. DEFINITIONS 1.2. PRINCIPLE TECHNICAL CHARACTERISTICS 1.3. TECHNICAL INNOVATIONS DESCRIPTION OF COMPONENTS INSTALLATION AND SWITCHING ON 3.1. UNPACKING 3.2. INSTALLATION AND SWITCHING ON WORKING CONDITIONS AND NORMS CLEANING AND MAINTENANCE DIMENSIONS 10071 UK 08 - 2005...
- Page 3 Technical Information: BRAVO INTRODUCTION This Technical Manual provides the technical information that corresponds to the range of BRAVO machines called that are destined for the elaboration of espresso coffee. These machines are designed to elaborate, with the best results, espresso coffee infusions, steam and hot water for other types of infusions.
- Page 4 Technical Information: BRAVO Infusion: this is the process of forcing hot water through the ground coffee to extract the oils, aromas and essences. Volumetric infusion: when a constant, measured volume of water is used in the infusion process. Continuous infusion: when the volume of water that is used in the infusion process is controlled by the person elaborating the beverage.
- Page 5 Technical Information: BRAVO The heating element that heats the water in the boiler is made up of three individual elements that can be switched on and off independently. The installer of the machine can easily configure the machine for single phase, two phase or three phase electrical connection.
- Page 6 Technical Information: BRAVO BRAVO COMPACT Automatic Electronic Continuous Automatic Electronic Continuous Notes MODELS Power supply 3 x 800 3 x 1200 Boiler heating elements Water pump motor Pressure stat 4 digits Electronic digital display ON/OFF lamp Programming buttons ON/OFF button Boiler full lamp Infusion electro valves 2520...
- Page 7 Technical Information: BRAVO MODELS Automatic Electronic Continuous Automatic Electronic Continuous Notes Boiler capacity Litres Anti vacuum valve Manual boiler refill tap Espresso boiler valves Kg/cm² Infusions with cold water mix regulation Water level lamp Water pump pressure gauge Boiler pressure gauge Auto filling of boiler Thermo-compensation Programmable volume for...
-
Page 8: Description Of Components
Technical Information: BRAVO DESCRIPTION OF COMPONENTS Cup warming tray Pressure gauges Main switch Feet Display ON/OFF lamp Programming buttons Filter holders Service buttons Cappuccino kit Hot water spout for infusions Steam nozzle tap Steam nozzle Identification plaque Drip tray Automatic 10071 UK 08 - 2005... - Page 9 Technical Information: BRAVO Electronic Compact continuous 10071 UK 08 - 2005...
- Page 10 Technical Information: BRAVO 10071 UK 08 - 2005...
-
Page 11: Main Switch
Technical Information: BRAVO Cup warming tray The cups that are used to elaborate the espresso coffee are placed on this tray. The heat from the boiler rises to heat the cups; they are heated to a temperature of approximately 50º C. The objective of heating the cups is to avoid large thermal losses when serving the espresso coffee infusion. -
Page 12: Service Buttons
Technical Information: BRAVO Accounting button. It is used to show on the display how many of the different coffee services have been elaborated. Clock button. It is used to programme the time. Programming switch ON/OFF timetable button. This button is used to programme the automatic switch on/off timetable of the machine. - Page 13 Technical Information: BRAVO Function of the button Symbol of the button The button for the infusions made with water. It is used to open the hot water tap, for a programmable time, to make teas, herbal infusions and instant beverages. The buttons for the espresso coffees.
-
Page 14: Pressure Gauges
Technical Information: BRAVO ALWAYS, on finishing with the steam service, clean the nozzle with a clean damp cloth to avoid the build up of deposits When switching off the machine, NEVER leave the steam nozzle submerged in the milk or other liquids in the jug, as the vacuum produced on cooling could draw the liquid into the boiler Suggestion To froth the milk, submerge the nozzle to the bottom of the milk jug and when... -
Page 15: Adjustable Feet
Technical Information: BRAVO 10. Adjustable feet The machine has four feet. All of them are height adjustable and allow a maximum adjustment of 50 mm. The adjustment can be made by hand and also with a 13 mm spanner. 11. Tap for manually refilling the boiler If the machine is functioning correctly, the refilling of the water in the boiler is done automatically. -
Page 16: Heating Elements
Technical Information: BRAVO 13. Pressure stat This connects and disconnects the heating elements. It connects at ≈ 0.9 kg/cm² and disconnects at ≈ 1.1 kg/cm². boiler working pressure regulated down using screwdriver to turn the regulating screw. Pressure gauge Temperature in the boiler 0.8 kg/cm²... -
Page 17: Water Level Probe
Technical Information: BRAVO Technical characteristics: BRAVO BRAVO COMPACT Power (w) 1 Group Flow (l/h) Power (w) 2 Groups Flow (l/h) Power (w) 3 Groups Flow (l/h) Regulating screw The working pressure of the water pump can be regulated, up or down, by using a screwdriver to turn the regulating screw. -
Page 18: Volume Meter
Technical Information: BRAVO The technician can manually move the probe up and down approximately 2 cm to achieve: ► more hot water and less steam (lifting the probe). ► more steam and less hot water (lowering the probe). 17. Volume meter This device counts the volume of water that is used in the infusion of the espresso coffees. - Page 19 Technical Information: BRAVO 18. Air flow regulator The air flow regulator is located in the accessory that can be installed in the machines to “froth” the milk in the process of making cappuccino coffees. The more the flow of air, the bigger the bubbles in the milk are.
- Page 20 Technical Information: BRAVO Boiler and heat interchange boilers The water in the main boiler is used to provide steam and hot water for the elaboration of teas other infusions and beverages. Inside the main boiler there are as many heat interchange boilers as there are infusion groups on the machine.
-
Page 21: Installation And Switching On
Technical Information: BRAVO INSTALLATION AND SWITCHING ON 3.1. UNPACKING An adequate plug should be affixed to the power lead of the machine to facilitate its total disconnection from the mains. The method used should guarantee the total disconnection of all poles. -
Page 22: Electrical Connection
Technical Information: BRAVO Characteristics of the drain hose: Interior diameter 8 mm Length 1700 mm Water pump Drain tray Filter Drain 3.2.2. Electrical Connection We advice the installation of a magnet-thermo switch on the power lead to the machine. The machine uses a voltage of 230 Vac (50 Hz). Depending on the type of electrical power supply, the connection will be carried out as follows: Links fitted as Links supplied with... - Page 23 Technical Information: BRAVO POWER LEAD SWITCH Blue Black Brown Black Black Brown Blue Blue Brown Brown Black Blue Black Black Configuration of the power lead Configuration of the main switch Star connection When the power supply is 3 phases + neutral + earth: 400 Vac between phases and 230 Vac between phase and neutral.
- Page 24 Technical Information: BRAVO POWER LEAD POWER LEAD Blue Brown Blue Black Brown Black Black Black Original configuration Star Configuration for three phase Triangle connection When the power supply is 3 phases + neutral + earth: 230 Vac between phases and 125 Vac between phase and neutral, neutral is discarded, and connect the machine as shown below: The following changes necessary to the main switch: SWITCH...
- Page 25 Technical Information: BRAVO Changes necessary on the power lead: POWER LEAD POWER LEAD Blue Blue Brown Brown Black Black Black Black Original configuration Triangle configuration for three phase In all three cases it is necessary to insure there is an adequate earth connection (yellow-green wire). 3.2.3.
- Page 26 Technical Information: BRAVO elements; position 1 connects one element, position 2 connects two elements and position 3 connects three heating elements. Connecting 1, 2 or 3 heating elements does not change the overall power consumption for the premises where the machine is installed. The difference is only in how fast the boiler recuperates its water temperature in the boiler After 15 to 20 minutes, the boiler pressure gauge that measures the pressure of steam in the boiler will read between 0.9 and 1.1 kg/cm².
- Page 27 Technical Information: BRAVO 3.2.5. Error messages indicated by the led diode The machines in the E and C range will flash the led diode on the machine when the water pump is functioning for more than 30 seconds and the circuit board does not receive a signal from the water level probe in the boiler to say it is full.
- Page 28 Technical Information: BRAVO WORKING CONDITIONS and NORMS Optimum performance of this equipment is achieved by meeting the following requirements: Temperatures: Storage: from -25 to + 70ºC. Working: from +5 to +55ºC. Norms met: The machines meet the Directives of the EC: Directive 97/23/CEE related to steam boilers for espresso machines (Category 1, Module A), Directive 73/23/CEE of electrical safety and Directive 89/336/CEE of electromagnetic compatibility.
- Page 29 Technical Information: BRAVO EN 60 555/1 (UNE 21-806-90 PART 1) EN 60 555/2 (UNE 21-806-90 PART 2) 10071 UK 08 - 2005...
-
Page 30: Cleaning And Maintenance
Technical Information: BRAVO CLEANING and MAINTENANCE The cleaning tasks are vital for guaranteeing an adequate level of hygiene in all the machine’s processes. They are also vital to achieve the maximum performance from this equipment. 5.1. CLEANING PROGRAMME After each steam service ►... - Page 31 Technical Information: BRAVO As required by the hardness of the water ► Scale filter. Clean and regenerate as described by the filter manufacturer’s instructions. As required by the use of the machine ► Group seal and filter. Substitute when there are leaks around the seal while making espresso coffees.
- Page 32 Technical Information: BRAVO DIMENSIONS BRAVO RANGE AUTOMATIC ELECTRONIC CONTINUOUS Models Weight BRAVO COMPACT RANGE AUTOMATIC ELECTRONIC CONTINUOUS Models Weight 10071 UK 08 - 2005...
- Page 33 Technical Information: BRAVO Brands of the AZKOYEN AZKOYEN MEDIOS DE PAGO S.A. AZKOYEN 10071 UK 08 - 2005...
