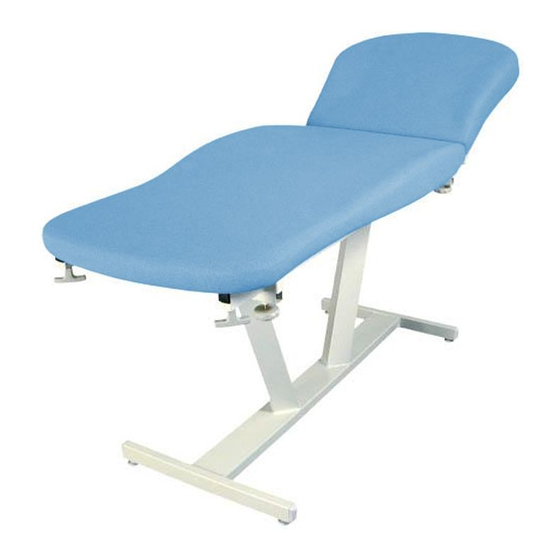

- Page 1 All manuals and user guides at all-guides.com User’s Guide Fidji Model Shown : 10110-10 Examination couch 10110-10...
- Page 2 Tél. : +33 (0)2 43 05 12 70 without notice. Fax : +33 (0)2 43 05 68 99 Before any order, we recommend that our customers internet : www.promotal.com consult a local sales manager. www.midmark.com Type plate...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Summary Important Information Safety symbols Precautions when unpacking Material delivered in cardboard packaging Products delivered on wooden palettes Storage condition Unpacking / Installation Verification Cleaning protocol Warning General maintenance Disinfection Maintenance Instructions Painted surfaces (epoxy polyester fi nish) Imitation leather coverings Stainless steel products Chrome fi nished products... - Page 4 All manuals and user guides at all-guides.com Summary Using the Couch Adjusting the backrest tilt Paper roll Installation of the paper roll holder Using the paper roll The levellers Adjusting the levellers Accessories Pair of Clamps Installing the Clamps Arm rest Adjusting the arm rest Pair of stirrups Installing the stirrups...
- Page 5 All manuals and user guides at all-guides.com Summary Options Face slit in head-cushion Lifespan of the Medical Device Obligatory/specific maintenance End of the device’s useful life Maintenance notebook Warranty Information Warranty Obligations Exclusions Exclusive Remedy No Authorization Declaration of Conformity...
-
Page 6: Important Information
All manuals and user guides at all-guides.com Important Information Safety symbols Warning sign The information marked with this symbol must be read and strictly followed ! Note Procedure, practice, or condition. Proper shipping orientation Keep dry Maximum stacking Fragile height (palletted units) General safety awareness Refer to user guide/ CE marking... -
Page 7: Precautions When Unpacking
All manuals and user guides at all-guides.com Precautions when unpacking Material delivered in cardboard packaging ○ Small, lightweight, easy ○ Heavy or cumbersome material requiring the use to handle materiel of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position the provided it is used correctly. - Page 8 All manuals and user guides at all-guides.com Precautions when unpacking Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Midmark Europe’s Authorized CE representative listed below : Midmark Europe 22, rue de Saint-Denis de Gastines 53500 Ernée, FRANCE Téléphone : + 33 (0)2 430 517 76...
-
Page 9: Cleaning Protocol
All manuals and user guides at all-guides.com Cleaning protocol Warning You must read the installation instructions, technical Under no circumstances must electrical parts instructions, and instructions for use before (motor, unit housing the electrical control systems, handling this equipment. The instrument must be control unit, adaptor etc.) be opened. -
Page 10: Imitation Leather Coverings
All manuals and user guides at all-guides.com Cleaning protocol Imitation leather coverings Use a damp cloth and soapy water (eg. household Flame retardort classifi cation : All our coverings soap). For stubborn stains, dab, but do not rub, class are M2 or M1. We can provide you with a using a cloth soaked in white spirits or in a solution manufacturers certifi cate on request. -
Page 11: User's Guide - Examination Couch
All manuals and user guides at all-guides.com User’s Guide – Examination Couch Intended use This appliance is designed for use in professional premises only : ● Medical practices ● Care establishments This appliance must not be installed in domestic premises. This table is designed to be used only by healthcare staff. -
Page 12: Dimensions
All manuals and user guides at all-guides.com User’s Guide – Examination Couch Dimensions 60° 2000 1350 - 750 17° 1230 User’s Guide... -
Page 13: Assembling Instruction
All manuals and user guides at all-guides.com Assembling instruction Assembling the upholstery Upholstery Backrest Clé Allen n°4 Tighten screws before use. Upholstery Seat Clé Allen n°4 User’s Guide... -
Page 14: Using The Couch
All manuals and user guides at all-guides.com Using the Couch Adjusting the backrest tilt The patient must not lean with his / With one hand, move the lever (L1) either up her full weight on the backrest during or down, with the other hand lower or raise the this procedure. -
Page 15: Using The Paper Roll
All manuals and user guides at all-guides.com Using the paper roll Caution follow the indications provided well obtain a greater Cover the upholstery with paper before use. longevity of the material. The levellers Adjusting the levellers Screw or unscrew the leveller to the desired height. User’s Guide... -
Page 16: Accessories
All manuals and user guides at all-guides.com Accessories Pair of Clamps (reference 166) Installing the Clamps Take the stopper (B) out of the square tube if necessary. Loosen the nuts (V), and put the pair of clamps ref.166 (E) into position in the square tubes. Tighten the nuts. -
Page 17: Pair Of Stirrups
All manuals and user guides at all-guides.com Pair of stirrups (reference 850) Installing the stirrups Caution Clamps are necessary to install Tighten screws before use. these accessories. (réf. : 166) Pair of legrests (reference 840) Installing the legrests Caution Clamps are necessary to install Tighten screws before use. -
Page 18: Hook Iv Pole
All manuals and user guides at all-guides.com Accessories 2 hook IV pole (reference 985-01) Installing the IV pole Tighten screws before use. Caution Clamps are necessary to install these accessories. (réf. : 166) Auto-blocking I.V. pole Installing the IV pole (reference 2985-01) Unscrew the screw handle. -
Page 19: The Pair Of Barriers
All manuals and user guides at all-guides.com The pair of barriers (reference 85114-01) Installing the pair of barriers 3. Tighten the screw. 1. Unscrew the screw. 2. Insert the pair of barriers. Approach the barriers to Caution obtain a spacing of 25 mm beteween the barriers and the 25 mm (acceptable spacing indicated upholstery. -
Page 20: Headrest
All manuals and user guides at all-guides.com Accessories Headrest (reference 1102-10) Backrest extension (reference 2055-01) Installating the Backrest extension N°4 Allen key User’s Guide... -
Page 21: Headrest
All manuals and user guides at all-guides.com Headrest (reference 2054-01) Installating the Headrest N°4 Allen key Intallation of the headrest on the upholstery 600150-65 et 600150-75 Intallation of the headrest on the upholstery 600150-70 User’s Guide... -
Page 22: Adjustable Paper-Roll Holder
All manuals and user guides at all-guides.com Accessories Adjustable paper-roll holder (reference 2056-02) Installating the paper roll holder 1. Remove the standard paper roll holder. M6x25 (x 2) N°4 Allen key 3. Replace the paper roll holder. User’s Guide... -
Page 23: Installating The Paper Roll Holder [With The Head-Rest (Ref. : 2054-01)]
All manuals and user guides at all-guides.com Installating the paper roll holder [with the head-rest (ref. : 2054-01)] N°4 Allen key ENT0810 (x 2) M6x30 (x 2) User’s Guide... -
Page 24: Installation Of The Paper Roll
All manuals and user guides at all-guides.com Accessories Installation of the paper roll The paper roll is positioned on a mobile axis with adjustable hooks at each end. 1. Unscrew the screw handle (VS). 2. To remove the paper roll holder slightly (PR). -
Page 25: Paper Cutter
All manuals and user guides at all-guides.com Paper cutter (reference 2052-65 and 2052-75) (Incompatible with upholstery 600150-70) (Reference relative to the upholstery chosen 65/75 cm) Installation of the paper cutter VWB1420 (x 2) N°4 Allen key Tighten screws before use User’s Guide... -
Page 26: Using The Paper Cutter
All manuals and user guides at all-guides.com Accessories Using the paper cutter 1) Slide the paper under the paper cutter. 2) Replace the paper cutter. User’s Guide... -
Page 27: Options
All manuals and user guides at all-guides.com Options Face slit in head-cushion (reference 2230) This upholstery only correponds to the following reference : 600150-65 600150-75 User’s Guide... -
Page 28: Lifespan Of The Medical Device
All manuals and user guides at all-guides.com Lifespan of the Medical Device This medical device was designed for a service life of 10 years, excluding wear parts in normal working conditions. This duration may change depending on the frequency of use. CHECK AT LEAST ONCE A YEAR THE GENERAL CONDITION OF THE DEVICE. -
Page 29: Maintenance Notebook
All manuals and user guides at all-guides.com Maintenance notebook User’s Guide... -
Page 30: Warranty Information
All manuals and user guides at all-guides.com Warranty Information Warranty Midmark Europe warrants, to the original purchaser, products manufactured by Midmark Europe and components to be free from defects in materials and workmanship for a period of two (2) years from the date of purchase. -
Page 31: Declaration Of Conformity
