Mounting and connection

1.3.3 Voltage supply

Pin No.
www.addi-data.com

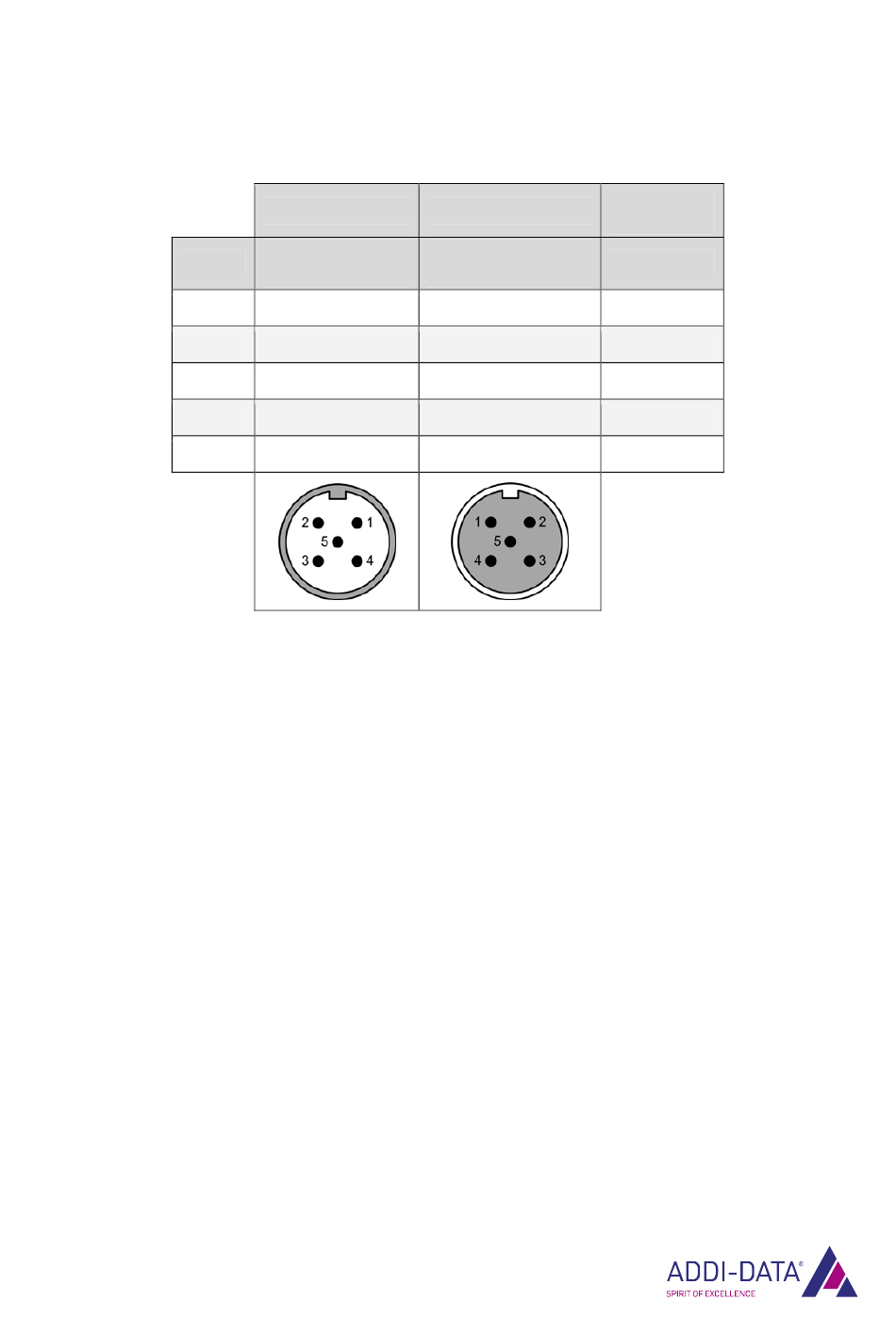

Table 1-4: Pin assignment: Voltage supply
Power Supply In
Connector,
5-pin, M12
1 24 V
2 24 V
3 Ground
4 Ground
5 not connected
Power Supply Out
Female connector,
5-pin, M12
24 V
24 V
Ground
Ground
not connected
16
MSX-Exxxx
Cable
(black)
Lead colour
brown
white
blue
black
grey
