Connecting Peripherals; Ethernet Ports; Fig. 1-10: Connect Peripherals - Addi-Data MSX-E Series Technical Description

Mounting and connection

1.4 Connecting peripherals

Discharge any static by touching an earth wire.
Remove the Ethernet system from its protective packaging.
Information on cables and other accessories can be found in the accessories list of the MSX-E systems.

1.4.1 Ethernet ports

Plug the Ethernet cable into Ethernet Port 0
Ethernet Port 0
Trig/Sync In
Current supply input
(24 VDC In)
2 If you want to connect several Ethernet systems, please read Chapter 1.5.
www.addi-data.com
2
.

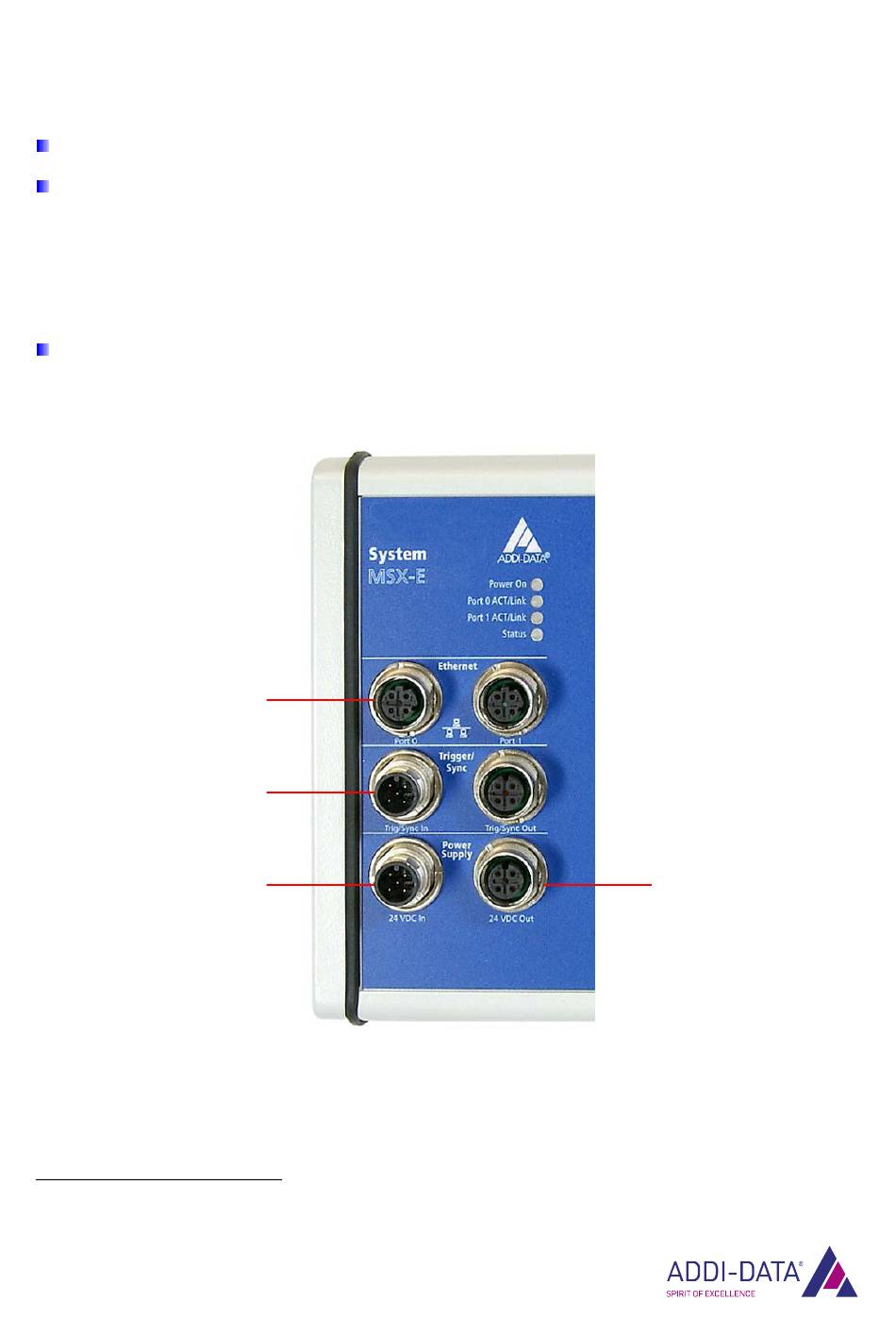

Fig. 1-10: Connect peripherals

17
MSX-Exxxx
Current supply output
(24 VDC Out)
