Fig. 1-6: Angle Bracket Mounting; Fig. 1-7: Mounting Set: Seal And Screw (Short); Fig. 1-8: Mounting Set: Original Screw, Seal And Screw (Long) - Addi-Data MSX-E Series Technical Description

Mounting and connection
Loosen the screws at the side of the Ethernet system.
For the remainder of the mounting process, please use only the short seals and screws from the
mounting set.
The original screw from the MSX-E system and the long seals or screws from the mounting set must
not be used any longer.

Fig. 1-8: Mounting set: Original screw, seal and screw (long)

www.addi-data.com

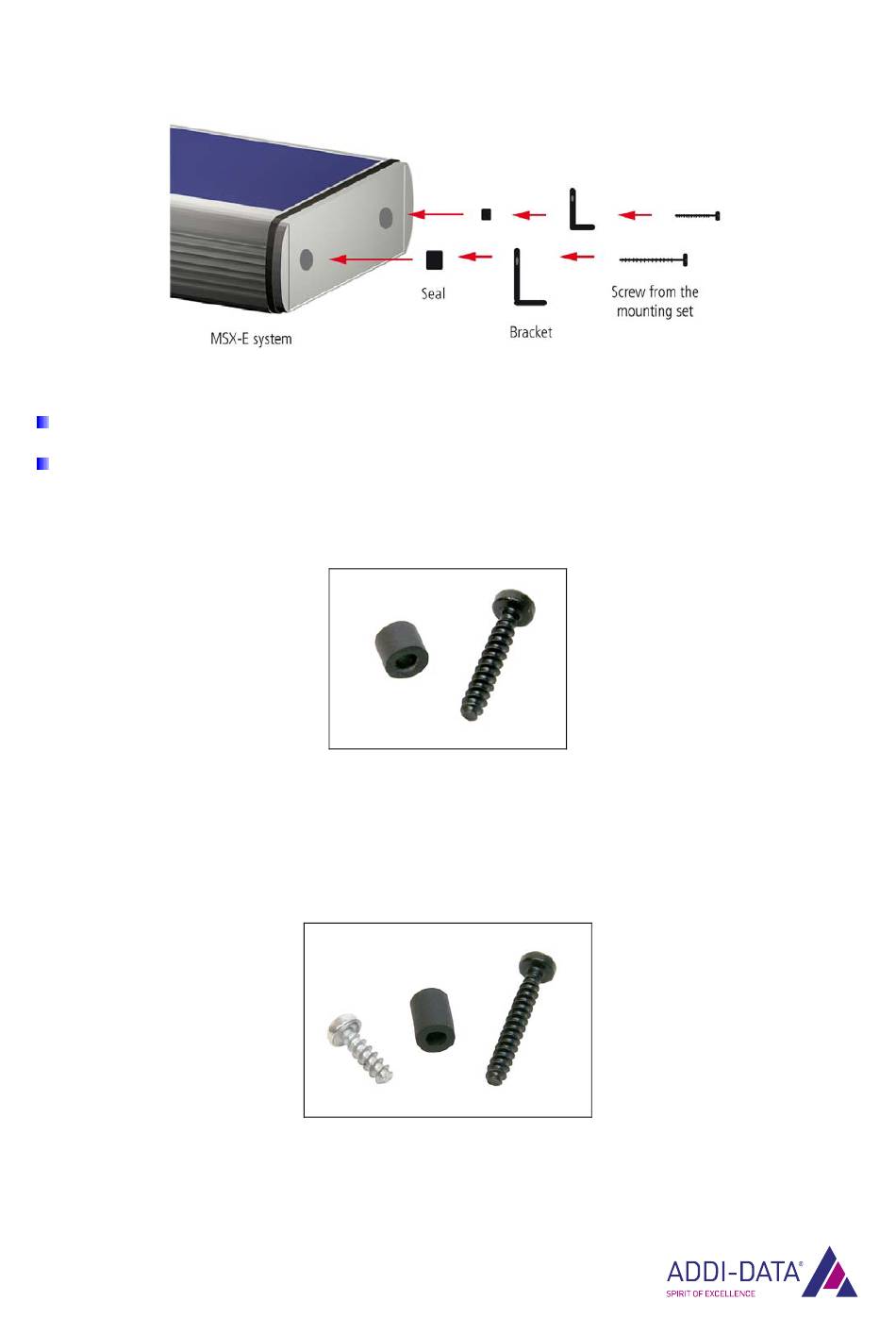

Fig. 1-6: Angle bracket mounting

Fig. 1-7: Mounting set: Seal and screw (short)
