Mounting and connection

1.5 Connecting several Ethernet systems (cascading)

You have the possibility to connect several Ethernet systems to the MSX-Exxxx. In order to do so,
proceed as follows:
Connect the first Ethernet system (see description at the beginning of this chapter).
Connect the components according to the following figure.
www.addi-data.com

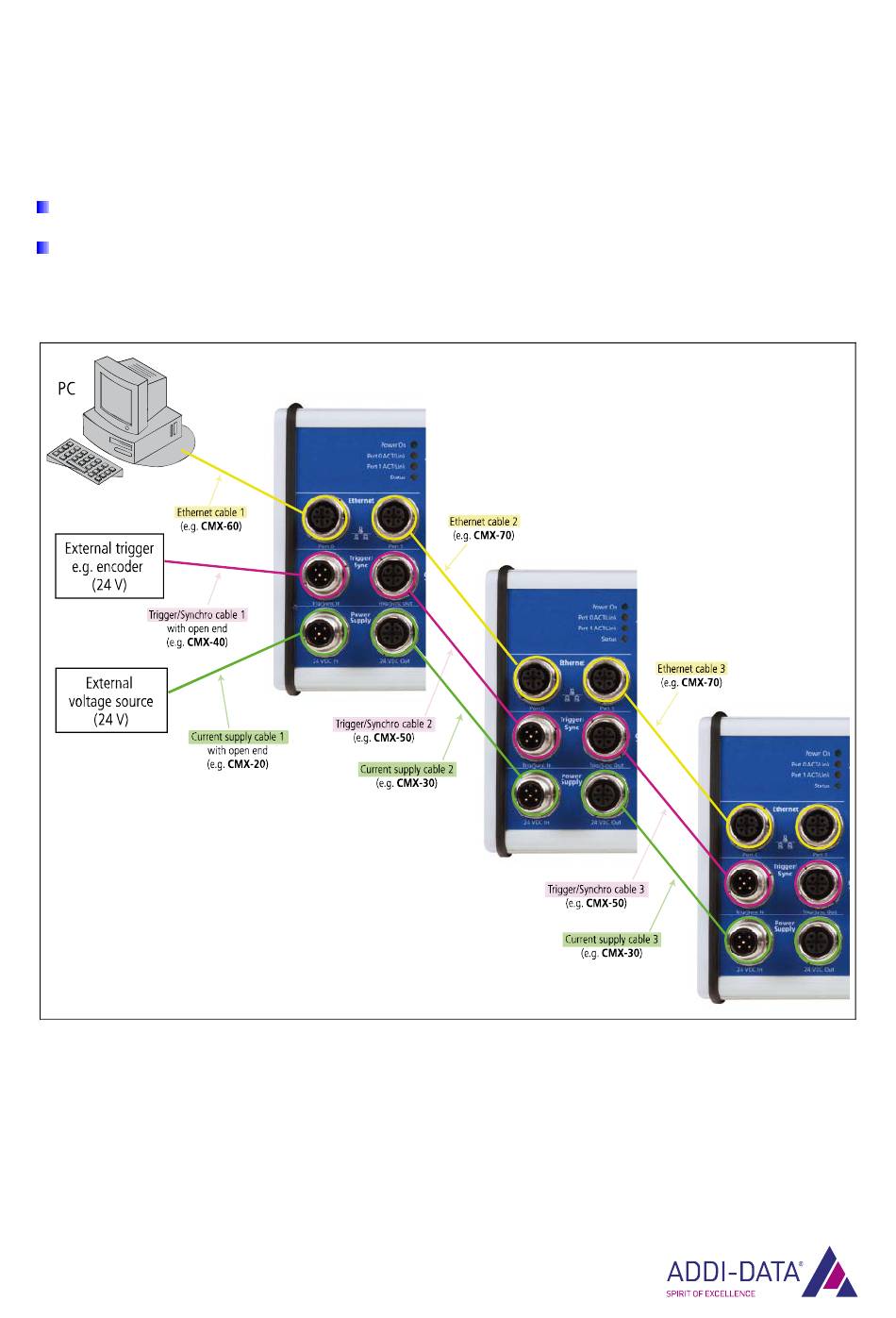

Fig. 1-12: Connect several Ethernet systems

19
MSX-Exxxx
