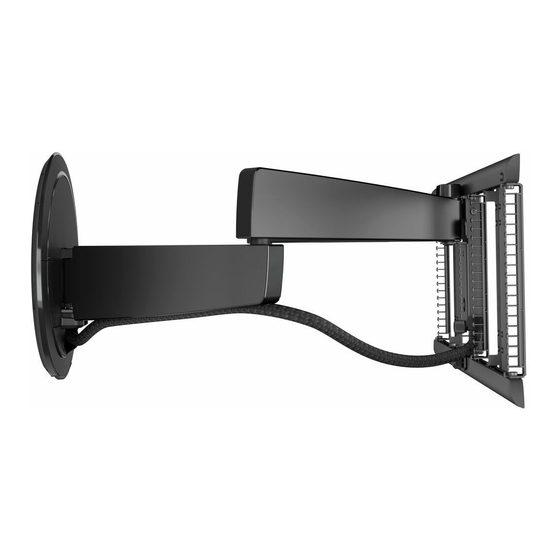

TVM 7655 Series
Full Installation Guide
Everything you need to get your TV safely on the wall, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about safe,
efficient installation, and how to use your new mount.
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting and/or installation could put you,
your TV, and your family at substantial risk.
TVM 7655 Series - English
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for vogel's TM 7655 Series
Summary of Contents for vogel's TM 7655 Series
- Page 1 TVM 7655 Series Full Installation Guide Everything you need to get your TV safely on the wall, in no time Before you start …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new mount.
-
Page 2: What's In Your Box
Don’t dare risk it… Read all Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably qualified expert. Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation. Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum weight and size limits specified for this product, and that the TV mounting bolts used are of a suitable length and diameter. - Page 3 I. Plugs J. Washers ∅ 26mm K. Upper wall plate cover L. Lower wall plate cover S. Interface extension strips T. Cable sleeve U. Interface cover V. Drilling template Contents of the TV fasteners kit: 4x M6x12mm 4x M6x25mm 4x M6x35mm 4x M8x12mm 4x M8x25mm 4x M8x45mm...
- Page 4 Don’t start without all the necessary tools: Spirit level Stud finder Socket wrench no.13 Crosshead screwdriver Drilling machine For stone walls: 20 mm / 0.8” (⌀ 5 mm / ⌀ 13/64”) masonry drill bit (for predrilling) 70 mm / 2.8” (⌀ 10 mm / ⌀ 25/64”) masonry drill bit For walls with wooden studs: 50 mm / 2”...
- Page 5 2. Remove the thumbnut and detach the wall mount Ⓐ from the interface. Keep the thumbnut for later use. 3. Check the mounting holes on the TV screen. Adjust the dimensions of the interface accordingly, after loosening the pre-attached bolts with the Allen key. 4.
- Page 6 5. Attach the interface to the TV screen with the bolts Ⓔ and spacers Ⓕ . Make sure the top side of the frame is positioned correctly, as indicated by the word ‘top’ on the interface. 6. After adjusting the dimensions of the interface, make sure to tighten the pre-attached bolts with the Allen key.
- Page 7 Refer to the user manual of your TV for the correct mounting material. Step 2: Attach the wall mount to the wall How well do you know your walls? What they’re made of matters more than you think… Concrete / Brick wall If you are mounting your TV screen onto a wall with wooden studs, please follow the instructions in the Wall with wooden studs section.
- Page 8 1. Determine where to mount your TV screen. Use the drilling template Ⓩ to mark the correct position on the wall if you’re using the TVA 7000 cable column or if the connecting cables protrude from the wall. The drilling template Ⓩ can be found on the back of the inlay card provided in the package.
- Page 9 4. Attach the wall mount to the wall while making sure to: a. begin with the hole directly above the Vogel’s logo on the wall mount Ⓐ b. use the spirit level to level the wall mount c. attach the wall mount Ⓐ to the wall with the provided screws Ⓗ and washers Ⓙ Lubricate the screws for easy screwing in.
- Page 10 5. Slide the upper wall plate cover Ⓚ onto the wall mount Ⓐ . To remove the cover plate, press the left tab and slide it off the wall mount. Wall with wooden studs If you are mounting your TV screen onto a concrete/brick wall, please follow the instructions in the Concrete/Brick wall section.
- Page 11 2. Now for the fun part… drilling the holes. Make sure to drill the positioning hole first. TVM 7655 Series - English...
- Page 12 3. Attach the wall mount to the wall while making sure to: a. begin with the hole directly above the Vogel’s logo on the wall mount Ⓐ b. use the spirit level to level the wall mount c. attach the wall mount Ⓐ to the wall with the provided screws Ⓗ and washers Ⓙ Lubricate the screws for easy screwing in.
- Page 13 Step 3: Attach the TV to the wall mount 1. Carefully lift and attach the TV onto the interface bracket on the wall mount Ⓐ . Make sure the plug on the interface falls into the notch on the wall mount. Lifting your TV is a two-person job.
- Page 14 2. Secure the interface to the wall mount with the saved thumbnut from step 1. TVM 7655 Series - English...
- Page 15 3. Level the wall mount and the TV screen. Use a spirit level and the Allen key to correct the position. Tighten the thumbnut and the thumb bolt with the Allen key when finished. The wall mount and TV must be leveled vertically and horizontally before using the wall mount! Step 4: Attach the cables to the wall mount TVM 7655 Series - English...
- Page 16 1. Attach the cable sleeve Ⓣ to the wall mount Ⓐ , by sliding it into the holes on the bottom side of the right arm. 2. Put the TV power cable and the other cables into the cable sleeve Ⓣ . 3.
- Page 17 5. Put the lower wall plate cover Ⓛ onto the wall mount and the interface cover Ⓨ onto the back of the interface. 6. Connect the TV power cable to the power outlet. 7. Your DesignMount is now ready to be used! Need a long HDMI cable? Or a Cable Cover to hide your wall cables? Visit us online and order the right accessories directly through our website.
- Page 18 Removing your TV 1. Remove all cables from your TV and interface. 2. Remove the bottom thumbnut from the interface. 3. Lift your TV off of the interface bracket, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com...
-
Page 19: Troubleshooting
In case of other issues / questions, please contact: consumercare@vogels.com FAQs Where can I request the correct bolts Whatever you need, simply contact your local Vogel's dealer for my TV (a service kit)? or Vogel's. Click here to contact Vogel's Consumer Care. - Page 20 Vogel's offers a complete assembly kit with all mounting materials included in the box. Do you miss the correct bolts for your TV? Please contact your local Vogel's dealer. Click here to contact Vogel's Consumer Care. Why do you use Fischer© plugs? The Fischer©...
- Page 21 Can I use the Vogel’s cable cover TVA Yes, the TVA 7000 cable cover is specially developed for the 7000 together with this product? SIGNATURE DesignMount (and MotionMount). This cable cover fits seamlessly with the wall plate of your SIGNATURE wall mount.
- Page 22 Vogel’s guarantee shall lapse in the following cases: If the product has not been installed or used in accordance with the instructions; If applicable, if the holes in the wall have not been properly drilled in accordance with the Vogel's installation instructions for the applicable wall type;...
