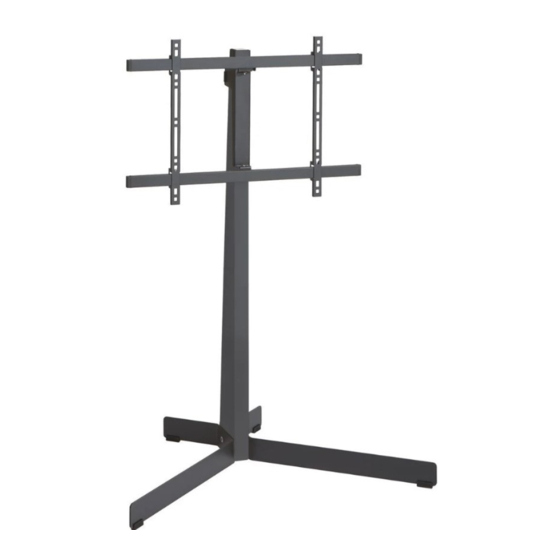

TVS 3690/3695
TV Floor Stand
Full Installation Guide
Everything you need to get your TV safely on the floor stand, in no time
Before you start
...we just wanted to say thanks for choosing Vogel's. Smart choice.
And you're already making another smart choice – reading the manual! Keep reading to learn all about
safe, efficient installation, and how to use your new floor stand.
TVS 3690/3695 - English
1
Advertisement
Related Manuals for vogel's TVS 3690
Summary of Contents for vogel's TVS 3690
- Page 1 …we just wanted to say thanks for choosing Vogel’s. Smart choice. And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient installation, and how to use your new floor stand. TVS 3690/3695 - English...
- Page 2 Always store the product in a dry and safe place with a temperature between -10°C to +50°C. Handle and transport the product with care. Repack the product when transporting or not using it for a longer period of time. Lifting your TV is a two-person job. Don’t be bold! TVS 3690/3695 - English...
-
Page 3: What's In The Box
M. Bolts for attaching feet to stand (see contents below) N. Thumbnuts O. Allen key P. Cover plate (TVS 3695) Q. Cable clips (TVS 3695) R. Wooden/steel stand S. Foot (left) T. Foot (right; with pre-attached bolts) U. Steel bracket TVS 3690/3695 - English... - Page 4 Allen key You don't need all fasteners to mount your TV. Store the rest for later or other use! Got your tools ready? Don’t start without all the necessary tools: Crosshead screwdriver M4 (4mm) Allen key TVS 3690/3695 - English...
- Page 5 Take care of your safety Who cares about looking cool? Always wear personal protective equipment: Eye protection Ear protection Safety shoes TVS 3690/3695 - English...
- Page 6 1. Fix the protective TV patches Ⓛ onto the interface strips Ⓒ. Screw the interface strips Ⓒ onto the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ are at the same height and do not stick out. TVS 3690/3695 - English...
- Page 7 Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help: vogels.com/contact Make sure bolts and spacers are positioned correctly. Refer to the user manual of your TV for the correct mounting material. TVS 3690/3695 - English...
- Page 8 5. Attach the interface bars Ⓑ to the strips by tightening the pre-attached bolts Ⓒ with the allen key Ⓞ. 6. Screw the thumbnut Ⓝ into the upper bar. Make sure you don’t screw it in completely, yet. TVS 3690/3695 - English...
- Page 9 Ⓤ slide into the holes of the upper interface bar! 8. Fasten the upper thumbnut Ⓝ until the steel bracket Ⓤ is secured. 9. Fasten the lower thumbnut Ⓝ until the steel bracket Ⓤ is secured. TVS 3690/3695 - English...
- Page 10 2. Use the allen key Ⓞ to attach the left foot Ⓢ (without pre-attached bolts) to the wooden/steel stand Ⓡ by screwing the two M8*20mm bolts Ⓜ into the pre-attached screws of the right foot Ⓣ. TVS 3690/3695 - English...
- Page 11 Lifting your TV is a two-person job. Don’t be bold! 1. Slide the steel bracket Ⓤ over the top of the wooden/steel stand Ⓡ. Use the knob (see illustration) to fasten the steel bracket Ⓤ to the top of the wooden/steel stand Ⓡ. TVS 3690/3695 - English...
- Page 12 2. Apply the click-on stainless-steel cover plate Ⓟ on top of the steel bracket Ⓤ. (TVS 3695) TVS 3690/3695 - English...
- Page 13 1. Carefully guide the cables through the notch on the back of the wooden stand Ⓡ. 2. Apply the cable clips Ⓠ over the cables by clicking them into the notch Ⓡ, beginning at the top and working your way down. TVS 3690/3695 - English...
- Page 14 Having a cable mess? Do you need inspiration about how to hide and guide your cables or how to place other TV accessories? Take a look at our website vogels.com ! Job done now! Enjoy watching your TV! TVS 3690/3695 - English...
- Page 15 Removing your TV 1. Partially unscrew the thumbnuts Ⓝ by turning them counterclockwise. 2. Remove the TV, and put it down somewhere safe. Again, lifting your TV is a two-person job. Always get help. TVS 3690/3695 - English...
- Page 16 Share your feedback, and sign up to win Vogel’s products! Simply visit vogels.com/review for sharing or the Terms and Conditions. Confused? Unsure? Going crazy? There’s plenty of help waiting for you, online: info@vogels.com www.vogels.com/contact facebook.com/ VogelsForSure/ instagram.com/ vogels_official/ www.youtube.com/ c/VogelsForSure TVS 3690/3695 - English...
-
Page 17: Simple Troubleshooting
You can use them for another TV when wrong?’ the mount to your TV. you buy a new one or use it elsewhere. Because of all the different types of TVs, we have included the most common sizes for the most sold TVs. TVS 3690/3695 - English... - Page 18 ‘Where can I request the correct bolts for my Whatever you need, simply contact your local TV (a service kit)?’ Vogel's dealer or Vogel's. Click here to contact Vogel's Consumer Care. ‘Where can I find installation videos?’ The installation video can be found at the product page of your product on our website.
- Page 19 Go green! We care about the planet. If you’re getting rid of the packaging or the TV mount itself, please visit your local recycling facility, or contact your municipal office. Recycling matters! TVS 3690/3695 - English...
- Page 20 If the product is used for different equipment than is mentioned on or in the packing. Vogel’s Products BV - Hondsruglaan 93 - 5628 DB Eindhoven - The Netherlands Vogel’s Products BV 2021 © All rights reserved. TVS 3690/3695 - English...
