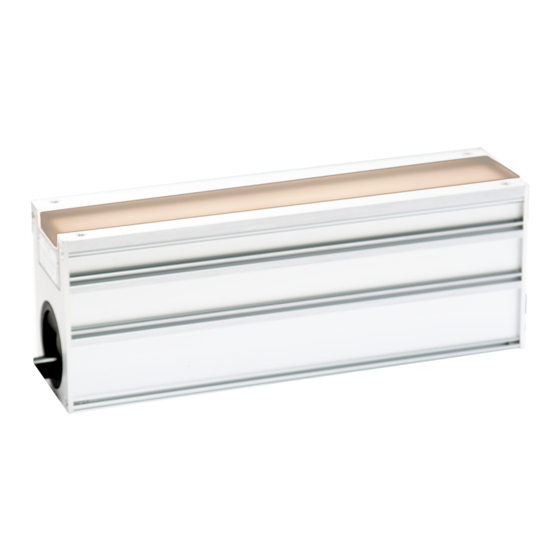

- Page 1 Terra Linear™ User guide...
-
Page 3: Table Of Contents
CONTEN TS IN TR OD UC T ION ........2 Welcome Safety, maintenance and cleaning Supplied items Required accessories Optional accessories IN STA L L ATIO N ......... . 5 Mounting Surface preparation and drainage Mounting height... -
Page 4: Int Rodu C T Ion
Using unified power and DMX control links, Terra Linear fixtures can be rapidly daisy-chained in long runs. All standard mains voltages are directly supported or, to achieve impressive single runs up to 700 linear feet (213m), Terra Linear can be driven by Acclaim Lighting’s XTR Driver. -
Page 5: Supplied Items
SUP PLIED IT EMS For dimensions of all items, please see page 28. Terra Linear 1’ or 4’ REQUIRED ACCE SSO R IE S In-ground sleeve plus removable pour cover 1’ [TLAIGS1] 4’ [TLAIGS4] Feed cables (incl terminator end cap) 10’... -
Page 6: Optional Accessories
Link cables 1’ (30cm) [TLALC1] 5’ (1.5m) [TLALC5] 10’ (3m) [TLALC10] XTR Driver adapter cable (allows a Terra Linear link cable to be connected to an XTR Driver output) [TLAXTRC1] Terminator (end cap) [TLAEC] IP66 junction box (incl. outlet cable gland) [AJBOX1] www.acclaimlighting.com... -
Page 7: I Nsta Ll Ati On
I NSTA LL ATI ON MOUNTING For each Terra Linear fixture, an in-ground aluminum sleeve of the same length is required (see page 3 for part codes and page 28 for dimensions). Sleeves feature a removable 2” rubber knockout at each end as well as an aluminum pour cover along the upper surface, which fully protects the internal chamber while surface work is in progress. -
Page 8: Surface Preparation And Drainage
SURFACE PREPAR ATION A ND D R A IN AGE Correct surface preparation is essential to ensure that the required walk- or drive-over rating is achieved (see page 5), as well as sufficient drainage to prevent permanent flooding of the chamber(s). Each sleeve should be mounted into a level surface that is free draining, such as a permeable stone/gravel mix. -
Page 9: In-Ground Installation
IN -GROU ND I NSTA LL AT IO N The following section provides a brief overview of the recommended steps required to successfully install a Terra Linear fixture. TO IN STAL L A T ERR A L INEA R FI X T U RE 1 Prepare the mounting location(s) - see ”Mounting”... - Page 10 Conduit lock nut 4 Attach a suitable 1.5” conduit (by others) to the inlet hole and lock it in place. Repeat for the outlet hole, if required. 1.5” conduit Conduit coupler (and lock nut) • Where sleeves are abutted, use suitable 1.5” conduit couplers to secure the joins.
- Page 11 5 Run the link cables through the conduit into the sleeve chamber (using a draw wire if necessary). 6 If possible, test the connections before the final surface is laid. 7 Prior to surfacing, replace the supplied pour cover onto the sleeve to prevent concrete entering the chamber.
- Page 12 8 Once the finished surface has been applied, carefully remove the pour cover to reveal the chamber. 9 Set the Terra Linear fixture near the sleeve and connect the cables. Note: When attaching cables and/or termination end cap, ensure the connectors are...
-
Page 13: Power
DMX GND are both tied to true earth. Power cores: 14 AWG / 2.5mm Always follow these steps when using Terra Linear cabling: • Ensure that the power input is isolated from the mains supply. • At each connection, remove the cover caps from both the socket and plug. -
Page 14: Interconnecting
IN T ERCONN EC T I NG Terra Linear fixtures have two 18” (450mm) composite power/control leads - an input at one end and a output at the other. Fixtures can be directly daisy-chained or alternatively an optional link cable can be used between any two fixtures to make up a gap. -
Page 15: Linking To An Xtr Driver
L I NKING TO AN XTR DRIVER Terra Linear fixtures can operate directly from standard AC mains voltages (100 to 277VAC) or alternatively can be connected to an Acclaim Lighting XTR Driver, enabling even longer runs. Use an optional XTR Driver adapter cable (see page 4) to convert from XTR output... -
Page 16: Optional Ajbox1 Conduit Connections
IMPORTANT: The AJBOX1 is rated for maximum voltages up to 277VAC. Do not use AJBOX1 to connect XTR high voltage links. For further details, please see: • Page 11 for wire colors. • Acclaim Lighting AJBOX1 user guide (https://acclaimlighting.com/ajbox1). www.acclaimlighting.com... -
Page 17: Flexible Power Options
FL EXIBLE POWE R OPTION S Terra Linear fixtures support two different power options: Standard mains supply XTR Driver supply Using a feed cable, one or more An optional XTR Driver 4000 or Terra Linear fixtures can be XTR Driver 8000 can be used to... -
Page 18: Run Lengths - Fixture Maximum
XTR fixture could potentially be up to the usual DMX standard limit (3,900 feet/1200m) with appropriate cable choice, although Acclaim Lighting recommends a maximum DMX / RDM run of 1,500’ (457m) without buffering (see ‘Important cabling considerations’ on page 17 and “Tips for achieving successful DMX control”... -
Page 19: Important Cabling Considerations
IM PO R TANT C ABL IN G CO N SID E R AT IO N S During installation, protection of the cabling must always be fully considered: • Wherever possible, above grade cable runs should be positioned to make them beyond normal reach within any installation. -
Page 20: Control
CONTRO L IN PUTS VIA CON VER TERS • DMX - connect a DMX input directly into the feed cable. • 0-10V - use an Acclaim Lighting ZDM 6 (or similar) to convert one or more analog control feeds into a combined DMX feed¹. -
Page 21: Dmx Control Considerations
D M X CO N TROL CONSIDER ATIONS The maximum number of fixtures that can be uniquely addressed in a run is determined by the length, emitter type and operation mode (see page 23) of each linear fixture, as summarized in the tables below. Additionally, any number of fixtures can be configured to use duplicate control addresses, as required. -
Page 22: Tips For Achieving Successful Dmx Control
T IP S FO R AC HIEVIN G SU CCESSF UL D MX CO NT ROL • Acclaim Lighting recommends a maximum DMX / RDM run of 1,500’ (457m) without buffering. • Attach an end cap [Part #: TLAEC] to the output connector of the final fixture. The end cap will correctly terminate the DMX signal (and will also safely seal off the power bus). -
Page 23: Innovations To Enable Long Runs
DMX; usually a maximum of 32 fixtures is possible before the signal-to-noise ratio threatens to affect operation. That is why Terra Linear fixtures act as their own signal isolator and conditioner before passing the control feed down the line. The result is a clean, reliable and [still] industry-standard control solution right to the end of the line. -
Page 24: Oper Atio N
OPER ATIO N Terra Linear fixtures have no external controls and instead rely on RDM (Remote Device Management) for all configuration via the DMX interface. This allows multiple devices to be configured either before or after installation. AD D RE SSIN G F IXT U RE S... -
Page 25: Dmx Cell Addressing
D MX CELL A DDR ESSI NG The actual alignment of Terra Linear fixture cells to DMX addressing is determined by the base address (see page 22) and, for 4’ models, also the chosen cell mode (personality). For a fixture assigned with a start address of 1, the DMX addresses for each color of each cell are listed below. -
Page 26: Setting The Cell Mode (Personality)
MANUAL takes all emitters to 100%. TO SET THE CELL MODE USING THE XMT-350 1 Connect the XMT-350 to the DMX input line of the Terra Linear installation. 2 On the XMT-350, press the MODE button, then use the arrow buttons to highlight the function and press the button to select. -
Page 27: Testing Emitter Output
TESTING EMI TT ER O U TP U T After you have addressed each Terra Linear fixture we recommend that you also test each one prior to installation. This can be achieved with your RDM (Remote Device Management) tool. Various third party DMX/RDM tools are available; we recommend the Acclaim Lighting XMT-350 for this task. -
Page 28: F Urth Er Infor Mat I On
F URTH ER INFOR MAT I ON TROUBLESHOOTI N G NO L IGHT O U TPUT IS VISIBLE WHEN EX P EC T ED • Check that power is correctly applied to the fixture and that there is no damage to the power input cord. -
Page 29: Specifications
S P EC I FI C ATIO NS Emitters 2700K, 3000K, 3500K, 4000K, DW (2700K-6000K), QS (W=3000K), QW4 (W=4000K) or QW6 (W=6000K) Optics 10° x 10°, 25° x 25°, 40° x 40°, 60° x 60°, 10° x 35°, 10° x 60°, 30°... -
Page 30: Dimensions
DI MENSIONS I N-GRO U ND S LE EVES • 1ft (305mm) Part #: TLAIGS1 • 4ft (1220mm) Part #: TLAIGS4 www.acclaimlighting.com... - Page 31 T ERR A LINEAR 1ft (305mm) www.acclaimlighting.com...
- Page 32 TE RR A LIN EAR 4ft (1220mm) www.acclaimlighting.com...
- Page 33 C ABL ES Feed cable (10 or 50’) Link cable (1, 5 or 10’) XTR Driver adapter cable Terminator (end cap) www.acclaimlighting.com...
- Page 34 A JB OX1 www.acclaimlighting.com...
-
Page 35: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 36 www.acclaimlighting.com...
