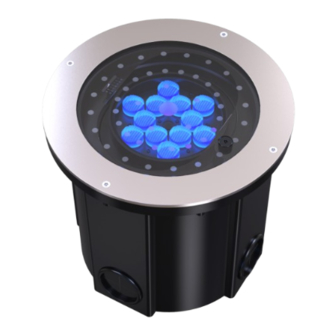

Acclaim Lighting Terra Drum User Manual
  1. Manuals
  2. Brands
  3. Acclaim Lighting Manuals
  4. Lighting Equipment
  5. Terra Drum
  6. User manual

Acclaim Lighting Terra Drum User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Terra Drum™
User guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terra Drum and is the answer not in the manual?

Questions and answers

Related Manuals for Acclaim Lighting Terra Drum

Summary of Contents for Acclaim Lighting Terra Drum

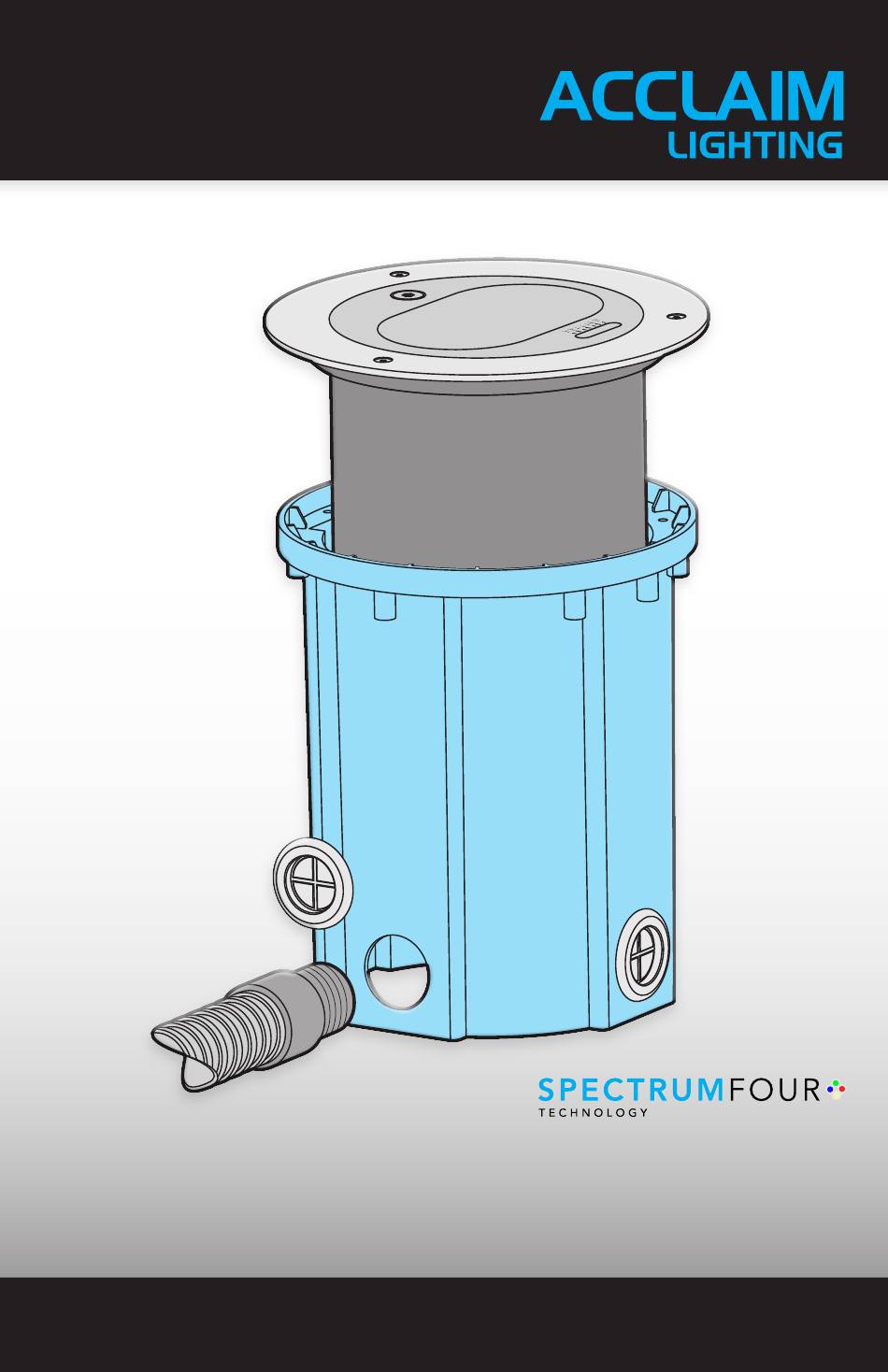

  • Page 1 Terra Drum™ User guide...

  • Page 3: Table Of Contents

    CONTEN TS IN TR OD UC T ION ........2 Welcome Safety, maintenance and cleaning Supplied items Required accessories Optional accessories IN STA L L ATIO N ......... . 5 Mounting Surface preparation and drainage Mounting height...

  • Page 4: Int Rodu C T Ion

    SAF E T Y • Terra Drum fixtures should not be recessed into ceilings for use as downlighters without the express written consent of Acclaim Lighting. • Ensure that the power input is supplied from an environmentally protected location, is correctly fused and has a valid protective earth that is tied to true earth.

  • Page 5: Supplied Items

    SUP PLIED IT EMS For dimensions of all items, please see page 27. Terra Drum HO, SO or EO REQUIRED ACCE SSO R IE S In-ground sleeve plus removable pour cover [TDAIGS] [TDBIGS] [TDCIGS] Feed cables (incl terminator end cap) 10’...

  • Page 6: Optional Accessories

    O P T I ON A L ACCE SS ORIE S Link cables 1’ (30cm) [TLALC1] 5’ (1.5m) [TLALC5] 10’ (3m) [TLALC10] Terminator (end cap) [TLATEC] Full snoots Black [TDAFSB] [TDBFSB] [TDCFSB] White [TDAFSW] [TDBFSW] [TDCFSW] Gray [TDAFSG] [TDBFSG] [TDCFSG] Custom* [TDAFSC] [TDBFSC]...

  • Page 7: I Nsta Ll Ati On

    I NSTA LL ATI ON MOUNTING For each Terra Drum fixture, an in-ground aluminum sleeve of the same length is required (see page 3 for part codes and page 27 for dimensions). Sleeves feature four removable 2” rubber knockouts as well as an acrylic pour cover for the upper surface, which fully protects the internal chamber while surface work is in progress.

  • Page 8: Surface Preparation And Drainage

    SOFT GRO U ND BASE - 2000 LBS WAL K-OVER R AT ING Finishing Concrete Soft ground base SURFACE PREPAR ATION A ND D R A IN AGE Correct surface preparation is essential to ensure that the required walk- or drive-over rating is achieved (see page 5), as well as sufficient drainage to prevent permanent flooding of the chamber(s).

  • Page 9: Mounting Height

    MO U NT IN G H EI GH T IMPORTANT: For walk- and drive-over installations, the sides of the sleeve must be fully supported and the sleeve height must be arranged to ensure that its top edge is exactly level with the finished surface: Sleeve too low Sleeve too high Sleeve level with surface...

  • Page 10: In-Ground Installation

    Note: If fine tilt adjustment will be required after installation, ensure the sleeve is correctly orientated to allow the tilt axis of the Terra Drum to align with the object being illuminated. See page 11. Sleeve 2” knockout www.acclaimlighting.com...
  • Page 11 Conduit lock nut 3 Lay the sleeve in place on a suitable mounting surface - see page 5. 4 Attach a suitable 1.5” conduit (by others) to the inlet hole and lock it in place. Repeat for the outlet hole, if required. 1.5”...
  • Page 12 9 Set the Terra Drum fixture near the sleeve and connect the cables. Note: When attaching cables and/or termination end cap, ensure the connectors are correctly mated and fully locked to prevent water penetration. Failure to do so may invalidate the warranty.
  • Page 13 Marker possible to rotate the arrow Terra Drum by up to 180º before fixing it in place using the trim ring. 12 Place the supplied trim ring onto the Terra Drum top face and align its three bolt holes with those in the sleeve.

  • Page 14: Terra-Tilt Adjustments

    T E RR A-T ILT A D J USTME NTS Terra Drum fixtures (except direct frosted view models) include an adjuster that allows the head angle to be fine tuned (in one axis) by +/- 15º after installation. TO USE T H E T E R R A-T I LT A D J UST E R 1 Use a Torx T20 security driver (not supplied) to loosen the bung on the glass surface of the fixture.

  • Page 15: Power

    DMX GND are both tied to true earth. Power cores: 14 AWG / 2.5mm Always follow these steps when using Terra Drum cabling: • Ensure that the power input is isolated from the mains supply. • At each connection, remove the cover caps from both the socket and plug.

  • Page 16: Interconnecting

    IN T ERCONN EC T I NG Terra Drum fixtures have two 18” (450mm) composite power/control leads - an input at one end and a output at the other. Fixtures can be directly daisy-chained or alternatively an optional link cable can be used between any two fixtures to make up a gap.

  • Page 17: Optional Ajbox1 Conduit Connections

    The separate power and control input connections can be made on the other side of these connector blocks. IMPORTANT: The AJBOX1 is rated for maximum voltages up to 277VAC. For further details, please see: • Page 13 for wire colors. • Acclaim Lighting AJBOX1 user guide (https://acclaimlighting.com/ajbox1). www.acclaimlighting.com...

  • Page 18: Run Lengths - Fixture Maximum

    RU N L ENGTHS - F IXTURE MA XIMUM The maximum number of fixtures that can be driven in a single run is determined by the supply voltage and the collective power requirements for the fixtures. Fixtures with differing LED color options can be mixed freely as they all adhere to the same power specifications (within their EO/SO/HO types).

  • Page 19: Important Cabling Considerations

    It should be noted that those limits are imposed only by the power characteristics. Acclaim Lighting recommends a maximum DMX / RDM control run length to the first Terra Drum fixture of no longer than 1,500’ (457m) without buffering.

  • Page 20: Control

    CONTRO L IN PUTS VIA CON VER TERS • DMX - connect a DMX input directly into the feed cable. • 0-10V - use an Acclaim Lighting ZDM 6 (or similar) to convert one or more analog control feeds into a combined DMX feed¹.

  • Page 21: Tips For Achieving Successful Dmx Control

    T I PS FO R AC HIEVIN G SU CCESSF UL DMX CO NT RO L • Acclaim Lighting recommends a maximum DMX / RDM run of 1,500’ (457m) without buffering. • Attach an end cap [Part #: TLAEC] to the output connector of the final fixture. The end cap will correctly terminate the DMX signal (and will also safely seal off the power bus).

  • Page 22: Optional Wireless Control

    OP T IO N AL W IRELESS CONTROL Using optional Acclaim Lighting Aria modules it is possible to wirelessly transmit a DMX signal to a Terra Drum run over distances up to 2600 feet (792m). Note: RDM is not supported via Aria wireless.

  • Page 23: Innovations To Enable Long Runs

    DMX; usually a maximum of 32 fixtures is possible before the signal-to-noise ratio threatens to affect operation. That is why Terra Drum fixtures act as their own signal isolator and conditioner before passing the control feed down the line. The result is a clean, reliable and [still] industry-standard control solution right to the end of the line.

  • Page 24: Oper Atio N

    OPER ATIO N Terra Drum fixtures have no external controls and instead rely on RDM (Remote Device Management) for all configuration via the DMX interface. This allows multiple devices to be configured either before or after installation. AD D RE SSIN G F IXT U RE S...

  • Page 25: Testing Fixtures

    TESTING FIXT UR ES After you have addressed each Terra Drum fixture we recommend that you also test each one prior to installation. This can be achieved with your RDM (Remote Device Management) tool. Various third party DMX/RDM tools are available; we recommend the Acclaim Lighting XMT-350 for this task.

  • Page 26: Behaviors If The Control Signal Is Lost

    BE HAV I ORS IF TH E CO N TRO L S IGN AL I S LOST If the DMX control signal is lost while power is applied, Terra Drum fixtures will respond in the following ways: • Single color versions - when DMX is lost, each fixture will go to full output until the control signal is restored.

  • Page 27: F Ur Th Er Infor Mat Ion

    F UR TH ER INFOR MAT ION TROUBLESH OOTI N G NO LIGHT OUTPUT IS VISIBLE WHE N EXP EC T E D • Check that power is correctly applied to the fixture and that there is no damage to the power input cord.

  • Page 28: Specifications

    SPECI FIC ATIO N S Emitters 2400K, 2700K, 3000K, 3500K, 4000K, DW (2700K-6000K), RGBA, QS (W=3000K), QW4 (W=4000K) or QW6 (W=6000K) Optics 10° x 10°, 10° x 60°, 25° x 25°, 30° x 60°, 40° x 40°, 60° x 60°, 90°...

  • Page 29: Dimensions

    D I M E N SI ON S T ERR A DRUM H O Ø12.36" (314mm) 0.16" (4mm) Ø11.14" (283mm) 0.16" (4mm) Ø9.72" (247mm) 0.87" (22mm) 7.48" (190mm) 1.3" (33mm) www.acclaimlighting.com...
  • Page 30 TE RR A DRUM S O Ø9.53" (242mm) 0.16" (4mm) Ø8.15" (207mm) 0.16" (4mm) Ø9.63" (176mm) 0.63" (16mm) 7.24" (184mm) 1.54" (39mm) www.acclaimlighting.com...
  • Page 31 T ER R A DRUM EO Ø7.13" (181mm) 0.16" (4mm) Ø5.98" (152mm) 0.16" (4mm) Ø5.28" (134mm) 0.57" (14.5mm) 7.24" (184mm) 1.14" (29mm) www.acclaimlighting.com...
  • Page 32 HO SLEEV E Ø12.36" (314mm) 0.16" (4mm) Ø1.85" (47mm) HO SN O OTS OD: Ø12.28" (312mm) 5.91" (150mm) OD: Ø12.28" (312mm) 5.91" (150mm) www.acclaimlighting.com...
  • Page 33 SO S L EEVE Ø9.53" (242mm) 0.16" (4mm) 7.01" 8.46" (178mm) (215mm) Ø1.85" (47mm) SO S NO OTS OD: Ø9.45" (240mm) 3.94" (100mm) 3.94" OD: Ø9.84" (240mm) (100mm) www.acclaimlighting.com...
  • Page 34 EO S LEEVE 0.16" Ø7.13" (181mm) (4mm) 7.01" 8.46" (178mm) (215mm) Ø1.85" (47mm) EO S NO OTS OD: Ø7.09" (180mm) 3.54" (90mm) 3.54" OD: Ø7.09" (180mm) (90mm) www.acclaimlighting.com...
  • Page 35 C ABL ES Feed cable (10 or 50’) Link cable (1, 5 or 10’) Terminator (end cap) www.acclaimlighting.com...
  • Page 36 A JB OX1 1 No. ¾” NPT conduit outlet 2 No. ½” NPT conduit inlets 2 No. ½” NPT conduit inlets www.acclaimlighting.com...

  • Page 37: Limited Product Warranty

    If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package.
  • Page 38 www.acclaimlighting.com...
