Owner Manual
AL
DESCRIPTIONS

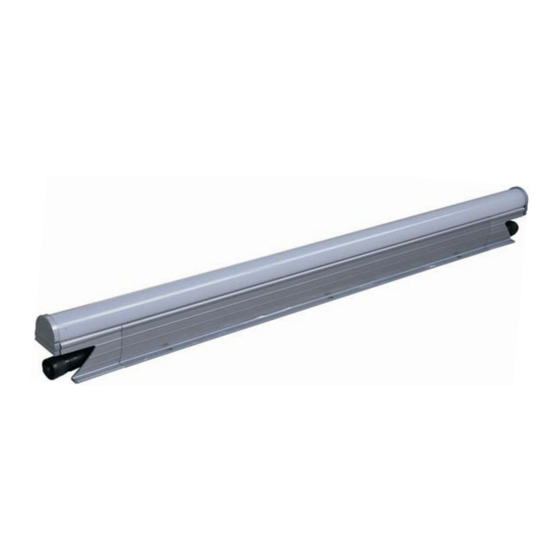

The AL-BAR-AC-DMX-1200-RGB is a multi-color LED lighting bar with built-in PSU.
consists of 10 segments and each RGB can be separately controlled by DMX 512 or special DMX-1000K Signal.
initial default address was set as auto-addressing.
software.
The AL-BAR-AC-DMX-1200-RGB is
temperature range. It is easy to install and operate.
SPECIFICATION
POWER SUPPLY
POWER CONSUMPTION
CONTROL
LIGHT SOURCE
VIEWING ANGLE
CONNECTION
HOUSING
LENGTH
INGRESS PROTECTION RATING
LISTING
OPERATION TEMPERATURE
STORAGE TEMPERATURE
DIMENSIONS
WEIGHT
PHYSICAL DIMENSIONS
-BAR-AC-DMX-1200-RGB
The user also may manually to set the address through a special
ideal for outdoor applications with its IP65 character and the wide operating
100~240V AC,50/60Hz
277V AC,for North America Only
18W max
DMX 512 controls max 17pcs
DMX-1000K (1M) controls 60pcs max
60 RGB LEDs
120 deg
8-pin IP power/data male/female connector (power/data interface)
Aluminum extrusion
1200mm
IP65
CE certified
-20 degC to +60 degC
-20 degC to +70 degC
1200(L) x 67(W) x 95(H)mm
4kg
-1-
An
AL-BAR-AC-DMX-1200-RGB
1200
AL-BAR-AC-DMX-1200-RGB
AL-BAR-AC-DMX-1200-RGB
Its
