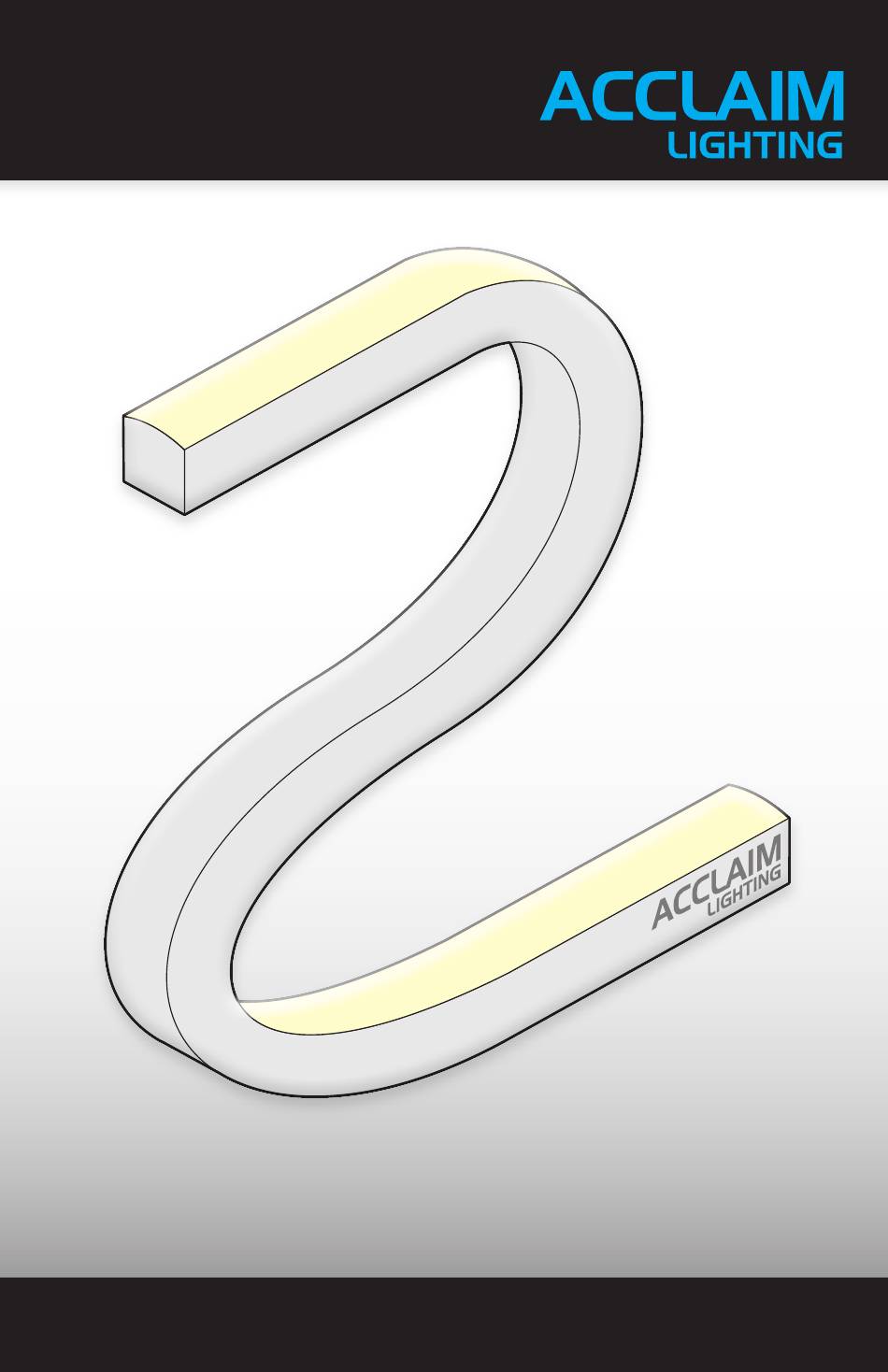

- Page 1 Flex Tube [SC, DW and Spectrum] GEN 2 User guide...
-
Page 3: Table Of Contents
CONTEN TS IN TR OD UC T ION ........2 Welcome Safety, maintenance and cleaning Bends, feeds and colors IN STA L L ATIO N ......... . 4 Take great care to avoid damage during installation Two person install Unpacking... -
Page 4: Int Rodu C T Ion
INT RODU C T ION W E LCO M E Welcome to the Flex Tube Gen 2 range from Acclaim Lighting. These compact and flexible LED powered strips produce a greatly homogenized light output along their full length to provide a viable alternative to other linear light sources, such as neon or cold cathode. -
Page 5: Bends, Feeds And Colors
BENDS, FEE DS AND CO LO R S Flex Tube strips are available with two bend options, four choices of power feed and multiple LED emitter colors, which can be mixed in any combination to suit your installation. The overall order code is arranged as follows: F2#-22#-XA#N LED emitter color : 2200K... -
Page 6: Insta Ll At Ion
INSTA LL AT ION TAKE GREAT CARE TO AVOID DAMAGE DURING INSTALL ATION Flex Tubes will provide many years of reliable service, however, they contain delicate components which are prone to damage if handled incorrectly or treated roughly. Please read and follow all of the directions given on these four pages before attempting to install any Flex Tube: •... -
Page 7: Unpacking
UNPAC K ING CAUTION: Each Flex Tube contains a delicate LED emitter tape which is designed to bend in one plane only (model dependent). Always take great care to avoid twists and kinks or bends in the opposite plane from the intended vertical or horizontal curvature. -
Page 8: Bending Flex Tubes
BE ND ING FLE X TU BE S Flex Tubes are designed to be bent in one axis only - to a minimum bend radius of 5.9” (150mm): IMPORTANT Do not twist; or bend in the wrong direction. Damage will be caused to the internal circuitry. -
Page 9: Cable Care
C A BL E C A RE Treat the Flex Tube feed cable with care to avoid damage. Please pay particular attention where the cable enters the body of the tube. Failure to do so may break crucial connections and/or damage the waterproof seal. -
Page 10: Mounting Channel Kits
MOUNTING CH A N N E L KI TS SURFACE AN D REC ESSED These kits are used to mount Flex Tube strips onto/into solid surfaces. KI T CO NTENTS See “Mounting channels - surface and recessed” on page 19 Self-tapping Mounting channel mount screw(s) - Page 11 3 Push the Flex Tube (front face outwards) fully into the mount channel until it engages with the silicone seals. Note: To further aid long term stability - If mounting inverted or vertically, we recommend that you add dots of silicone sealant (Dow Corning® 799, 1199 or equivalent) at regular intervals between the sides of the Flex Tube and the inside faces of the mounting channel as it is pushed into place.
-
Page 12: Flexible
FLEX IBLE This kit is used to support Flex Tube strips (with horizontal bend profiles) so that they can be formed into curved shapes. KI T CO NTENTS See “Mounting channels - flexible” on page 20 Self-tapping mount screw(s) (dependant on channel Flexible mounting channel length) (1.6’/0.5m or 3.28’/1m lengths) -
Page 13: Connecting And Controlling Flex Tubes
8% (1.92V) of the original 24VDC supply. FL EX TUBE SC - NO N-D I M Use Acclaim Lighting APS-300-24-IP 24V power supply. Up to three Flex Tube SC strips can be run from a single APS-300-24-IP power supply unit. -
Page 14: Single Color - Dimmed (0-10V Or Triac/Elv)
FL EX T U BE SC - DI MM ED ( 0-1 0V OR T R IAC / E LV CON T R OL) These drivers provide 24VDC constant voltage PWM output in response to either a low voltage control input or dimmed mains source: •... -
Page 15: Single Color - Dimmed (0-10V Or Dmx)
DIMME D (0-10V OR DM X CONT R OL) Use Acclaim Lighting AL Driver 1 [part #: ALD001] + APS-300-24-IP 24V power supply. The AL Driver 1 module controls one spool of Flex Tube, either under control of an external DMX digital signal, an external 0-10V/1-10V analog signal or using standalone intensity mixes. -
Page 16: Spectrum - Dimmed (Dmx)
D IMM ED (D MX CON T R OL ) Use Acclaim Lighting AL Driver 4 [part #: ALD004] + APS-300-24-IP 24V power supply. The AL Driver 4 module controls a single circuit of RGB or RGBW LED tape, either under control of an external DMX signal or using standalone color mixes or chase patterns. -
Page 17: Sc, Dw Or Spectrum - Dimmed (0-10V, Dali Or Dmx)
FL EX TU BE SC / DW / SPEC TR UM D IM MED (0-10V, DA LI OR DMX CONT ROL ) Four ports: [part #: AL Driver 200] Six ports: [part #: AL Driver 400] or Ten ports: [part #: AL Driver 800]. The full size AL Drivers provide multi-channel dimming control for Flex Tube strips. -
Page 18: F Urth Er Infor Mat I On
F URTH ER INFOR MAT I ON TROUBLESHOOTI N G NO L IGHT O U TPUT IS VISIBLE WHEN EX P EC T ED. • Check that power is correctly applied to the fixture and that there is no damage to the power input cord. -
Page 19: Specifications
S P EC I FI C ATIO NS Colors 2200K, 2700K, 3000K, 3500K, 4000K 5700K, Red, Green, Blue or Amber Dynamic white: 2200K to 5700K Spectrum QS: RGBW, W=3000K or QW4: RGBW, W=4000K Beam angle Photometrics SC Up to 140 lumens per foot (white models: 80 CRI, 3 step SDCM) 146 lumens per foot (estimated) Spectrum... -
Page 20: Dimensions
DIMENS IO NS - F LEX TUBE 0 . 6 3 " Note: Each feed cable has a metal-encased joint roughly 5” (130mm) from the inlet, which must not be removed. Max Ø 0.67" 0.59” (15mm) ( mm) Rear feed F2#-225-XA#N 0.39"... -
Page 21: Mounting Channels - Surface And Recessed
D IM EN SIO NS - SURFACE AND RECE SSED MOUNTI NG C H A NNELS Surface mounting channel • 0.78” (20mm) F2CH20 • 3.28’ (1m) F2CH1000 • 6.56’ (2m) F2CH2000 Ø0.16 x 0.39" Ø4 x 10mm) 0.78" 0.28" ( mm) ( mm) 0.78"... -
Page 22: Mounting Channels - Flexible
DIMENS IO NS - F LEXIBLE MOU NTING C H A NNEL (for use only with horizontal bend models - F2B/F2N/F2H) • 1.6’ (0.5m) F2FCH500 • 3.28’ (1m) F2FCH1000 Ø0.16 (Ø4 " 0.78" 0.28" ( mm) ( mm) 0.39" 0.04" 0.78"... -
Page 23: Mle Driver
D IM EN SIO NS - M L E D R IVE R 96 0.75" ( mm) 5.24 133 " ( Ø0.85" 4.13 105 " ( Ø21.5 Ø0.85" (Ø21.5mm) Weight: 3.1 lbs (1.4kg) www.acclaimlighting.com... -
Page 24: Mle Drivers 192 And 288
D IMEN SIO NS - M L E D R IVE R S 192 AN D 28 8 0.87" ( mm) 6.61 168 " ( Ø0.85" 5.59 142 " ( Ø21.5 Ø0.85" Ø21.5 Weight (192): 5.5 lbs (2.5kg) Weight (288): 5.7 lbs (2.6kg) www.acclaimlighting.com... - Page 25 D IM EN SIO NS - AL D RIVER 1 DMX A DDRESS ETTING 0-10V/1-10V Data - Data + 1.57" 2 3 4 5 6 7 8 9 0-10V/1-10V (40mm) 1 2 3 4 5 6 7 8 9 10 11 12 Data - DC 6-12V/5A, DC 24V/4A(+)
-
Page 26: Al Driver 200
D IMEN SIO NS - A L D R I VE R 200 0.31" (8mm) 0.55" (14mm) A L D R I V E R 2 0 0 C 2 2 4 V DALI DMX/RDM 0-10V POWER DOWN 3.94 100 "... -
Page 27: Al Driver 400
D IM EN SIO NS - AL D RIVER 400 0.31" (8mm) 0.55" (14mm) A L D R I V E R 4 0 0 C 2 2 4 V DALI DMX/RDM 0-10V POWER DOWN 5.91" (150mm) 3.15" (80mm) 9.06" (230mm) Weight: 8.4 lbs (3.8kg) www.acclaimlighting.com... -
Page 28: Al Driver 800
DIMENS IO NS - AL DRIVE R 800 0.31" (8mm) 0.55" (14mm) DALI DMX/RDM 0-10V A L D R I V E R 8 0 0 C 2 2 4 V POWER DOWN 8.7" (220mm) 4" (100mm) 10.7" (270mm) Weight: 14.4 lbs (6.5kg) www.acclaimlighting.com... -
Page 29: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 30 www.acclaimlighting.com...
