Summary of Contents for Teltonika TMT250

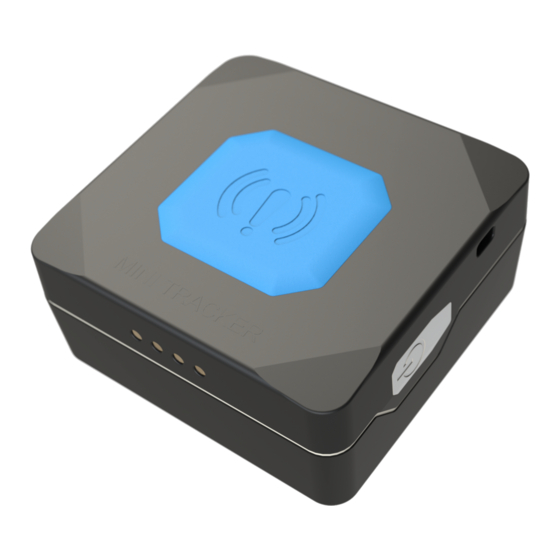

- Page 1 TMT250 Mini Tracker Easy Quick Manual v1.0...
-
Page 2: Table Of Contents
Default configuration settings ...................................9 Troubleshooting ....................................... 10 Mounting recommendations..................................10 Led indications ......................................... 11 Basic characteristics ......................................11 Safety information ......................................14 Certification and Approvals .................................... 16 Warranty ........................................... 16 Warranty disclaimer ......................................17 Quick Manual v1.0 // TMT250 Telematics... -
Page 3: Know Your Device
KNOW YOUR DEVICE TOP VIEW TOP VIEW (WITHOUT COVER) ALARM CORDS FIXING MICRO SIM BUTTON HOLE SLOT RGB LED ON/OFF BATTERY BUTTON SOCKET MAGNETIC CONTACTS Quick Manual v1.0 // TMT250 Telematics... -
Page 4: Set Up Your Device
Attach device cover back and screw in all device. 4 screws. After configuration, see PC Connection (WINDOWS) . When it is done, reattach the cover and push it in place. 1 Page 5, “PC Connection (Windows)” Quick Manual v1.0 // TMT250 Telematics... -
Page 5: Pc Connection (Windows)
• Using Bluetooth • TMT250 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device > Bluetooth. Choose your device named – “TMT250_last_7_imei_digits”, without LE in the end. Enter default password 5555, press Connect and then select Done. -
Page 6: Configuration(Windows)
Make sure you have the correct version installed. 1 wiki.teltonika-mobility.com/view/Teltonika_Configurator 2 wiki.teltonika-mobility.com/view/TMT250_Stable_firmware MS .NET REQUIREMENTS Operating system MS .NET Framework version Version Links Windows Vista Windows 7 MS .NET Framework 4.6.2 32 and 64 bit www.microsoft.com Windows 8.1 Windows 10 dotnet.microsoft.com/en-us/download/dotnet-framework Quick Manual v1.0 // TMT250 Telematics... - Page 7 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about TMT250 configuration using Configurator can be found in our Wiki wiki.teltonika-mobility.com/view/TMT250_Status_info wiki.teltonika-mobility.com/view/TMT250_Status_info#GNSS_Info wiki.teltonika-mobility.com/view/TMT250_Status_info#GSM_Info wiki.teltonika-mobility.com/view/TMT250_Status_info#I.2FO_Info wiki.teltonika-mobility.com/view/TMT250_Status_info#Maintenance...
-
Page 8: Quick Sms Configuration
2003 – APN password (if there are no APN password, empty field should be left) SERVER SETTINGS: 2004 – Domain 2005 – Port 2006 – Data sending protocol (0 – TCP, 1 – UDP) Quick Manual v1.0 // TMT250 Telematics... -
Page 9: Default Configuration Settings
IF DEVICE HAS MADE A RECORD Hour passes 120 sec on move and 600 send on stop After successful SMS configuration, TMT250 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator SMS parameters wiki.teltonika-mobility.com/view/Teltonika_Configurator_Introduction... -
Page 10: Troubleshooting
wiki.teltonika-mobility.com/view/FAQ If these recommendations did not help, please contact your sales manager or contact us directly through Teltonika VipHelpDesk. Find recommendations on how to fill in a query in our FAQ page in the Teltonika Wiki Knowledge base. MOUNTING RECOMMENDATIONS We recommend using the device in such a way, that device buttons an LEDs are easily and quickly accessible. -
Page 11: Led Indications
Quad-band GSM 850 / 900 / 1800 / Red LED flashes 2G bands 1900 MHz when the level of the Battery Low battery is 10% GPRS: Max 107Kbps (DL)/Max Data transfer 85.6Kbps (UL) Data support SMS (Text/Data) Quick Manual v1.0 // TMT250 Telematics... - Page 12 Sleep modes Ultra Deep Sleep, GPS Sleep, Low LED indication 1 RGB LED power mode Micro-SIM Configuration and FOTA Web, Teltonika Configurator firmware update (USB, Bluetooth) Memory 128 MB internal flash memory Configuration, Events, Debug Quick Manual v1.0 // TMT250 Telematics...
- Page 13 GPRS commands Configuration, Debug Time Synchronization GNSS, NITZ, NTP CERTIFICATION & APPROVALS CE/RED, EAC, Anatel, UKCA, RoHS, Regulatory REACH, IP67 Quick Manual v1.0 // TMT250 Telematics...
-
Page 14: Safety Information
SELV LPS chargers, personal computers or laptops that device will be connected to must comply with the requirements of IEC 60950:2005 standard. This message contains information on how to operate TMT250 Use only original batteries safely. By following these requirements and recommendations, Using uncertified manufacturer or different type you will avoid dangerous situations. - Page 15 Do not drop, disassemble or modify it. easily accessible. Use only Teltonika Telematics approved batteries Charging precautions for replacement. Using uncertified manufacturer Do not attempt to charge a wet device.
-
Page 16: Certification And Approvals
Replaced with an equivalent repaired product fulfilling the same functionality • Replaced with a different product fulfilling the same functionality in case of EOL for the original product Additional agreement for an extended warranty period can be agreed upon separately. Quick Manual v1.0 // TMT250 Telematics... -
Page 17: Warranty Disclaimer
Warranty does not apply to any consequential damages. • Warranty is not applicable for supplementary product equipment (i. e. PSU, power cables, antennas) unless the accessory is defective on arrival. • More information on what is RMA wiki.teltonika-gps.com/view/RMA_guidelines Quick Manual v1.0 // TMT250 Telematics...
