Summary of Contents for Teltonika TST100
- Page 1 TST100 Quick Manual E-scooter tracker...
-
Page 2: Table Of Contents
How to install USB drivers (Windows) ..........6 Configuration (Windows) ..............6 Quick SMS configuration ..............8 Installation instructions ............... 9 LED indications ................10 Characteristics................10 Basic characteristics ............... 10 Electrical characteristics ..............11 Safety information ..............12 Certification and Approvals ............13 TST100 | Wiki... -
Page 3: Know Your Device

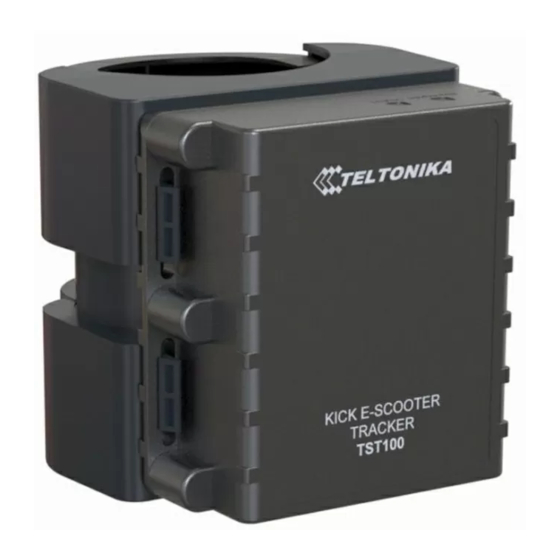

Know your device Figure 1 TST100 device view TST100 | Wiki... -
Page 4: Pinout
Pinout Table 1 TST100 pinout Pin name Description VCC (8-50)V Power supply (8-50) V DC (+). GND (-) Ground pin. (8-50) V DC (-) Power control wire Data received pin Data transmitter pin TST100 | Wiki... -
Page 5: Set Up Your Device
2. Connect battery as shown to device. 3. Connect micro usb cable as shown 4. To power up TST100, connect green plug to the E-scooter 5. Open Teltonika configurator, select TST100 device and configure it according to your requirements (how to install drives on page 6. -
Page 6: How To Install Usb Drivers (Windows)
(Figure 2 Language selection). Configuration (Windows) Configuration process begins by pressing on connected device At first TST100 device will have default factory settings set. These (Figure 4 Device connected via USB). settings should be changed according to the user's needs. Main... - Page 7 Save to device – saves configuration to device. Load from file – loads configuration from file. Save to file – saves configuration to file. Update firmware – updates firmware on device. Figure 4 Device connected via USB TST100 | Wiki...
-
Page 8: Quick Sms Configuration
– Data sending protocol After successful SMS configurationTST100 device will synchronize (0 – TCP, 1 – UDP) time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters. TST100 | Wiki... -
Page 9: Installation Instructions
Installation instructions PAY ATTENTION! E-scotter should be swithched off when connecting TST100 plug. To avoid any damage double check if cable and plug are placed correctly before attaching bracket to the E-scooter . TST100 | Wiki... -
Page 10: Led Indications
Device is not working or Device is in GPRS Multi-Slot Class 12 (up to 240 Data transfer sleep mode kbps), GPRS Mobile Station Class B Blinking fast constantly Device firmware is being flashed Data support SMS (text/data) TST100 | Wiki... -
Page 11: Electrical Characteristics
Characteristic description Min. Typ. Max. Unit Dimensions 78X75X70 (L,W,H) Weight 250 g Supply Voltage Operating environment Supply Voltage (Recommended Operating Conditions) Operating temperature (without battery) Storage temperature (without battery) Operating humidity Ingress Protection Rating IP65 Features Sensors Accelerometer TST100 | Wiki... -
Page 12: Safety Information
Safety information The programming must be performed using a PC with autonomic power supply. This message contains information on how to operate TST100 safely. By Installation and/or handling during a lightning storm following these requirements and recommendations, you will avoid is prohibited. -
Page 13: Certification And Approvals
This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste. Hereby, Teltonika declare under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED). - Page 14 TST100 | Wiki...
