https://wiki.teltonika-gps.com/view/TMT250_First_Start

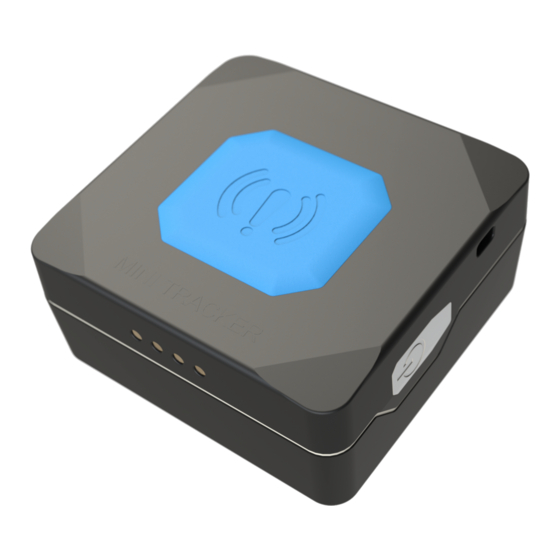

TMT250 First Start
Main Page
>
Autonomous Trackers
Contents
1 How to insert micro SIM card and connect the battery
How to insert micro SIM card and connect the battery
1.
Unscrew 4 screws counterclockwise.
2.
Remove the cover.
3.
Insert Micro-SIM card as shown. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
Connect the battery as shown to the device.
4.
5.
Attach device cover back and screw in all 4 screws.
6.
Device is ready to be used.
NOTE: In order to prevent device's cover from mechanical damage it is recommended to use
screwdriver, which is included in the package.
Correct Battery Connection
PC Connection (Windows)
1.
Connect device to computer using Magnetic USB cable or Bluetooth connection:
Using Magnetic USB cable
You will need to install USB drivers, see
(Windows)"
Using Bluetooth
TMT250 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then
select Add Bluetooth or other device > Bluetooth. Choose your device named –
>
TMT250
> TMT250 First Start
"How to install USB drivers
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teltonika TMT250
Summary of Contents for Teltonika TMT250
- Page 1 You will need to install USB drivers, see "How to install USB drivers (Windows)" Using Bluetooth TMT250 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device > Bluetooth. Choose your device named –...
- Page 2 Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first TMT250 device will have default factory settings set. These settings should be changed according to the user's needs. Teltonika Configurator Main configuration can be performed via software.
- Page 3 Maintenance and etc. TMT250 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
- Page 4 2006 – Data sending protocol (0 – TCP, 1 – UDP) Note: Before SMS text, two space symbols should be inserted. After successful SMS configuration, TMT250 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using...
- Page 5 If device stopped working properly regardless of the settings only a qualified specialist can help. It is recommended to contact your local seller or your UAB Teltonika manager in such a case. Use the right screwdriver In order to prevent device's cover from mechanical damage it is recommended to use screwdriver, which is included in the package.
