Teltonika TMT250 Quick Start Manual

HOW TO ASSEMBLE
THE WRISTBAND OF
TMT250
STEP 1
Unscrew the bolts of
the lid with allen key:
STEP 2
STEP 4
After inserting the device check if
the wristband has not slipped out
STEP 5
by pulling the wristband. Keep the
cover unclosed while pulling the
wristband softly. If it slips out,
repeat Step 3 and 4.
Remove the lid of the device
by lowering rubber tie and
pulling the wristband.
Make sure that the wristband securely stays
in place. Then, insert TMT250 device all the
way in, so that contacts of TMT250 would
face outside of tamper detection device.
HOW TO ASSEMBLE THE WRISTBAND OF TMT250 V1.00
PREPARATION:

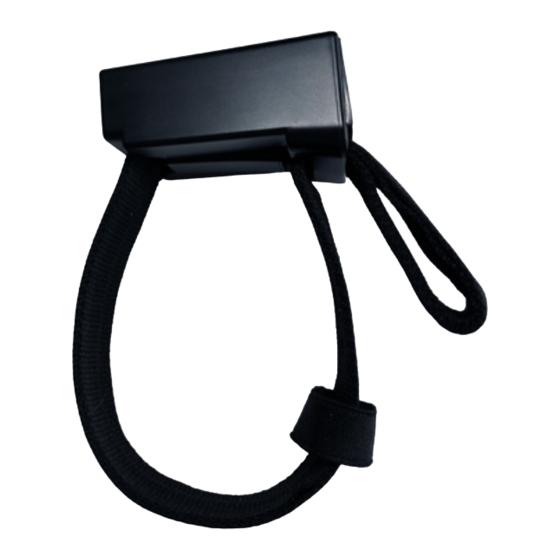

TMT250 tamper Allen key, size 2
detection device
(Not included in the
package)
Before inserting TMT250 into the tamper
STEP 3
detection device, ensure that the wristband
is securely placed in the back of the device.
TMT250 device
