Tool Information

The Hakko Rework Tool is used for quick placement and/or removal of components
from PCB boards through heating and vacuuming. Some key features include the ability to
make full-scale thermal profiles, measure and record the temperature of components, and easy
data transfer.
Company: Hakko
Model: Hakko FR-811
Link to the Hakko station:
https://www.hakko.com/english/products/hakko_fr811_set.html

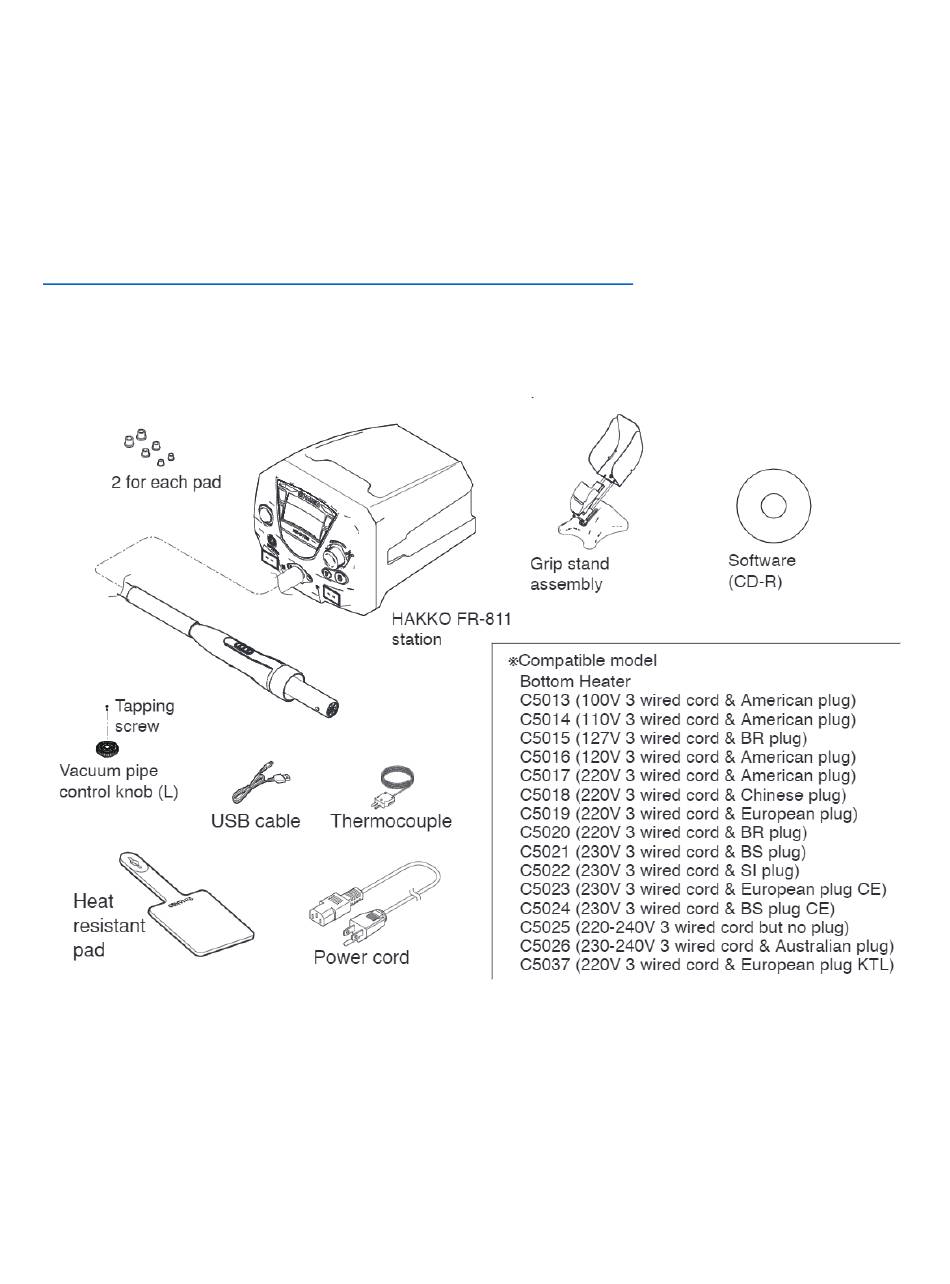

Part Names
In this user guide, we will refer to different parts of the tool with the same names found in the
manual from Hakko.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR-811 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hakko Electronics FR-811

  • Page 1 PCB boards through heating and vacuuming. Some key features include the ability to make full-scale thermal profiles, measure and record the temperature of components, and easy data transfer. Company: Hakko Model: Hakko FR-811 Link to the Hakko station: https://www.hakko.com/english/products/hakko_fr811_set.html Part Names In this user guide, we will refer to different parts of the tool with the same names found in the manual from Hakko.
  • Page 2 Placement of the PCB Board 1. Getting You Oriented  We will refer to the XYZ axis assuming that you are seeing the tool in the following orientation, so that you are facing the front of the bottom heater.  The goal is to orient the PCB board and handpiece so that the pad is directly on area of which you wish to remove/add a component.
  • Page 3  Rotation: You can rotate the arm of the L-shaped structure by loosening the knob located to the left of the handpiece. 3. Fine adjustment  X-axis adjustment: The rearward knob in the back righthand corner will move the rails that hold the PCB board along the x-axis (left or right). ...
  • Page 4  Position the vacuum with the part so that it is just above the tray with the heat resistant pad (the black rectangular piece).  Press “V” to turn off the vacuum. The part should drop down onto the pad. 5.
  • Page 5 There are 2 modes. Manual and Automatic. To remove/add a component, you generally do not have to concern yourself with worrying about which mode to use. For your reference, instructions for how to use the control knob to navigate the screen is written below. Control Knob ...
  • Page 6 o Pressing the center of the control knob confirms input of data values and ends the input mode for that data Notes  Note that the bottom heater is not used in this manual. o If the bottom heater is on, “BTM” will appear in the top right hand corner of the station screen.
