Summary of Contents for Maxx Ice MIM25CO

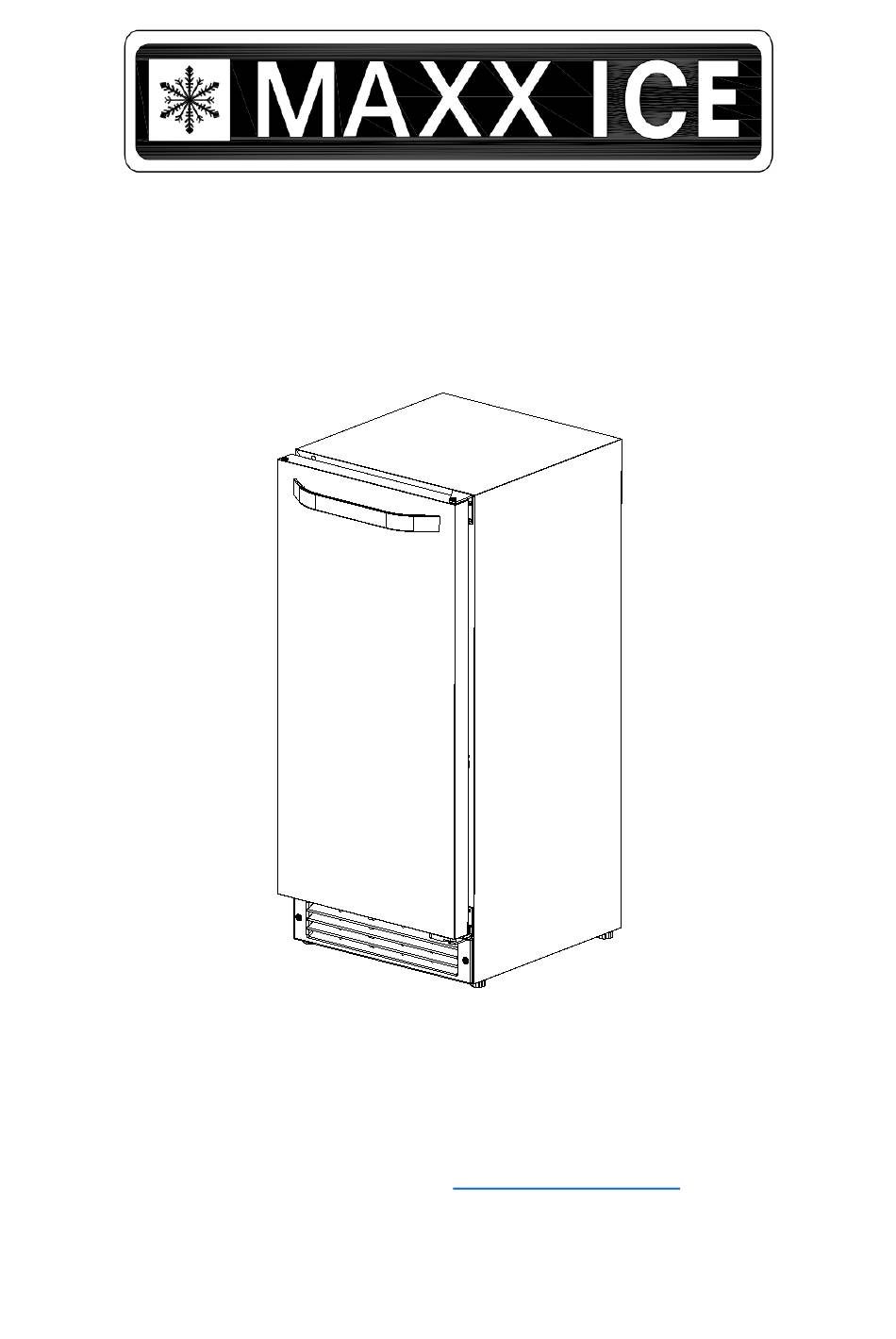

- Page 1 Crescent Ice maker INSTRUCTION MANUAL Free Standing / Built-in For AUTHORIZED PARTS or TECHNICAL SERVICE, please contact: 1-877-368-2797 or visit Service@MaxxHelp.com 3355 Enterprise Avenue, Suite 160, Fort Lauderdale, FL 33331 USA 101122a...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING California Proposition 65 Certain components in this product and its related accessories contain chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. DANGER – Risk Of Fire Or Explosion. FLAMMABLE REFRIGERANT Used. Do Not Use Mechanical Devices To Defrost Refrigerator.
- Page 4 qualified technician perform all other service on the unit. • Children 8 years of age and older and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance if they have been given supervision or instruction concerning use of the appliance in a safe way and they understand the hazards involved.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Product Overview and Specs ………………………………………………………..1 - 2 Installation Before Using Your Ice Maker ……………………………………………………………….3 Installing the Handle …………………………………………………………………..…3 Installation the Ice Maker …………………………………………………………………...4 Reversing the Door Swing …………………………………………………………………..5 Electrical Connection ……………………………………………………………………...5 - 6 Extension Cord ……………………………………………………………………………...6 Connecting the Water Supply ……………………………………………………………..6 Operating Initial Start-Up Operation …………………………………………………………………..7 Maintenance... -
Page 6: Product Overview And Specs
Product Overview and Specs MIMB25CADA MIMB25C Model MIM25CO MIM25CADA MIM25C Voltage/Frequency AC 115V 60Hz Rated Ice making current 1.9A Rated Ice harvest current 1.5A Refrigerant R600A, 1.58Oz. Indoor/Outdoor Indoor Indoor or Outdoor* Indoor IP Rating IPX4 Installation Type Free standing / Built-in... - Page 7 Product Accessories Ice Bucket Ice Scoop Left Latch Block Left Latch Hook...
-
Page 8: Installation
INSTALLATION BEFORE USING YOUR ICE MAKER • REMOVE THE EXTERIOR AND INTERIOR PACKAGING MATERIAL. • CHECK TO BE SURE YOU HAVE ALL OF THE FOLLOWING PARTS: • 1 ICE BUCKET • 1 ICE SCOOP • 1 QUICK FITTING [for connecting water supply] •... -
Page 9: Installation The Ice Maker
INSTALLATION THE ICE MAKER • THE APPLICANCE SHALL NOT EXPOSED TO RAIN EVEN FOR THE MODEL WITH IPX3. • THIS APPLIANCE IS DESIGNED TO VENT HOT AIR THROUGH THE FRONT VENT. THIS ALLOWS FOR INSTALLATION IN A RECESSED OR BUILT-IN APPLICATION, IF DESIRED. •... -
Page 10: Reversing The Door Swing
We recommend to leave at least 2’’ for the back, ¼’’ for the top and the sides. REVERSING THE DOOR SWING THIS APPLIANCE HAS THE CAPABILITY OF THE DOOR OPENING FROM EITHER THE LEFT OR RIGHT SIDE. THE UNIT IS DELIVERED TO YOU WITH THE DOOR OPENING FROM THE LEFT SIDE (HINGED ON THE RIGHT). -
Page 11: Extension Cord
• DO NOT USE AN EXTENSION CORD TO CONNECT POWER TO THE UNIT. • DO NOT USE A TWO-PRONG GROUNDING ADAPTER. • IF YOU ONLY HAVE A TWO-PRONG WALL RECEPTACLE, CONTACT A QUALIFIED ELECTRICIAN TO HAVE IT REPLACED WITH A 3-PRONG RECEPTACLE IN ACCORDANCE WITH APPLICABLE ELECTRICAL CODES. -
Page 12: Operating
OPERATING INITIAL START-UP OPERATION 1. PLUG THE APPLIANCE INTO A 115/120V POLARIZED AND GROUNDED WALL ELECTRICAL OUTLET. 2. PLACE THE ON-OFF SWITCH IN THE “I” POSITION. 3. MAKE SURE THE WATER SUPPLY IS ON. AS SOON AS THE INNER MECHANISM REACHES THE PROPER TEMPERATURE, THE ICEMAKER MECHANISM WILL FILL THE MOLD WITH WATER. -
Page 13: Power Failure
CAUTION FAILURE TO UNPLUG THE ICE MAKER WHEN CLEANING, MOVING, OR SERVICING IT COULD RESULT IN ELECTRICAL SHOCK OR PERSONAL INJURY. POWER FAILURE MOST POWER FAILURES ARE CORRECTED WITHIN A FEW HOURS AND SHOULD NOT AFFECT THE TEMPERATURE OF YOUR ICE MAKER IF YOU MINIMIZE THE NUMBER OF TIMES THE DOOR IS OPENED. -
Page 14: Troubleshooting
TROUBLESHOOTING GUIDE Before Calling for Service: If the unit appears to be malfunctioning, read through the “Operation” section of this manual first. If the issue persists, check the Troubleshooting Guide below. Some of the problems mentioned in the Troubleshooting Guide can be solved easily without a service call. Problem Possible Cause Probable Correction... - Page 15 The thermostat may have been Adjust thermostat towards the adjusted to the highest temperature COLDEST. setting. The ambient temperature is high, or Adjust thermostat towards the the unit is near a heat source. COLDEST. Abnormal Ice, The door gasket does not seal Check the door is properly closed.
